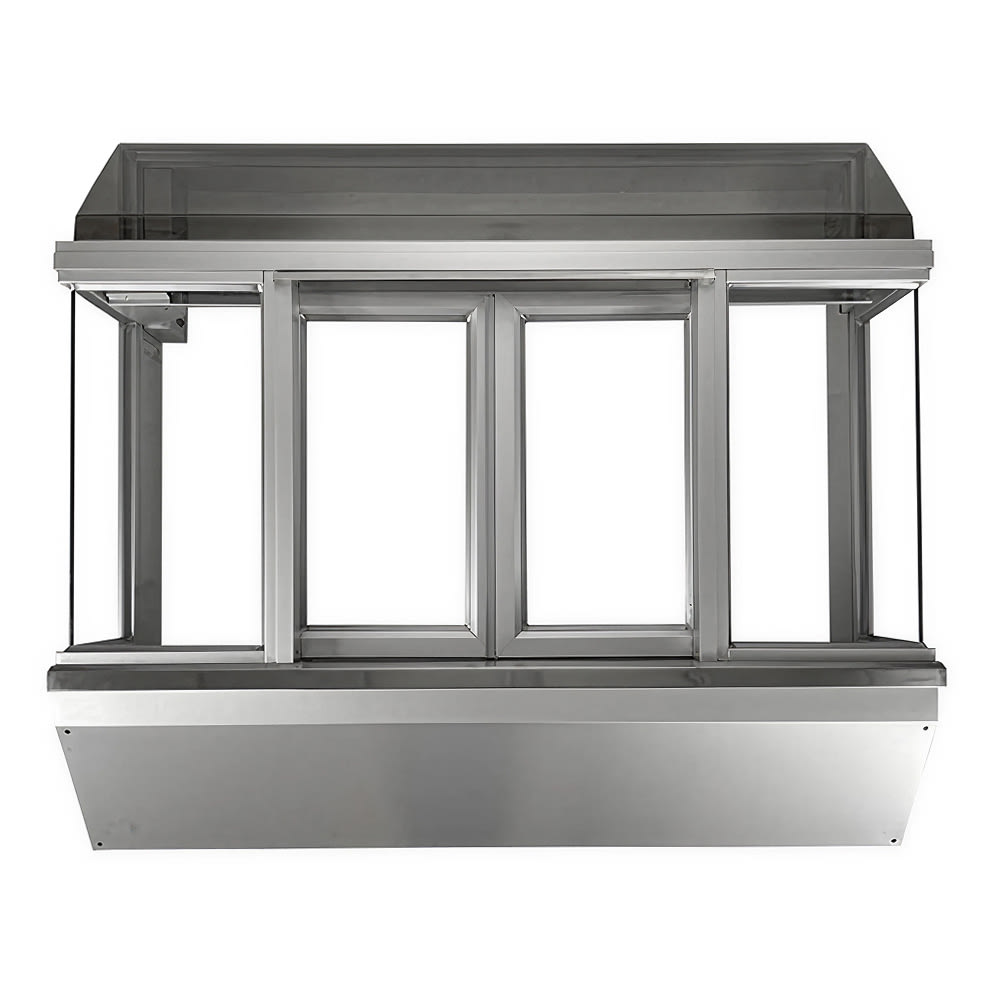

Ready Access 65163302 Model BO10 53 1/2"W x 48 3/4"H Silver Bi-Parting Manual Drive-Thru Window
Retail Price: $4,080.00
$2,529.00 /Each
Selected Color: Silver
Ready Access 65163302 Description
The Ready Access 65163302 Bump Out 10 service window provides a wide, panoramic view and generous interior counter space, making it ideal for drive-thru and walk-up environments in foodservice and retail. Featuring bi-parting manual doors with a patented gravity-based self-close system, the window includes 1⁄4-inch clear tempered glass panels and a clear anodized aluminum frame for durability and visibility. The unit offers a spacious 18-inch-wide by 23-inch-high service opening and over four feet of usable interior counter space. Its track-free bottom sill ensures a clean work area, while the Lexan tinted transom reduces glare and deflects moisture. Fully assembled and pre-glazed, this window is ready for quick installation.
Product Details
- Model: Bump Out 10 drive-thru or walk-up service window
- Manual open with patented gravity-based self-closing system
- Bi-parting door operation
- Clear anodized aluminum frame resists rust and weathering
- Lexan tinted transom deflects moisture and reduces glare
- Over 4 ft. of interior usable counter space
- Track-free bottom sill for a cleaner work area
- Fully assembled and pre-glazed for fast installation
- 1⁄4-in. clear tempered glass panels
- Service opening: 18 in. W x 23 in. H
- Rough opening: 54 in. W x 49 1⁄4 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
DRIVE THRU or WALK UP SERVICE WINDOW, BUMP OUT 10, 1/4" Clear Tempered Glass, Manual Open Self Close, Bi-Parting, Clear Aluminum Frame, 53.5"W x 48.75"H
Ready Access 65163302 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ready Access |
| Color | Silver |
| Direction | Bi-Parting |
| Operation | Manual Open w/ Self Close |
| Overall Depth (in) | 14.25 |
| Overall Height (in) | 48.75 |
| Overall Width (in) | 53.5 |
| Product | Drive-Thru Windows |
| Product Type | Facility Access |
| Rough Opening Height (in) | 49.25 |
| Rough Opening Width (in) | 54 |
| Series | Bump Out 10 |
| Service Opening Height (in) | 23 |
| Service Opening Width (in) | 18 |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 195.00 |
