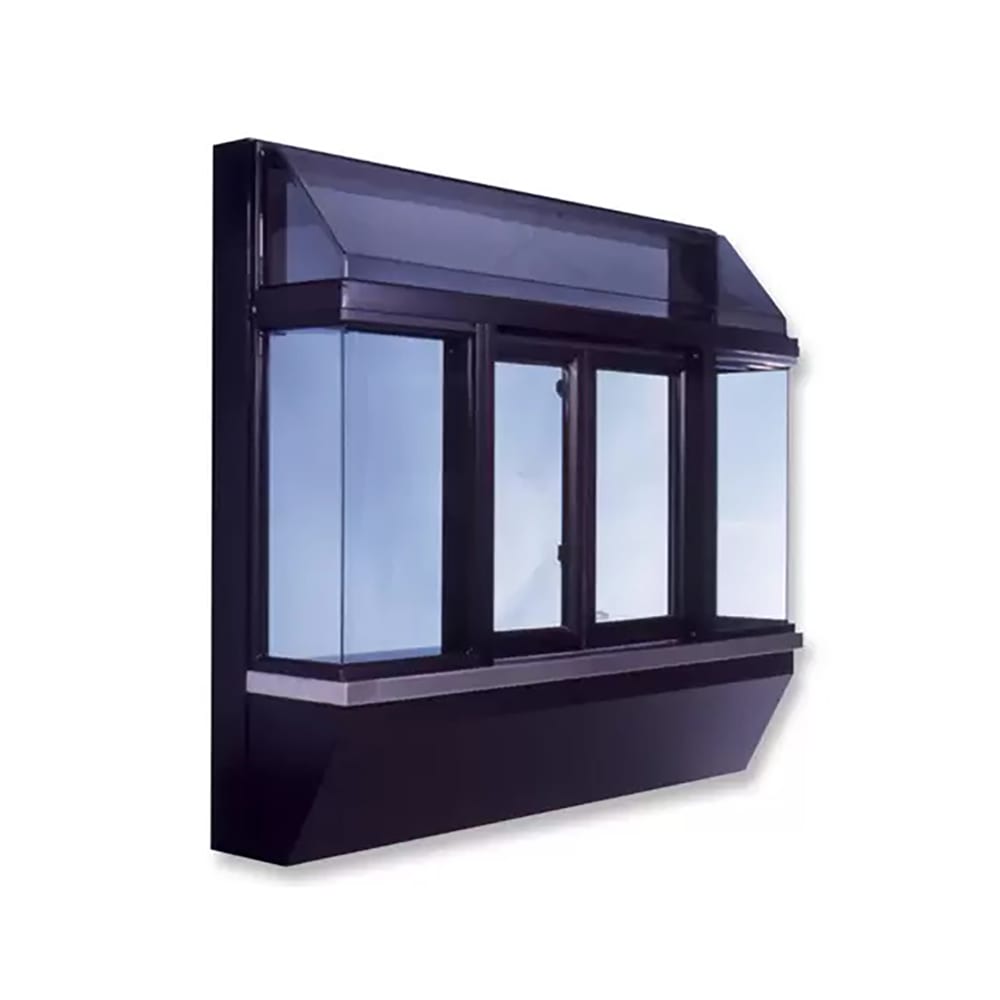

Ready Access 65163301 Model BO10 53 1/2"W x 48 3/4"H Bronze Bi-Parting Manual Drive-Thru Window
Retail Price: $4,080.00
$2,529.00 /Each
Selected Color: Bronze
Ready Access 65163301 Description

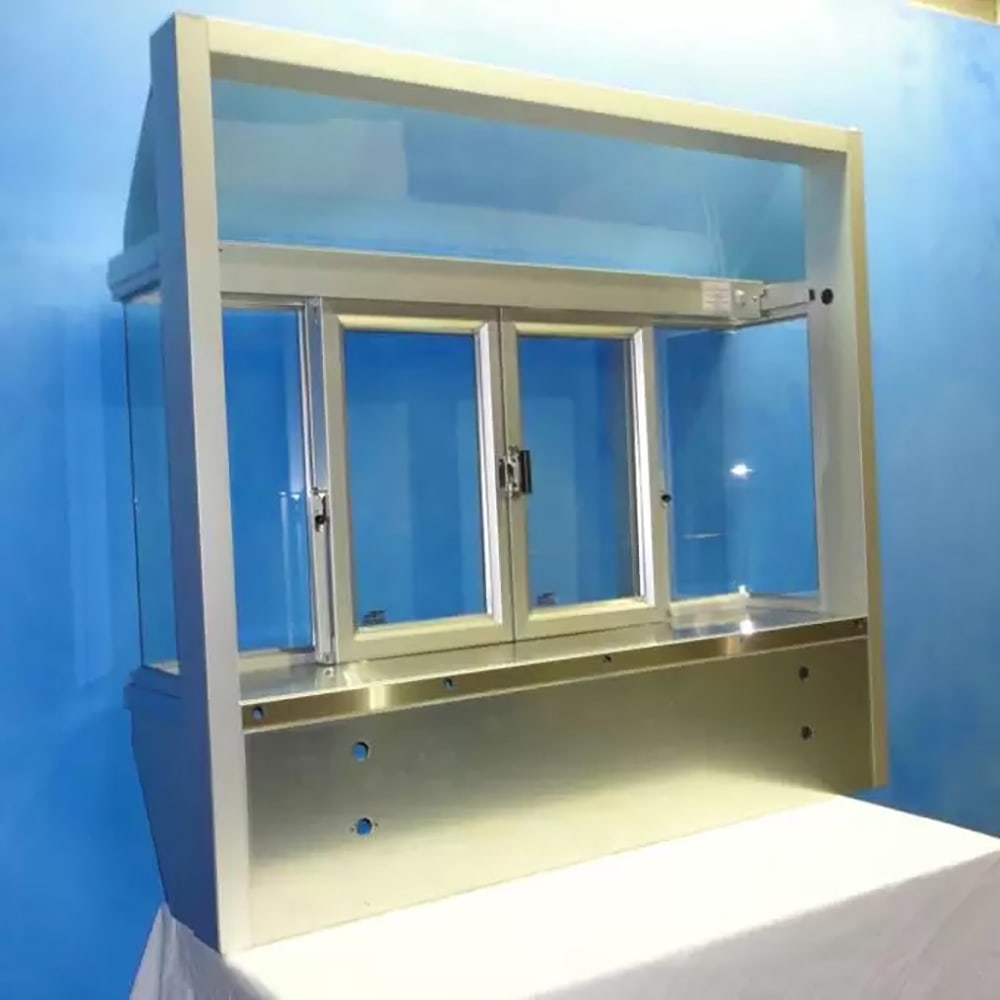

The Ready Access 65163301 Bump Out 10 service window delivers panoramic visibility and a generous service area, making it an excellent choice for drive-thru and walk-up installations in foodservice, retail, and public service settings. With bi-parting manual doors that self-close via a patented gravity system, this window features a dark bronze anodized aluminum frame and 1⁄4-inch clear tempered glass panels. Its track-free bottom sill supports over four feet of interior usable counter space, while the Lexan tinted transom reduces glare and deflects moisture for improved operator comfort. Pre-glazed and fully assembled, the unit is ready for a quick installation and offers an 18-inch-wide by 23-inch-high service opening to accommodate customer interaction with ease.
Product Details
- Series: Bump Out 10 drive-thru or walk-up service window
- Manual open with gravity-based bi-parting self-closing doors
- Dark bronze anodized aluminum frame resists rust and corrosion
- Lexan tinted transom minimizes glare and deflects moisture
- Track-free bottom sill with over 4 ft. of interior counter space
- Fully assembled and pre-glazed for easy installation
- 1⁄4-in. clear tempered glass panels
- Service opening: 18 in. W x 23 in. H
- Rough opening: 54 in. W x 49 1⁄4 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
DRIVE THRU or WALK UP SERVICE WINDOW, BUMP OUT 10, 1/4" Clear Tempered Glass, Manual Open Self Close, Bi-Parting, Dark Bronze Frame, 53.5"W x 48.75"H
Ready Access 65163301 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ready Access |
| Color | Bronze |
| Direction | Bi-Parting |
| Operation | Manual Open w/ Self Close |
| Overall Depth (in) | 14.25 |
| Overall Height (in) | 48.75 |
| Overall Width (in) | 53.5 |
| Product | Drive-Thru Windows |
| Product Type | Facility Access |
| Rough Opening Height (in) | 49.25 |
| Rough Opening Width (in) | 54 |
| Series | Bump Out 10 |
| Service Opening Height (in) | 23 |
| Service Opening Width (in) | 18 |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 195.00 |
