24" Charbroiler - Adjustable Manual Controls, NG

Star Manufacturing 6124RCBF Charbroiler

MPN: 6124RCBF
Free Shipping

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $1,836.00
$782.32 / Each

Star Manufacturing 6124RCBF Description

SKU: 062-6124RCBF

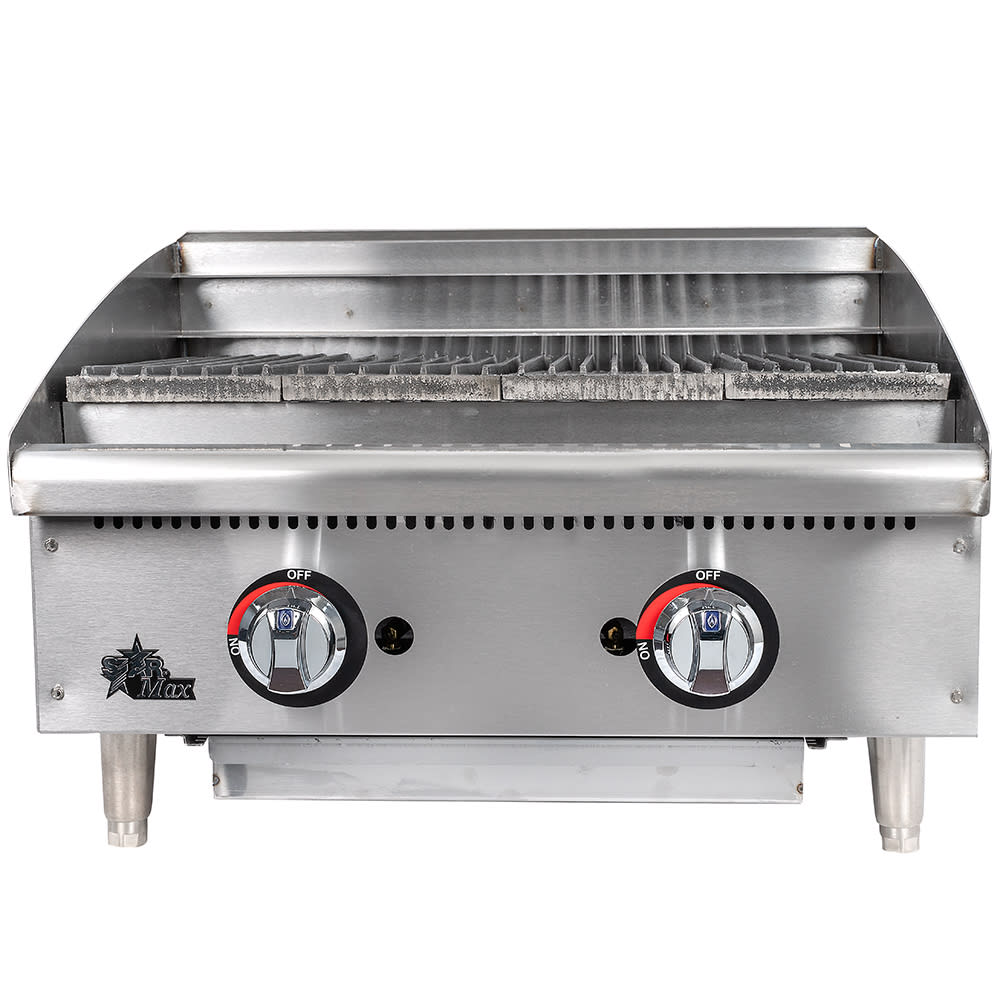

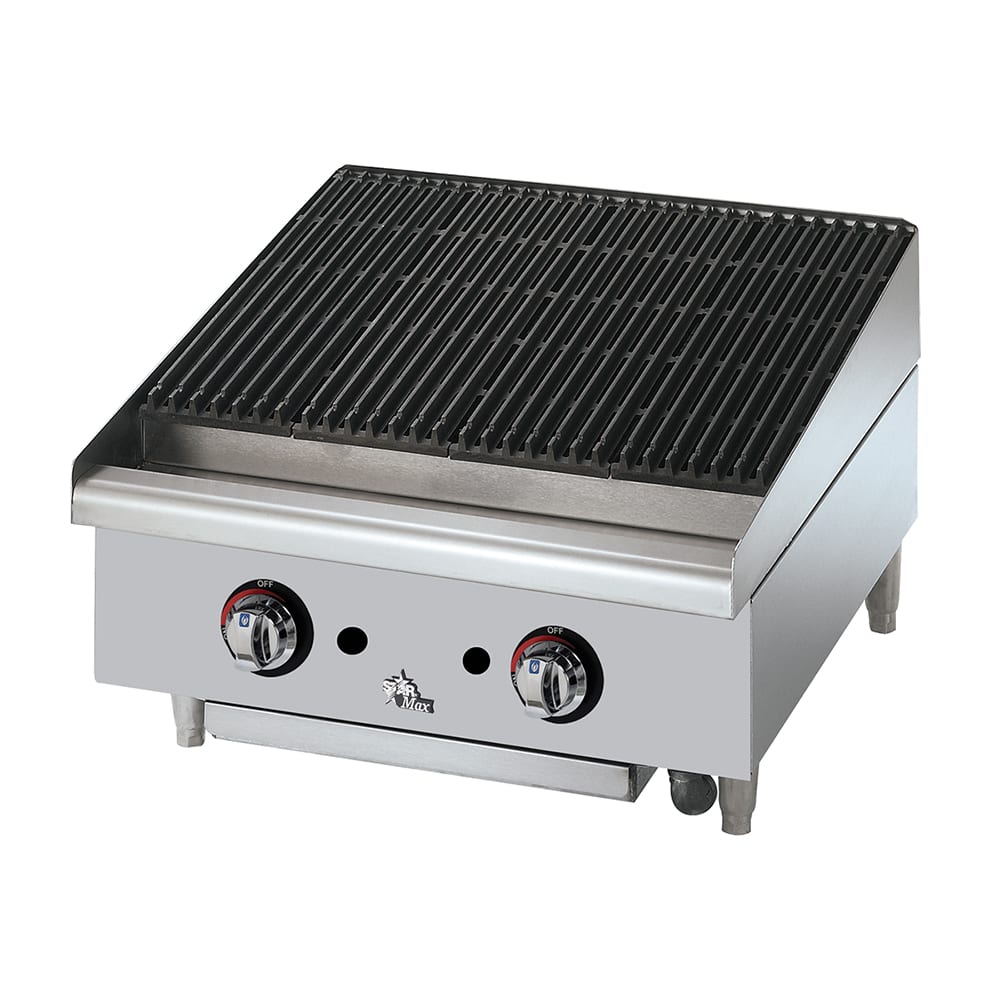

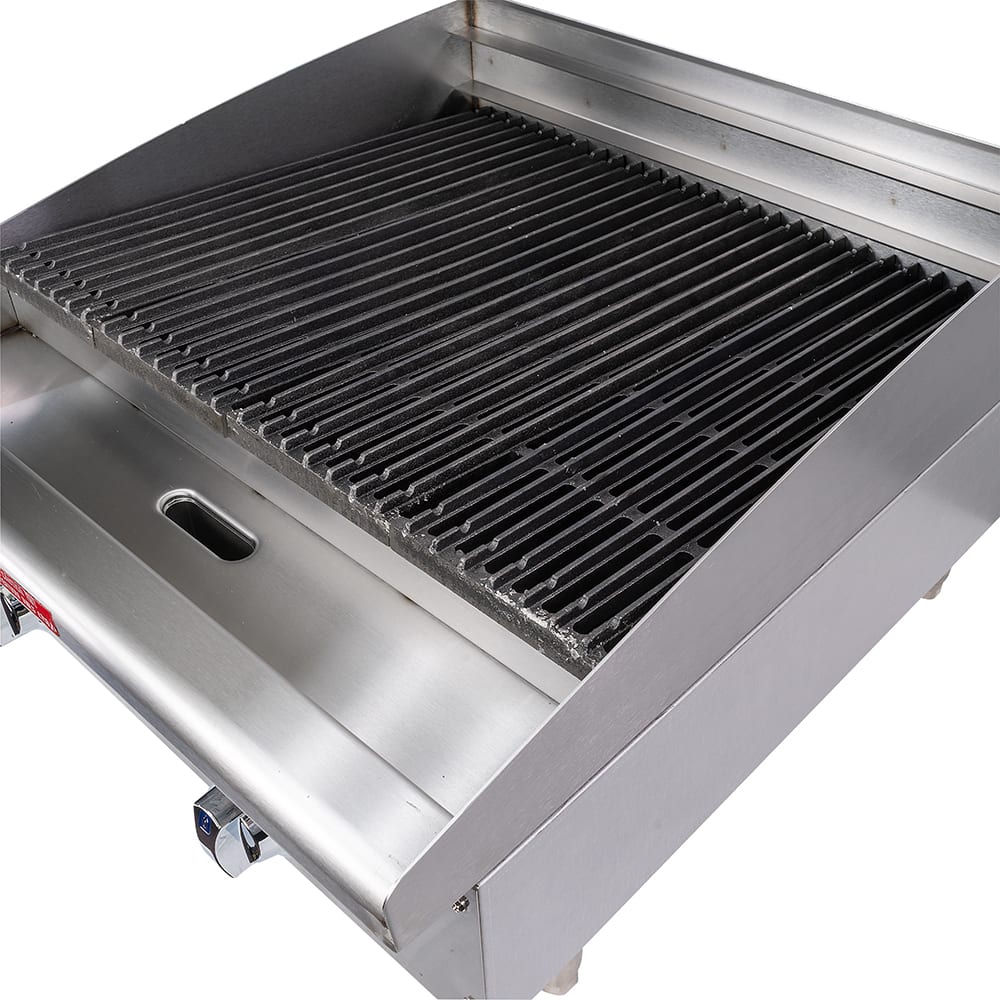

This gas char-broiler by Star Manufacturing has stainless steel radiants to evenly conduct and distribute heat, and it has two H-style cast iron burners with metal knobs to control the heat level. There is a tapered splash guard around the broiler to prevent splashes and spills, and the bull nose front stays cool during use, protecting the user from accidental burns. This char-broiler can be used with natural or propane gas and has a standing pilot light.

Product Details

  • Replaces 6124RCBD
  • Star-Max® Series

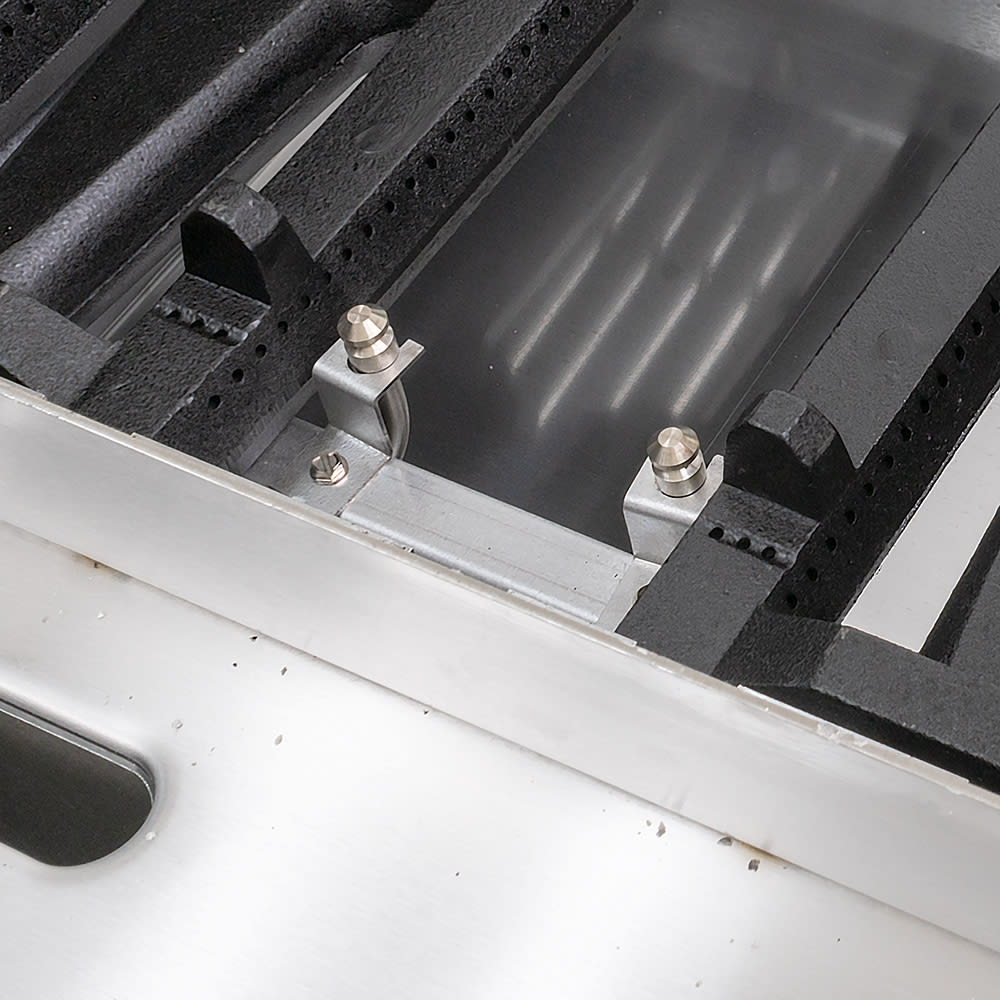

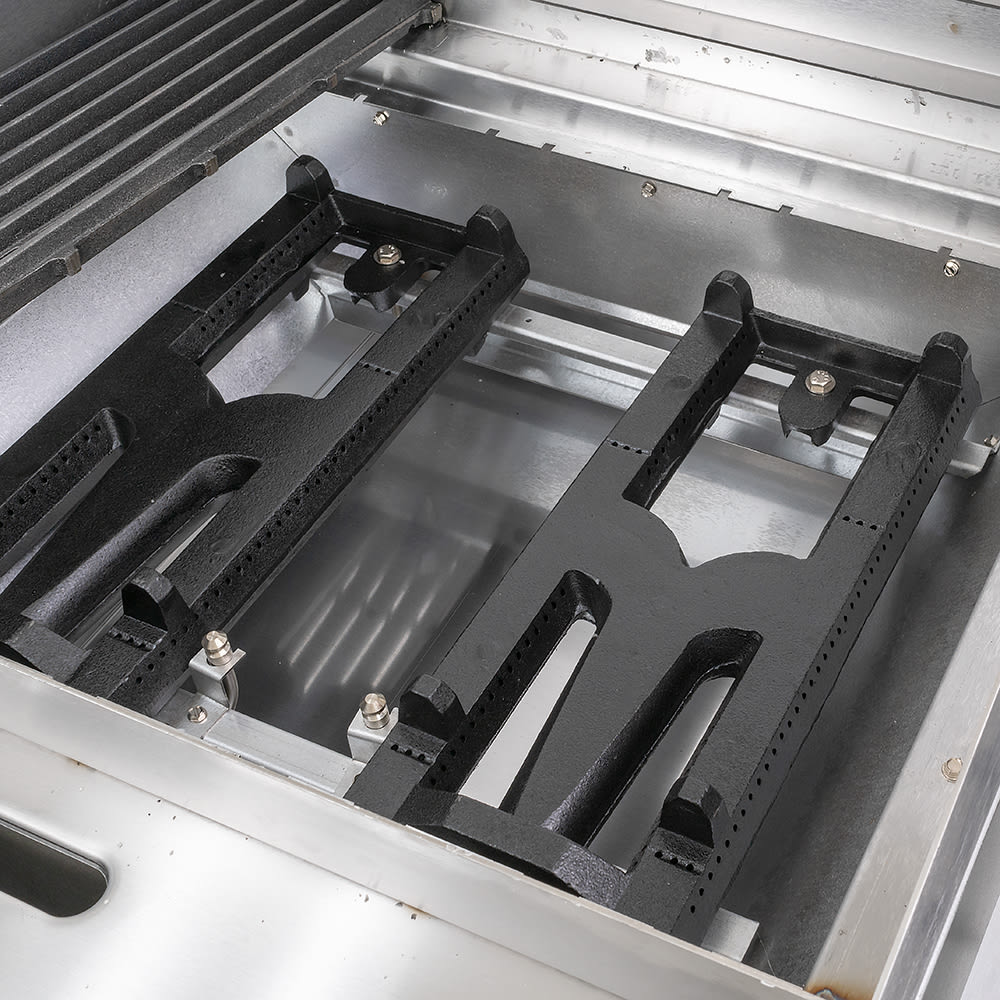

  • (2) 40,000 BTU H-style burners made from cast iron (installed under every 12-in. of cooking space)

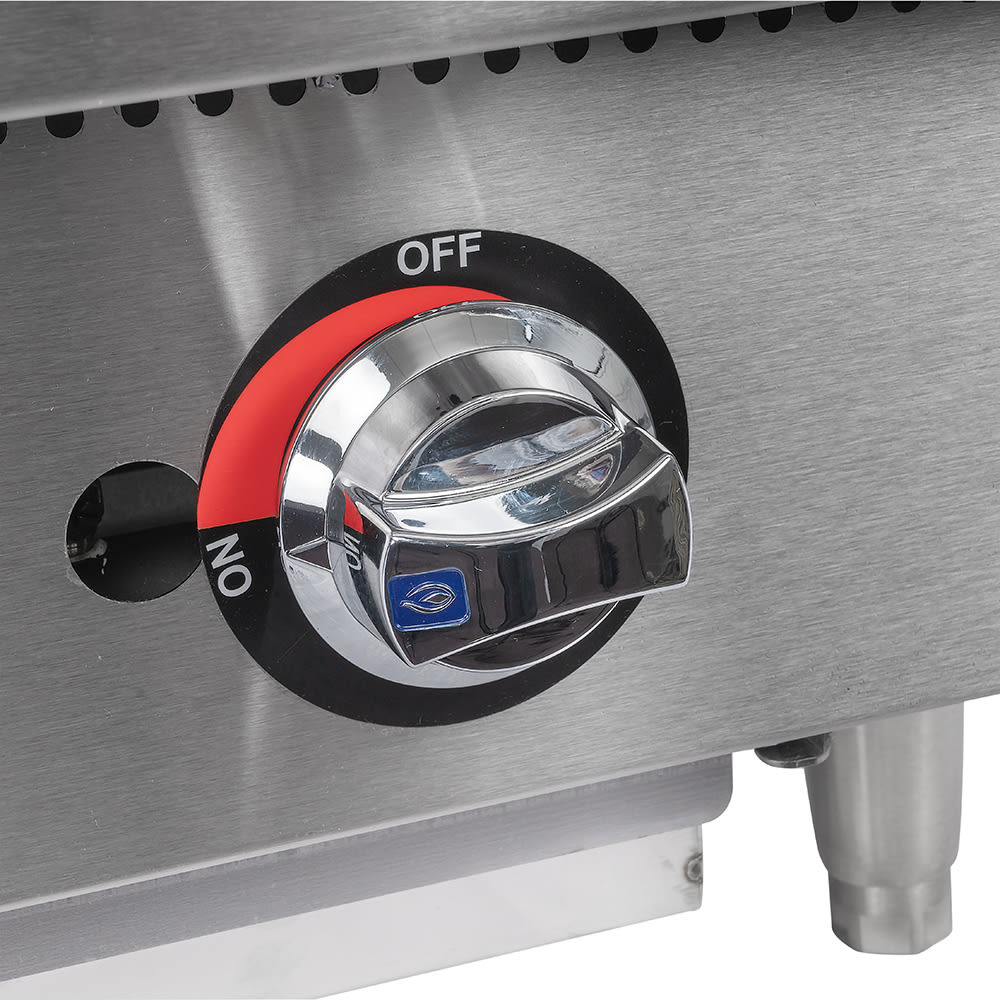

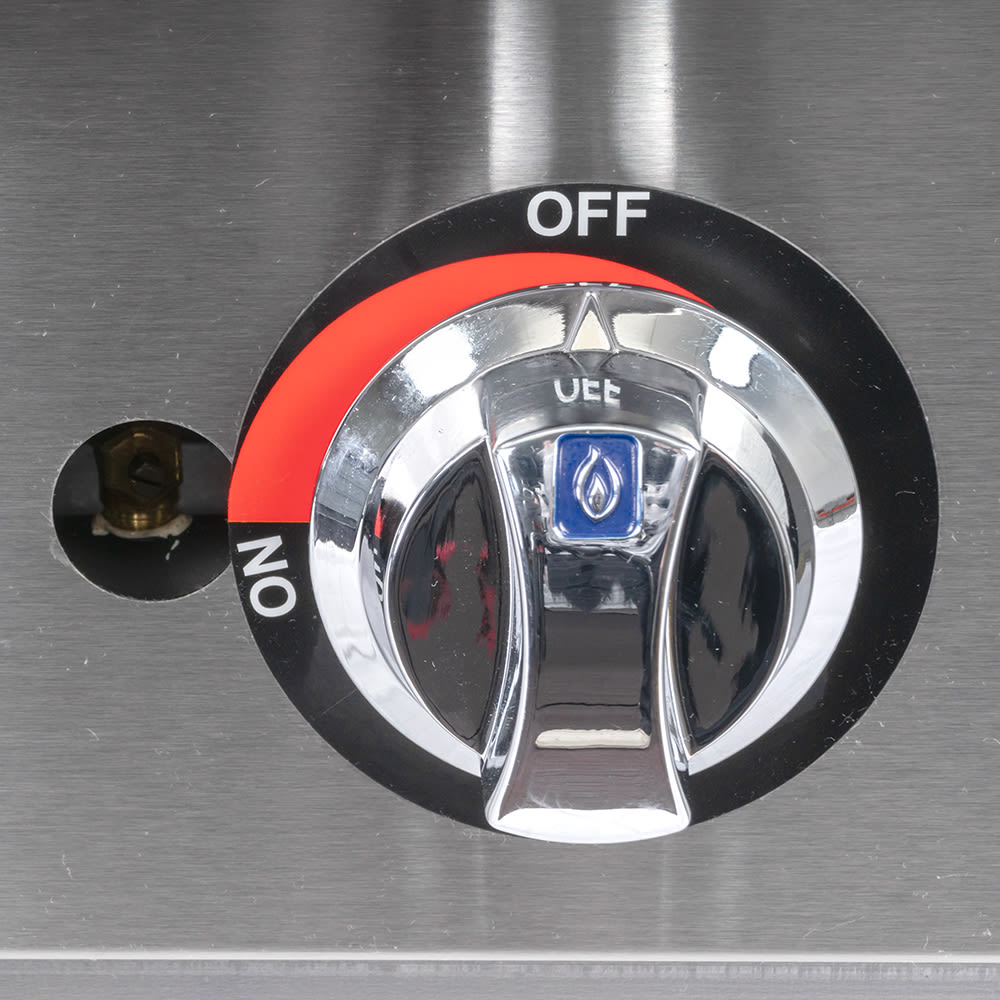

  • 2 metal knobs for controlling heat output
  • 2 contoured, stainless steel radiants per burner (4 total)

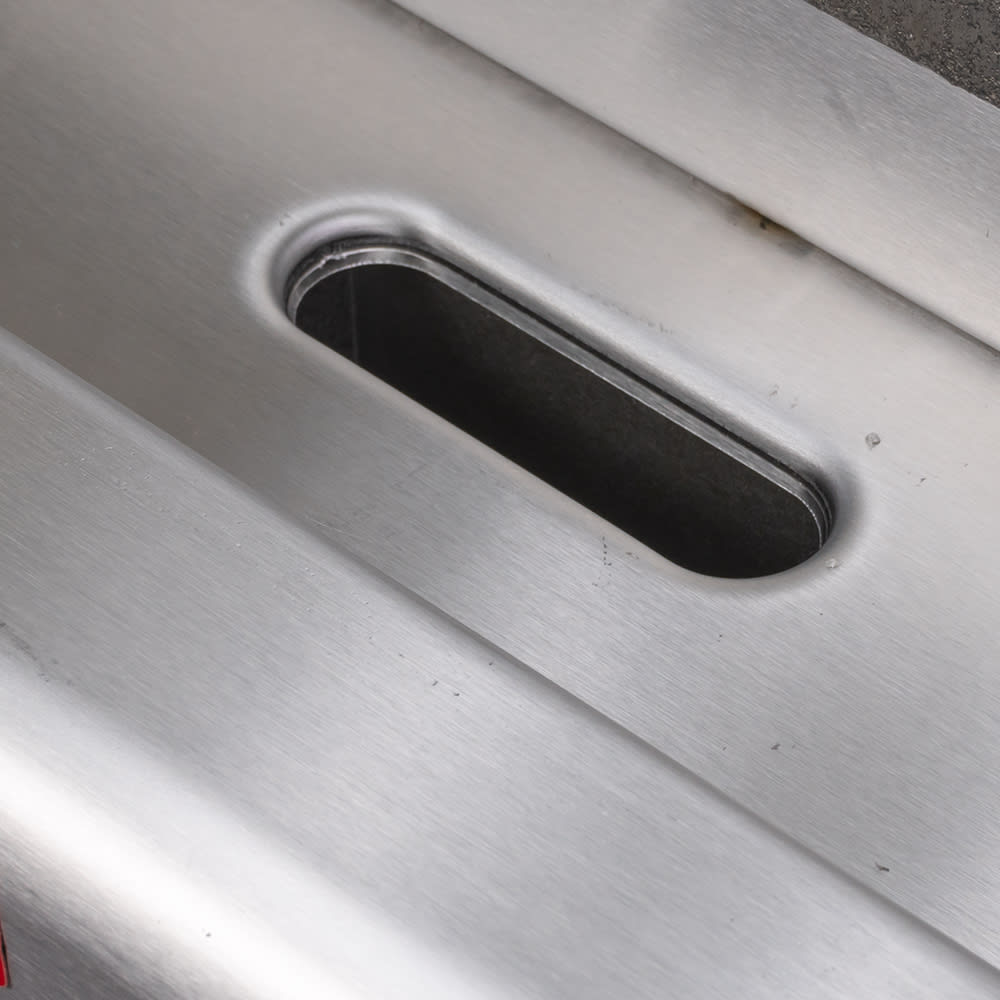

  • Stainless steel bull nose rim, front panel, drip pan, tapered splash guard, and grease trough

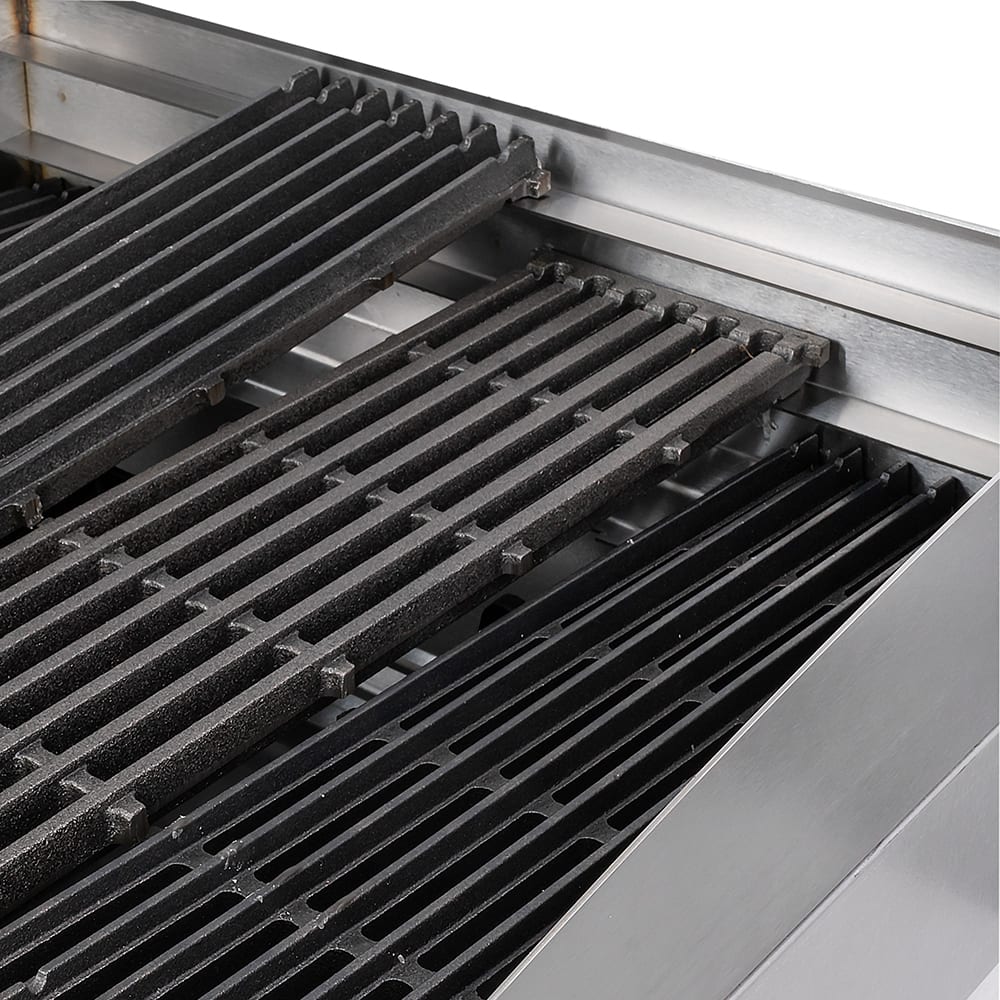

  • Adjustable cast iron grates on cooking surface can be flat or slanted and are reversible with thin and thick cooking sides
  • Tapered 2-3/4 in. H splash guard reduces splashes and spills
  • Stainless steel water pan
  • Bull nose front does not get hot while char-broiler is in use
  • Double-walled, insulating construction with enclosed bottom
  • 4 die-cast, nickel-plated legs, 4-in. H with 1-3/8 in. adjustment
  • NG as standard with LP orifices for simple conversion in the field
  • Can be converted to use lava rocks

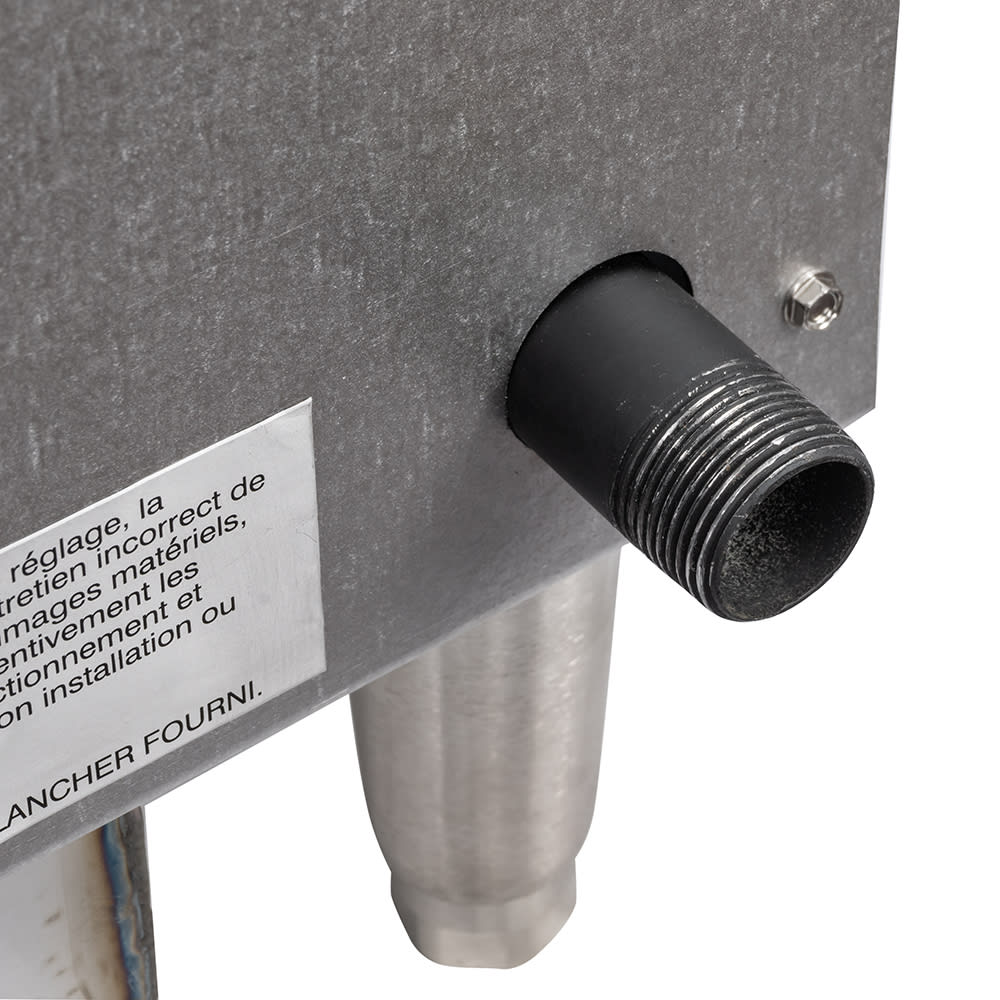

  • 80,000 BTU (NG) with a standing pilot, has a 3/4-in. NPT male connection
  • Overall Dimensions: 24-in. W x 29-in. D x 15-1/2 in. H
  • cULus Gas-Fire and UL-EPH Listed, ISO 9001:2000 Certified

Safe, Easy Operation

  • Water pan on the bottom of the unit creates hot water vapor to reduce flare-ups and catches grease (2.78-gal. capacity)
  • Bull nose stays cool during cooking and protects the user from burns while using the controls
  • Adjustable cast iron grates create a range of cooking opportunities, and broiler can also use lava rocks (sold separately)

Precise Cooking Controls

  • Cast iron and H-style design of burners ensures even heat distribution
  • Each burner has its own control, which can be adjusted individually to create varying levels of heat across the cooking area
  • Adjustable grates can be used flat or slanted, and can be turned to the thin or thick side depending on the requirements of food being prepared
  • Water vapor from the drip pan reduces flare-ups that can create unstable cooking conditions, keeping cooking temperatures consistent

Star-Max Charbroiler, countertop, NG gas, 24"L, heavy gauge stainless steel radiants, aluminized steel, stainless steel front with black trim, adjustable manual control valve, heavy duty cast iron broiling grates, stainless steel wrap-around splash guard, heavy duty knobs, stainless steel water pan, 4" legs, 80,000 BTU. Shipped with field conversion kit for LP.

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Star Manufacturing 6124RCBF Specifications

PDF Spec Sheet
Manufacturer Star Manufacturing
Also Known As 6124RCBD
BTU 80,000
Category Char Broilers & Outdoor Grills
Cooking Surface Cast Iron
Function Medium Duty
Heat Gas
Height (in) 15.5
Type Radiant
Width (in) 24
Weight 166.00
