Star 6024CBF 24" Gas Charbroiler - Cast Iron Grate, Adjustable Control Valve

Image may not depict product color, inclusions or accessories.

KaTom #: 062-6024CBF • MPN: 6024CBF NG (A)

Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Web Price: $1,092.00

Image may not depict product color, inclusions or accessories.

Star 6024CBF Description


This Star Manufacturing Star-Max® 6024CBF charbroiler has two 40,000 BTU gas burners and porous lava rocks that heat up quickly and retain heat for even cooking. Double-walled sides around the char-broiler stop heat loss, and the stainless steel bull nose front stays cool during use to prevent accidental burns. A water pan in the Star 6024CBF charbroiler catches drippings to reduce flare-ups that can cause uneven cooking.

Product Details

  • Replaces 6024CBD
  • Star-Max® Series
  • (2) 40,000 BTU cast iron burners, 1 for every 12-in. of W
  • 2 knobs on front panel to control the burner heat

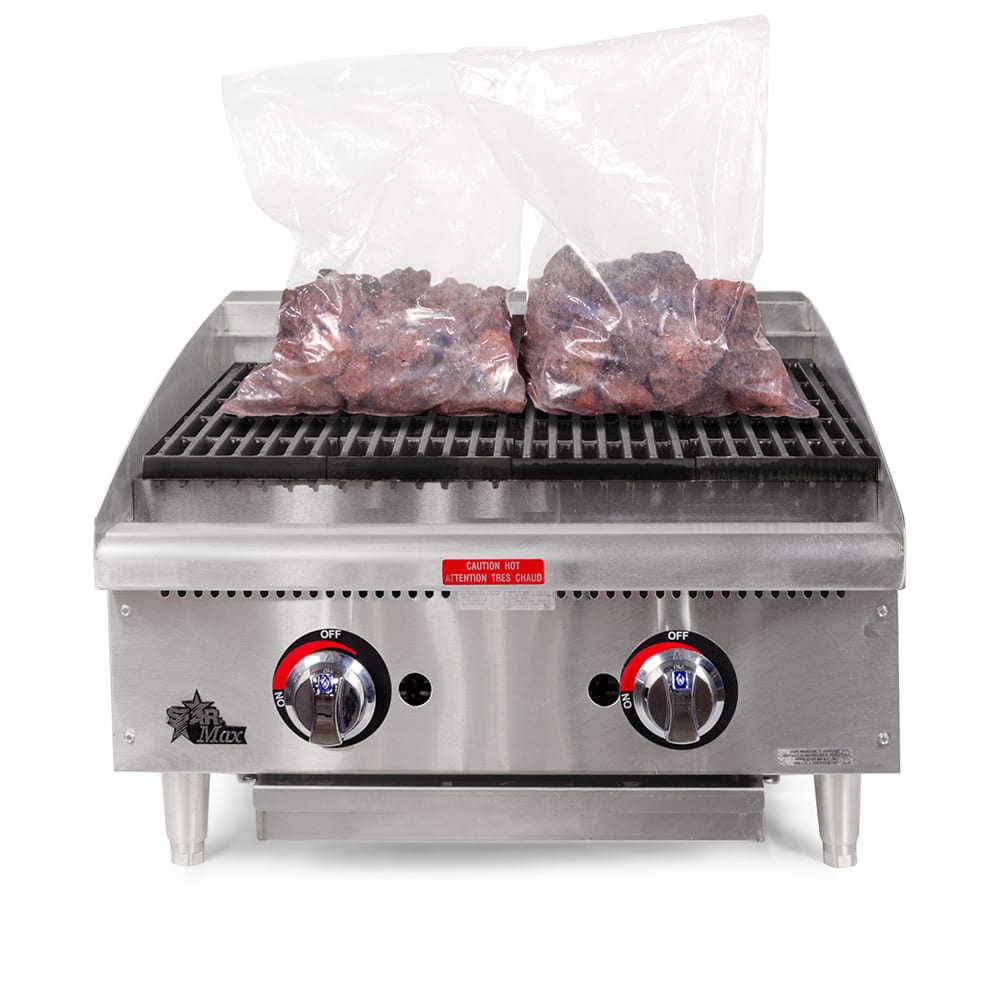

  • Porous lava rocks (included) eliminate drippings and distribute heat evenly
  • Adjustable cast iron cooking grates can be used flat or slanted on a thin or thick cooking side
  • Stainless steel construction with double-walled base and insulated bottom for insulation
  • Tapered splash guard
  • Standing pilot light
  • Stainless steel 2.78-gal. water pan for reducing flare-ups and catching grease drippings
  • Stainless steel bull nose front stays cool enough to touch during cooking
  • Can also be used radiant-style
  • Ships NG, can be converted to LP in the field with included conversion kit
  • 120,000 BTU using NG, 3/4-in. NPT male connection
  • Overall Dimensions: 24-in. W x 29-in. D x 15-1/2 in. H (includes 4-in. adjustable legs)
  • cULus Gas-Fire and UL-EPH Listed, ISO 9001:2000 Certified

Safe, Easy Operation

  • Water pan creates hot water vapors to prevent flare-ups that can cause inconsistent cooking conditions
  • Bull nose remains cool during operation and reduces the risk of burns
  • 2-3/4 in. H splash guard prevents spills and reduces the risk of operator injury

Precise Cooking Controls

  • Independently controlled, H-style, cast iron burners distribute heat evenly through the lava briquettes to cook foods on the grates
  • The thin cast iron grates sear items quickly; adjust grates to the thicker side to cook delicate items
  • Lava rocks vaporize drippings, minimizing flare-ups and improving the consistency of cooked items

Star-Max® Charbroiler, gas, countertop, 24" W, cast iron 40,000 BTU burners with adjustable manual controls every 12", lava rock briquettes, welded steel frame with stainless steel top and front, aluminized steel sides, cast iron broiling grates, stainless steel water pan, splash guard & grease trough, 4" legs, 80,000 BTU, cULus, UL EPH (ships Natural Gas includes LP conversion kit)

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

warning-small Important Prop 65 information for California residents.

Star 6024CBF Specifications

PDF Spec Sheet
Manufacturer Star
Also Known As 6024CBD
BTU 80,000
Cooking Surface Cast Iron
Function Medium Duty
Heat Gas
Height (in) 15.5
Type Char Rock
Width (in) 24
Warranty 2 year parts & labor
Gas Type Convertible
Product Charbroiler
Weight 219.00
Star 6024CBF Certifications
  • UL
