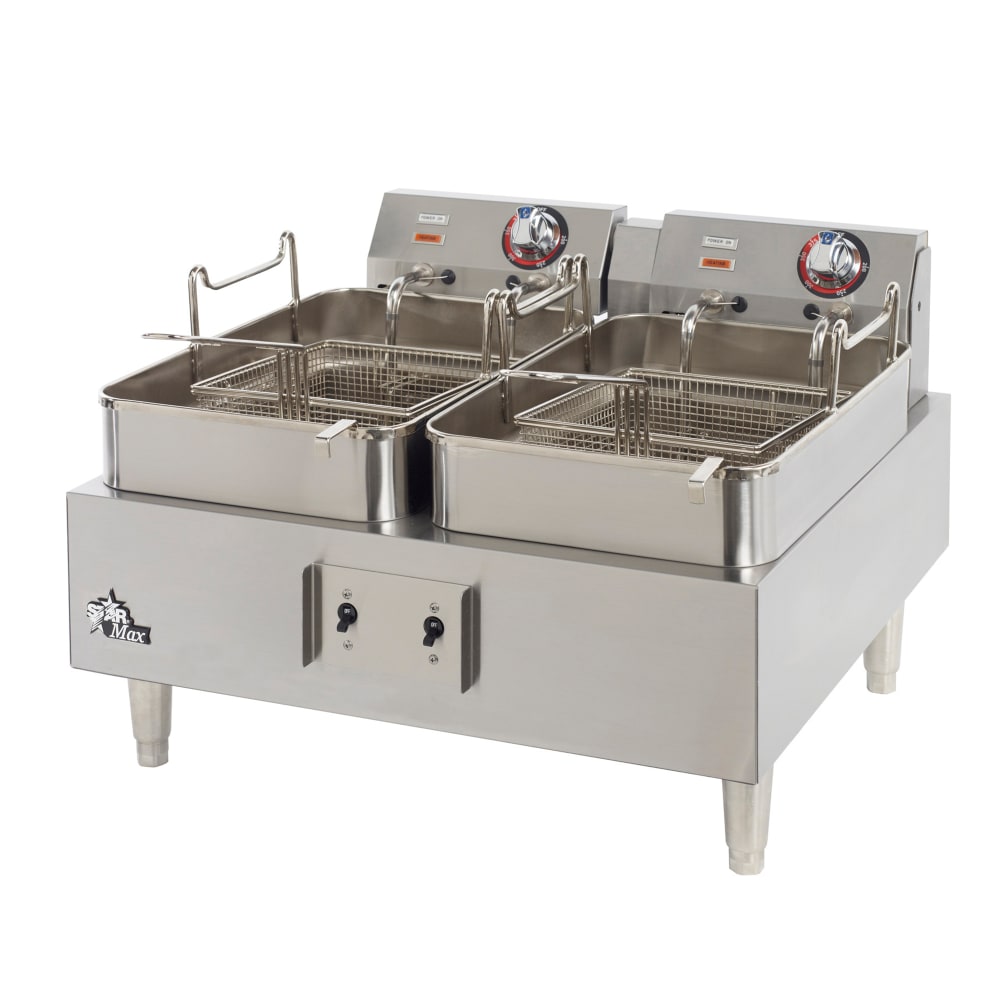

The Star-Max® twin pot fryer features two 15 pound cooking kettles which can be operated independently to cook different products with no taste transfer. The fryer has a temperature range of 200 - 375 degrees Fahrenheit and includes a snap-action thermostat to maintain consistent cooking temperatures. The unit preheats to 350 degrees in four and a half minutes and can cook up to 64 pounds of French fries in an hour.
- Star-Max® Series
- Replaces 530TD
- 30-lb. fat capacity
- Fries up to 64-lb. of French fries per hr.
- 15-lb. nickel-plated steel kettles are removable for easy cleaning
- Temperature range of 200 - 375 degrees F
- Preheats to 350 degrees F in 4-1/2 min.
- Temperature of each kettle can be controlled independently to cook two types of food at once
- Stainless steel construction throughout makes unit easy to clean and corrosion resistant
- Immersion-type tubular heating element heats oil evenly

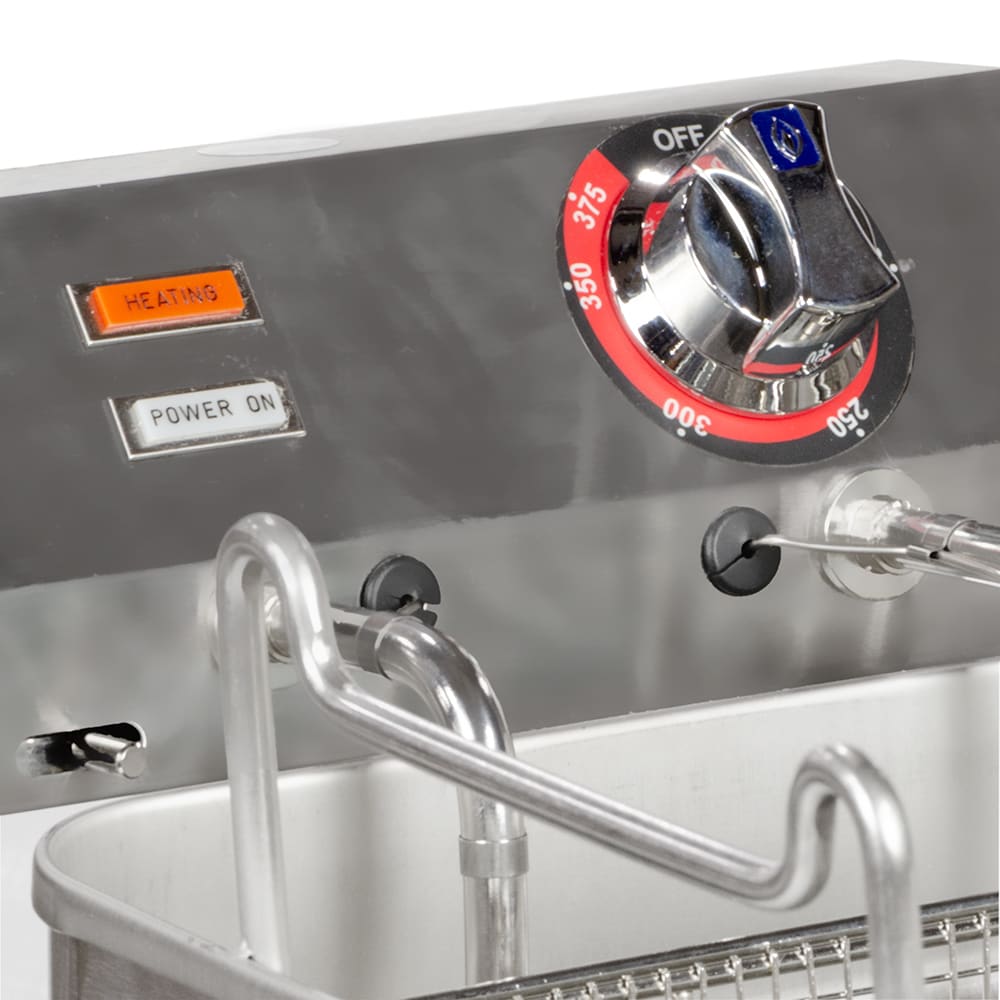

- Snap-action thermostat monitors and maintains temperature within a tight tolerance level
- Front on and off switch for simple operation
- Indicator lights turn on when fryer is heating and off when it has reached the desired temperature
- Steel hanging baskets are nickel-plated for extra durability
- Cabinet is stainless steel for easy cleaning
- Adjustable heavy-duty 4-in. legs
- Electrical Specifications: 208/240 V/60 Hz/1-ph, 8636/11500W, 41.5/47.9 A
- Overall Dimensions: 24-in. W x 24-in. D x 16-3/4 in. H
- cULus and UL-EPH Listed; ISO 9001:2000, ANSI, and NSF Certified
- The fryer's 2 separate kettles can be operated independently and will not transfer taste between foods
- Temperature is kept constant with snap-action thermostat which monitors and adjusts heat
- Fryer takes 4-1/2 min. to pre-heat to 350 degrees F
Star-Max® Fryer, countertop, electric, dual fry pot, 15-lb capacity each fryer, single baskets, snap-action thermostats, heavy duty knobs, on-off switches, immersion type tubular heating elements, stainless steel construction, 4" legs, high wattage, cULus, UL, NSF 4, 208v/60/1ph
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Star Manufacturing 530TF SpecificationsPDF Spec Sheet
|BTU per Fryer|
|Oil Capacity per Fryer||15 lb|
|Number of Fry Pots||2|
|Frypot Style||Open Pot|
|Warranty||2 year parts & labor|
|Also Known As||530TD|
