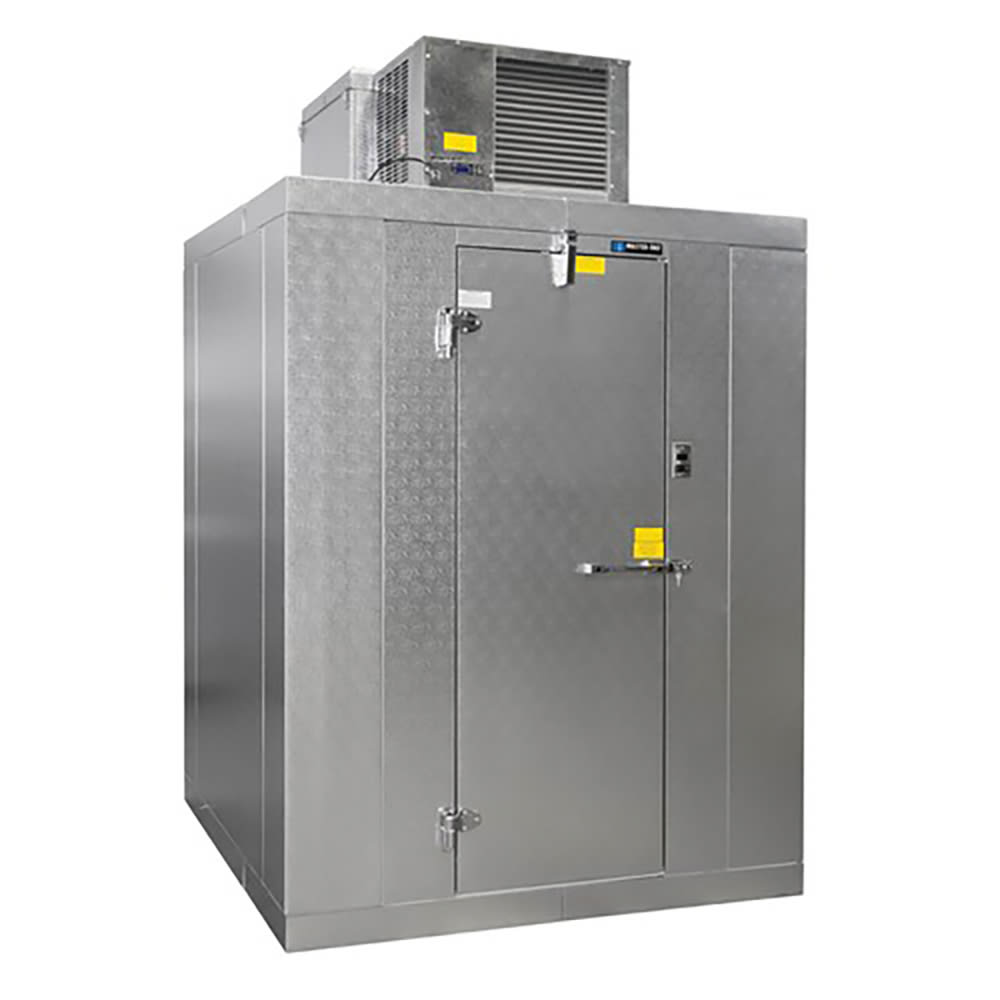

Master-Bilt QSF7788-C 8' x 8' Indoor Walk-in Freezer w/ Top-Mounted Compressor - Floor
QUICK SHIP: Typically ships in 1 - 3 Business Days
$15,298.90 /Each
Selected Hinge: Left Hinge
Master-Bilt QSF7788-C Description
For frozen storage, the Master-Bilt QSF7788-C indoor walk-in freezer provides 372 cubic feet of capacity within its 8-foot-by-8-foot footprint. Its 4-inch-thick insulated panels help limit heat transfer through the enclosure. For durable storage conditions, the smooth aluminum interior floor supports uniformly distributed loads of 800 pounds per square foot to accommodate stored products and routine traffic.
Supporting low-temperature operation, the Master-Bilt QSF7788-C indoor walk-in freezer uses a ceiling-mounted Capsule Pak ECOâ„¢ refrigeration system rated at 4,400 BTUH. It features R290 hydrocarbon refrigerant and an air-cooled condensing unit for heat rejection. The flush evaporator coil keeps refrigeration components outside the storage area, preserving more interior space for frozen products.
- 372-cu.-ft. capacity
- 26-ga. corrosion-resistant, stucco-embossed steel interior and exterior
- 4-in.-thick modular panels
- Smooth aluminum interior floor
- Fiberglass-reinforced plastic heated threshold
- Left-hinged door design
- Self-closing, flush-mounted door
- 2 field-adjustable cam-lift hinges
- Spring-actuated door closer
- Deadbolt-locking handle with independent key/padlock feature
- Inside safety release
- Magnetic gasket
- High-output, low-profile LED light above door
- Ceiling-mounted, self-contained Capsule Pak ECO system
- CPF150PC-S-4 indoor freezer system
- 4,400-BTUH refrigeration capacity
- R290 hydrocarbon refrigerant
- Air-cooled condensing unit
- Flush evaporator coil
- High-efficiency EC evaporator fan motors
- Automatic condensate evaporator
- Automatic defrost
- LogiTemp® electronic controller
- Digital thermometer and light switch
- 8 ft. W x 8 ft. D x 7 ft. 7 in. H
- 7.4 A
- 230 V/60 Hz/1 ph, 9-ft. cord with NEMA 6-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Master-Bilt QSF7788-C within the 48 contiguous states.
From The Manufacturer
Master-Bilt QSF7788-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Master-Bilt |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Length (ft) | 8 |
| Product | Walk-In Freezers |
| Product Type | Commercial Refrigeration |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 8 |
| Weight | 1637.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It measures 8 ft. L x 8 ft. W x 7.58 ft. H.
It includes a refrigeration system.
It uses R290 Capsule Pak refrigeration.
It has a 26 in.-wide door opening.
The door is left hinged.
The interior and exterior panels use 26 gauge embossed coated steel finish.
Yes, it includes a floor.
It is designed to maintain -10ï½°F.
It uses R-290 refrigerant.
Yes, it has a self-closing door.
