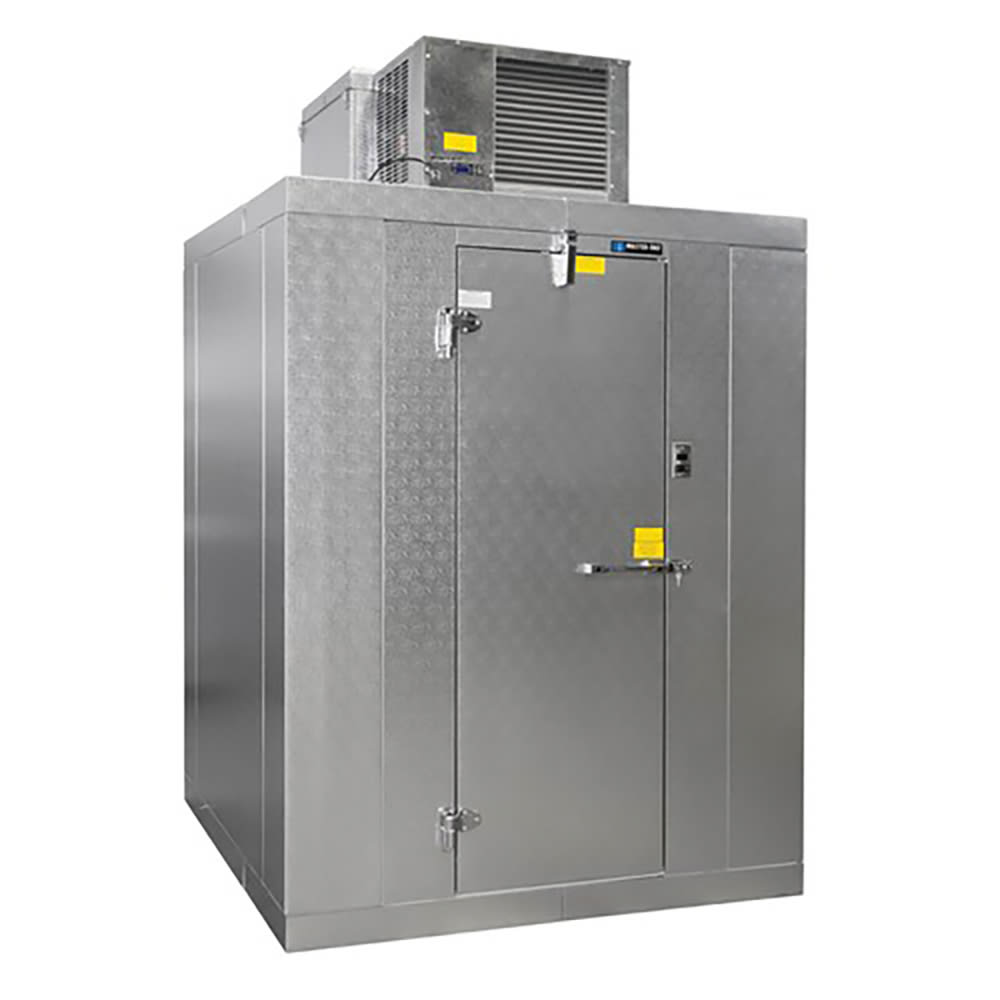

Master-Bilt QSF7788-C 8' x 8' Indoor Walk-in Freezer w/ Top-Mounted Compressor - Floor
QUICK SHIP: Typically ships in 1 - 3 Business Days
$15,298.90 /Each
Selected Hinge: Right Hinge
Master-Bilt QSF7788-C Description
The Master-Bilt QSF7788-C indoor walk-in freezer has a 26-inch-wide self-closing right-hinged door centered on the 8-foot wall for accessing frozen inventory. Its deadbolt-locking handle secures the enclosure between access periods. For additional protection, the inside safety release enables the door to be opened from within, while the perimeter heater wire helps protect the freezer door opening.
The Master-Bilt QSF7788-C indoor walk-in freezer uses a CPF100PC-S-0 ceiling-mounted refrigeration system with 3,600-BTUH capacity for maintaining -10 degrees Fahrenheit. It features an automatic condensate evaporator that removes collected condensate on this indoor system. The LogiTemp® electronic controller manages temperature operation, while electronic automatic defrost controls frost removal during regular freezer operation.
- 372-cu.-ft. capacity
- 26-ga. corrosion-resistant, stucco-embossed steel interior and exterior
- 4-in.-thick modular panels
- Foamed-in-place HFO polyurethane insulation
- Smooth aluminum interior floor
- Fiberglass-reinforced plastic heated threshold
- Self-closing, flush-mounted door
- Right-hinged door design
- 2 field-adjustable cam-lift hinges
- Spring-actuated door closer
- Deadbolt-locking handle with independent key/padlock feature
- Inside safety release
- Magnetic gasket
- High-output, low-profile LED light above door
- Ceiling-mounted, self-contained Capsule Pak ECOâ„¢ system
- CPF100PC-S-0 indoor freezer system
- 3,600-BTUH refrigeration capacity
- R290 hydrocarbon refrigerant
- Air-cooled condensing unit
- Flush evaporator coil
- High-efficiency EC evaporator fan motors
- Automatic condensate evaporator
- Automatic defrost
- LogiTemp electronic controller
- Digital thermometer and light switch
- 8 ft. W x 8 ft. D x 7 ft. 7 in. H
- 7.4 A
- 230 V/60 Hz/1 ph, 9-ft. cord with NEMA 6-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Master-Bilt QSF7788-C within the 48 contiguous states.
From The Manufacturer
Master-Bilt QSF7788-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Master-Bilt |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Length (ft) | 8 |
| Product | Walk-In Freezers |
| Product Type | Commercial Refrigeration |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 8 |
| Weight | 1637.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It measures 8 ft. L x 8 ft. W x 7.58 ft. H.
It includes a refrigeration system.
It uses R290 Capsule Pak refrigeration.
It has a 26 in.-wide door opening.
The door is right hinged.
The interior and exterior panels use 26 gauge embossed coated steel finish.
Yes, it includes a floor.
It is designed to maintain -10ï½°F.
It uses R-290 refrigerant.
Yes, it has a self-closing door.
