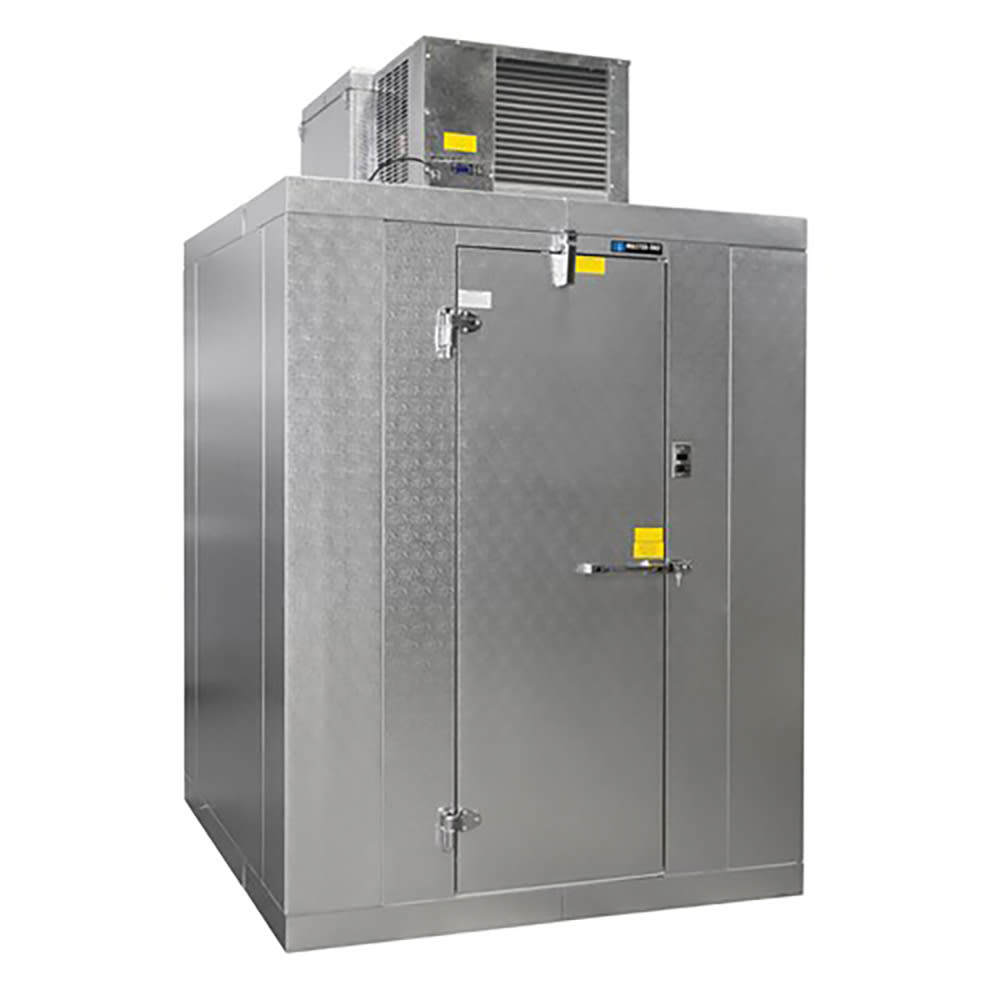

Master-Bilt QSF77812-C 8' x 12' Indoor Walk-in Freezer w/ Top-Mounted Compressor - Floor
$17,475.10 /Each
Selected Hinge: Left Hinge
Master-Bilt QSF77812-C Description
With a 26-inch-wide left-hinged door, the Master-Bilt QSF77812-C indoor walk-in freezer has a self-closing design that helps limit the time the opening remains exposed after entry. For secure storage, the deadbolt-locking handle accepts an independent key or padlock, and an inside safety release enables occupants to open the door from within.
The Master-Bilt QSF77812-C walk-in freezer uses a CPF175PC-S-4 ceiling-mounted refrigeration system rated at 6,350 BTUH for minus-10-degree-Fahrenheit operation. It features an automatic condensate evaporator that removes collected condensate without requiring a floor drain. The electronic automatic defrost control manages frost removal, supporting continued refrigeration operation through regular frozen storage cycles during service.
- 574-cu.-ft. capacity
- Indoor walk-in freezer
- 26-ga. corrosion-resistant stucco-embossed coated steel interior and exterior
- High-output, low-profile LED light above door
- Left-hinged door
- 26-in.-W x 78-in.-H door opening
- Self-closing, flush-mounted door
- 2 field-adjustable cam-lift hinges
- Spring-actuated door closer
- Deadbolt-locking handle with independent key/padlock feature
- Inside safety release
- Magnetic gasket
- Perimeter door heater wire
- Digital thermometer and light switch
- Fiberglass-reinforced plastic heated threshold
- Ceiling-mounted Capsule Pak ECO™ system
- CPF175PC-S-4 indoor freezer system
- 6,350-BTUH refrigeration capacity
- R290 hydrocarbon refrigerant
- Air-cooled condensing unit
- Flush evaporator coil
- High-efficiency EC evaporator fan motors
- Automatic condensate evaporator
- LogiTemp® electronic controller
- Automatic defrost
- 4-in.-thick modular panels
- Foamed-in-place HFO polyurethane insulation
- R-32 wall and ceiling panels
- R-32 insulated door
- R-28 insulated floor
- Foamed-in-place cam-locking panel fasteners
- Continuous perimeter panel gaskets
- Smooth aluminum interior floor
- 800-lb.-per-sq.-ft. uniformly distributed floor-load capacity
- Walk-in enclosure: 8 ft. W x 12 ft. D x 7 ft. 7 in. H
- Refrigeration package: 36 3⁄4 in. W x 48 1⁄4 in. D x 18 3⁄4 in. H
- 10.7 A, 230 V/60 Hz/1 ph, 9-ft. cord with a NEMA 6-15P plug
- 1.73 A, 120 V/60 Hz/1 ph door section
- 4-in. top and 24-in. side clearance required around refrigeration system
*Image may not depict product color, inclusions or accessories.
*Free shipping on Master-Bilt QSF77812-C within the 48 contiguous states.
From The Manufacturer
Master-Bilt QSF77812-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Master-Bilt |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Length (ft) | 12 |
| Product | Walk-In Freezers |
| Product Type | Commercial Refrigeration |
| Refrigerant | R290 (Hydrocarbon) |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 8 |
| Weight | 1902.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It measures 12 ft. L x 8 ft. W x 7.58 ft. H.
It includes a refrigeration system.
It uses R290 Capsule Pak refrigeration.
It uses R290 (Hydrocarbon) refrigerant.
Yes, the door is self-closing.
The interior and exterior panels use 26 gauge embossed coated steel finish.
Yes, it includes a floor.
It is designed to maintain -10ｰF.
It requires 230V/60 hz/1-ph power.
