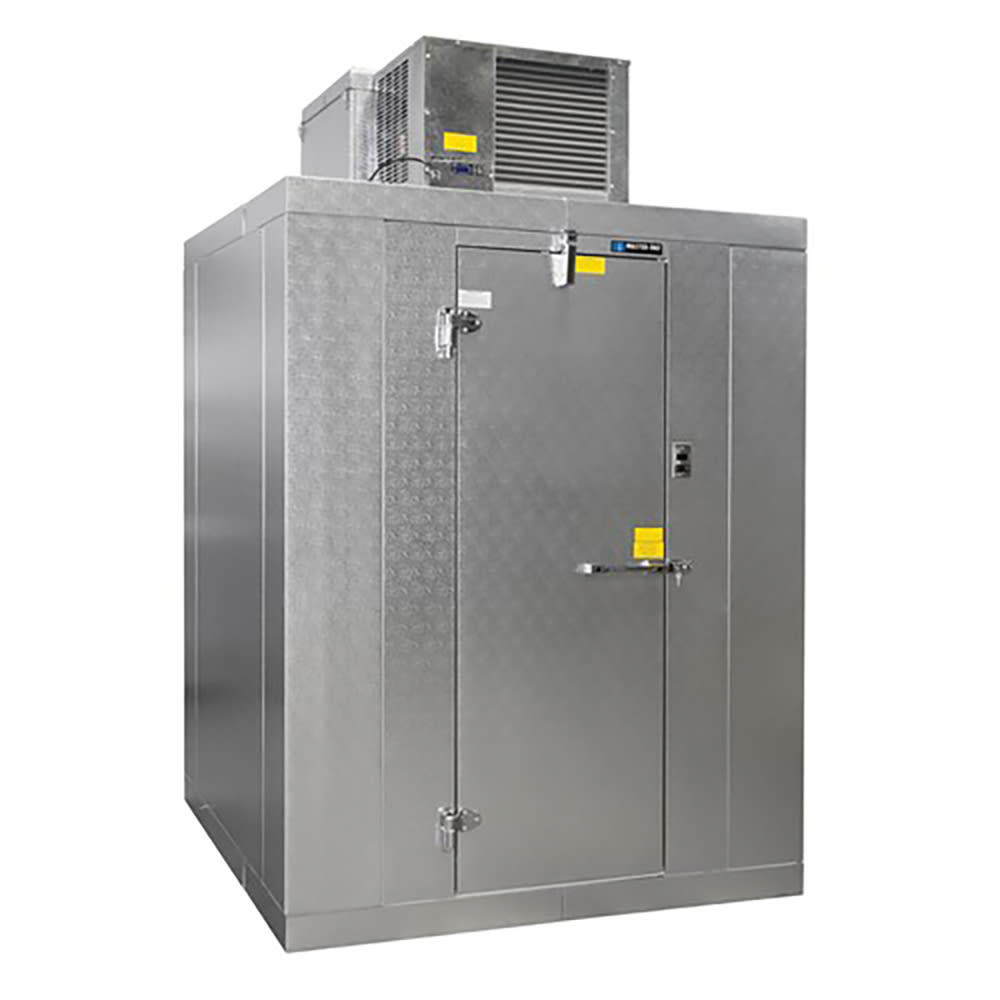

Master-Bilt QSF77812-C 8' x 12' Indoor Walk-in Freezer w/ Top-Mounted Compressor - Floor
$17,475.10 /Each
Selected Hinge: Right Hinge
Master-Bilt QSF77812-C Description
The Master-Bilt QSF77812-C indoor walk-in freezer provides 574 cubic feet of capacity within its 8-foot-by-12-foot enclosure. Its 4-inch-thick modular panels contain HFO polyurethane insulation to limit heat transfer through the cabinet. The smooth aluminum interior floor supports uniformly distributed loads of 800 pounds per square foot for routine frozen product storage.
To support efficient use of interior space, the Master-Bilt QSF77812-C walk-in freezer has a flush evaporator coil that keeps refrigeration components outside the storage area. It features high-efficiency EC evaporator fan motors that circulate air throughout the enclosure. The LogiTemp® electronic controller provides precise temperature control and a digital readout for system setup and routine monitoring.
- 574-cu.-ft. capacity
- Indoor walk-in freezer
- 26-ga. corrosion-resistant stucco-embossed coated steel interior and exterior
- High-output, low-profile LED light above door
- Right-hinged door
- 26-in.-W x 78-in.-H door opening
- Self-closing, flush-mounted door
- 2 field-adjustable cam-lift hinges
- Spring-actuated door closer
- Deadbolt-locking handle with independent key/padlock feature
- Inside safety release
- Magnetic gasket
- Perimeter door heater wire
- Digital thermometer and light switch
- Fiberglass-reinforced plastic heated threshold
- Ceiling-mounted Capsule Pak ECO™ system
- CPF175PC-S-4 indoor freezer system
- 6,350-BTUH refrigeration capacity
- R290 hydrocarbon refrigerant
- Air-cooled condensing unit
- Flush evaporator coil
- High-efficiency EC evaporator fan motors
- Automatic condensate evaporator
- LogiTemp electronic controller
- Automatic defrost
- 4-in.-thick modular panels
- Foamed-in-place HFO polyurethane insulation
- R-32 wall and ceiling panels
- R-32 insulated door
- R-28 insulated floor
- Foamed-in-place cam-locking panel fasteners
- Continuous perimeter panel gaskets
- Smooth aluminum interior floor
- 800-lb.-per-sq.-ft. uniformly distributed floor-load capacity
- Walk-in enclosure: 8 ft. W x 12 ft. D x 7 ft. 7 in. H
- Refrigeration package: 36 3⁄4 in. W x 48 1⁄4 in. D x 18 3⁄4 in. H
- 10.7 A, 230 V/60 Hz/1 ph, 9-ft. cord with a NEMA 6-15P plug
- 1.73 A, 120 V/60 Hz/1 ph door section
- 4-in. top and 24-in. side clearance required around refrigeration system
*Image may not depict product color, inclusions or accessories.
*Free shipping on Master-Bilt QSF77812-C within the 48 contiguous states.
From The Manufacturer
Master-Bilt QSF77812-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Master-Bilt |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Length (ft) | 12 |
| Product | Walk-In Freezers |
| Product Type | Commercial Refrigeration |
| Refrigerant | R290 (Hydrocarbon) |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 8 |
| Weight | 1902.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It measures 12 ft. L x 8 ft. W x 7.58 ft. H.
It includes a refrigeration system.
It uses R290 Capsule Pak refrigeration.
It uses R290 (Hydrocarbon) refrigerant.
Yes, the door is self-closing.
The interior and exterior panels use 26 gauge embossed coated steel finish.
Yes, it includes a floor.
It is designed to maintain -10ｰF.
It requires 230V/60 hz/1-ph power.
