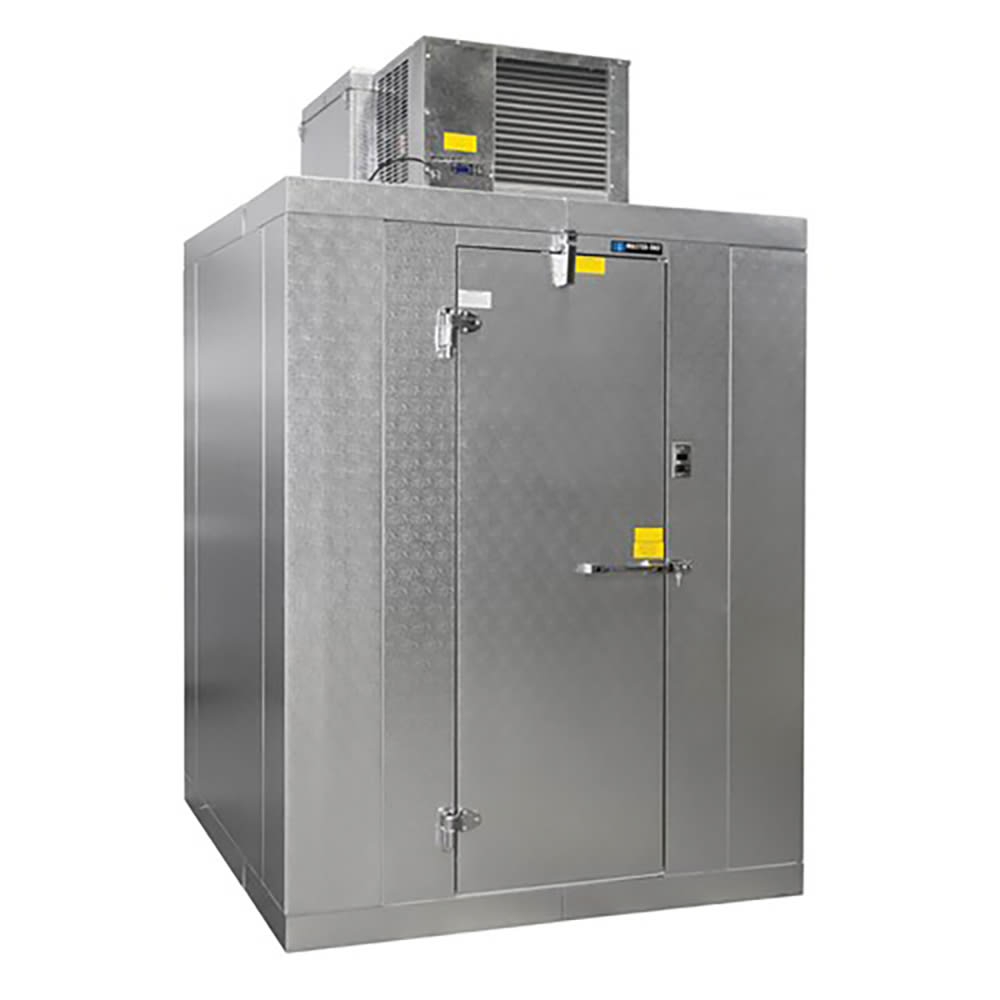

Master-Bilt QSF7768-C 6' x 8' Indoor Walk-in Freezer w/ Top-Mounted Compressor - Floor
QUICK SHIP: Typically ships in 1 - 3 Business Days
$12,614.75 /Each
Selected Hinge: Left Hinge
Master-Bilt QSF7768-C Description
For convenient frozen-product access, the Master-Bilt QSF7768-C indoor walk-in freezer has a 26-inch-wide self-closing left-hinged door centered on the 6-foot wall. Its stepped-profile design creates a barrier to airflow around the opening. For maintaining the enclosure, the magnetic gasket seals against the door frame, helping limit air exchange when the door is closed during regular storage periods.
Supporting minus-10-degree-Fahrenheit operation, the Master-Bilt QSF7768-C walk-in freezer uses a CPF100PC-S-0 ceiling-mounted refrigeration system delivering 3,600 BTUH. It features R290 hydrocarbon refrigerant and an air-cooled condensing unit to help prevent heat rejection. The automatic condensate evaporator uses forced condenser-fan air to help evaporate collected condensate, eliminating plumbing requirements for the indoor refrigeration system.
- 270-cu.-ft. capacity
- Indoor walk-in freezer
- 26-ga. corrosion-resistant stucco-embossed coated steel interior and exterior
- High-output, low-profile LED light above door
- Left-hinged door centered on 6-ft. wall
- 26-in.-W x 78-in.-H door opening
- Self-closing, flush-mounted door
- Stepped-profile door design
- 2 field-adjustable cam-lift hinges
- Spring-actuated door closer
- Deadbolt-locking handle with independent key/padlock feature
- Inside safety release
- Magnetic gasket
- Perimeter door heater wire
- Digital thermometer and light switch
- Fiberglass-reinforced plastic heated threshold
- Ceiling-mounted, Capsule Pak ECO™ system
- CPF100PC-S-0 indoor freezer system
- 3,600-BTUH refrigeration capacity
- R290 hydrocarbon refrigerant
- Air-cooled condensing unit
- Flush evaporator coil
- High-efficiency EC evaporator fan motors
- Automatic condensate evaporator
- LogiTemp electronic controller
- Automatic defrost
- 4-in.-thick modular panels
- Foamed-in-place HFO polyurethane insulation
- R-32 wall and ceiling panels
- R-32 insulated door
- R-28 insulated floor
- Foamed-in-place cam-locking panel fasteners
- Continuous perimeter panel gaskets
- Smooth aluminum interior floor
- 800-lb.-per-sq.-ft. uniformly distributed floor-load capacity
- Walk-in enclosure: 6 ft. W x 8 ft. D x 7 ft. 7 in. H
- Refrigeration package: 36 3⁄4 in. W x 48 1⁄4 in. D x 18 3⁄4 in. H
- 15.3 A, 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-20P plug
- 1.73 A, 120 V/60 Hz/1 ph door section
- 4-in. top and 24-in. side clearance required around refrigeration system
*Image may not depict product color, inclusions or accessories.
*Free shipping on Master-Bilt QSF7768-C within the 48 contiguous states.
From The Manufacturer
Master-Bilt QSF7768-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Master-Bilt |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Length (ft) | 8 |
| Product | Walk-In Freezers |
| Product Type | Commercial Refrigeration |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 6 |
| Weight | 1420.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It measures 8 ft. L x 6 ft. W x 7.58 ft. H.
It includes a refrigeration system.
It uses R290 Capsule Pak refrigeration.
It has a 26 in.-wide door opening.
The door is left hinged.
The interior and exterior panels use 26 gauge embossed coated steel finish.
Yes, it includes a floor.
It is designed to maintain -10ｰF.
It uses R-290 refrigerant.
Yes, it has a self-closing door.
