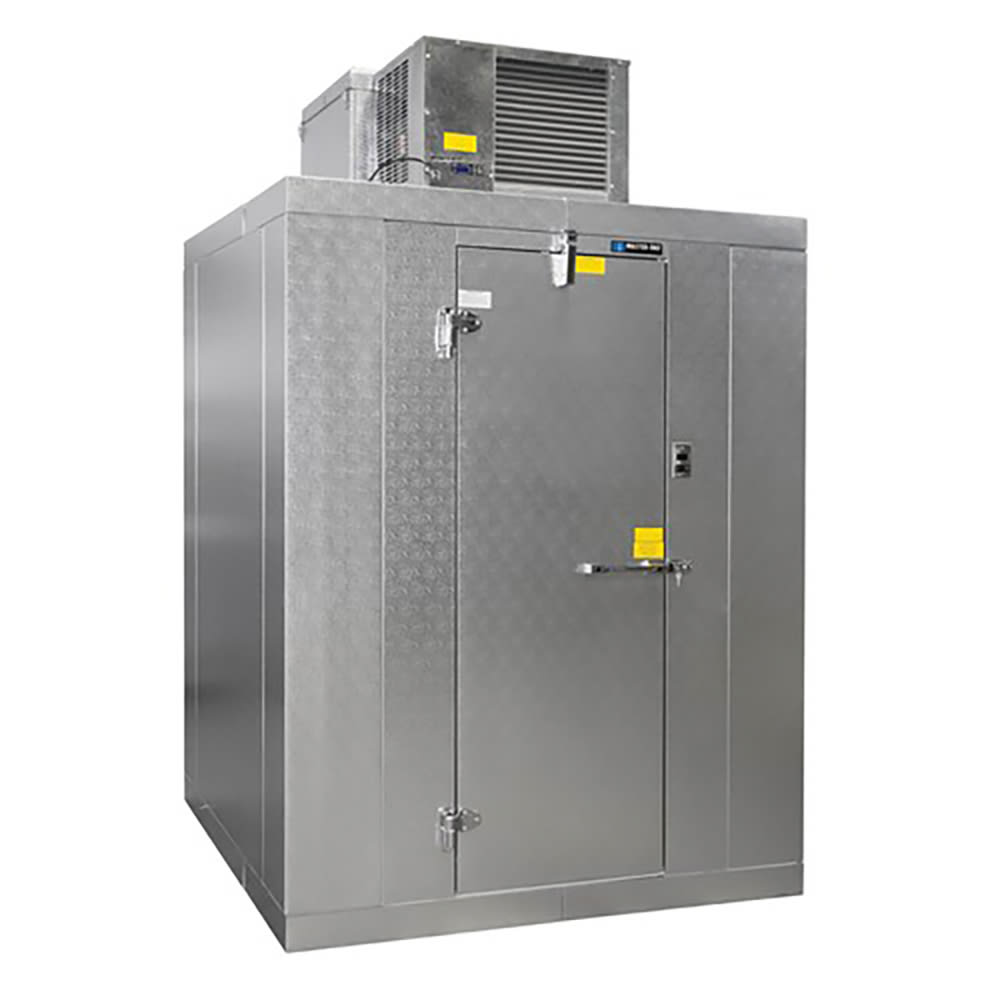

Master-Bilt QSF7768-C 6' x 8' Indoor Walk-in Freezer w/ Top-Mounted Compressor - Floor
QUICK SHIP: Typically ships in 1 - 3 Business Days
$13,569.18 /Each
Selected Hinge: Right Hinge
Master-Bilt QSF7768-C Description
The Master-Bilt QSF7768-C indoor walk-in freezer has a self-closing right-hinged door with perimeter heater wire that helps protect the opening during minus-10-degree-Fahrenheit operation. Its fiberglass-reinforced plastic heated threshold supports the freezer entrance. For interior visibility, the high-output, low-profile LED light is positioned above the door to illuminate stored products without interfering with shelving.
For temperature monitoring and system setup, the Master-Bilt QSF7768-C walk-in freezer features a LogiTemp® electronic controller with a digital readout. Its electronic control provides automatic defrost to manage frost removal during freezer operation. The CPF100PC-S-0 refrigeration system includes a factory-attached 9-foot power cord and plug, simplifying the electrical connection during equipment installation.
- 270-cu.-ft. capacity
- Indoor walk-in freezer
- 26-ga. corrosion-resistant stucco-embossed coated steel interior and exterior
- High-output, low-profile LED light above door
- Right-hinged door centered on 6-ft. wall
- 26-in.-W x 78-in.-H door opening
- Self-closing, flush-mounted door
- Stepped-profile door design
- 2 field-adjustable cam-lift hinges
- Spring-actuated door closer
- Deadbolt-locking handle with independent key/padlock feature
- Inside safety release
- Magnetic gasket
- Perimeter door heater wire
- Digital thermometer and light switch
- Fiberglass-reinforced plastic heated threshold
- Ceiling-mounted Capsule Pak ECO™ system
- CPF100PC-S-0 indoor freezer system
- 3,600-BTUH refrigeration capacity
- R290 hydrocarbon refrigerant
- Air-cooled condensing unit
- Flush evaporator coil
- High-efficiency EC evaporator fan motors
- Automatic condensate evaporator
- LogiTemp electronic controller
- Automatic defrost
- 4-in.-thick modular panels
- Foamed-in-place HFO polyurethane insulation
- R-32 wall and ceiling panels
- R-32 insulated door
- R-28 insulated floor
- Foamed-in-place cam-locking panel fasteners
- Continuous perimeter panel gaskets
- Smooth aluminum interior floor
- 800-lb.-per-sq.-ft. uniformly distributed floor-load capacity
- Walk-in enclosure: 6 ft. W x 8 ft. D x 7 ft. 7 in. H
- Refrigeration package: 36 3⁄4 in. W x 48 1⁄4 in. D x 18 3⁄4 in. H
- 15.3 A, 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-20P plug
- 1.73 A, 120 V/60 Hz/1 ph door section
- 4-in. top and 24-in. side clearance required around refrigeration system
*Image may not depict product color, inclusions or accessories.
*Free shipping on Master-Bilt QSF7768-C within the 48 contiguous states.
From The Manufacturer
Master-Bilt QSF7768-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Master-Bilt |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.58 |
| Length (ft) | 8 |
| Product | Walk-In Freezers |
| Product Type | Commercial Refrigeration |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 6 |
| Weight | 1420.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It measures 8 ft. L x 6 ft. W x 7.58 ft. H.
It includes a refrigeration system.
It uses R290 Capsule Pak refrigeration.
It has a 26 in.-wide door opening.
The door is right hinged.
The interior and exterior panels use 26 gauge embossed coated steel finish.
Yes, it includes a floor.
It is designed to maintain -10ｰF.
It uses R-290 refrigerant.
Yes, it has a self-closing door.
