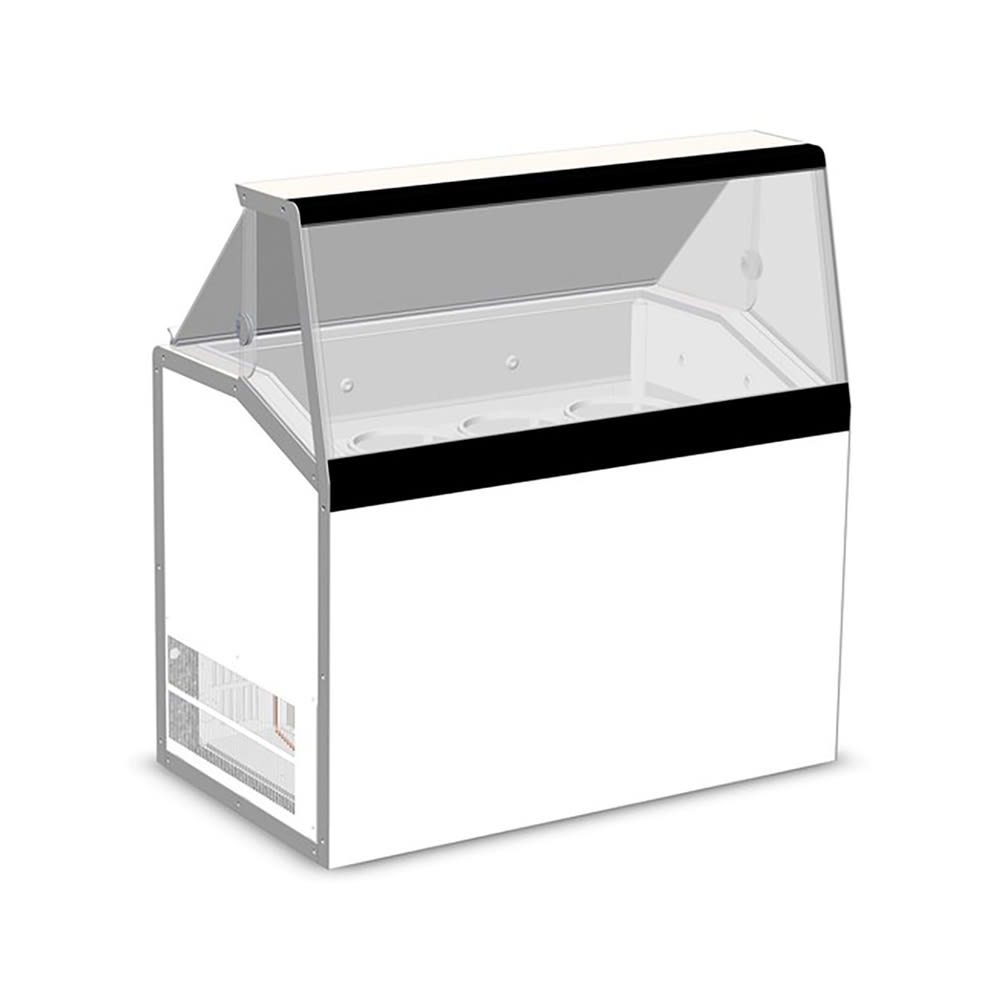

Master-Bilt DD-46L 48 1/4" Low Glass Stand Alone Ice Cream Dipping Cabinet w/ 12 Tub Capacity - White, 115v

KaTom #: 050-DD46L • MPN: DD-46L
  • 050-DD46L Primary Thumbnail Image

QUICK SHIP: Typically ships in 1 - 3 Business Days

Free Shipping Item

$7,072.28 /Each

Add to cart or Login to see your price!

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $151.65
  • Edit Remove
Blake Higgins User Image
Ask a Foodservice Equipment Specialist

Master-Bilt DD-46L Description

The Master-Bilt DD-46L ice cream dipping and display cabinet has room to hold as many as eight 3-gallon containers of ice cream in its serving area, with a capacity for an additional four in the base storage area. These tubs are sold separately. Customers have a clear view of each flavor available, thanks to a tempered plate glass window and fluorescent interior lights that create an attractive display. Your staff has access to the cabinet's service side through a hinged acrylic cover with a full-length handle. Both the interior and exterior of this dipping cabinet are made with textured, white-painted galvanized steel, a material that lends itself to a long product life by resisting corrosion and scratches.

The refrigeration system on the Master-Bilt DD-46L ice cream dipping and display cabinet takes advantage of a cold wall design that efficiently cools dense ice cream down to temperatures between -5 and 5 degrees Fahrenheit. An adjustment knob lets you dial in the temperature desired to best display and store your product. The unit's low-maintenance bare tube condenser and industry-standard R290 refrigerant make maintaining the equipment a simple task. Since the refrigeration system takes in and expels air from the rear of the equipment, the need for a front grill is eliminated, so the entire front of the unit can be fitted with marketing graphics.

  • Can fit 8 standard 3 gal. tubs for displaying and dipping
  • Room for 4 standard 3 gal. tubs in storage
  • Heavy-duty wire can support racks are coated in epoxy for a long, corrosion-resistant life
  • Rugged tempered plate glass viewing windows gives customers a clear view of ice cream on display
  • Acrylic lid with full-length handle gives staff access to service side of dipping cabinet
  • Top and side lid wiper gaskets help keep cold air sealed inside equipment
  • Fluorescent interior lighting keeps contents visible to customers
  • Independent on/off switches for light and compressor
  • Garden hose connector and drain make the unit interior easy to clean
  • Leveling legs allow equipment to be installed level on uneven floors
  • 115 V/60 Hz/1 ph, 7.5 A, 1⁄2 HP, 9-ft. cord with a NEMA 5-15P plug
  • Overall Dimensions: 47 3⁄4n in. W x 27 3⁄4 in. D x 50 in. H

  • Cold wall evaporator efficiently cools dense items, including ice cream
  • Bare-tube condenser coil requires little maintenance
  • -5-5 degrees F temperature range
  • Cabinet sides require no clearance, so equipment can be installed against walls or equipment
  • Rear-breathing condensing unit eliminates a front grill so the entire front of the cabinet can be used for custom graphics

  • Stainless steel top and superstructure lend structural integrity
  • Interior and exterior are made with white, textured galvanized steel that is easy to clean
  • Stainless steel serving deck is a breeze to clean
  • Insulated with 2 1⁄4-in. of foamed in place urethane for energy efficiency and structural rigidity

*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.

*Image may not depict product color, inclusions or accessories.

*Free shipping on Master-Bilt DD-46L within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Ice Cream Dipping/Display Cabinet, low-glass, (8) 3 gallon can display, (4) 3 gallon storage, painted galvanized steel interior and exterior, 50" high stainless steel serving deck, low front glass view windows, LED interior lighting with switch, temperature range 5° to -5°F, 3/5 HP, 115v/60/1-ph, 5.9 amps, NEMA 5-15P, cULus, UL EPH Classified

Warranty Icon
2-year Limited Parts & Labor; 5-year Compressor
