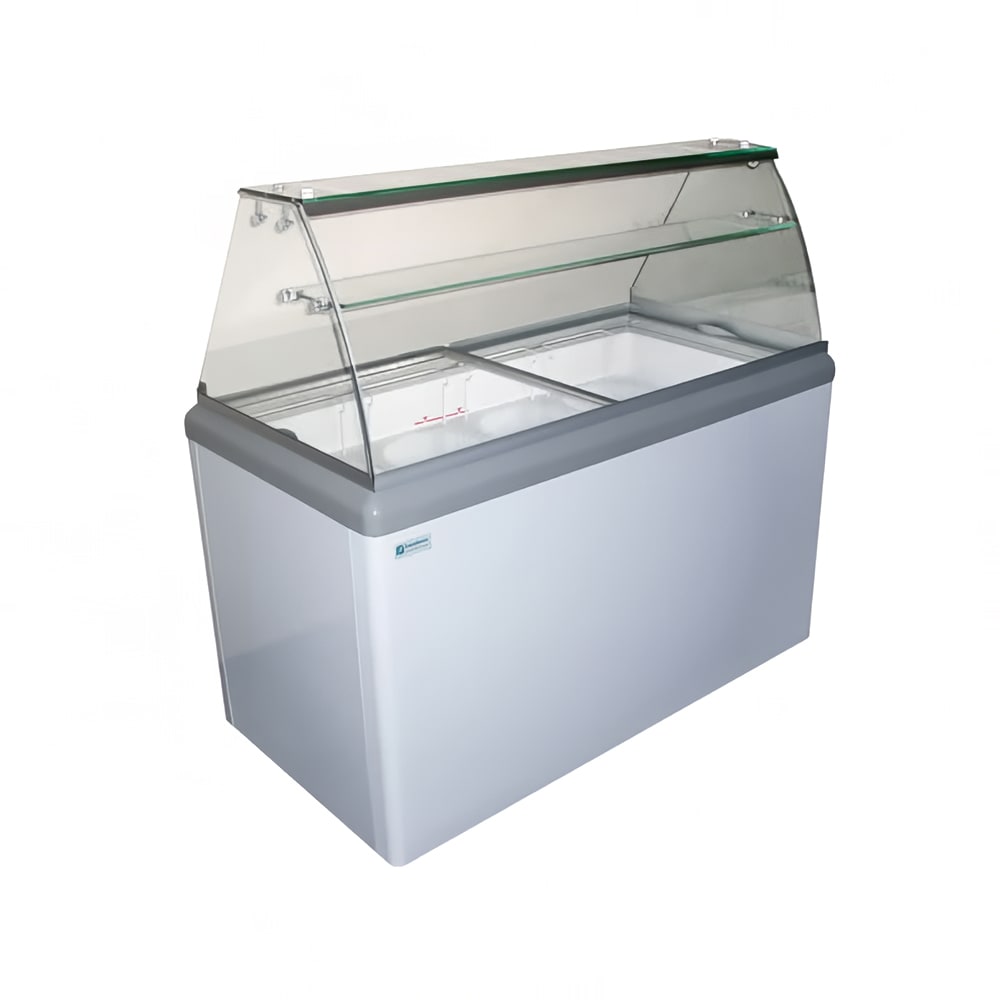

The Excellence Industries HBD-8HC ice cream dipping cabinet holds eight 3-gallon tubs in the display area and six 2-gallon tubs in the storage base. A mezzanine window shelf increases merchandising space. In the cabinet, the painted steel construction adds strength, and LED lighting enhances visibility. Guests can see the displayed product through the heat-reflective lids.
The cold-wall evaporator in the Excellence Industries HBD-8HC dipping cabinet uses refrigerant lines in the walls to remove heat. This is an efficient way to cool ice cream, and since it uses hydrocarbon refrigerant, it is eco-friendly. Temperatures range from -15 to 15 degrees Fahrenheit and can be set on the thermostat.
- 13.8-cu.-ft. interior space
- Display capacity: (8) 3-gal. tubs
- Storage capacity: (6) 3-gal. tubs
- Painted steel interior is durable for high-volume use
- LED lighting brightens the interior to highlight ice cream
- Heat-reflective lids trap cold air without limiting visibility
- Mezzanine shelf in the window for merchandising
- Thermostat displays internal temperature
- Temperature range: -15 to 15 degrees F
- Cold-wall evaporator
- R290 hydrocarbon refrigerant
- 2 of the casters lock to keep the unit in place
- cETLus and ETL-Sanitation listed
Dimensions and Utilities
- 513⁄4 in. W x 273⁄8 in. D x 501⁄8 in. H
- 2 A, 3.3 kW, 1⁄4 HP
- 115 V/60 Hz/1 ph
Our article on ice cream freezers has more information on dipping cabinet features.
Ice Cream Dipping Cabinet, horizontal, 13.8 cu ft, sliding glass lids, (8) 3-gallon cans displayed, (6) 3-gallon cans stored, wide range thermostat, LED interior lighting, cold wall evaporator, prepainted galvanized steel interior, single-layer heat-reflective glass lids, 40°F to -15°F temperature range, 51.75"L x 27.25"D x 51.75"H, 13.5 amps, 3.2 KWh/24hr, 1/4 HP, 115v/60/1ph
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Excellence Industries HBD-8HC SpecificationsPDF Spec Sheet
|Refrigeration Type||Cold Wall|
|Capacity (3 gal cans)||14|
|Width (in) Range||48 - 59|
|Warranty||1 year cabinet; 5 year compressor|
|Product||Ice Cream Freezer|
|Product Type||Commercial Refrigeration|
