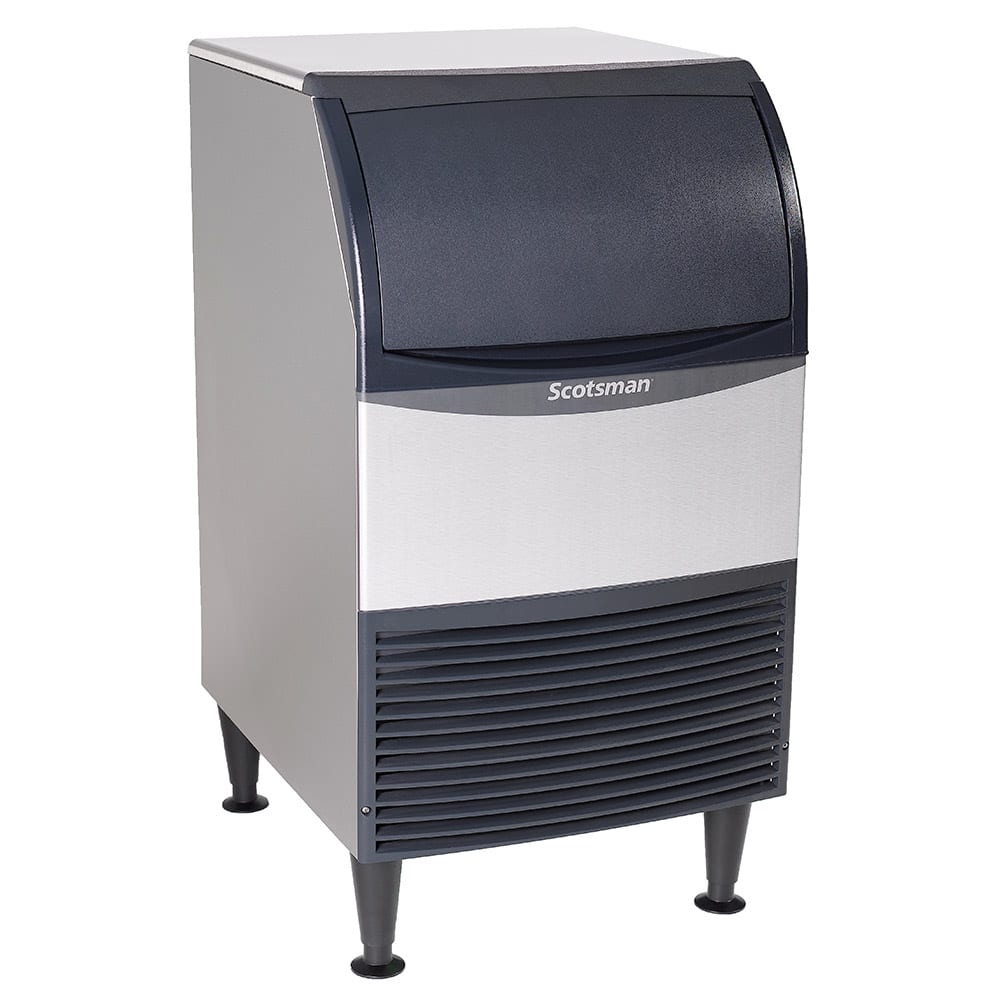

Scotsman UF2020AX-1 20"W Flake Undercounter Ice Machine w/ Filter - 216 lbs/day, Air Cooled, Gravity Drain, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $11,212.00
$4,596.00 /Each
Scotsman UF2020AX-1 Description
Over 24 hours, the Scotsman UF2020AX-1/AP1-P undercounter flake ice machine makes 216 pounds of ice if ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit. In warmer environments, the unit will make around 149 pounds per day. Producing flake ice, it can be used in healthcare since this ice type doesn’t pose a choking hazard, and it also works well in supermarkets with seafood and produce displays. Holding 57 pounds, the unit has a built-in storage bin. An ice scoop is included, and the bin door has a slide-back design for convenient access. This unit comes standard with the AP1-P water filter.
Measuring 20 inches wide, the Scotsman UF2020AX-1/AP1-P flake undercounter ice maker fits in tight spaces, and so side clearances aren't needed, it breathes from the front. It is mounted on 6-inch adjustable legs, and if these are removed and replaced with a floor kit that is not included, the ice machine can fit under 34-inch-high countertops. Including a stainless steel auger and evaporator, sealed bearings, and corrosion-resistant exterior panels, the unit is made with durable components to improve reliability.
- 216-lb. maximum daily ice production
- 149-lb. AHRI-certified daily ice production
- Flake ice is used ideal for seafood presentations and healthcare facilities

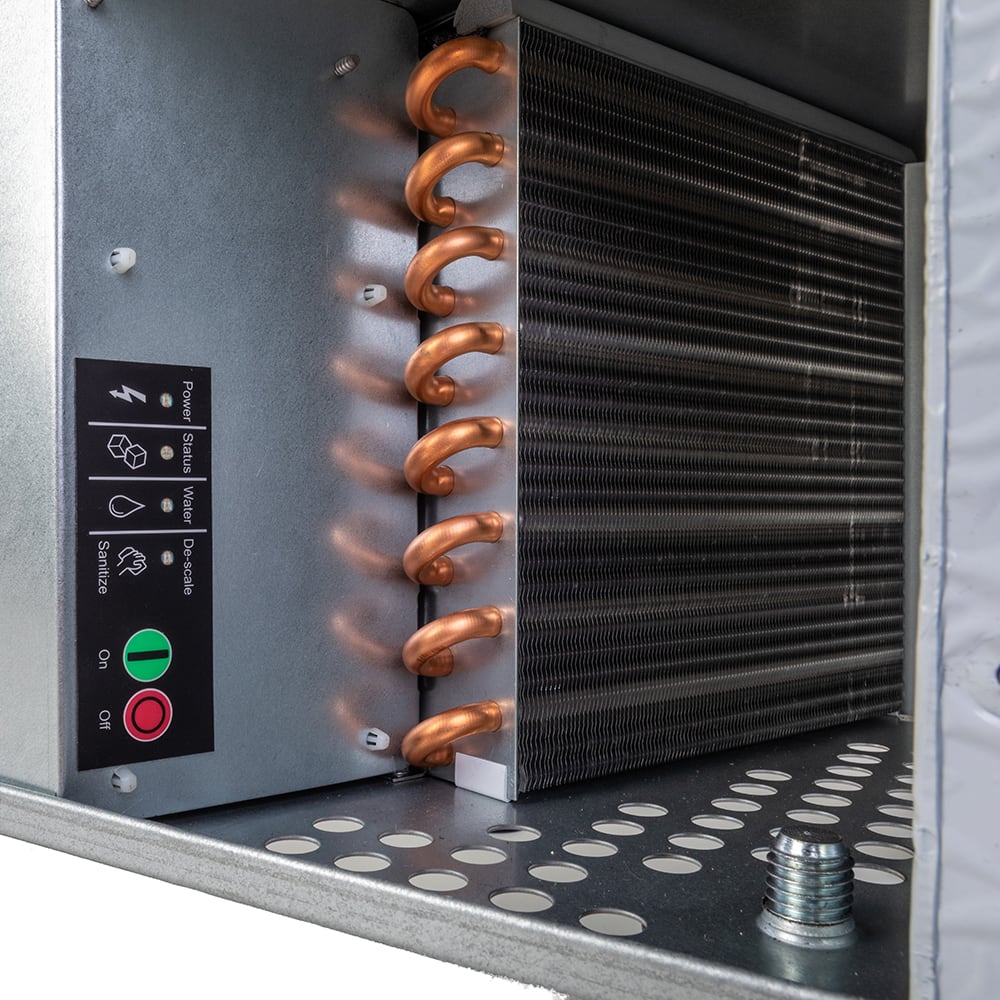

- Air-cooled, self-contained condenser
- Built-in 57-lb. storage bin
- Includes ice scoop

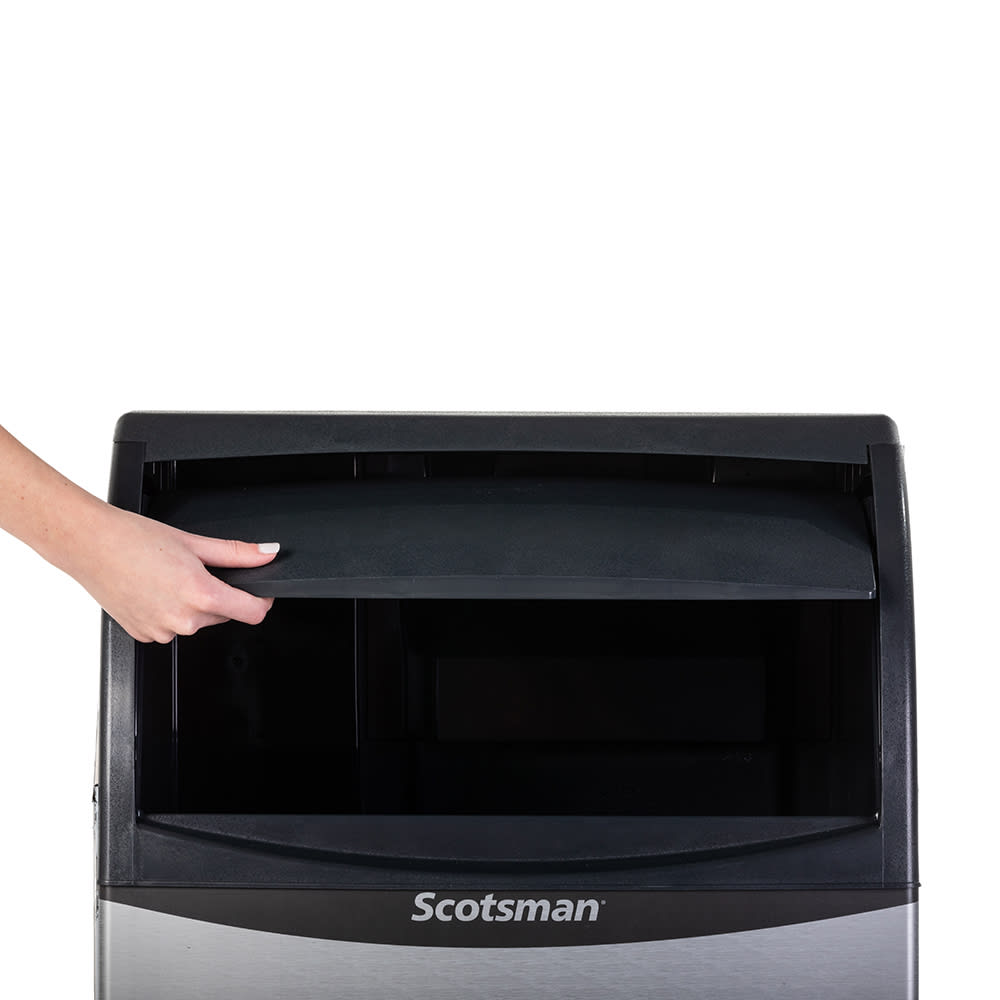

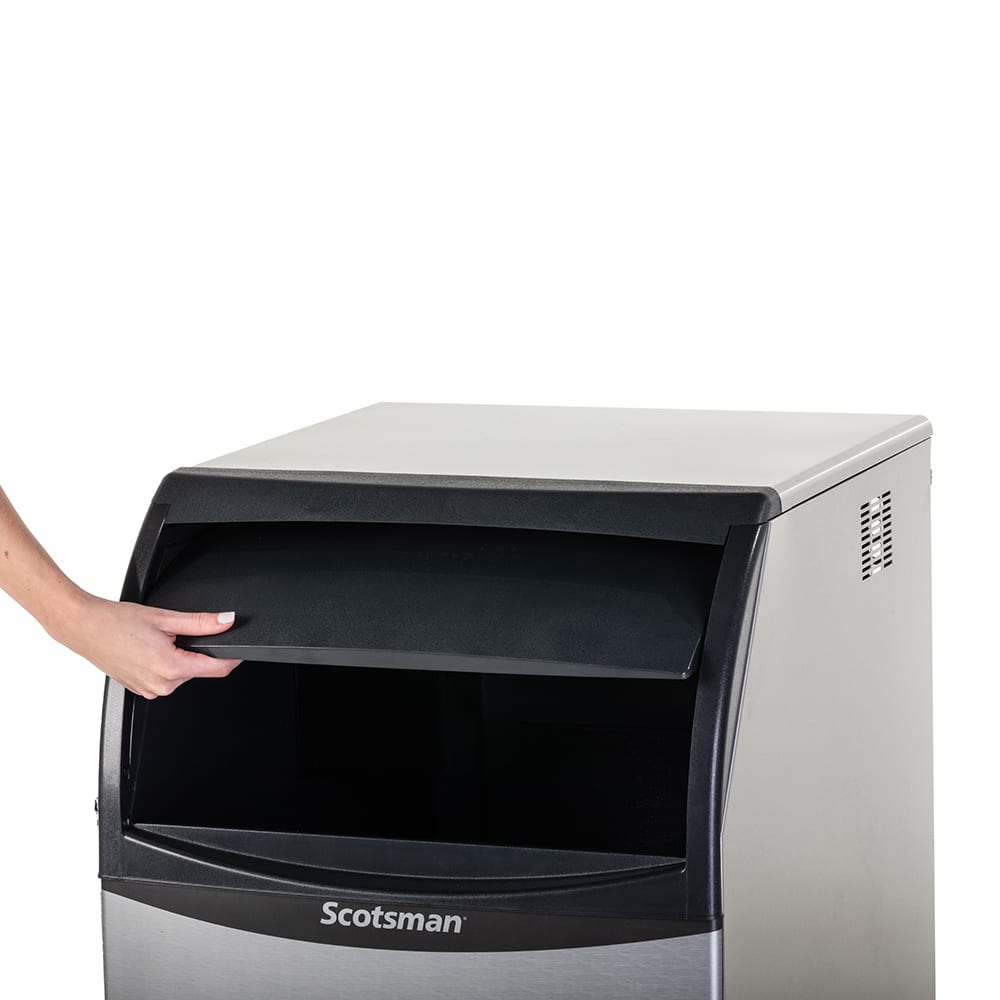

- Ergonomically designed bin door has a slide-back design
- QR code connects operators to service and cleaning manuals and warranty history

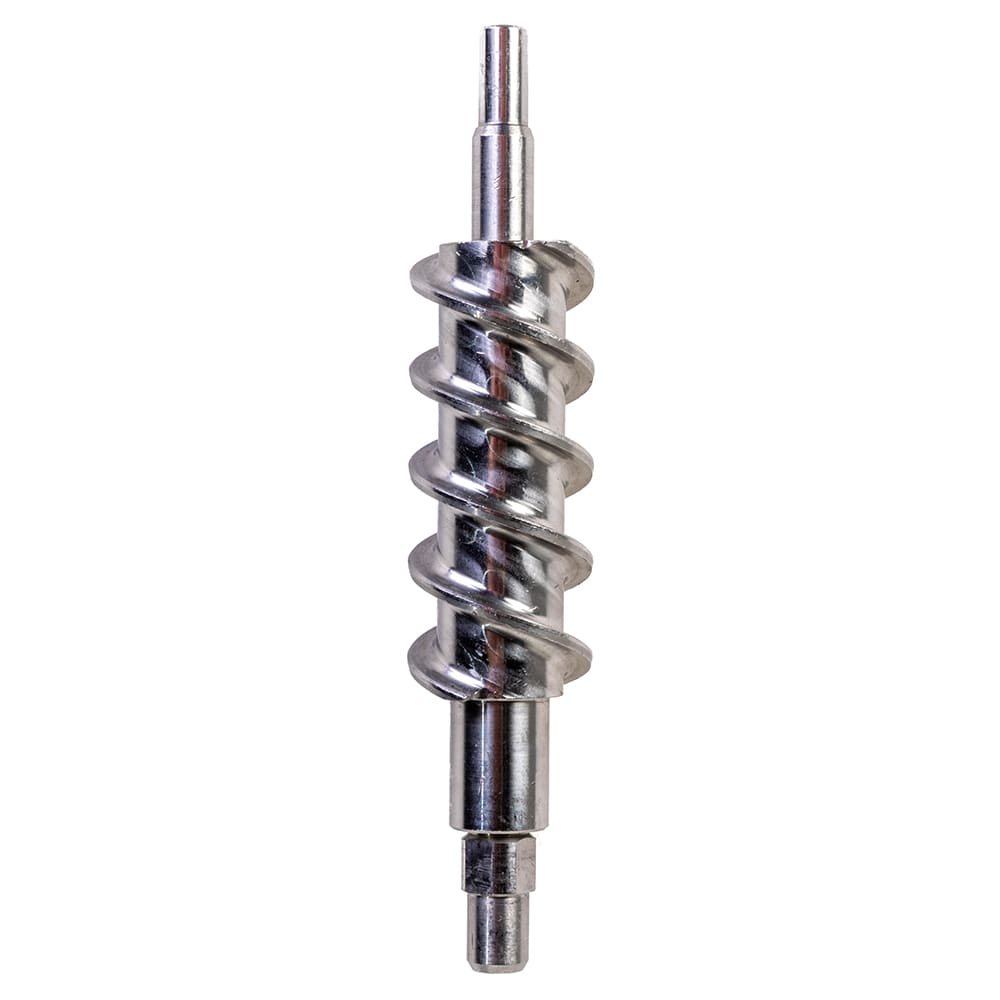

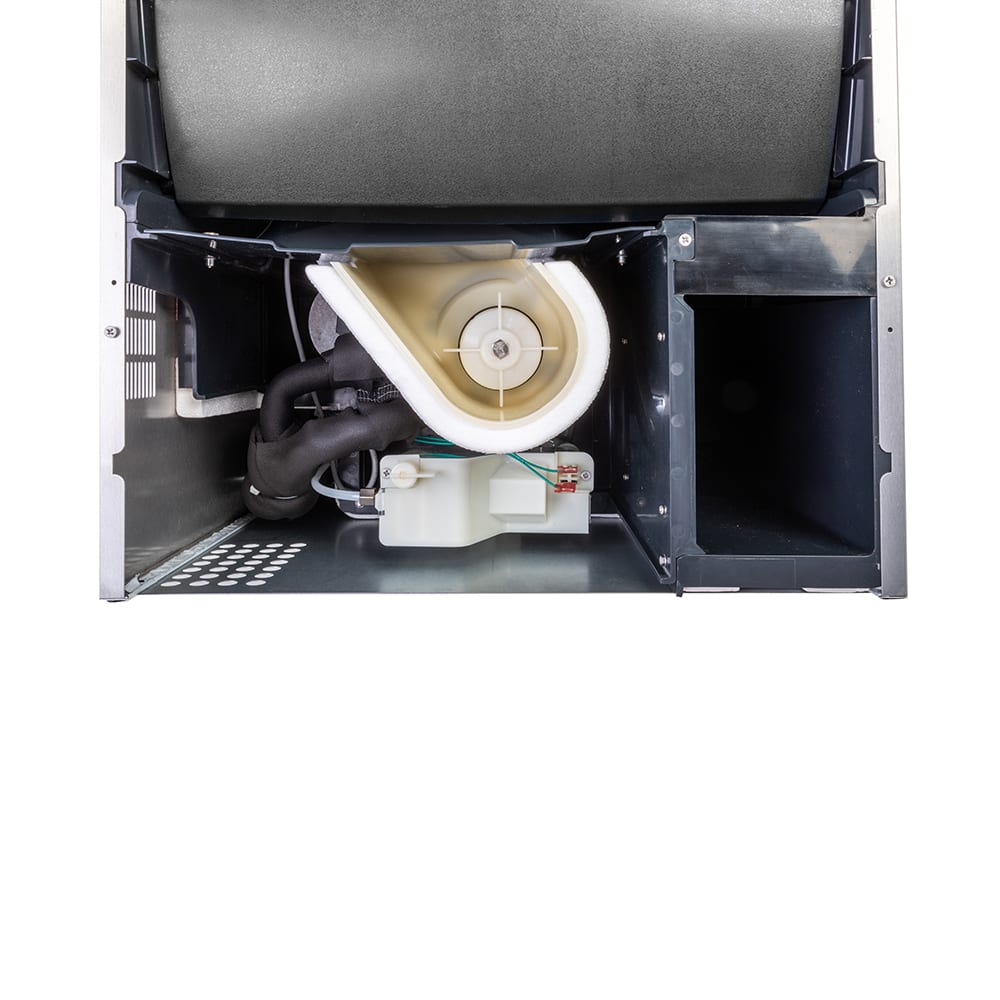

- Stainless steel evaporator and auger

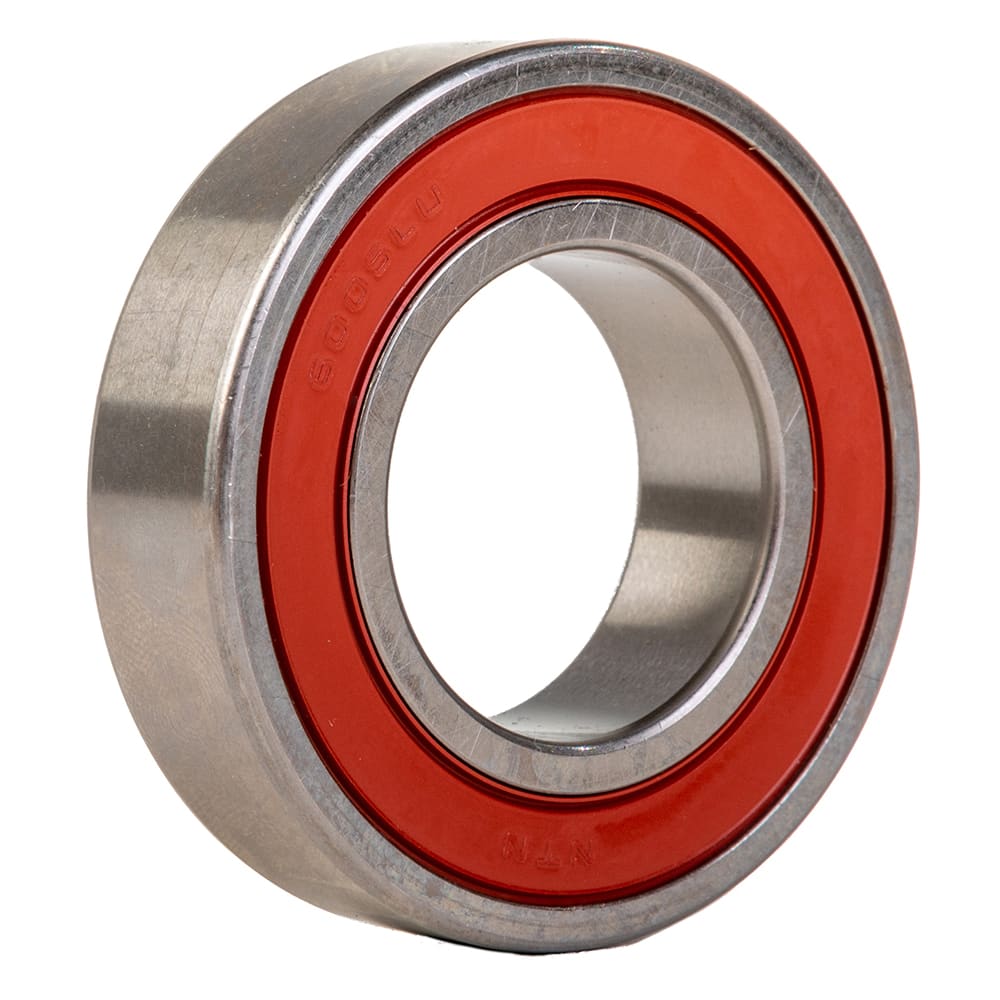

- Reliable, sealed bearings don’t require maintenance
- Heavy-duty, rust-resistant front
- Corrosion-resistant aluminum alloy sides

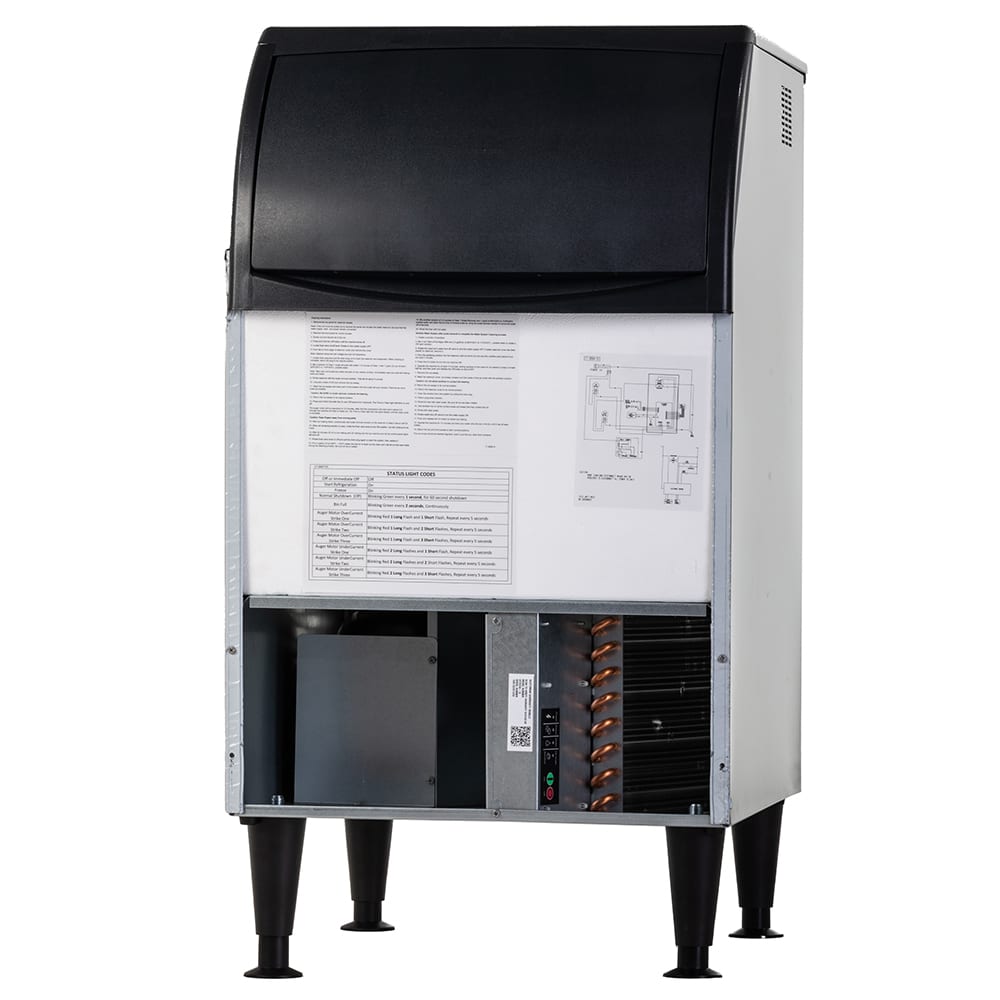

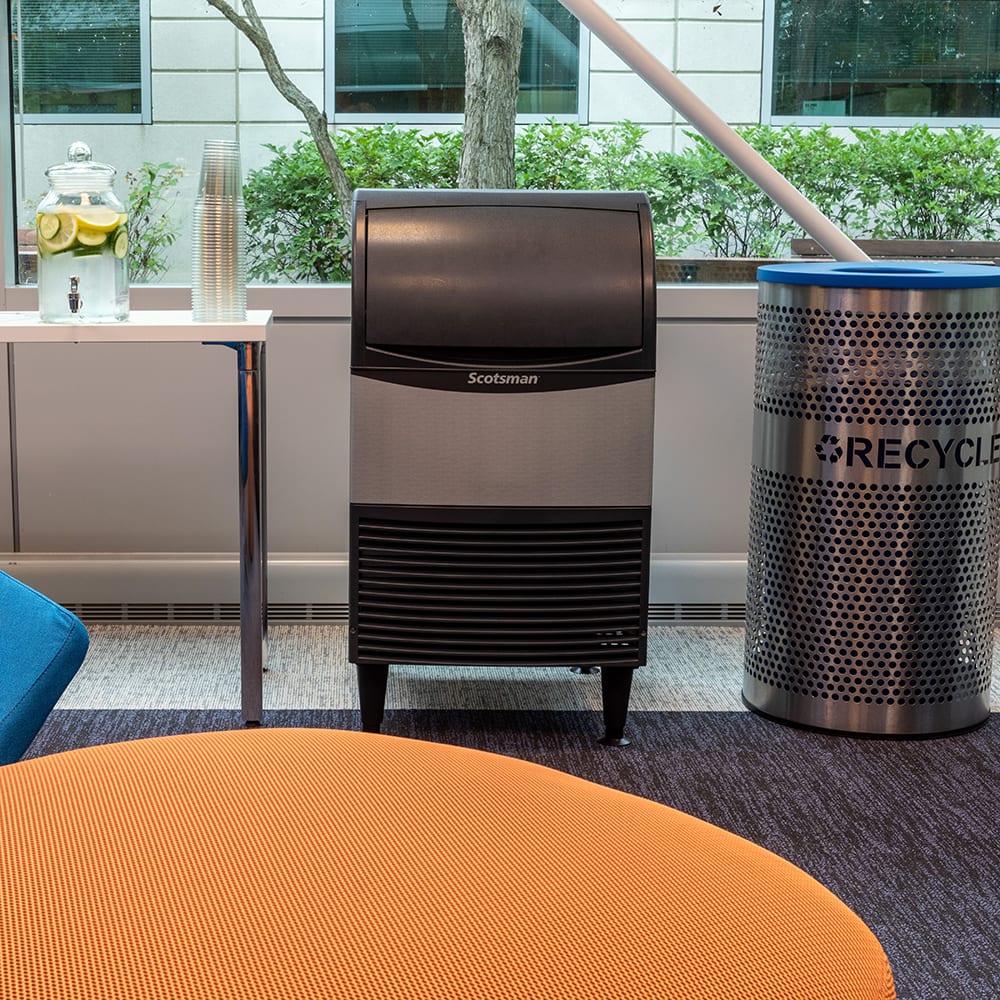

- Front-breathing operation doesn't need side clearances
- 6-in. adjustable legs
- Can be ADA complaint when used with a floor-mount kit instead of legs (sold separately)
- R290 refrigerant
- AP1-P water filter included
- 4,100-BTU heat transfer capacity
- 20 in. W x 24 in. D x 38 in. H
- 4.63 kW
- 115 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
- Ambient air temperature: 50-100 degrees F
- Incoming water temperature: 40-100 degrees F
- Incoming water pressure: 20-80 PSIG
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman UF2020AX-1 within the 48 contiguous states.
From The Manufacturer
Undercounter Ice Maker With Bin, flake style, air-cooled, 20" width, self-contained condenser, production capacity up to 216 lb/24 hours at 70°/50° (149 lb AHRI certified at 90°/70°), 57 lb bin storage capacity, sealed maintenance-free bearings, stainless steel auger & evaporator, ADA compliant with floor mount kit, unit specific QR code, ice scoop included, 6" adjustable legs, R290A refrigerant, 115v/60/1-ph, includes power cord with NEMA 5-15P plug, NSF, cULus, ENERGY STAR®
AquaPatrolâ„¢ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman UF2020AX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 216 |
| Also Known As | UF2020A-1 |
| Bin Capacity (lb) | 57 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Design | ADA Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38 |
| Hertz | 60 |
| Ice Type | Flake |
| Includes | AP1-P Filtration |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Special Features | Inline Water Filter Included |
| Special Features | Sealed, Maintenance-Free Bearings |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; Residential: 1-year Parts & Labor |
| Width (in) | 20 |
| Weight | 129.00 |
