Scotsman SCCP30MA-1SU 14 7/8"W Top Hat Undercounter Ice Machine - 30 lbs/day, Air Cooled, Pump Drain, 115v
Scotsman SCCP30MA-1SU Description

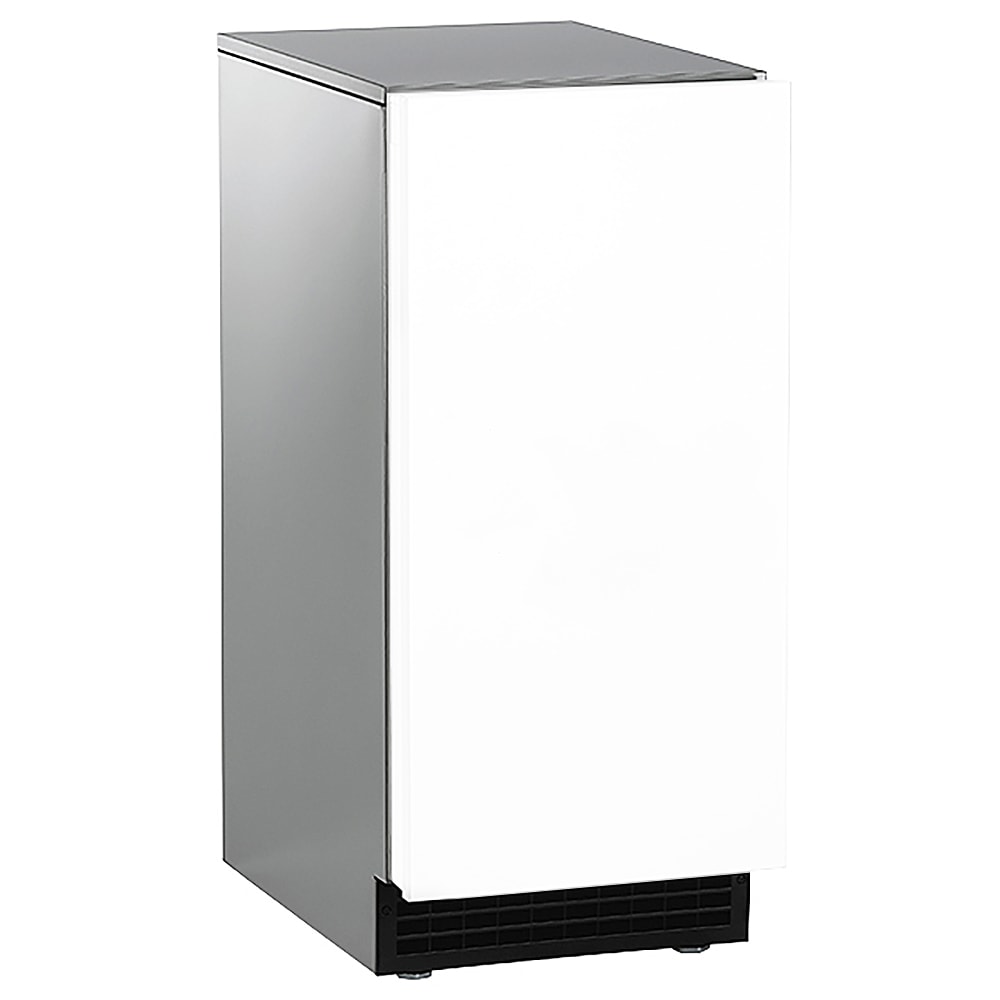

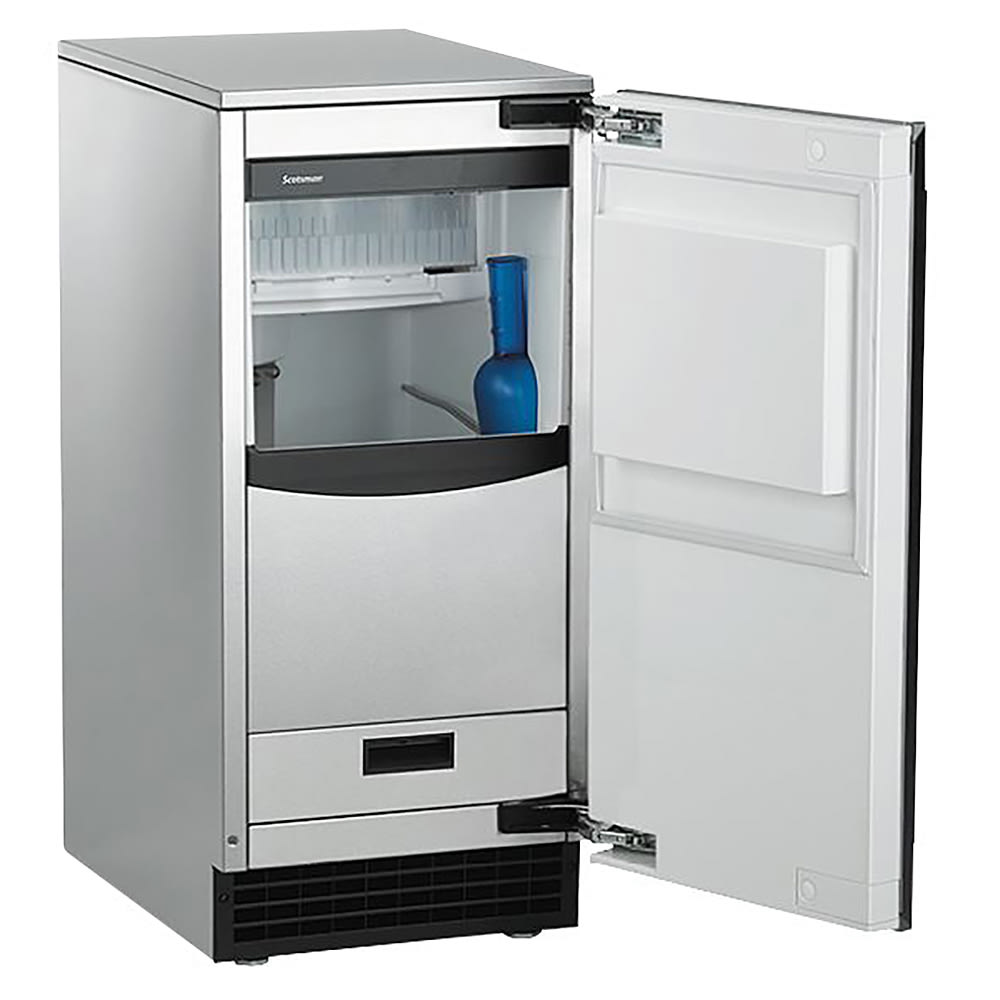

The Scotsman SCCP30MA-1SU Brilliance™ ice maker is designed with a built-in drain pump for flexible installation without requiring a nearby floor drain. Its cabinet is constructed of stainless steel—a rugged, corrosion-resistant metal suited to heavy use—while its front is unfinished for customization with wood paneling (sold separately). For additional strength and a streamlined appearance, it features fully integrated, robust hinges. Designed to fit under most standard countertops, this unit measures 14 7⁄8 inches wide by 22 inches deep by 34 3⁄8 inches high.
Ideal for residential spaces, the Scotsman SCCP30MA-1SU air-cooled ice maker produces as much as 30 pounds of gourmet ice daily; this 1-inch by 1 1⁄8-inch by 1 1⁄4-inch cube melts slowly for chilling specialty cocktails. To preserve the quality of served spirits, this ice is flavorless and odorless; this ice machine can store a total of 26 pounds of ice at one time.
- Featured in the Brilliance series
- 30-lb. daily ice production when air is 70 degrees F and water is 50 degrees F (16-lb. daily production when air is 90 degrees F and water is 70 degrees F)
- 26-lb. built-in storage capacity
- Undercounter
- Cube size: 1 in. x 1 1⁄8 in. x 1 1⁄4 in.
- Fully integrated hinge system
- Produces large, slow-melting gourmet cubes that are odorless and tasteless
- Cabinet made of heavy-duty stainless steel
- Customizable front panel (panel sold separately)
- Built-in drain pump
- Air cooled
- R-134A refrigerant
- Required incoming water pressure: 20-80 PSI
- Required ambient water temperature: 40-100 degrees F
- Required ambient air temperature: 50-100 degrees F
- 14 7⁄8 in. W x 22 in. D x 34 3⁄8 in. H
- 5 A
- 115 V/60 Hz/1 ph
- Includes 3⁄8-in. drain line
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman SCCP30MA-1SU within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Scotsman SCCP30MA-1SU Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 30 |
| Bin Capacity (lb) | 26 |
| Compressor Type | Air Cooled |
| Depth (in) | 22 |
| Design | Standard Height |
| Drain Type | Pump |
| Front Style | Cabinet Door |
| Height (in) | 33.38 |
| Hertz | 60 |
| Ice Type | Top Hat |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R134a |
| Series | Brilliance™ |
| Special Features | Custom Panel Front |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | Commercial & Residential: 1-year Parts & Labor; 5-year Compressor Parts |
| Width (in) | 14.88 |
| Weight | 90.00 |
Important Prop 65 information for California residents.
- Scotsman SRCP035A-1SU (Replacement)
Compare to Similar Items
| Attributes |
Scotsman SCCP30MA-1SU Scotsman SCCP30MA-1SU 14 7/8"W Top Hat Undercounter Ice Machine - 30 lbs/day, Air Cooled, Pump Drain, 115v Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $3,579.00 / Each | |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | IN STOCK: Ships in 1 Business Day | |
| Ice Type | Top Hat | Extra-large Cube |
| 24 Hr. Production (lb) | 30 | 35 |
| Bin Capacity (lb) | 26 | 26 |
| Width (in) | 14.88 | 14.88 |
| Compressor Type | Air Cooled | Air Cooled |
| Drain Type | Pump | Pump |
| Rating | Best | Best |
| Special Features | Custom Panel Front | Adjustable Leveling Feet |
| Series | Brilliance™ | Brilliance™ |
| Suggested Use | Commercial | Home/Office |
| Front Style | Cabinet Door | Cabinet Door |
| Depth (in) | 22 | 22.75 |
| Height (in) | 33.38 | 34.38 |
| Design | Standard Height | Standard Height |
| Refrigerant | R134a | R290 (Hydrocarbon) |
| Voltage | 115 | 115 |
| Warranty | Commercial & Residential: 1-year Parts & Labor; 5-year Compressor Parts | Residential: 1-year Parts & Labor; 5-year Compressor Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
This unit is designed for undercounter installation with a cabinet height of 33 31⁄8 in., adjustable up to 34 31⁄8 in. using the leveling legs.
It produces up to 30 lbs. of gourmet clear ice in a 24-hour period under standard operating conditions.
The integrated storage bin holds up to 26 lbs. of ice.
It operates on a 115-V electrical connection.
Yes, a potable water supply connection using a 1⁄4 in. compression fitting is required.
Yes, a drain connection is required, and the built-in pump moves drain water through the supplied tubing.
Yes, this configuration includes a built-in drain pump to expel drain water through the supplied drain tubing.
Yes, front-breathing ventilation support installation without side clearance restrictions.
Yes, adjustable leveling legs are included to help align the unit under the counter.
It produces large, slow-melting gourmet clear ice cubes suitable for beverage service.
Yes. The door is field reversible to support left- or right-hand opening.
This unit is designed for indoor installation within controlled ambient temperature conditions.
