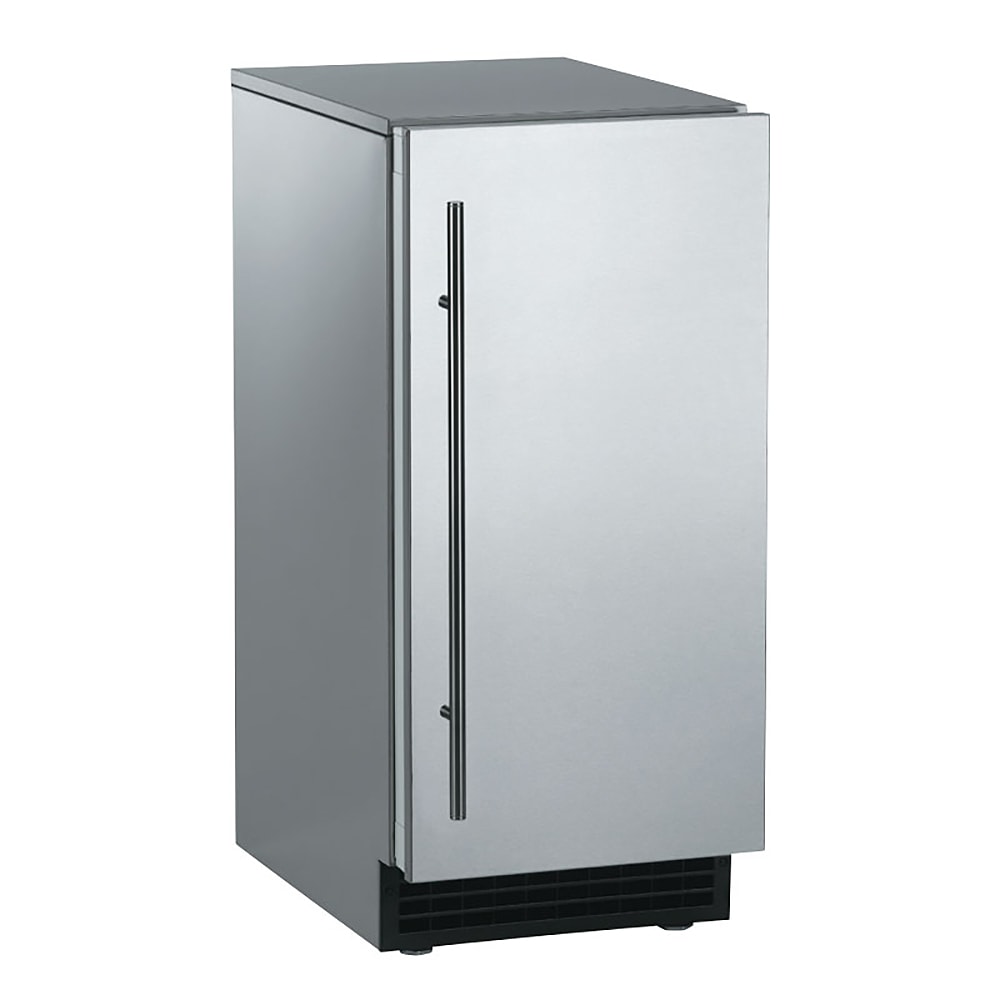

Scotsman SCCG50MB-1SS 14 7/8"W Top Hat Undercounter Ice Machine - 65 lbs/day, Air Cooled, Gravity Drain, 115v
Scotsman SCCG50MB-1SS Description
To optimize performance and enhance ice quality, the Scotsman SCCG50MB-1SS Brilliance™ ice maker's control system detects and purges mineral-laden water with each harvest cycle, while its control panel provides power status, low-water alerts, and cleaning reminders. Built with R-134A refrigerant, this air-cooled unit can produce a maximum of 65 pounds of gourmet ice daily when conditions are ideal. These large cubes measure 1-inch by 1 1⁄8-inch by 1 1⁄4-inch and are slow melting so as to not dilute beverages too quickly.
Suitable for offices or residential spaces, the Scotsman SCCG50MB-1SS undercounter ice machine measures 14 7⁄8 inches wide by 22 inches deep by 34 3⁄8 inches high and can hold as much as 26 pounds of ice at a time. Its bin is illuminated to ease ice retrieval, and to minimize cold air leaks, its door is self-closing. For long-term durability, its cabinet and front panel are sturdy stainless steel. To streamline cleaning, this unit features a gravity-style drain system and should be installed near an existing floor drain.
- Part of the Brilliance series
- 65-lb. daily ice production limit when air is 70 degrees F and water is 50 degrees F (48-lb. daily production when air is 90 degrees F and water is 70 degrees F)
- 26-lb. built-in storage capacity
- Undercounter unit
- Cube size: 1 in. x 1 1⁄8 in. x 1 1⁄4 in.
- Produces large, slow-melting gourmet cubes that are tasteless and odorless
- Stainless steel cabinet and front
- Self-closing door
- Lighted bin provides visibility
- Water quality sensor detects hard water
- Control system purges hard water with each harvest cycle
- Control panel provides cleaning reminders and alerts regarding power and water levels
- Gravity drain
- Air-cooled condensing unit
- R-134A refrigerant
- Required incoming water pressure: 20-80 PSI
- Required ambient water temperature: 40-100 degrees F
- Required ambient air temperature: 50-100 degrees F
- 14 7⁄8 in. W x 22 in. D x 34 3⁄8 in. H
- 5 A
- 115 V/60 Hz/1 ph
- Requires 5⁄8-in. drain line
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman SCCG50MB-1SS within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Scotsman SCCG50MB-1SS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 65 |
| Bin Capacity (lb) | 26 |
| Compressor Type | Air Cooled |
| Depth (in) | 22 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Stainless Door |
| Height (in) | 33.38 |
| Hertz | 60 |
| Ice Type | Top Hat |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R134a |
| Series | Brilliance™ |
| Special Features | Alert System |
| Special Features | Outdoor Rated |
| Suggested Use | Home/Office |
| Suggested Use | Outdoor |
| Voltage | 115 |
| Warranty | Residential: 1-year Parts & Labor; 5-year Compressor Parts |
| Width (in) | 14.88 |
| Weight | 95.00 |
Important Prop 65 information for California residents.
- Scotsman SRCG065A-1SS (Replacement)
Compare to Similar Items
| Attributes |
Scotsman SCCG50MB-1SS Scotsman SCCG50MB-1SS 14 7/8"W Top Hat Undercounter Ice Machine - 65 lbs/day, Air Cooled, Gravity Drain, 115v Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $4,099.00 / Each | |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | IN STOCK: Ships in 1 Business Day | |
| Ice Type | Top Hat | Extra-large Cube |
| 24 Hr. Production (lb) | 65 | 65 |
| Bin Capacity (lb) | 26 | 26 |
| Width (in) | 14.88 | 14.88 |
| Compressor Type | Air Cooled | Air Cooled |
| Drain Type | Gravity | Gravity |
| Rating | Best | Best |
| Special Features | Alert System | Adjustable Leveling Feet |
| Series | Brilliance™ | Brilliance™ |
| Suggested Use | Home/Office | Home/Office |
| Front Style | Stainless Door | Stainless Door |
| Depth (in) | 22 | 23.63 |
| Height (in) | 33.38 | 34.38 |
| Design | Standard Height | Standard Height |
| Refrigerant | R134a | R290 (Hydrocarbon) |
| Voltage | 115 | 115 |
| Warranty | Residential: 1-year Parts & Labor; 5-year Compressor Parts | Residential: 1-year Parts & Labor; 5-year Compressor Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
This unit is designed for undercounter installation with an overall height of 33 3/8 in. without leg adjustment.
The unit measures 14 7⁄8 in. W x 22 in. D x 34 3⁄8 in. H.
It operates with 115 V, 60 Hz, and 1 ph.
A potable water supply connection is required and connects using a 1⁄4-in. compression fitting.
A drain connection is required, and this configuration uses a gravity drain rather than a built-in pump.
This configuration uses a gravity drain and doesn't include a built-in drain pump.
Minimum clearances are required to enable airflow and service access, including space at the back and top as outlined in the installation guidelines.
Installation in a corner is possible, though door swing may be limited due to handle contact with adjacent surfaces.
It produces up to 65 lbs. of gourmet clear ice in a 24-hour period under standard operating conditions.
The integrated storage bin holds up to 26 lbs. of ice.
The unit is self-contained, producing ice and storing it in an integrated storage bin.
It produces large gourmet clear ice cubes measuring 1 in. x 1 in. x 1 1⁄4 in.
The door is field reversible to support left- or right-hand opening based on placement needs.
This unit is rated for both indoor and outdoor installations within the specified temperature limits.
