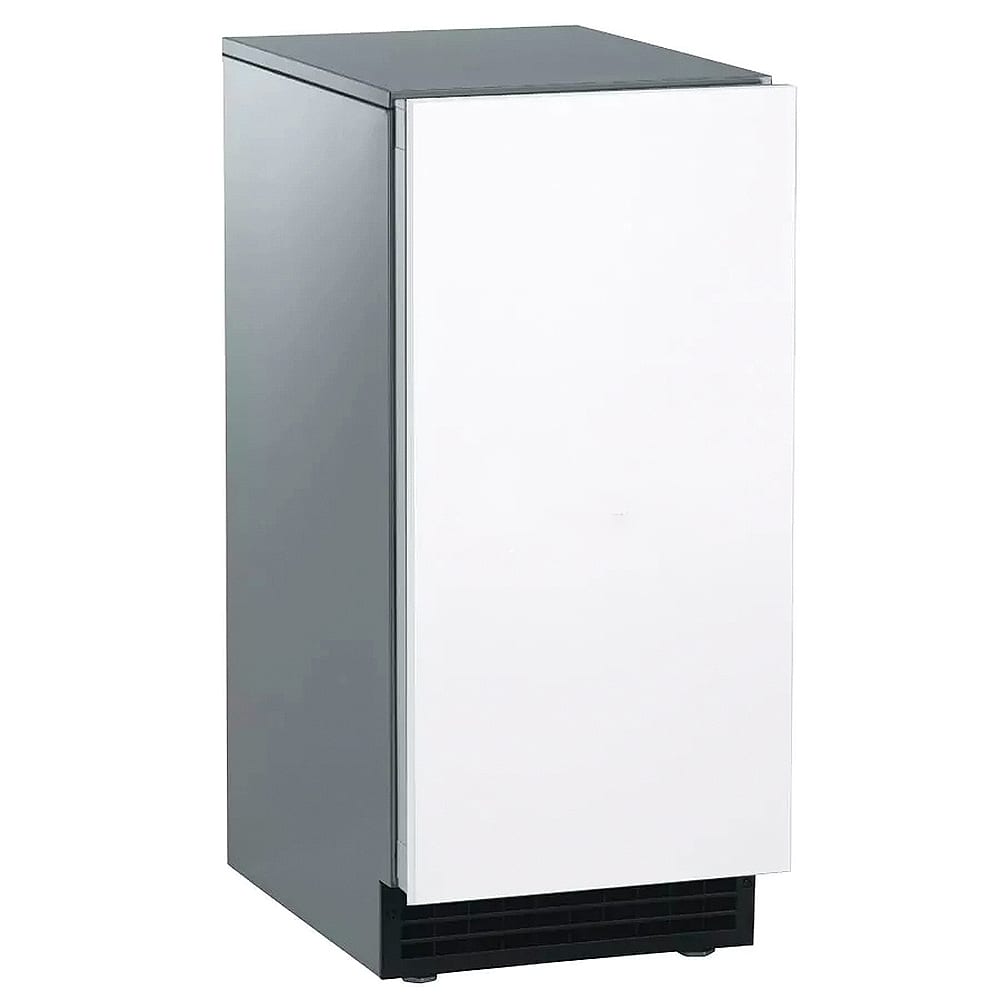

Scotsman SCCG30MA-1SU 14 7/8"W Top Hat Undercounter Ice Machine - 30 lbs/day, Air Cooled, Gravity Drain, 115v
Scotsman SCCG30MA-1SU Description
The Scotsman SCCG30MA-1SU Brilliance™ ice machine is an air-cooled unit operating with R-134A refrigerant. It produces a maximum of 30 pounds of ice per day under the appropriate thermal conditions and can store 26 pounds at a time in its integrated storage bin. Great for chilling spirits and stirred cocktails, it produces 1-inch by 1 1⁄8-inch by 1 1⁄4-inch gourmet cubes that are odorless, flavorless, and slow to melt. Designed to fit under counters in office breakrooms or residential spaces, this compact unit measures 14 7⁄8 inches wide by 22 inches deep by 34 3⁄8 inches high.
For lasting durability, the Scotsman SCCG30MA-1SU ice machine's cabinet is made of rust-, dent-, and scratch-resistant stainless steel, and to blend into existing cabinetry, its front is unfinished and customizable with wood paneling that must be purchased separately. Its door features a fully integrated hinge system for a seamless, streamlined appearance and added strength. Designed for installation near an existing floor drain, this ice machine has a gravity drain system that expels condensation and water for cleaning.
- Featured in the Brilliance series
- 30-lb. daily ice production when air is 70 degrees F and water is 50 degrees F (16-lb. daily production when air is 90 degrees F and water is 70 degrees F)
- 26-lb. built-in storage capacity
- Undercounter model
- Cube size: 1 in. x 1 1⁄8 in. x 1 1⁄4 in.
- Produces large, tasteless, odorless, slow-melting gourmet cubes
- Stainless steel cabinet
- Fully integrated hinge system
- Customizable front (panel sold separately)
- Equipped with gravity drain
- Air-cooled condenser
- R-134A refrigerant
- Required incoming water pressure: 20-80 PSI
- Required ambient water temperature: 40-100 degrees F
- Required ambient air temperature: 50-100 degrees F
- 14 7⁄8 in. W x 22 in. D x 34 3⁄8 in. H
- 5 A
- 115 V/60 Hz/1 ph
- Requires 5⁄8-in. drain line
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman SCCG30MA-1SU within the 48 contiguous states.
From The Manufacturer
Scotsman SCCG30MA-1SU Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 30 |
| Bin Capacity (lb) | 26 |
| Compressor Type | Air Cooled |
| Depth (in) | 22 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Cabinet Door |
| Height (in) | 33.38 |
| Hertz | 60 |
| Ice Type | Top Hat |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R134a |
| Series | Brilliance™ |
| Special Features | Custom Panel Front |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | Commercial & Residential: 1-year Parts & Labor; 5-year Compressor Parts |
| Width (in) | 14.88 |
| Weight | 95.00 |
Important Prop 65 information for California residents.
- Scotsman SRCG035A-1SU (Replacement)
Compare to Similar Items
| Attributes |
Scotsman SCCG30MA-1SU Scotsman SCCG30MA-1SU 14 7/8"W Top Hat Undercounter Ice Machine - 30 lbs/day, Air Cooled, Gravity Drain, 115v Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $3,079.00 / Each | |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | IN STOCK: Ships in 1 Business Day | |
| Ice Type | Top Hat | Extra-large Cube |
| 24 Hr. Production (lb) | 30 | 35 |
| Bin Capacity (lb) | 26 | 26 |
| Width (in) | 14.88 | 14.88 |
| Compressor Type | Air Cooled | Air Cooled |
| Drain Type | Gravity | Gravity |
| Rating | Best | Best |
| Special Features | Custom Panel Front | Adjustable Leveling Feet |
| Series | Brilliance™ | Brilliance™ |
| Suggested Use | Commercial | Home/Office |
| Front Style | Cabinet Door | Cabinet Door |
| Depth (in) | 22 | 22.75 |
| Height (in) | 33.38 | 34.38 |
| Design | Standard Height | Standard Height |
| Refrigerant | R134a | R290 (Hydrocarbon) |
| Voltage | 115 | 115 |
| Warranty | Commercial & Residential: 1-year Parts & Labor; 5-year Compressor Parts | Residential: 1-year Parts & Labor; 5-year Compressor Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
It measures 14 7⁄8 in. W x 22 in. D x 33 3⁄8 in. H with the door closed and legs removed.
It requires a 115 V/60 Hz/1 ph electrical connection and draws 5 A.
Yes, a potable water supply is required, and meltwater must be discharged through a drain connection.
It produces gourmet clear ice with a cube size of 1 in. x 1 1⁄8 in. x 1 1⁄4 in.
It produces up to 30 lbs. of ice per 24 hours under standard operating conditions.
The internal bin stores up to 26 lbs. of ice.
Yes. The door is field reversible for left- or right-hand opening.
