Scotsman HID540WB-1 500 lb Countertop Water & Nugget Ice Dispenser - 40 lb Storage, Cup Fill, Push-Button Dispensing, 11

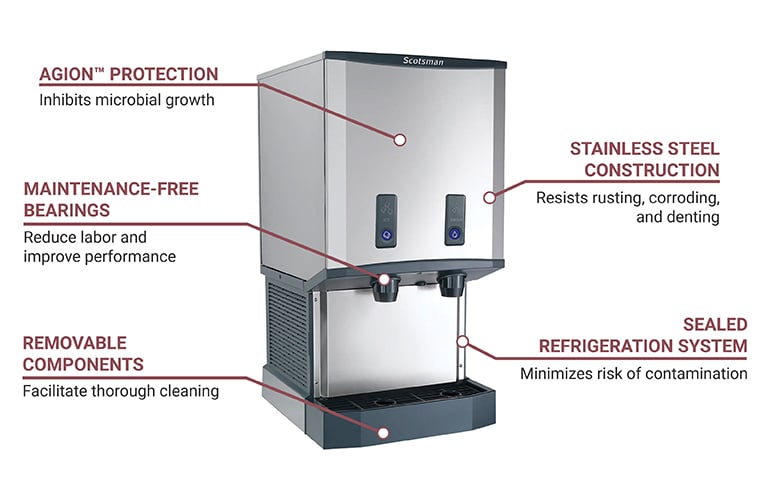

Built for long-lasting durability, the Scotsman HID540WB-1 ice dispenser's evaporator, auger, and exterior panels are constructed of resilient stainless steel. This metal offers excellent resistance to rust and corrosion, and it's simple to clean. It features a sealed refrigeration system to minimize the risk of contamination, and its sealed, maintenance-free bearings reduce necessary labor. To facilitate thorough cleaning, this unit's grill, sink, spouts, bin, and air filter are removable.

Operating with R-404a refrigerant, the Scotsman HID540WB-1 ice and water dispenser produces a maximum of 500 pounds of H2 nugget ice per day in ideal conditions. This type of ice is chewable and absorbent—perfect for chilling sodas and iced tea. Ice and water are dispensed at the push of a button, and the buttons are treated with AgION™ antimicrobial protection. The unit's key components are protected by the same agent, inhibiting the growth of germs such as bacteria, mold, and algae. Keeping plenty of fresh ice on hand, it's equipped with a 40-pound storage bin.

Product Details

• Part of the Meridian™ line
• 500-lb. maximum daily ice production
• 365-lb. AHRI-certified daily ice production
• Countertop model
• 40-lb. storage bin

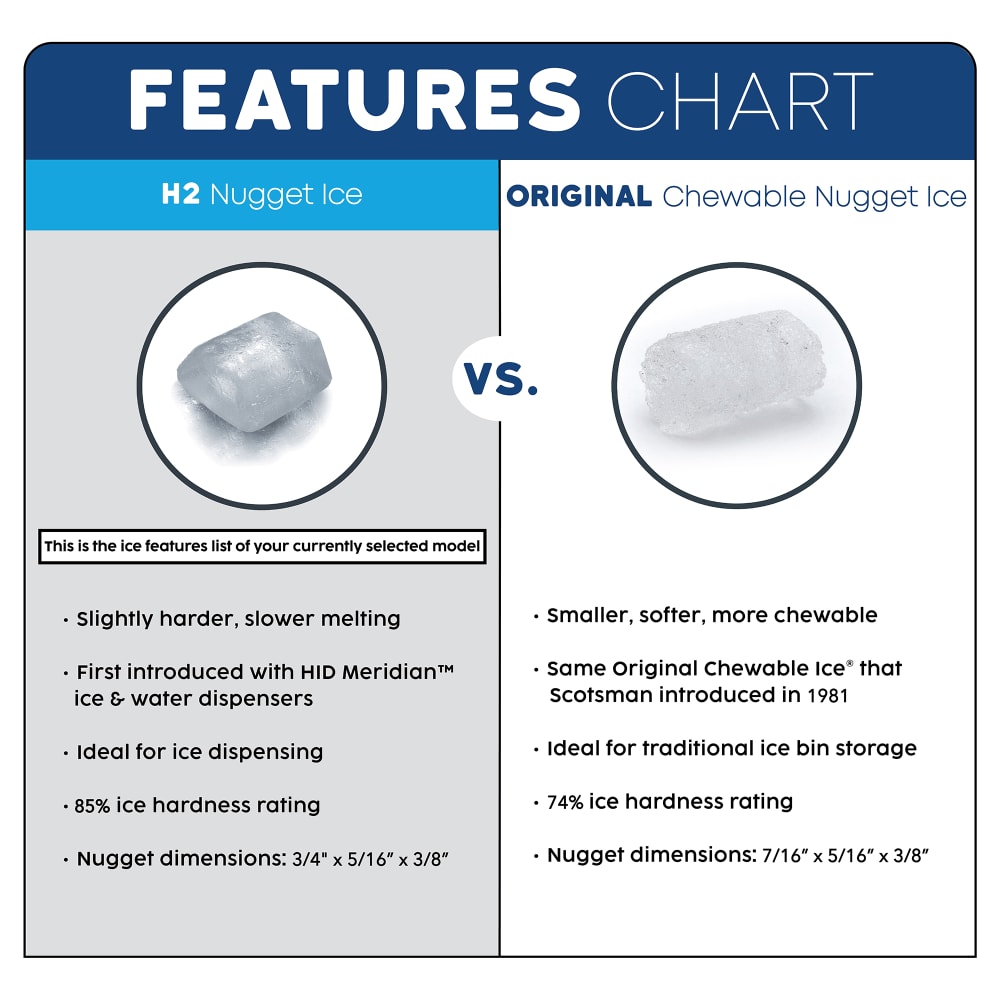

• Produces absorbent H2 nugget ice
• Ice nugget dimensions: ³⁄₄ in. x ⁵⁄₁₆ in. x ³⁄₈ in.
• Water cooled
• SmoothStream™ water dispensing
• Sealed refrigeration system reduces risk of contamination
• Enlarged sink drain measures 0.8 in.
• Large, 11-in. dispensing area
• Recessed utility chase
• Push-button ice and water dispensing
• Key components and push buttons treated with AgION antimicrobial protection
• Grill, sink, bin, spouts, and air filter are removable for thorough cleaning
• Exterior panels, evaporator, and auger constructed of rust-resistant stainless steel
• Operates with R-404a refrigerant
• Unit-specific QR code provides service history and maintenance updates
• Sealed, maintenance-free bearings reduce labor
• Equipped with LED diagnostic lights and USB drive
• 6,800-BTU heat transfer capacity
• Operating ambient air temperature: 50-100 degrees F
• Operating incoming water temperature: 40-100 degrees F
• Operating incoming water pressure: 20-80 PSI

Product Features

Dimensions & Utilities

• 21¹/₄ in. W x 24³/₈ in. D x 35 in. H
• 9 A
• 115 V/60 Hz/1 ph, 7.5-ft. cord with NEMA 5-15P plug

*Free shipping on Scotsman HID540WB-1 within the 48 contiguous states.

From The Manufacturer

Meridian™ Ice & Water Dispenser, push-button dispensing, H2 Nugget Ice, water-cooled, production capacity up to 500 lb/24 hours at 70°/50° (400 lb AHRI certified at 90°/70°), 40 lb bin storage capacity, sealed maintenance-free bearings, removable bin, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless steel exterior, AgION™ antimicrobial protection, R-404a refrigerant, includes 7.5’ power cord with NEMA 5-15P plug, 115V/60/1-ph, 9.0 amps, cULus, NSF, CE, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor

Scotsman HID540WB-1 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.
