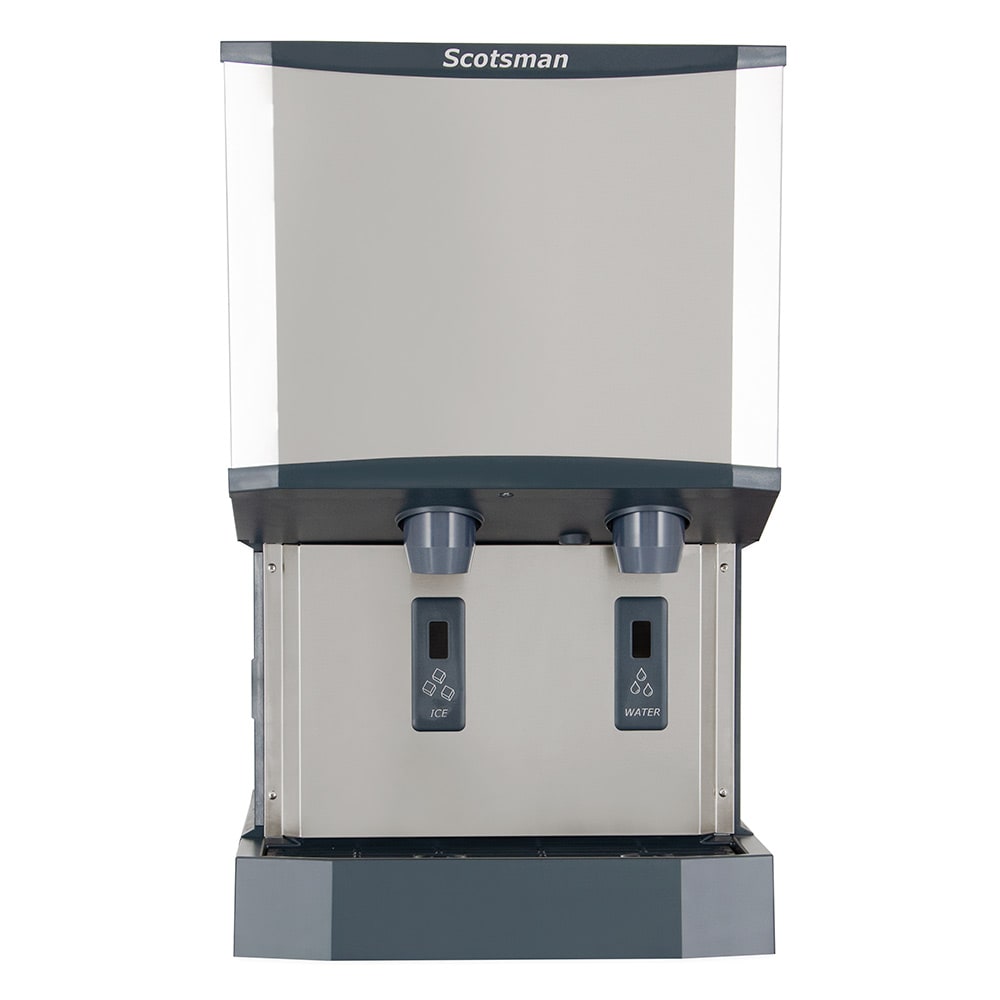

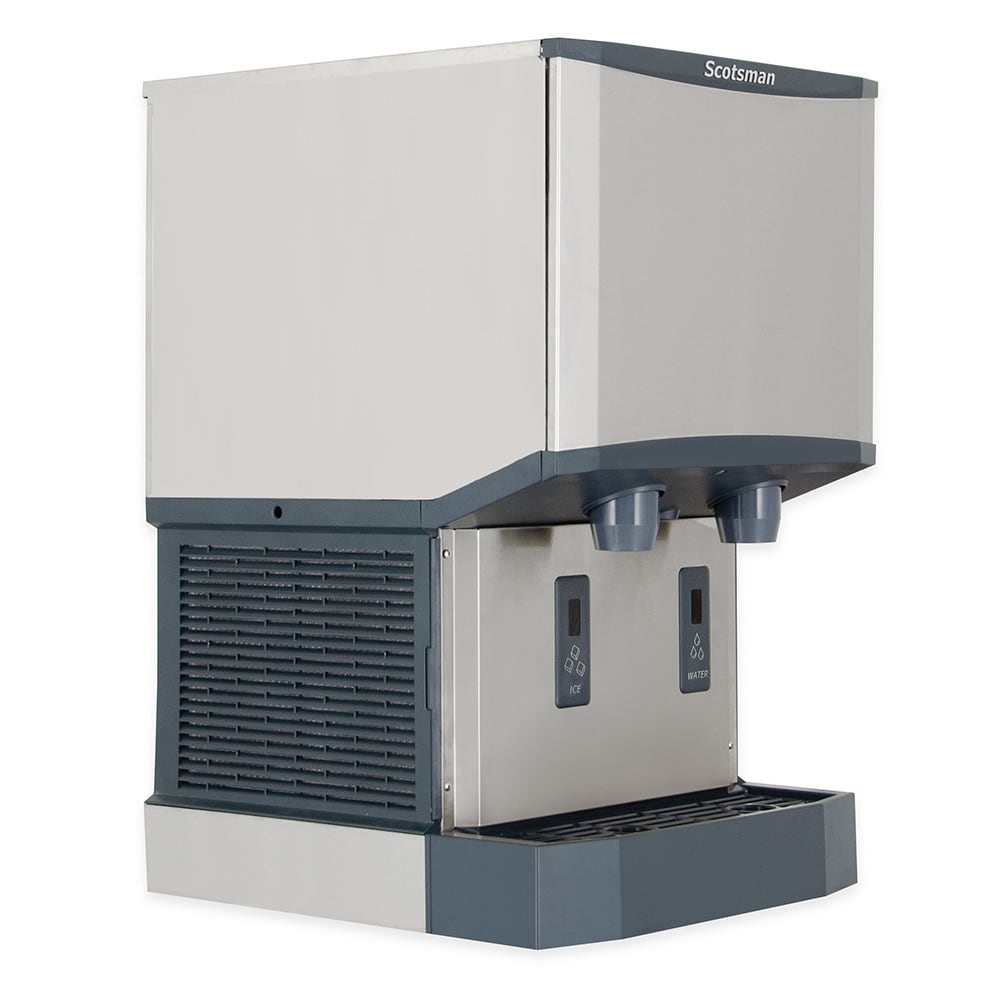

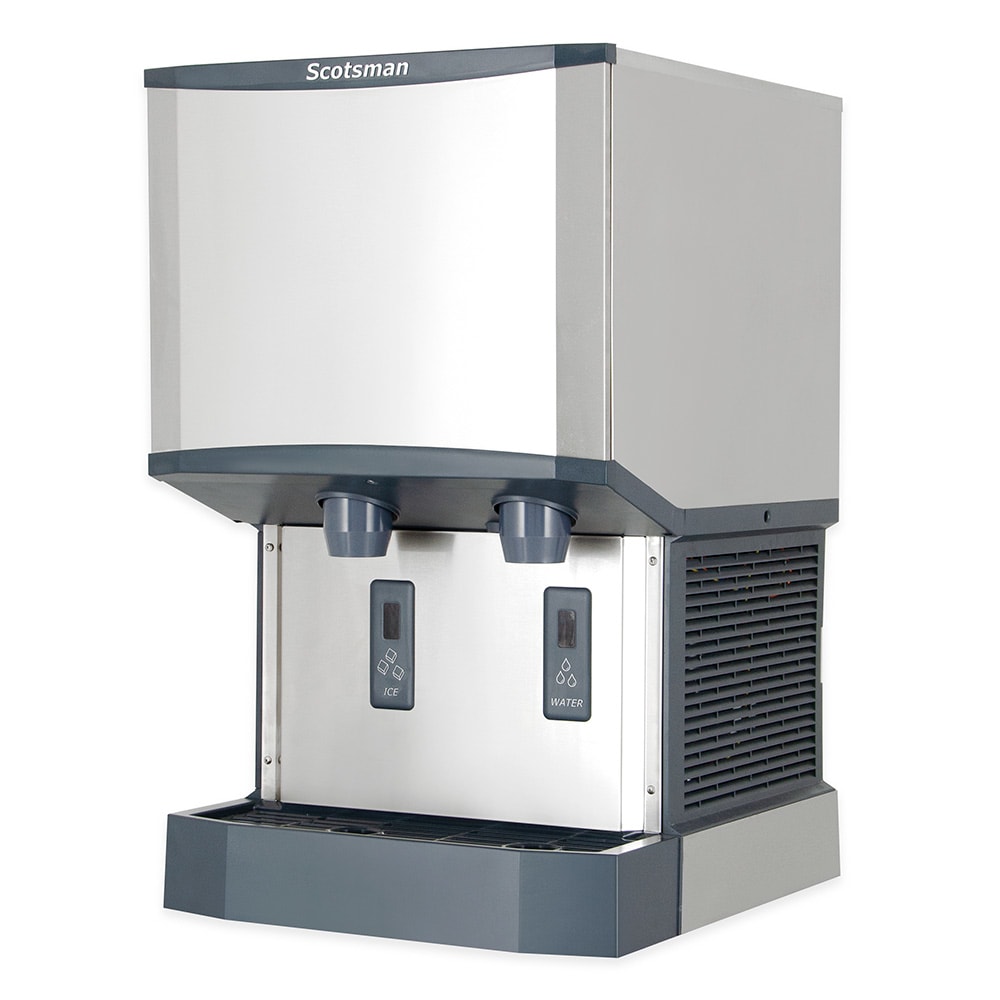

Scotsman HID525W-1 500 lb Countertop Water & Nugget Ice Dispenser - 25 lb Storage, Cup Fill, Touch-Free Dispensing, 115

This Scotsman HID525W-1 Meridian™ ice and water dispenser produces 500 pounds of H² nugget ice in 24 hours when ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit. This type of nugget ice melts slowly, dispenses easily, and displaces more liquid than half- or full-size cubes. Its storage bin holds as much as 25 pounds of ice to accommodate high-traffic serving applications and is removable for cleaning. Along with ice, this unit features a SmoothStream™ system, which releases cool water smoothly to prevent splashing onto nearby surfaces. When its infrared dispensing mechanism detects a cup, the unit expels ice and water beneath the dispensers to help minimize germ spread.

To accommodate countertop installation, the Scotsman HID525W-1 ice and water dispenser measures 21¹/₄ inches wide by 24³/₈ inches deep by 35 inches high. Its water-cooled condenser uses R-404A refrigerant to generate and maintain cool temperatures, while the sealed refrigeration system protects product from airborne particulates. Designed for longevity, the unit's auger and evaporator are made of rigid, corrosion-resistant stainless steel, and AgION® antimicrobial agent is molded into key internal components to slow mold, algae, and bacterial growth between cleanings. To streamline cleaning and maintenance, the spouts, air filter, sink, and grill can be removed.

Product Details

• Daily ice production: 500 lbs.
• AHRI-certified daily ice production: 400 lbs.

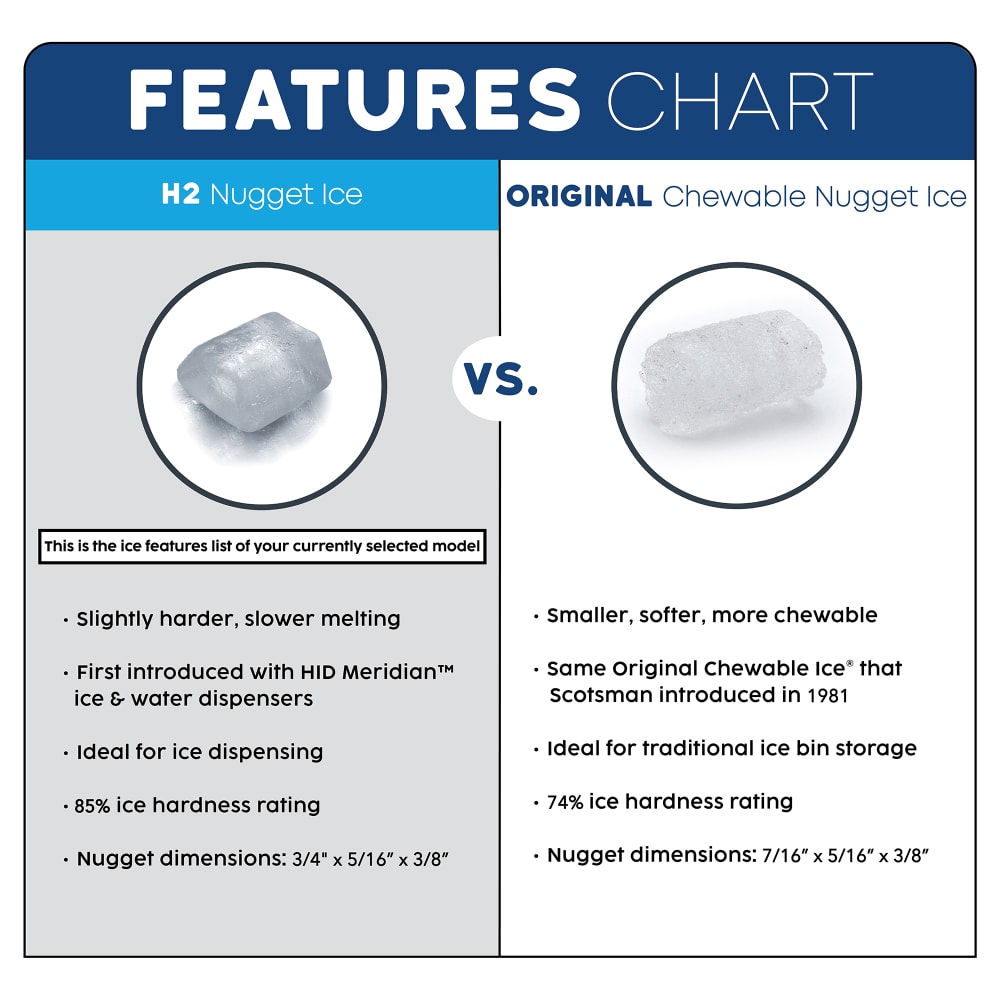

• Makes slow-melting H² nugget ice
• Ice dimensions: ³/₄ in. x ⁵/₁₆ in. x ³/₈ in.
• Storage bin capacity: 25 lbs.

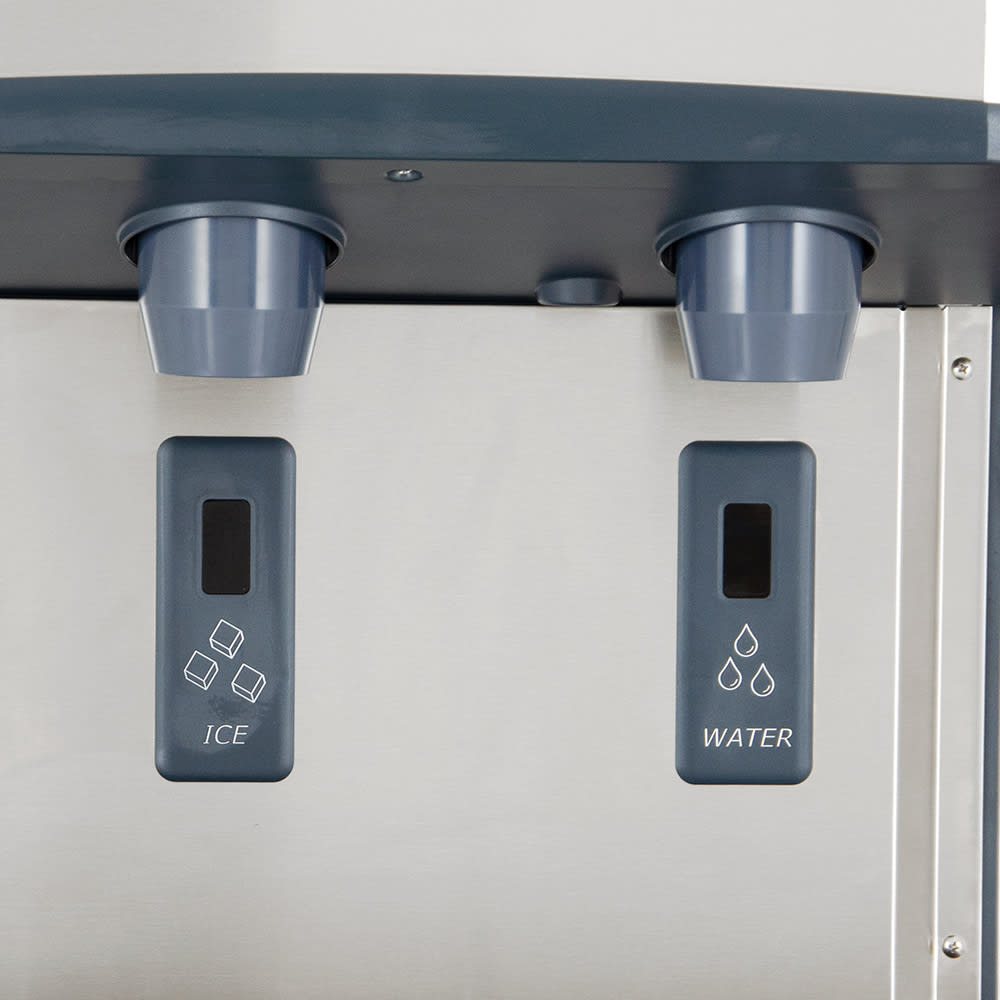

• Touchfree® infrared dispensing system
• SmoothStream™ water dispensing mechanism
• Water-cooled condenser
• R-404A refrigerant
• Protective sealed refrigeration system
• Stainless steel construction

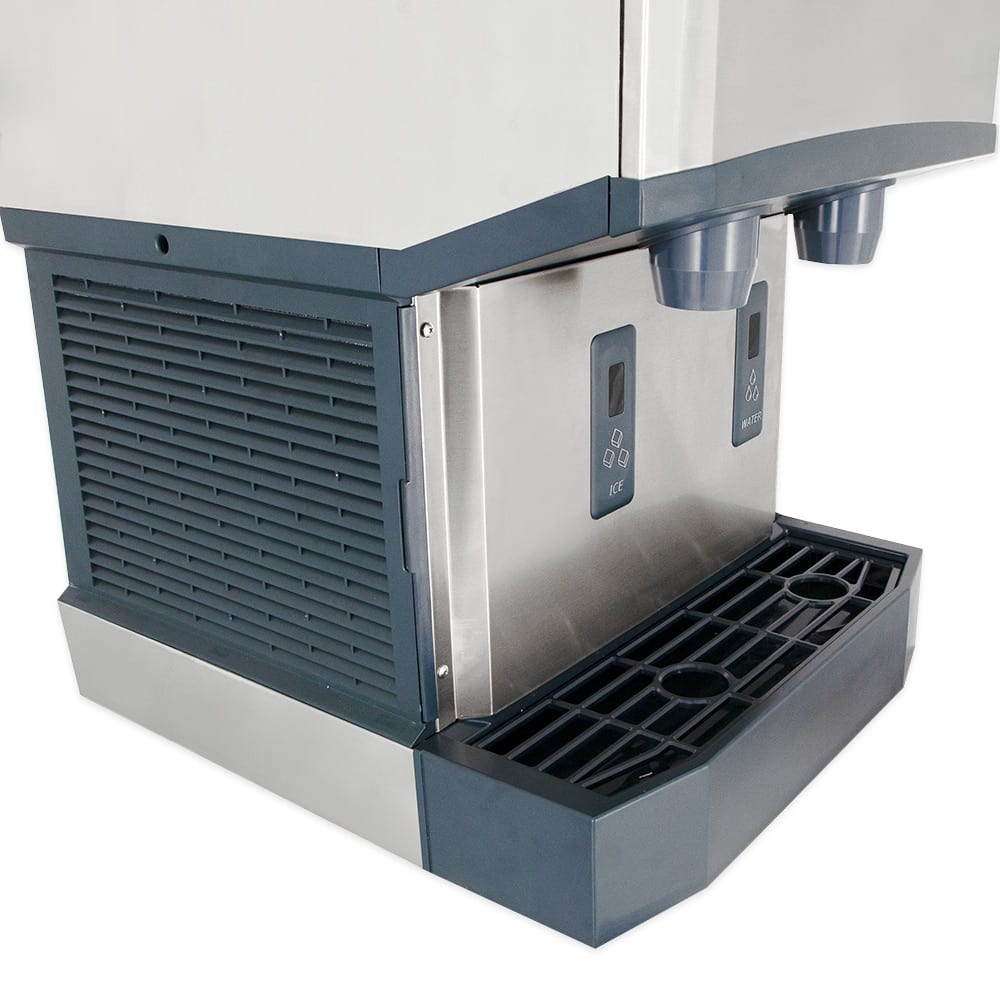

• 11-in. dispensing area
• Stainless steel evaporator and auger
• Antimicrobial protection agent molded into key components
• USB software upgrade port

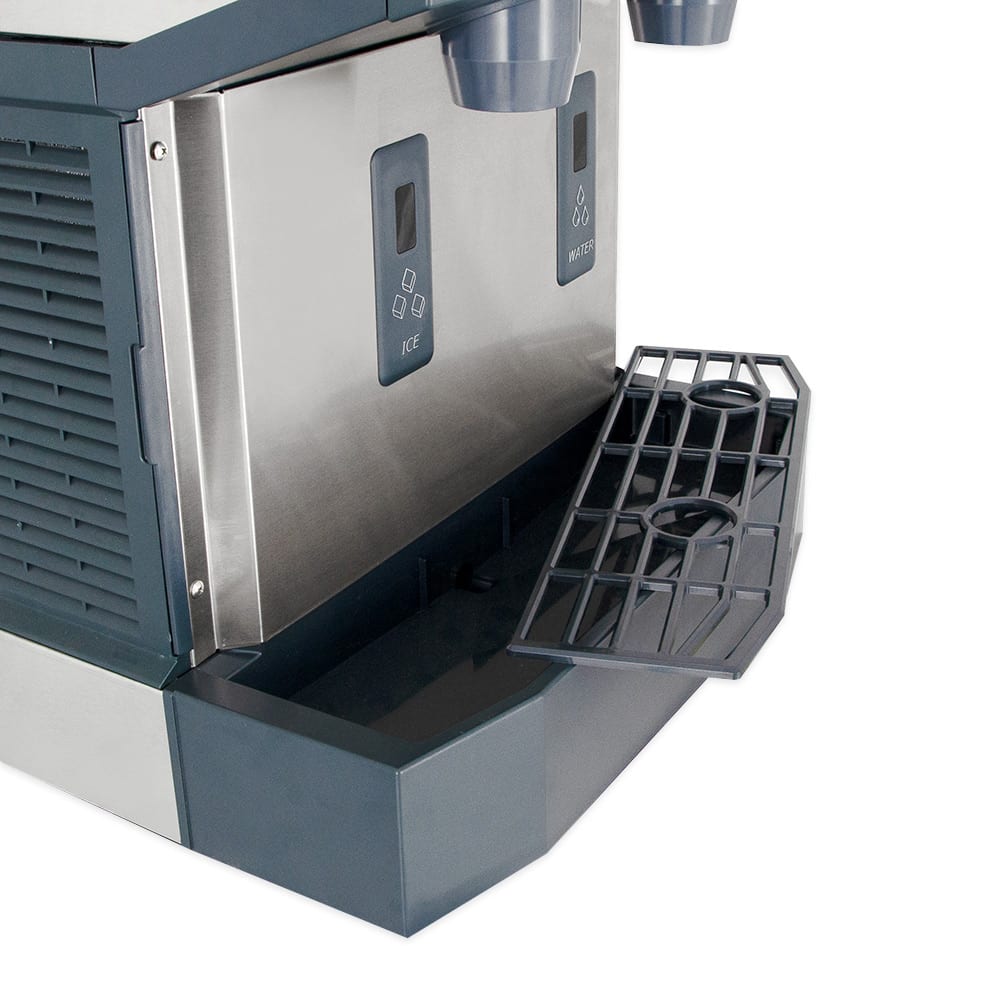

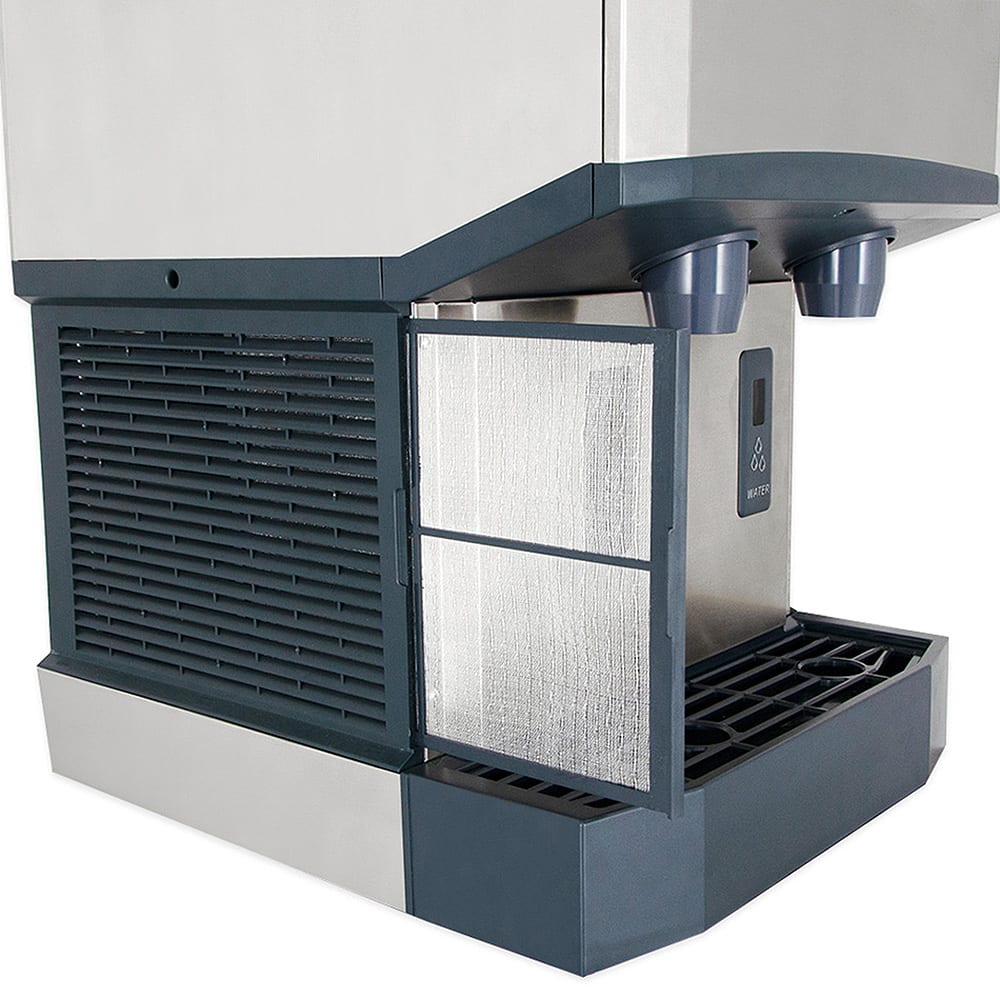

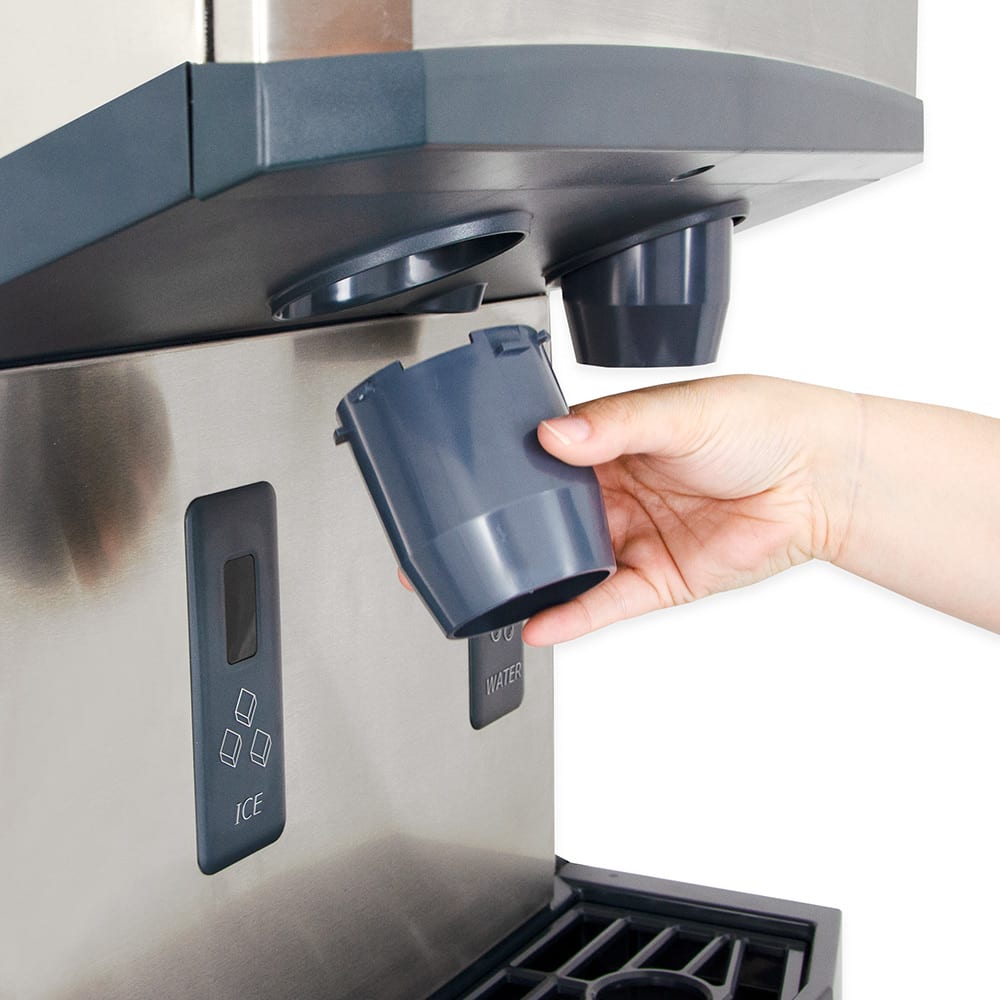

• Removable spouts, sink, air filter, and bin
• Sealed bearings
• Unit-specific QR code
• Required operating air temperature: 50-100 degrees F
• Required operating water temperature: 40-100 degrees F
• Required remote condenser temperature: -20 to 120 degrees F
• Required potable water pressure: 20-80 PSIG
• 6,800 BTUs per hour

Dimensions & Utilities

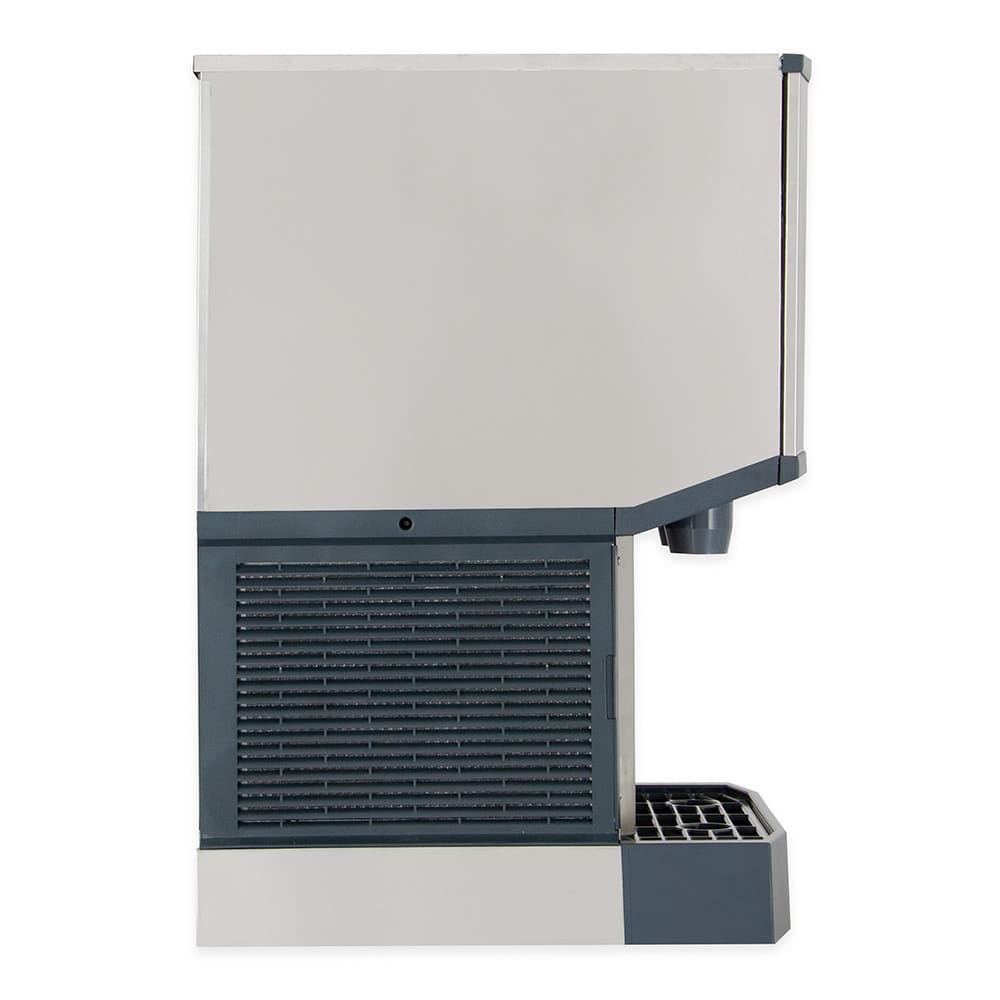

• 21¹/₄ in. W x 24³/₈ in. D x 35 in. H
• 9 A, 4.30 kW

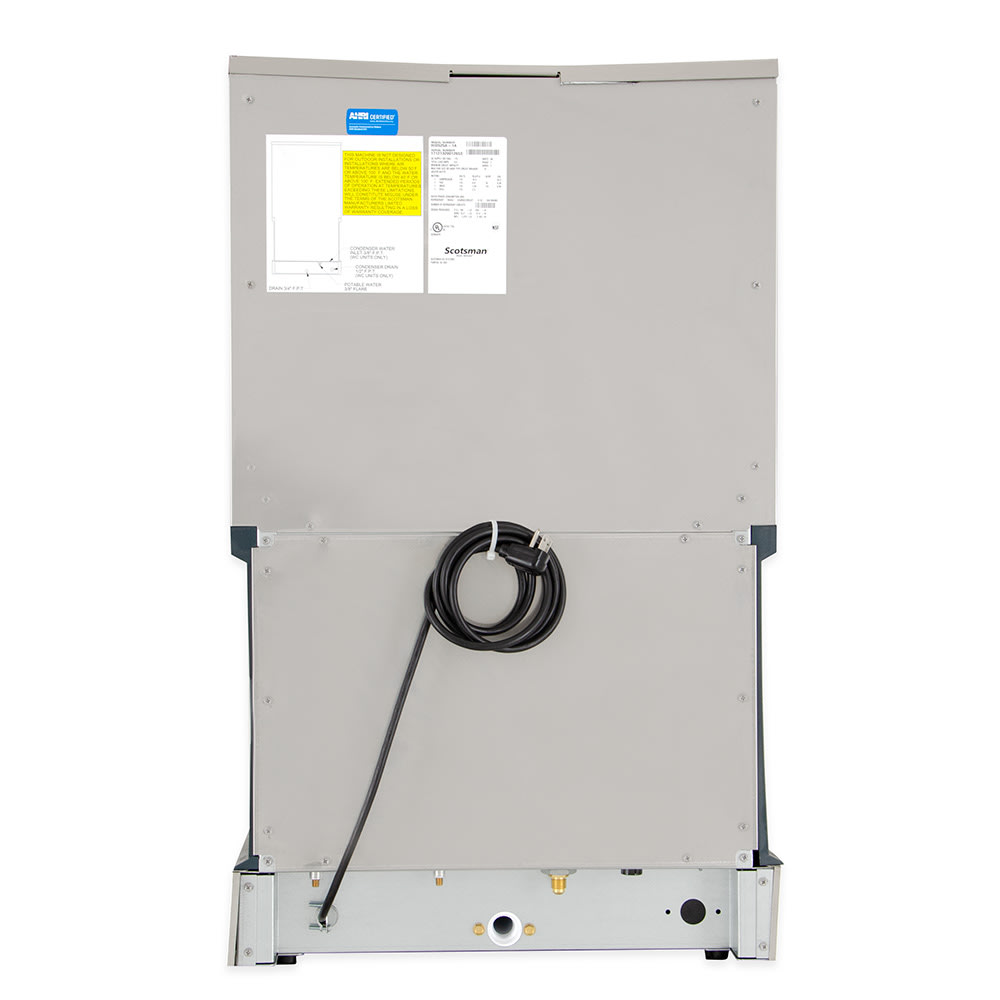

• 115 V/60 Hz/1 ph, 7.50-ft. power cord with a NEMA 5-15P plug

Product Features

*Free shipping on Scotsman HID525W-1 within the 48 contiguous states.

From The Manufacturer

Meridian™ Ice & Water Dispenser, H2 Nugget Ice, water cooled, production capacity up to 500 lb/24 hours at 70°/50° (400 lb AHRI certified at 90°/70°), 25 lb bin storage capacity, stainless exterior, AgION™ antimicrobial protection, R-404a refrigerant, 115V/60/1-ph, 9.0 amps, cULus

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor

Scotsman HID525W-1 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.
