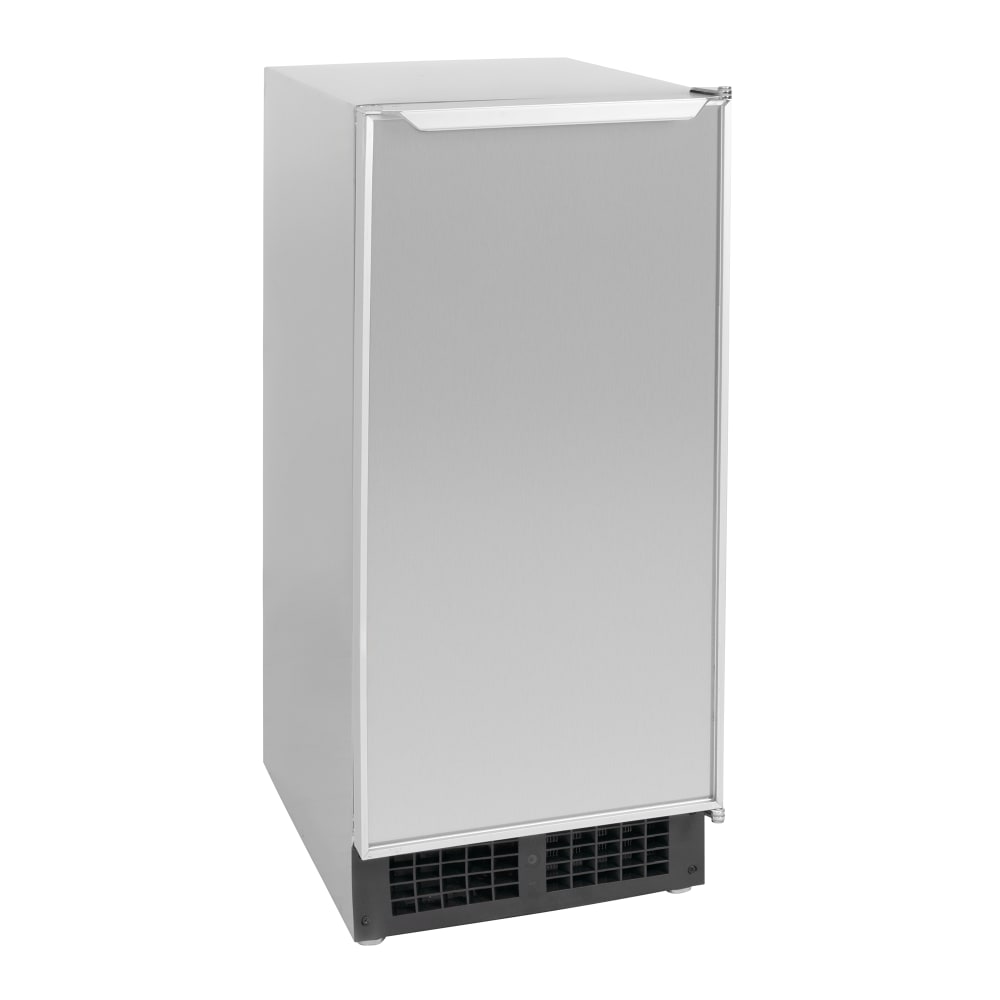

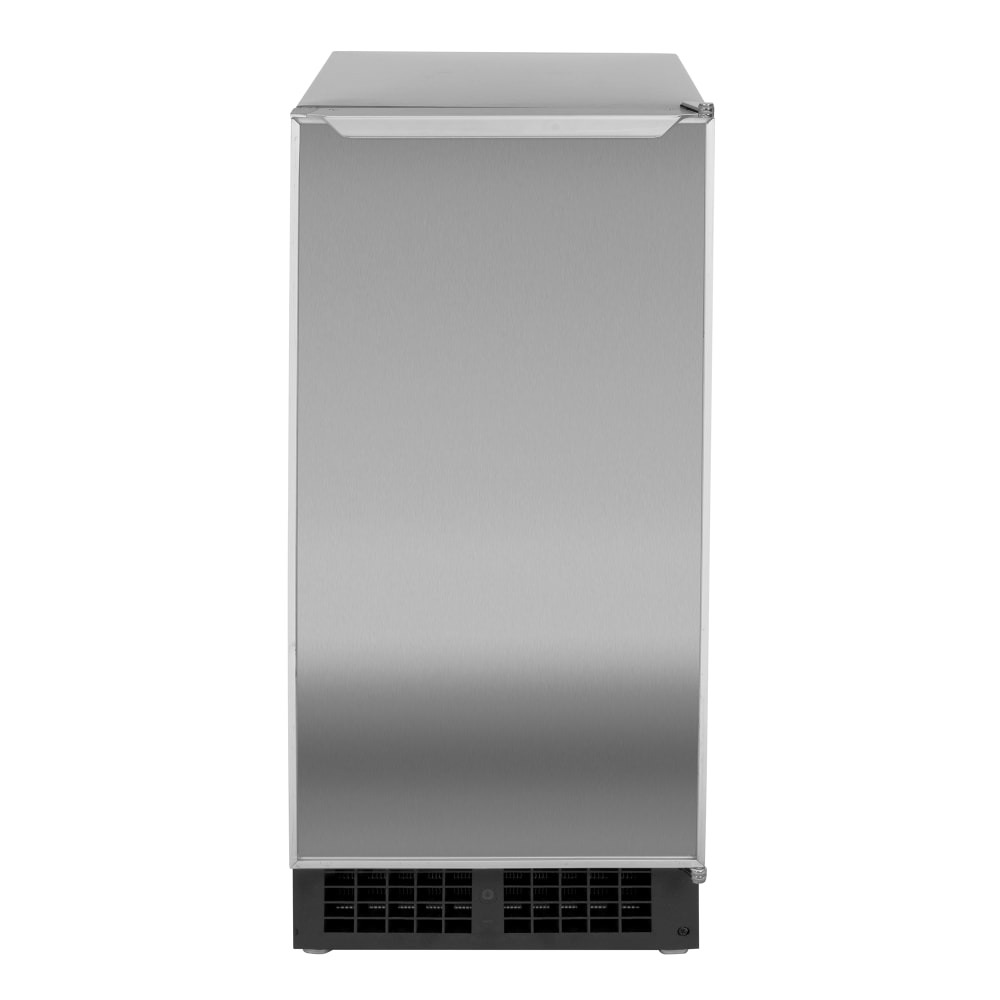

Scotsman DCE33A-1SSD 15"W Top Hat Undercounter Ice Machine - 30 lbs/day, Air Cooled, Gravity Drain, 115v
Scotsman DCE33A-1SSD Description

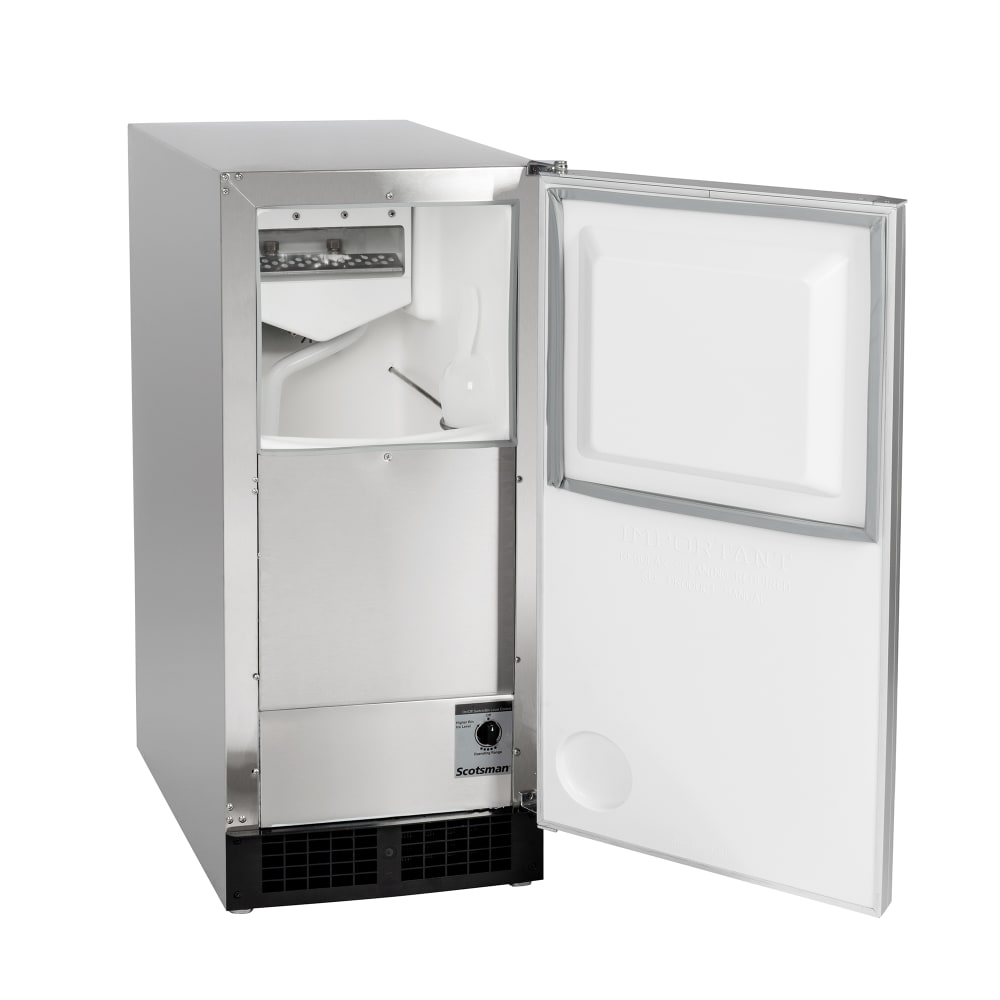

The Scotsman DCE33A-1SSD Legacy undercounter ice maker has a 30-pound daily production rate when ambient air temperature is 70 degrees Fahrenheit and inlet water is 50 degrees Fahrenheit. Fully formed ice is released into the unit's storage bin, which can hold 26 pounds of ice, and to prevent overfilling, it has an automatic shut-off and restart feature. Great for chilling stirred cocktails or spirits on the rocks, this unit creates 1-inch by 1 1⁄8-inch by 1 1⁄4-inch gourmet cubes—crystal-clear, odorless, flavorless, and slow-to-melt cubes. To optimize production, it uses R-134A refrigerant and features an air-cooled condensing system.

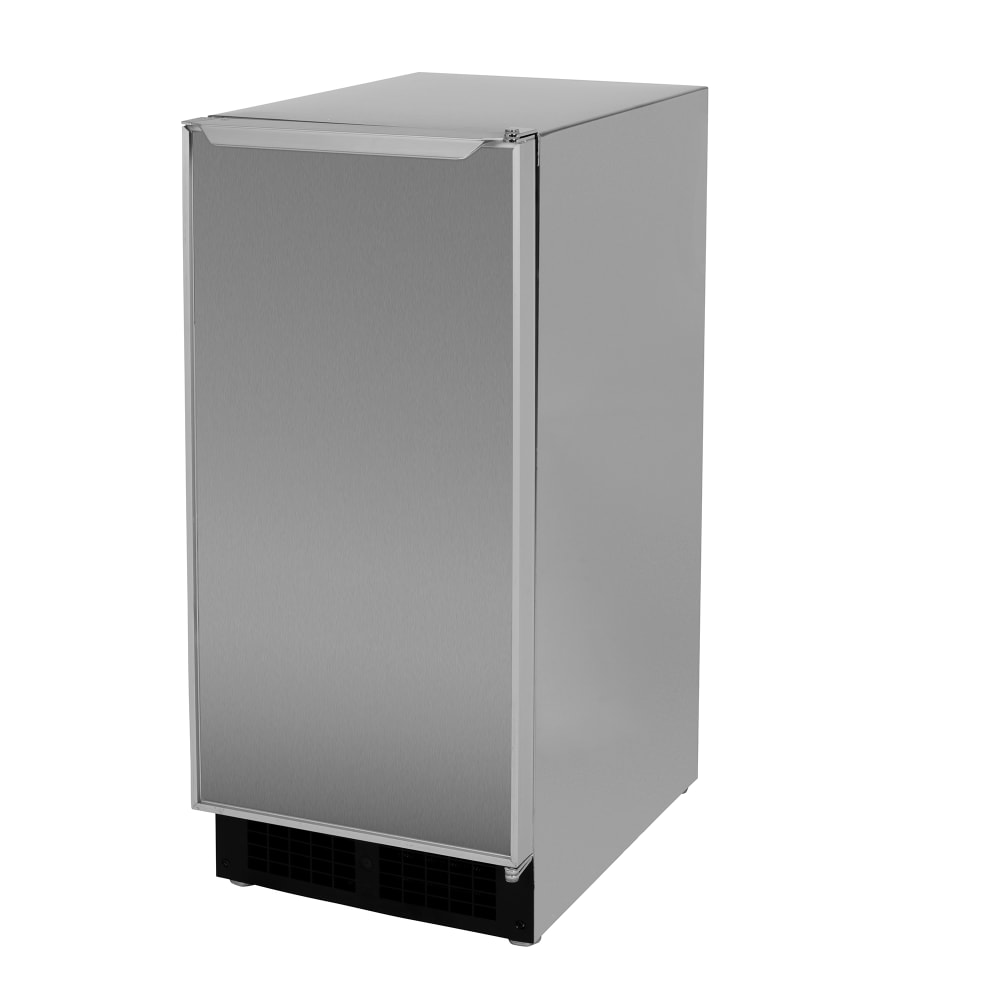

For durability and streamlined cleaning, this Scotsman DCE33A-1SSD undercounter ice machine has a stainless steel cabinet. To complement existing cabinetry in residential spaces, its front can be customized with wood paneling (sold separately). The door is field reversable, meaning it can be attached on the left or right side of the unit to accommodate different setups. So users can drain the unit as needed, it features a gravity drain, which propels waste water directly into a connected floor drain. Overall, this ice machine measures 15 inches wide by 22 13⁄16 inches deep by 33 3⁄8 inches high.
- Featured in the Legacy series
- 30-lb. daily ice production when air is 70 degrees F and water is 50 degrees F (16-lb. daily production when air is 90 degrees F and water is 70 degrees F)
- Makes 8 gourmet cubes per hour
- 26-lb. storage bin capacity
- Forms 1 in. x 1 1⁄8 in. x 1 1⁄4 in. cubes
- Produced ice is crystal-clear, slow-melting, odorless, and flavorless
- Durable stainless steel cabinet simplifies cleaning
- Door is field reversible to fit different layouts
- Air-cooled condenser
- Gravity drain moves water to nearby floor drain
- Automatic shut-off and restart feature

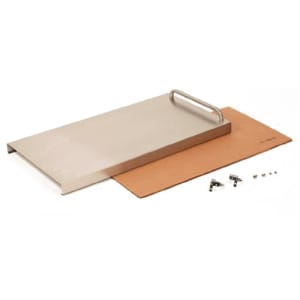

- Customizable with wood panels (sold separately)
- R-134A refrigerant
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 14-70 PSIG
- 15 in. W x 22 13⁄16 in. D x 33 7⁄8 in. H
- 3.6 A
- 115 V/60 Hz/1 ph
- Requires 5⁄8-in. drain line
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman DCE33A-1SSD within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Scotsman DCE33A-1SSD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 30 |
| Also Known As | DCE33A-1BC |
| Bin Capacity (lb) | 26 |
| Compressor Type | Air Cooled |
| Depth (in) | 22.81 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Cabinet Door |
| Height (in) | 33.88 |
| Hertz | 60 |
| Ice Type | Top Hat |

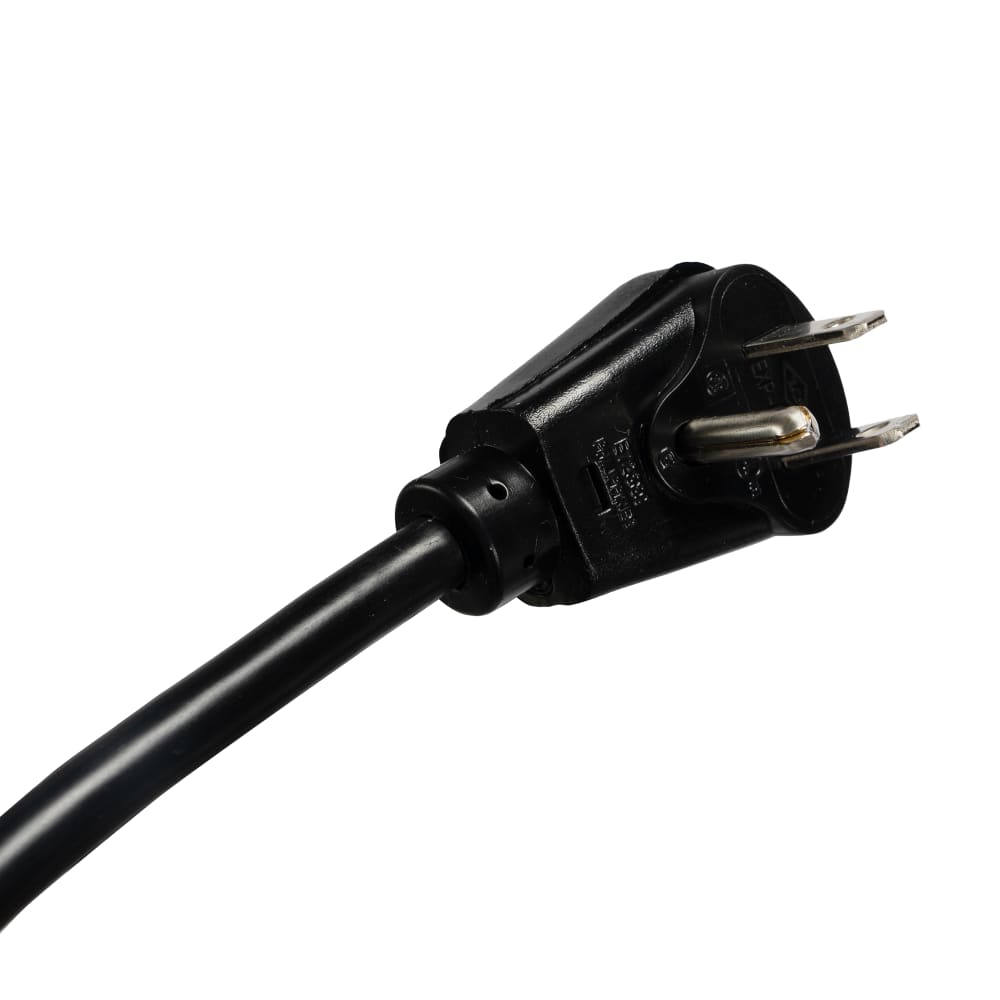

| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R134a |
| Series | Legacy® |
| Special Features | Custom Panel Front |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | Commercial & Residential: 1-year Parts & Labor; 5-year Compressor Parts |
| Width (in) | 15 |
| Weight | 90.00 |
Important Prop 65 information for California residents.
- Scotsman DRCG033A-1SS (Replacement)
Compare to Similar Items
| Attributes |
Scotsman DCE33A-1SSD Scotsman DCE33A-1SSD 15"W Top Hat Undercounter Ice Machine - 30 lbs/day, Air Cooled, Gravity Drain, 115v Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $2,599.00 / Each | |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | IN STOCK: Ships in 1 Business Day | |
| Ice Type | Top Hat | Extra-large Cube |
| 24 Hr. Production (lb) | 30 | 30 |
| Bin Capacity (lb) | 26 | 26 |
| Width (in) | 15 | 15 |
| Compressor Type | Air Cooled | Air Cooled |
| Drain Type | Gravity | Gravity |
| Rating | Best | Best |
| Special Features | Custom Panel Front | Reversible Door |
| Series | Legacy® | Legacy |
| Suggested Use | Commercial | Home/Office |
| Front Style | Cabinet Door | Stainless Door |
| Depth (in) | 22.81 | 22.81 |
| Height (in) | 33.88 | 33.38 |
| Design | Standard Height | Standard Height |
| Refrigerant | R134a | R290 (Hydrocarbon) |
| Voltage | 115 | 115 |
| Warranty | Commercial & Residential: 1-year Parts & Labor; 5-year Compressor Parts | Residential: 1-year Parts & Labor; 5-year Compressor Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
Great ice maker
Ours dearly departed one lasted 20 years! It produces excellent clear ice. It is important to keep the air vent at the base clean of dust and lint. The ordering process was painless and the price is excellent.
Love this ice maker!
Makes great ice cubes.. bun is always full!
i would buy again
lasted 2 weeks shy of 8 years
It requires a 115 V/60 Hz/1 ph electrical connection and draws 3.6 A.
Overall dimensions measure 15 in. W x 22 13⁄16 in. D x 33 7⁄8 in. H with the legs unadjusted.
Ice production reaches up to 30 lbs. in 24 hours under standard operating conditions.
The internal bin holds up to 26 lbs. of ice.
Clear gourmet-style ice cubes are produced for beverage service.
Built-in installation is supported with front ventilation.
A gravity drain connection is used for water removal during operation.
Yes, this configuration supports either a pump or gravity drain connection.
Yes, the door is field reversible to accommodate different installation layouts.
Eight cubes are formed during each production cycle.
