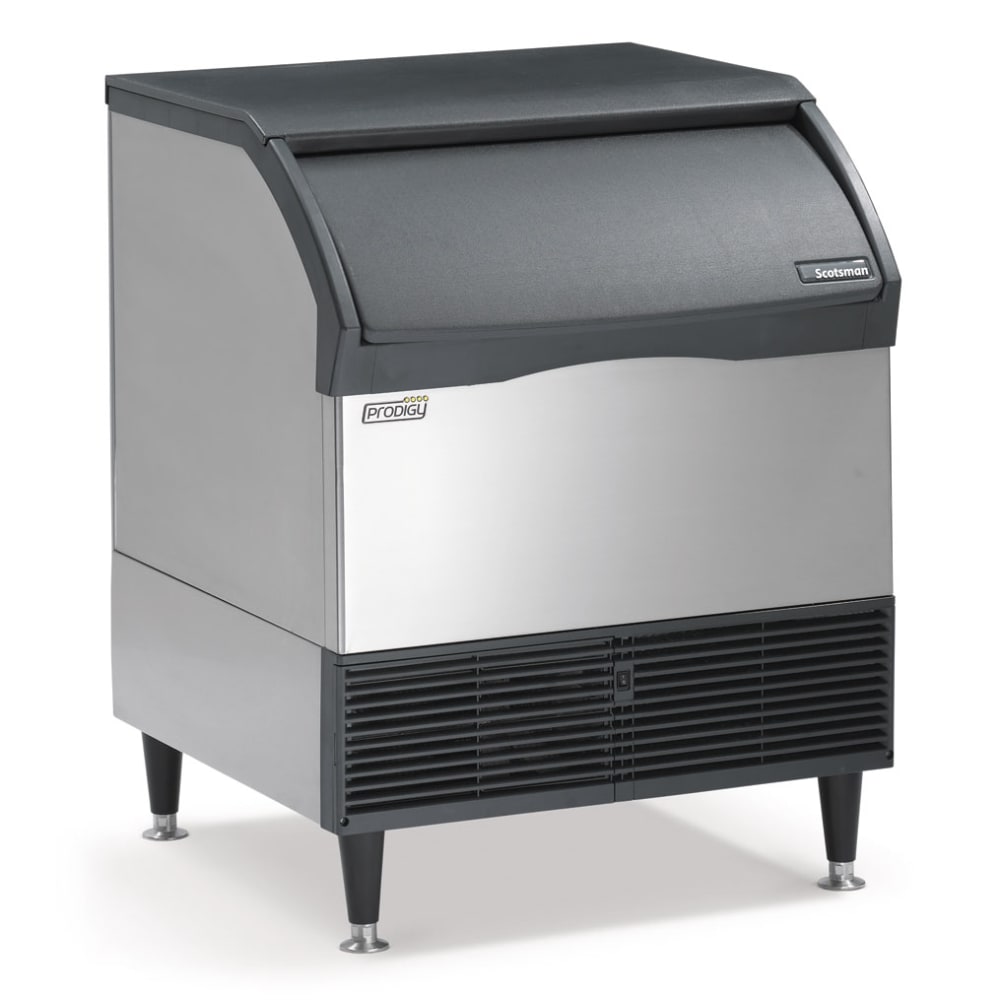

Scotsman CU3030SAX-1 30"W Prodigy® Half Cube Undercounter Ice Machine w/ Filter - 329 lbs/day, Air Cooled
Typically ships in 2 - 3 weeks
Retail Price: $9,194.00
$3,769.00 /Each
Selected Ice Type: Half Cube
Selected Compressor Type: Air Cooled
Scotsman CU3030SAX-1 Description
Within a full day, the Scotsman CU3030SAX-1/AP1-P Prodigy® undercounter ice maker can produce 329 pounds of half-cube ice, though this amount depends on ambient air and incoming water temperatures. These cubes work well in soft drinks and mixed drinks, measuring 3⁄8 inch by 7⁄8 inch by 7⁄8 inch. The condenser is air cooled, meaning fans blow cold air over the evaporator plate, reducing the temperature so refrigerant can remove heat and water can freeze.
The ice storage bin in this Scotsman CU3030SAX-1/AP1-P half-cube undercounter ice maker accommodates 110 pounds and comes with an ice scoop. The AutoAlert™ control panel shows the operating status and alerts users when it is time for descaling and sanitizing. WaterSense control purges scale, keeping the unit cleaner between cleanings. The AP1-P water filter is included with this unit.
- 329-lb. maximum daily ice production
- 110-lb. storage bin capacity
- Produces half-cube ice
- Half-cube ice size: 7⁄8 in. x 7⁄8 in. x 3⁄8 in.
- Air-cooled condenser
- AutoAlert control panel shows operating information, cleaning reminders, and diagnostic codes
- WaterSense purge control removes scale buildup between cleanings
- Removable storage bin, door, and top panel for parts access
- Durable, stainless steel finish for prompt cleaning
- 6-in. adjustable legs
- Includes an ice scoop
- Uses R290 hydrocarbon refrigerant
- AP1-P water filter included
- 5,200-BTU heat transfer capacity
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 30 in. W x 30 in. D x 39 in. H
- 12.8 A, 7.35 kW
- 115 V/60 Hz/1 ph, 6-ft. cord
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman CU3030SAX-1 within the 48 contiguous states.
From The Manufacturer
Undercounter Ice Maker With Bin, cube style, air-cooled, 30" width, self-contained condenser, production capacity up to 329 lb/24 hours at 70°/50° (230 lb AHRI certified at 90°/70°), 110 lb bin storage capacity, small cube size, AutoAlert™ indicator lights, WaterSense adaptive purge control, unit specific QR code, metallic finish, includes 6" legs, R290 refrigerant, includes power cord with NEMA 5-15P plug, 115v/60/1-ph, NSF
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman CU3030SAX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 329 |
| Also Known As | CU3030SA-1 |
| Bin Capacity (lb) | 110 |
| Compressor Type | Air Cooled |
| Depth (in) | 30 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 39.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Includes | AP1-P Filtration |
| Kitchen Innovations Awards | 2007 |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy® |
| Special Features | Alert System |
| Special Features | Inline Water Filter Included |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 230.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Scotsman CU3030SAX-1 Scotsman CU3030SAX-1 30"W Prodigy® Half Cube Undercounter Ice Machine w/ Filter - 329 lbs/day, Air Cooled Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $3,769.00 / Each | $4,500.00 / Each | $3,810.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | IN STOCK: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| Ice Type | Half Cube | Crescent Cube | Half Cube |
| 24 Hr. Production (lb) | 329 | 285 | 221 |
| Bin Capacity (lb) | 110 | 100 | 80 |
| Width (in) | 30 | 30 | 30 |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled |
| Drain Type | Gravity | Gravity | |
| Rating | Best | Best | Better |
| Special Features | Alert System | Removable Air Filter | |
| Series | Prodigy® | KM Series | KYF Series |
| Suggested Use | Commercial | Commercial | Commercial |
| Front Style | Lift Door | Lift Door | |
| Depth (in) | 30 | 28 | 28.15 |
| Height (in) | 39.5 | 39 | 38.5 |
| Design | Standard Height | Standard Height | |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Voltage | 115 | 115 | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
- 5
- 4
- 3
- 2
- 1
Review this product!
This unit measures 30 in. wide, 30 in. deep, and 33 in. high, with 6 in. of clearance at the back for utility connections.
Yes, it operates on 115 volts, 60 Hz, single phase, draws 15 amps, and includes a factory-installed power cord.
A 3/8-in. FPT potable water inlet and a 3/4-in. FPT machine drain are required.
Yes, the built-in storage bin holds up to 110 pounds of ice for on-site storage.
Ambient air temperatures between 50 and 100°F, incoming water temperatures between 40 and 100°F, and water pressure from 20 to 80 PSIG are required.
Yes, the AutoAlert control panel provides operating status updates and signals when descaling or sanitizing is required.
It can produce up to 329 lb. of ice per 24 hours.
Its storage bin holds 110 lb. of ice.
It makes half cube ice.
It measures 30 in. W x 30 in. D x 39 1/2 in. H.
It uses an air-cooled condensing system.
It requires 115 V electrical service.
It requires 1-phase electrical service.
Yes, it uses a gravity drain connection.
It uses R290 refrigerant.
Yes, it includes a storage bin with an 110-lb. capacity.
Its listed certifications include AHRI, cETLus Listed, NSF, and UL.
Yes, the air filter can be removed for cleaning.
Yes, it includes a water filter.
Yes, it has adjustable feet.
It requires 12.8 A.
It uses a NEMA 5-15P plug.
It requires a 3/8-in. water line connection.
Yes, it includes a power cord and plug.
