Scotsman CU0515GA-1 Description

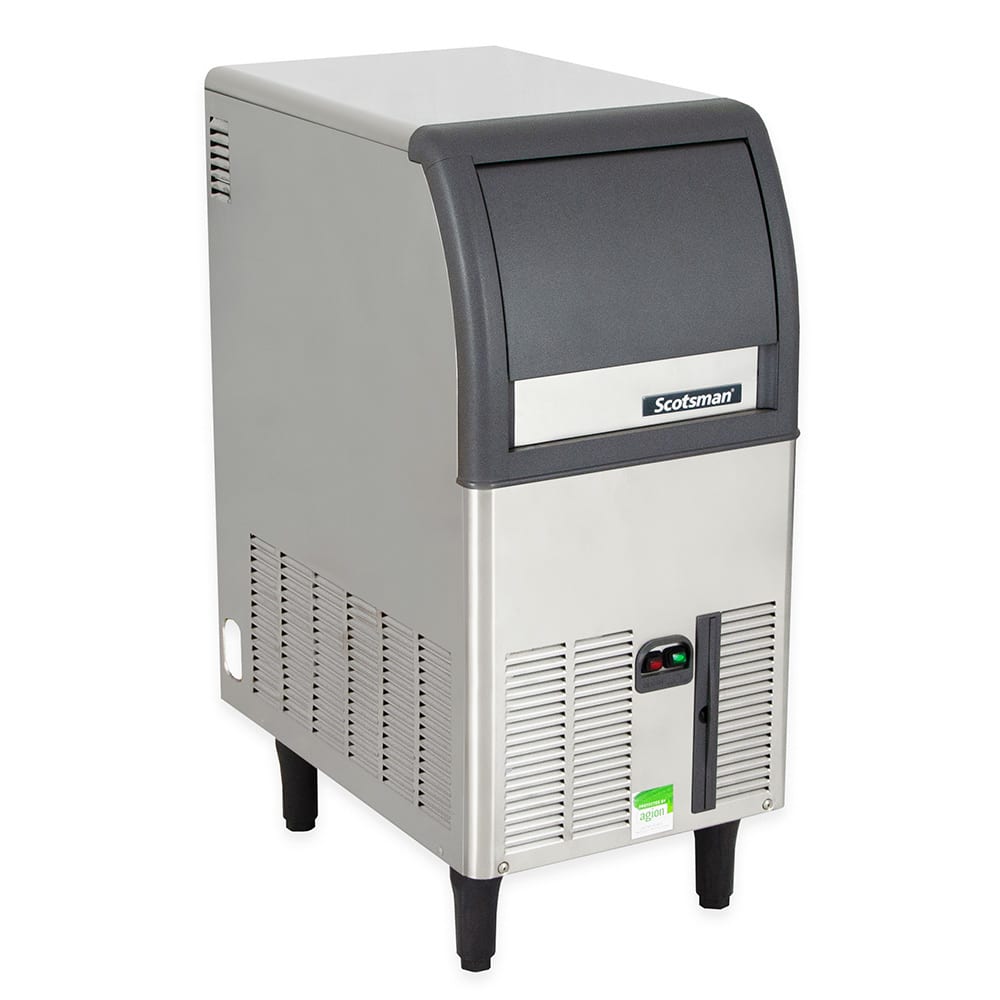

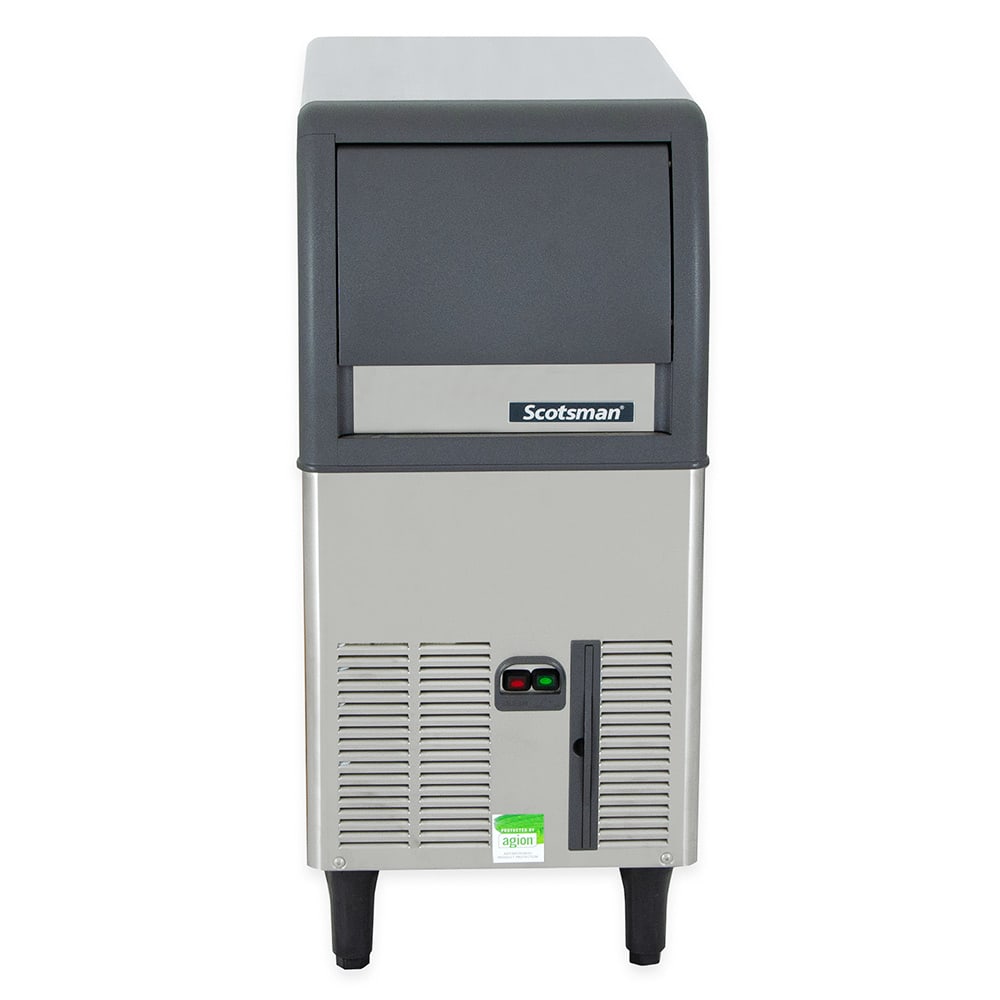

A good choice for environments where it will experience heavy use, the Scotsman CU0515GA-1 undercounter ice maker is constructed of heavy-duty, rust-resistant stainless steel. This metal defends against scratching, denting, and corroding, and it's simple to clean. To streamline installation, it features a self-contained condenser and is equipped with a horizontal evaporator. Its bin opens from the front for comfortable ice access. This unit uses energy-saving systems for efficiency and ice quality.
At a maximum rate of 84 pounds per day in ideal conditions, the Scotsman CU0515GA-1 ice maker produces slow-melting gourmet ice, ideal for serving in cocktails. Being a compact undercounter model, its built-in storage capacity is 24 pounds. It's elevated on 51/4-inch legs so users can clean comfortably beneath the unit. To simplify maintenance, it features a QR code that provides operators with unit-specific information.
Product Details
- 84-lb. maximum daily ice production
- 58-lb. AHRI-certified daily ice production
- 24-lb. built-in storage capacity
- Ice cube dimensions: 1 in. x 11⁄8 in. x 11⁄4 in.
- Produces slow-melting gourmet ice
- Undercounter
- Durable, corrosion-resistant stainless steel construction
- Horizontal evaporator

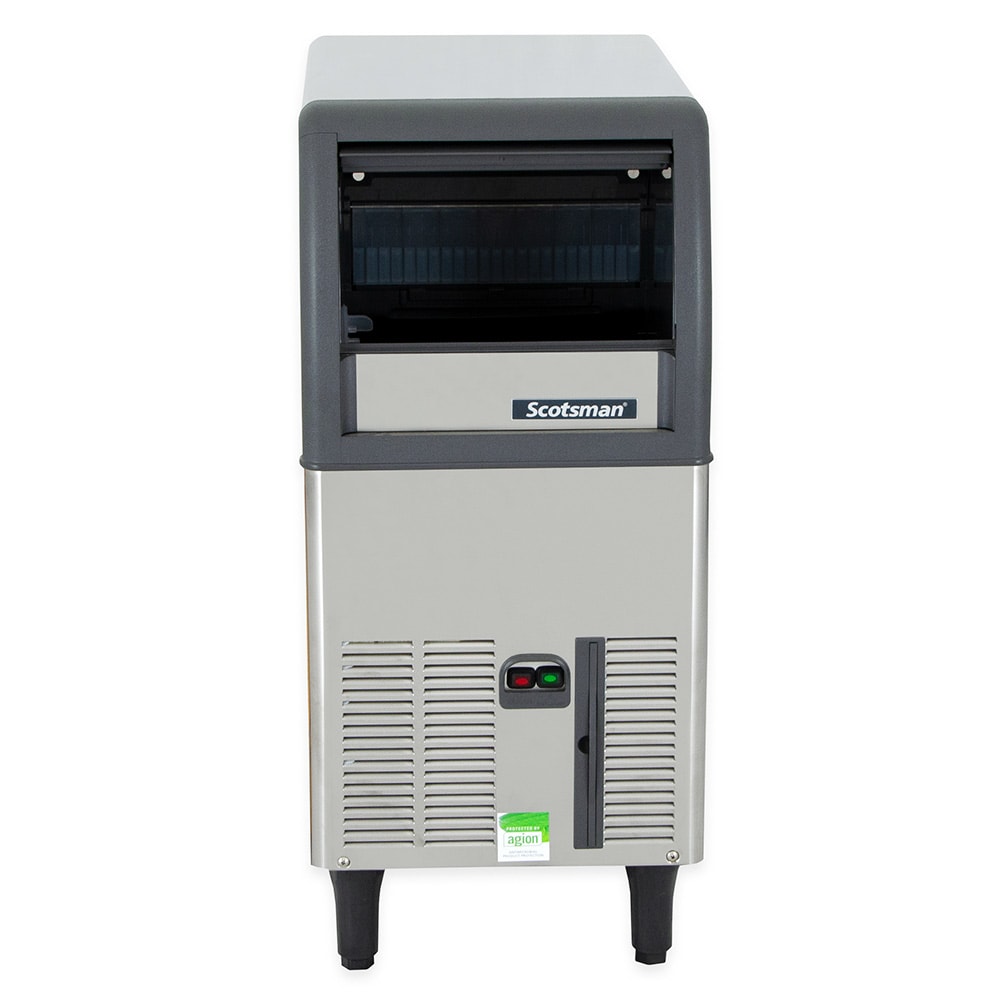

- Front-opening bin
- Unit-specific QR code simplifies maintenance
- Energy-saving systems optimize quality and efficiency
- 51/4-in. legs enable cleaning below unit
- Air cooled
- Gravity-type drain
- Self-contained condenser
- Uses R134a refrigerant
- Required incoming water pressure: 14-70 PSI
- Required ambient water temperature: 40-100 degrees F
- Required ambient air temperature: 50-100 degrees F
- 2,700-BTU heat transfer capacity
Dimensions & Utilities
- 15 in. W x 24 in. D x 34 in. H
- 5.6 A
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Product Features


*Free shipping on Scotsman CU0515GA-1 within the 48 contiguous states.
From The Manufacturer
Ice Maker With Bin, Gourmet cube style, air-cooled, self-contained condenser, production capacity up to 84 lb/24 hours at 70°/50° (66 lb AHRI certified at 90°/70°), 24 lb bin storage capacity, front opening bin, stainless steel finish, R-134A refrigerant, includes legs, 115v/60/1-ph, 5.6 amps, cULus, NSF
*Image may not depict product color, inclusions or accessories.

Watch a video about this product
Scotsman CU0515GA-1 Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Scotsman |
24 Hr. Production (lb) | 84 |
Bin Capacity (lb) | 24 |
Compressor Type | Air Cooled |
Depth (in) | 24 |
Design | Standard Height |
Drain Type | Gravity |
Front Style | Lift Door |
Height (in) | 34 |
Hertz | 60 |
Ice Type | Top Hat |
NEMA | 5-15P |
Phase | 1 |
Product | Undercounter Ice Machines |
Product Type | Ice Makers & Bins |
Rating | Best |
Refrigerant | R134a |
Suggested Use | Commercial |
Suggested Use | Home/Office |
Voltage | 115 |
Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
Water Inlet (in) | 0.75 |
Width (in) | 15 |
Weight | 95.00 |
