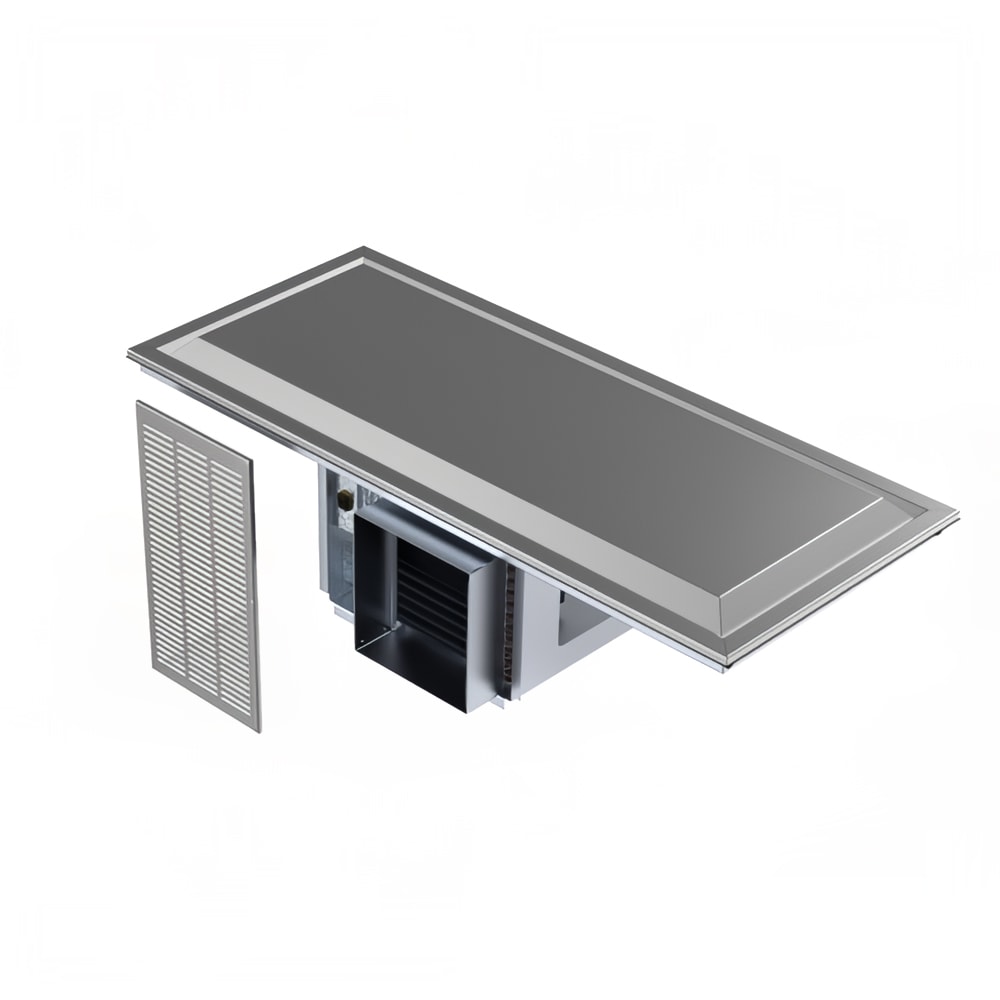

Delfield N8287P 87" Elevated Frost Top w/ Built In Compressor, 115v
Typically ships in 6 - 8 weeks
$7,247.00 /Each
Login or call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Delfield N8287P Description
To improve food presentation, the Delfield N8287P drop-in self-contained frost top's surface is elevated by 1 inch, and its perimeter overhangs by 2 37⁄100 inches. The top's stainless steel construction resists corrosion while withstanding long-term use, and it's equipped with a full-perimeter drain trough to prevent liquid from pooling on the surface. Though it measures 87 1⁄4 inches wide by 25 87⁄100 inches deep by 15 3⁄4 inches high overall, its display area measures 79 inches wide by 18 inches deep. It can be installed into an 86 1⁄4-inch-wide by 25-inch-deep counter cutout.
To keep product cool, the Delfield N8287P drop-in frost top's refrigeration lines are secured beneath the top. This unit has a self-contained condenser suspended beneath the unit on a heavy-gauge steel frame and uses R290 refrigerant. High-density polyurethane foam lines the unit to prevent temperature fluctuations when stored in warm ambient air. To streamline turning the unit on and off, a toggle switch is built into the condenser.
- 1-piece, heavy-gauge stainless steel top
- Stainless steel exterior
- Fits an 86 1⁄4-in. x 25 in. counter cutout
- Elevated by 1 in.
- 2 37⁄100-in. overhang
- Self-contained condenser
- R290 refrigerant
- High-density polyurethane foam insulation
- On/off toggle switch built into condenser
- Full-perimeter drain trough and 0.5-in. drain
- Push-in perimeter gasket
- 1,803-BTU heat transfer capacity
- Display area: 79 in. W x 18 in. D
- Overall: 87 1⁄4 in. W x 25 87⁄100 in. D x 15 3⁄4 in. H
- 4.8 A, 1⁄3 HP
- 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Delfield N8287P within the 48 contiguous states.
From The Manufacturer
Drop-In Frost Top, stainless steel 1" elevated top with drain trough & 2" overhang, galvanized steel exterior housing, on/off toggle switch, self-contained refrigeration, R290 refrigerant, 1/3 hp, (86-1/4" x 25" cutout required), cUL, UL, NSF
Delfield N8287P Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Delfield |
| Compressor Location | Bottom |
| Depth (in) | 25.87 |
| Design | Elevated |
| Height (in) | 15.75 |
| Hertz | 60 |
| Includes | Drain |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Frost Tops |
| Product Type | Commercial Refrigeration |
| Refrigerant | R290 (Hydrocarbon) |
| Voltage | 115 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 87.25 |
| Weight | 239.00 |
