Delfield N8231P 31" Elevated Frost Top w/ Built In Compressor, 115v
Typically ships in 6 - 8 weeks
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Delfield N8231P Description

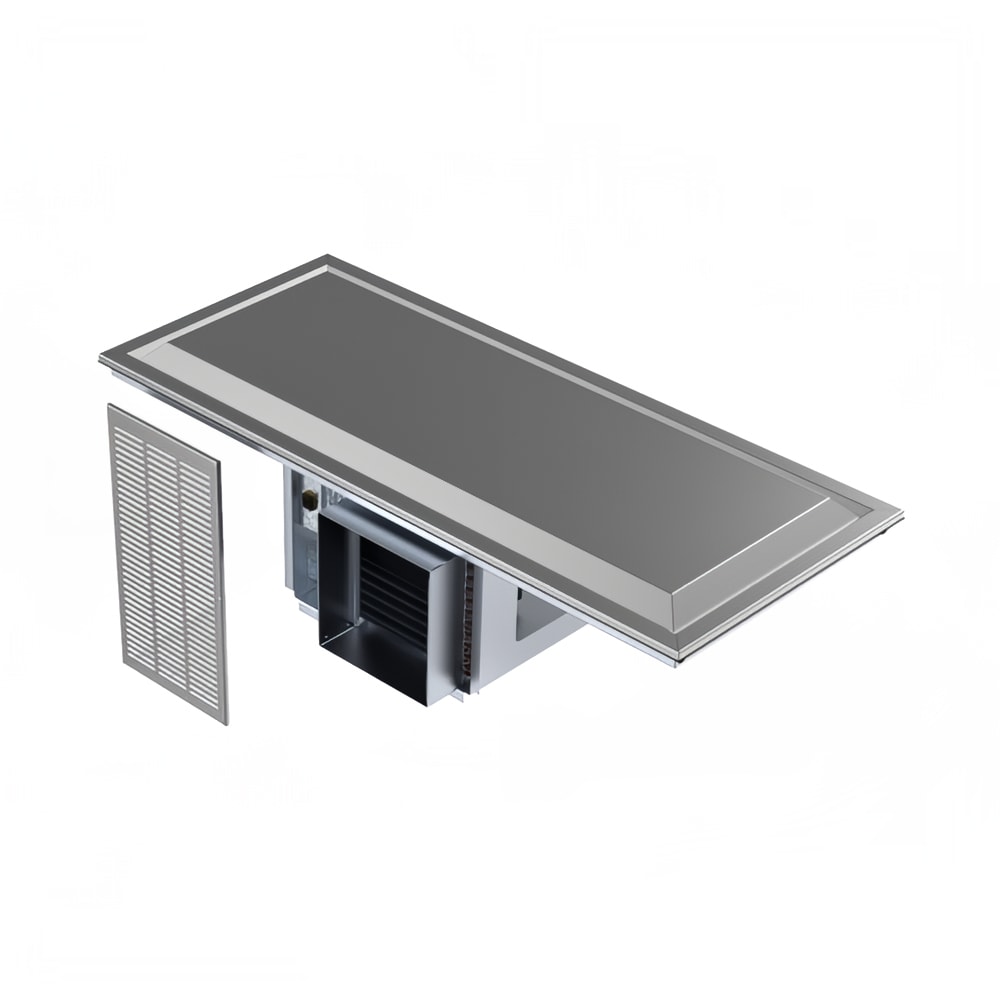

The Delfield N8231P drop-in frost top provides a cold surface for working with and displaying cold items without melting them. Designed for countertop use, the unit has a 23-inch by 18-inch top elevated 1 inch from the counter. A drain trough surrounds the top working surface, catching runoff to keep surrounding areas clean. Made of stainless steel, the top is strong and eases cleaning, while the rest of the housing is made of corrosion-resistant galvanized steel. Foam insulation is integrated into the unit to retain cold air, and the refrigeration system is self-contained and mounted to the bottom of the elevated top.
Product Details
- 1-in. elevated stainless steel top
- Integrated full-perimeter drain trough
- 2-in. overhang
- Galvanized steel exterior housing resists corrosion and denting
- Polyurethane foam insulation provides cold air retention
- On/off toggle switch
- Self-contained refrigeration system is bottom mounted under the top
- Eco-friendly R290 hydrocarbon refrigerant
- Fits in a 303/4-in. x 25-in. cutout
Product Features
Dimensions & Utilities
- Top: 23 in. W x 18 in. D
- Refrigeration unit: 21 in. W x 22 in. D x 123/4 in. H
- Overall: 31 in. W x 2587/100 in. D x 153/4 in. H
- 2.4 A, 1⁄5 HP
- 115 V/60 Hz/1 ph, NEMA 5-15P plug
*Free shipping on Delfield N8231P within the 48 contiguous states.
From The Manufacturer
Drop-In Frost Top, stainless steel 1" elevated top with drain trough & 2" overhang, galvanized steel exterior housing, on/off toggle switch, self-contained refrigeration, R290 refrigerant, 1/5 HP, (30-3/4" x 25" cutout required), cUL, UL, NSF
*Image may not depict product color, inclusions or accessories.
Delfield N8231P Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Delfield |
| Compressor Location | Bottom |
| Depth (in) | 25.87 |
| Design | Elevated |
| Height (in) | 15.75 |
| Hertz | 60 |
| Includes | Drain |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Frost Tops |
| Product Type | Commercial Refrigeration |
| Refrigerant | R290 (Hydrocarbon) |
| Voltage | 115 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 31.75 |
| Weight | 142.00 |
Important Prop 65 information for California residents.
