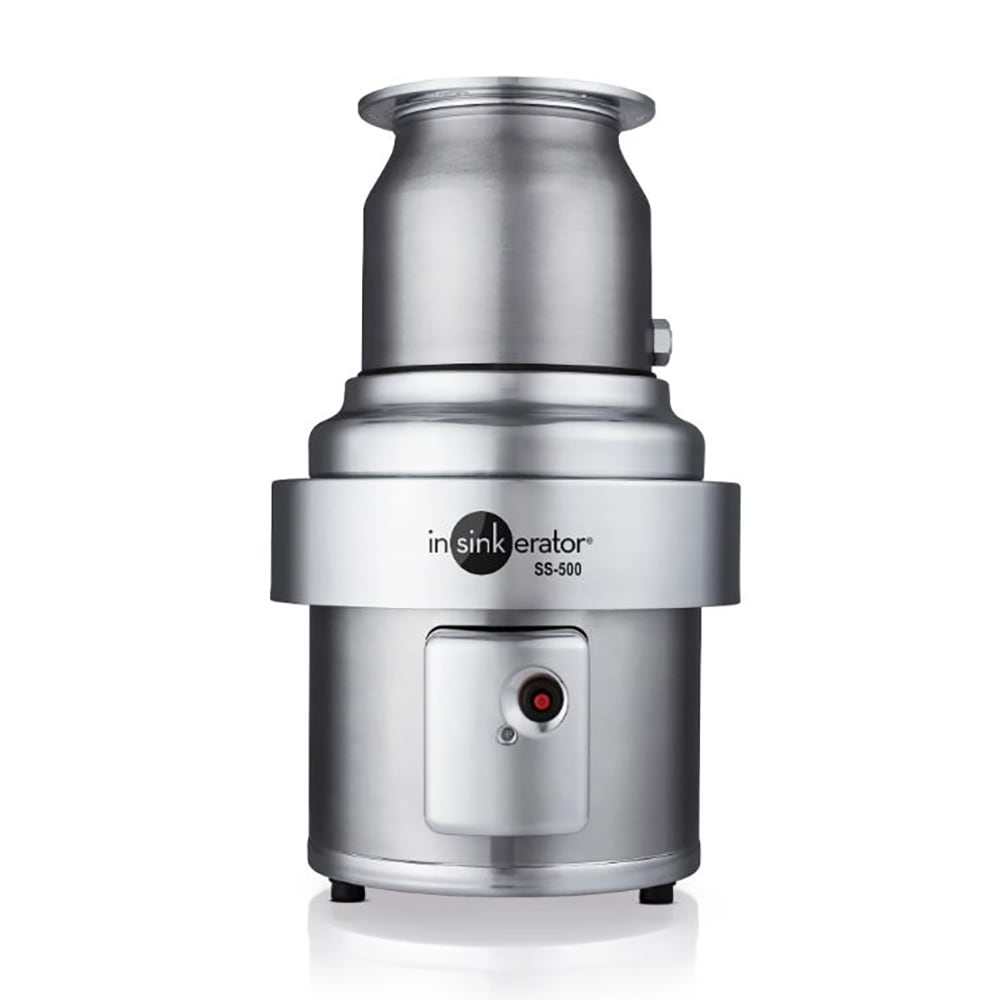

InSinkErator SS-500-7-AS101 Disposer Package w/ #7-Adapter & AS101 Panel, 5-HP, 208/3 V
Retail Price: $12,468.76
$6,821.15 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 230V, 3 Phase |
| 460V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
InSinkErator SS-500-7-AS101 Description
The InSinkErator SS-500-7-AS101 disposer pack is equipped with a No. 7 collar adaptor and a 6 5⁄8-inch diameter inlet for sink installation. A removable splash baffle and stainless steel sink stopper help maintain sanitation between uses, while the corrosion-resistant stainless steel grind chamber supports long-term durability. Inside, stationary and rotating shredding elements are manufactured of cast nickel chrome alloy and operate in a reverse action grinding design to efficiently break down food waste. Double-tapered Timken roller bearings absorb shock during operation, and the triple lip seal with secondary spring-loaded oil seal provides protection against water and grease intrusion. The programmable AS101 control panel offers automatic water saving, timed run, auto reversing, and post flush functions to optimize performance for demanding kitchen environments.
- Part of the SS series
- Sink mount system with No. 7 collar adaptor
- 6 5⁄8-in.-dia. inlet
- Removable splash baffle and stainless steel sink stopper
- Programmable AS101 control panel
- Automatic water-saving function
- Timed run, auto reversing, and post flush features
- 5-HP induction motor with 1,725 RPM
- Totally enclosed motor protects against outside moisture
- Built-in thermal overload protection
- Controlled airflow system cools motor during use
- Cast nickel chrome alloy stationary and rotating shredding elements
- Reverse action grinding design
- Double-tapered Timken roller bearings absorb shock
- Stainless steel grind chamber resists corrosion
- Dual-seal protection: triple lip seal with secondary spring-loaded oil seal
- Outfitted with 2 syphon breakers, 2 solenoid valves, and 2 flow control valves included
- 5 HP
- 208 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on InSinkErator SS-500-7-AS101 within the 48 contiguous states.
From The Manufacturer
Complete Disposer Package, sink mount system, 6 5/8" diameter inlet, with #7 collar adaptor for sink installation, 5 HP motor, stainless construction, includes 2 syphon breakers, 2 solenoid valves, 2 flow control valves, removable splash baffle, stainless steel sink stopper, programmable AS101 control panel, automatic water saving function, auto reversing, timed run, post flush. Contact customer service for option
InSinkErator SS-500-7-AS101 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | InSinkErator |
| HP | 5 |
| Usage Level | Heavy Duty |
| Warranty | 3-year Parts & Labor |
| Weight | 163.00 |
