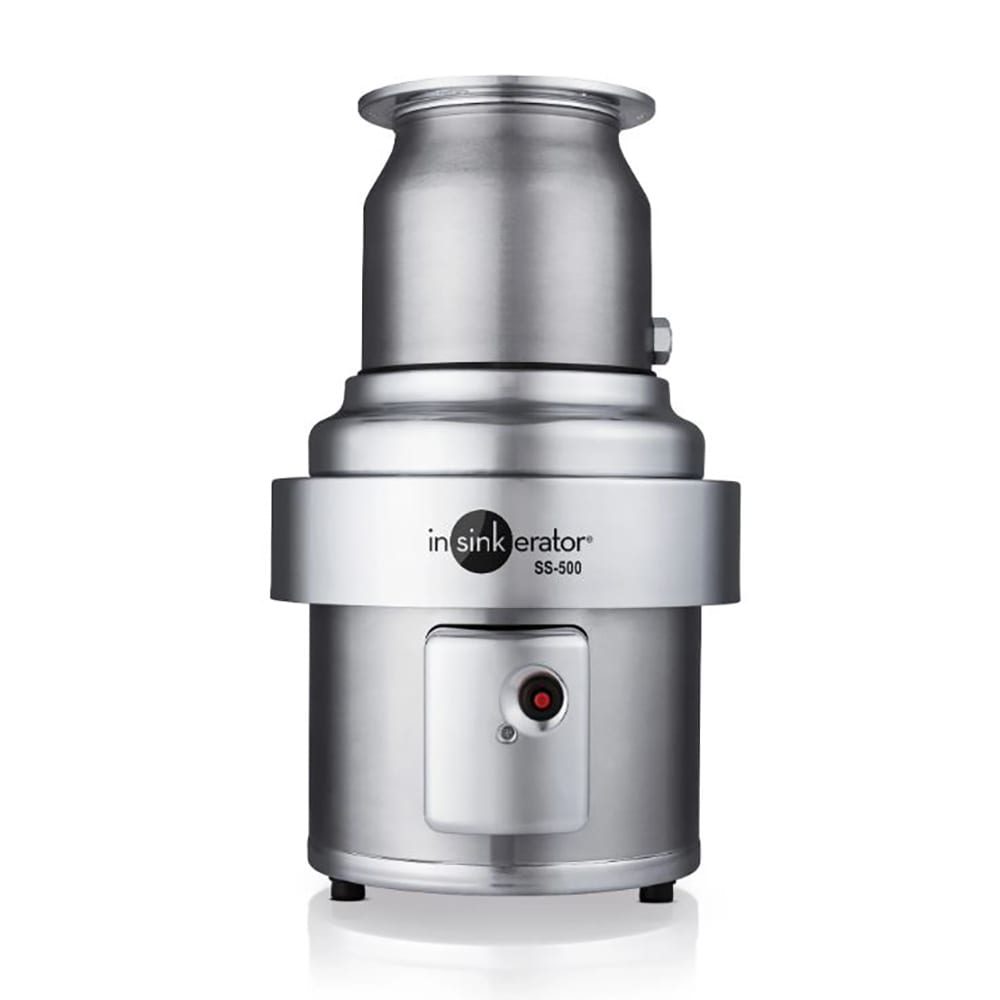

InSinkErator S-500-18B-CC202 Disposer Pack, 18-in Bowl, Sleeve Guard, CC202 Panel, 5-HP, 230/3V
Retail Price: $10,156.06
$5,555.96 /Each
Selected Voltage: 230V, 3 Phase
| 230V, 3 Phase |
| 208V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Attention: Order by 06-15-2026 to save before the price increases!
InSinkErator S-500-18B-CC202 Description
Featuring stainless steel construction with chrome-plated surfaces, the InSinkErator SS-500-18B-CC202 2303 disposer is designed to support sanitary operation and simplify maintenance. Double-tapered Timken roller bearings help absorb mechanical shock, while internal seals—including a triple-lip seal and a spring-loaded oil seal—help prevent water damage and grease loss. The 5-horsepower induction motor operates at 1,725 RPM and is housed in a fully enclosed casing with thermal overload protection and built-in airflow cooling. Nickel chrome alloy shredding components inside the grind chamber support reverse-action grinding for dependable performance. The disposer includes an 18-inch diameter bowl with a 6 5⁄8-inch inlet, paired with a sleeve guard and splash baffle. A CC202 control panel manages post flush, timed run, and automatic reversing cycles. Syphon breaker, solenoid valve, and flow control valve are included to complete installation.
- Part of the SS Series
- 18-in. diameter bowl with 6 5⁄8-in. inlet
- Sleeve guard and splash baffle included
- Chrome-plated, paint-free exterior supports sanitation
- Nickel chrome alloy shredding components designed for reverse grinding
- Corrosion-resistant stainless steel grind chamber
- Double-tapered Timken roller bearings absorb vibration
- Triple-lip and spring-loaded oil seals protect motor from moisture and grease
- 5 HP induction motor operates at 1,725 RPM
- Enclosed motor housing includes thermal overload protection and airflow cooling

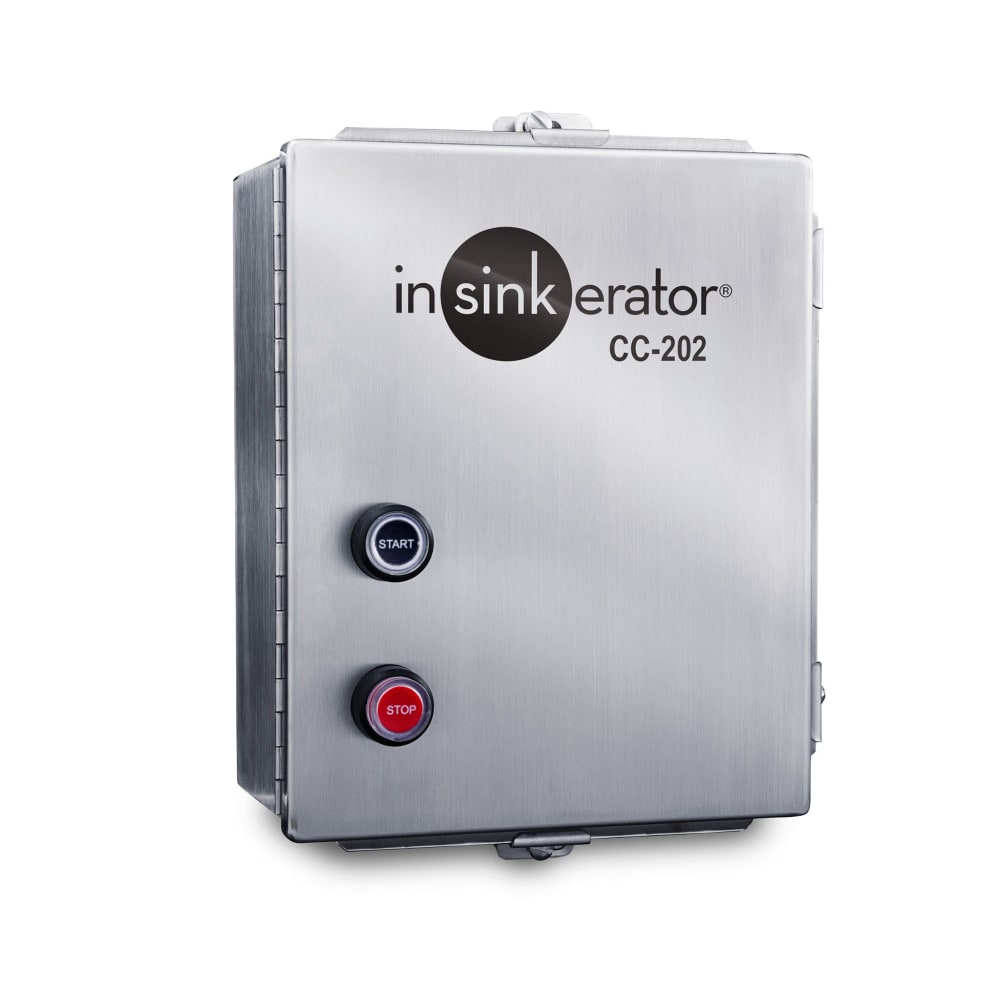

- CC202 programmable control panel automates reversing, post flush, and timed run
- Includes syphon breaker, solenoid valve, and flow control valve
- Mounted using 3⁄4-in. rubber gasket with chrome-plated cover
- Base includes support legs and mounting gasket
- Package includes bowl assembly and electrical control
- 5 HP
- 230 V / 60 Hz / 3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on InSinkErator S-500-18B-CC202 within the 48 contiguous states.
From The Manufacturer
Complete Disposer Package, with 18" diameter bowl, 6 5/8" diameter inlet, with sleeve guard and splash baffle, 5 HP motor, stainless construction, includes syphon breaker, solenoid valve, flow control valve, CC202 control panel, auto reversing. Contact customer service for option pricing.
InSinkErator S-500-18B-CC202 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | InSinkErator |
| HP | 5 |
| Usage Level | Heavy Duty |
| Warranty | 1-year Parts & Labor |
| Weight | 155.00 |
