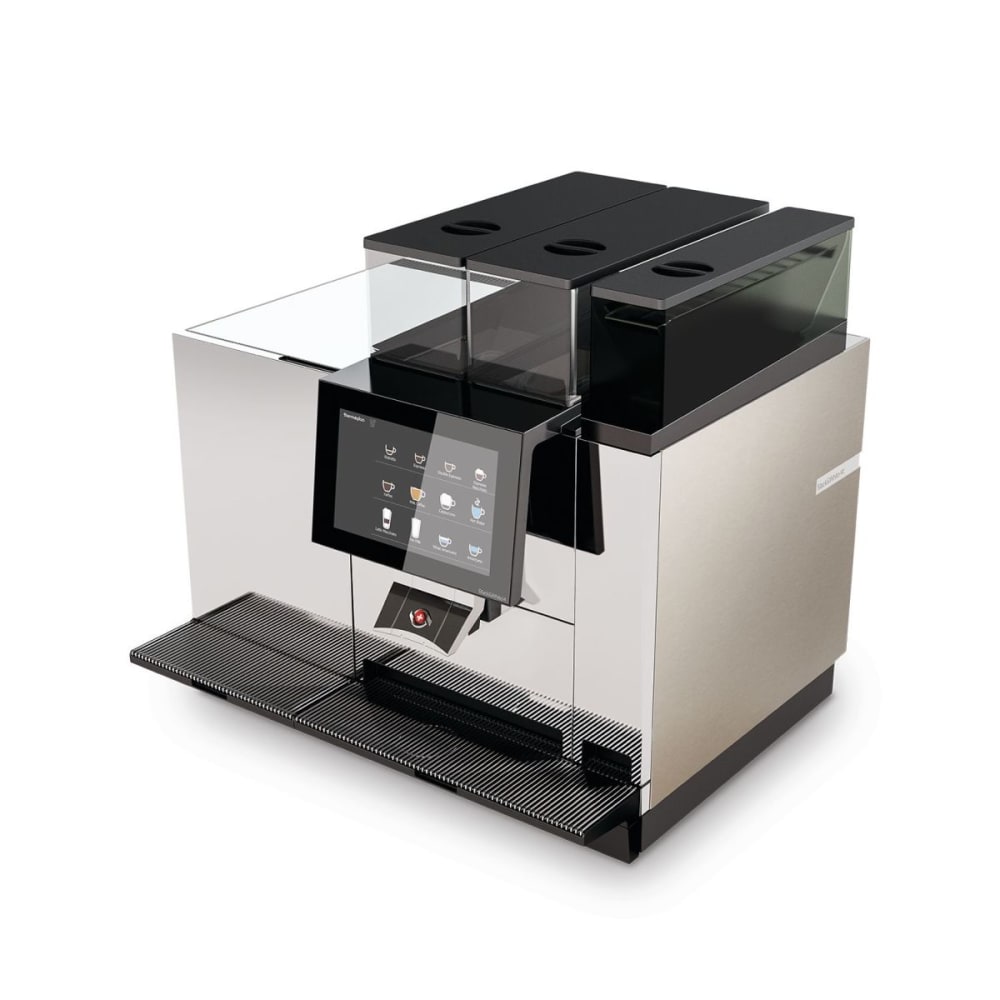

Thermoplan CTM-P-RL Super Automatic Espresso Machine w/ (1) Group & (2) Hoppers - 208v/1ph
Custom Pricing
Call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Thermoplan CTM-P-RL Description
Paired with an integrated 10-liter refrigerator to maintain proper milk temperature, the BUNN CTM-P-RL super automatic espresso machine features a two-milk system that accepts dairy and non-dairy options. A 4 2⁄5-pound chocolate powder compartment expands its drink selection to include mochas or hot chocolate, while a milk lance offers precision foam control. Mounted on high feet for convenient cleaning access, it incorporates two 3 7⁄10-pound bean hoppers and grinders that feed into a 25-gram metal brew chamber.
The BUNN CTM-P-RL espresso machine's 10-inch touchscreen gives users full interface customization with programmable, lockout-enabled cleaning reminders and troubleshooting menus for simple operation. Capable of brewing up to 500 cups per day, it measures 27 1⁄5 inches wide by 23 3⁄5 inches deep by 25 2⁄5 inches high and uses dual boilers for enhanced thermal consistency across cycles. Its adjustable spout suits a range of cup heights, while setup and maintenance tools support long-term performance.
- Plumbed boiler design
- Compatible with dairy and non-dairy milk
- Makes up to 500 cups per day
- (2) 3 7⁄10-lb. bean hoppers with 2 grinders
- 25-g. metal brew chamber
- 4 2⁄5-lb. chocolate powder compartment
- Integrated 10-liter refrigerator
- Adjustable spout
- Milk lance
- 10-in. touchscreen
- Customizable user interface
- Troubleshooting menus with installation and preventative maintenance
- Lockout-enabled automatic cleaning process with reminder
- High feet
- 27 1⁄5 in. W x 23 3⁄5 in. D x 25 2⁄5 in. H
- 27 A, 5700 W
- 208 V/60 Hz/1 ph, cord with NEMA 6-50P plug
*Image may not depict product color, inclusions or accessories.
*Thermoplan CTM-P-RL is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
Black & White 4 CTM-P-RL Espresso Machine, super automatic, (2) 3.7 lb bean hoppers with two grinders, dual boiler, 500 cups/day, integrated refrigerator holding up to 10L of milk, 4.4 lb chocolate powder option, 25 gram metal brew chamber, 10" touch screen, high feet, automatic cleaning process with reminder and lockout, dairy and non-dairy milk options with 2 milk system, adjustable height product dispense spout, built-in troubleshooting menus, customizable user interface, installation and preventative maintenance included, plumbed, 208v/60/1-ph, 27 amps, 5700 watts, NEMA 6-50P, UL Listed, NSF
Thermoplan CTM-P-RL Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Thermoplan |
| Boilers | Dual |
| Depth (in) | 23.6 |
| Height (in) | 25.4 |
| Hertz | 60 |
| NEMA | 6-50P |
| Number of Bean Hoppers | 2 |
| Number of Groups | 1 |
| Number of Steam Wands | None |
| Output | 240 Cups/Hour |
| Phase | 1 |
| Product | Espresso Machines |
| Product Type | Coffee & Tea Service |
| Rating | Better |
| Series | Black & White |
| Special Features | Grinder Included |
| Special Features | Milk Container |
| Special Features | Programmable |
| Special Features | Touch Screen |
| Style | Super Automatic |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor |
| Water Connection | Automatic |
| Watts | 5700 |
| Width (in) | 27.2 |
| Weight | 109.00 |
