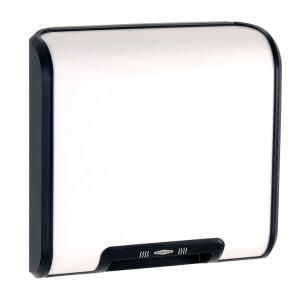

Bobrick B-7128 Surface Mounted ADA Hand Dryer w/ 25 Second Dry Time - Stainless Steel, 230v/1ph

Part of the TrimLine™ collection, the Bobrick B-7128 surface-mounted hand dryer is made of durable stainless steel, extending its service life at commercial operations. This piece of equipment is designed with no-touch operation. Its electronic sensor turns on the dryer when hands go across the sensor's path and under the air outlet opening; after 1¹⁄₂ minutes, the dryer shuts itself off to conserve energy.

Dual air outlets in the Bobrick B-7128 hand dryer circulate a swirling airflow, drying hands within 25 seconds. This piece of equipment is designed with a satin-grain finish. Two vandal-resistant, recessed hex screws secure the cover to the mounting base; to prevent tampering, the air inlet is constructed with a vandal-resistant grille and the heating elements are inaccessible to vandals.

Product Details

• Part of the Trimline collection
• Mounts on wall surface
• ADA compliant
• Dries hands in less than 25 seconds
• 18-ga. stainless steel construction
• No-touch operation
• Dual air outlets
• Electronic sensor shuts off automatically after 1¹⁄₂ min.
• Air inlet grille resistant to vandalism
• 2 recessed, vandal-resistant hex screws secure cover to mounting base
• 6-mm.-dia. mounting holes
• Self-lubricating sleeve bearing at nondrive end
• Sealed ball bearing at drive-shaft end
• Automatic thermal overload switch
• Double-inlet, centrifugal fans mounted on motor shaft
• 2 coiled nickel-chrome heating elements mounted in mica frame

Product Features

Dimensions & Utilities

• 13²⁵⁄₃₂ in. W x 4 in. D x 13¹⁹⁄₃₂ in. H
• ¹⁄₇ HP
• 230 V/60 Hz/1 ph

*Bobrick B-7128 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

Trim Line Surface-Mounted Hand Dryer, stainless steel, 230V. No-touch operation: electronic sensor automatically turns dryer on when hands are held under air outlet opening and across path of sensor. Dual air outlets provide a swirling circulation of airflow. Drying time less than 25 seconds. Electronic sensor will automatically shut dryer off 1-1/2 minutes after dryer turns on.

*Image may not depict product color, inclusions or accessories.

10-year Limited Parts; 3-year Motor Brushes
