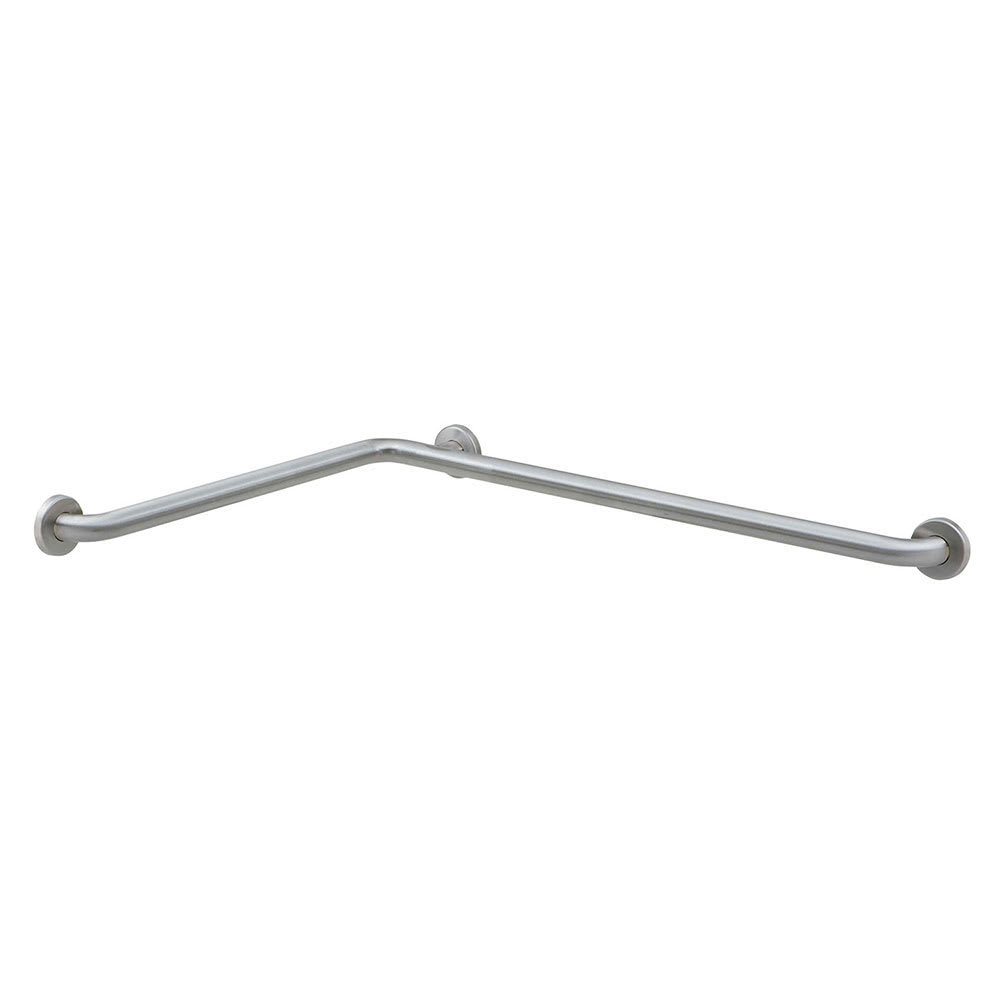

Bobrick B-68616.99 Grab Bar for Two-Wall Facility with Peened Gripping Surface, 1 1/2"D, 24"W, 36"D

To provide strength, this Bobrick B-68616.99 two-wall grab bar is made of durable, 18-gauge stainless steel tubing that measures 1¹⁄₂ inches in outer diameter, and its peened surface withstands heavy use. Able to hold 900 pounds, its concealed mounting flanges include screw holes to streamline secure wall attachment. The flanges are hidden by stainless steel snap covers for a clean look in commercial restrooms. This bar is designed for horizontal installation in a tub or shower.

Product Details

• 900-lb. capacity
• For use with tubs and showers
• Attaches to 2 walls
• 18-8, type-304, 18-ga. stainless steel tubing with peened surface
• Ends heliarc welded to flanges
• Stainless steel concealed mounting flanges with screw holes
• Snap flange covers conceal mounting screws
• End flanges: 3¹⁄₈ in. W x 2 in. H
• Intermediate flange: 3¹⁄₈ in. W x 2⁵⁄₈ in. H
• Snap-on covers: 3¹⁄₂ in. diameter x ¹⁄₂ in. D
• Overall dimensions: 1¹⁄₂ in. dia. x 24 in. W x 36 in. D

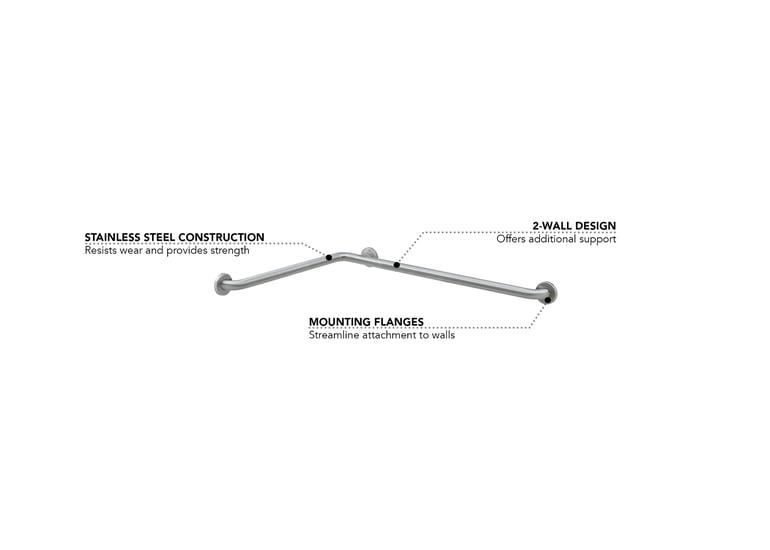

Product Features

*Bobrick B-68616.99 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

Two Wall Grab Bar with peened gripping surface, 1-1/2" Diameter, 24" W, 36" D. Constructed of 18 gauge type 304 satin finish stainless steel tubing in 1-1/2" diameter. Concealed mounting flange 1/8" thick, type 304 stainless steel plate, 2" W x 3-1/8" H, with screw holes for concealed anchors. Cover is 22 gauge type 304 stainless steel with satin finish and is 3-1/4" in diameter. Cover snaps over mounting flange to conceal screws.

*Image may not depict product color, inclusions or accessories.

Bobrick B-68616.99 Specifications

Spec Attribute	Spec Value
Manufacturer	Bobrick
Length (in)	24
Product	Grab Bars
Product Type	Bathroom Supplies
Weight	4.60
