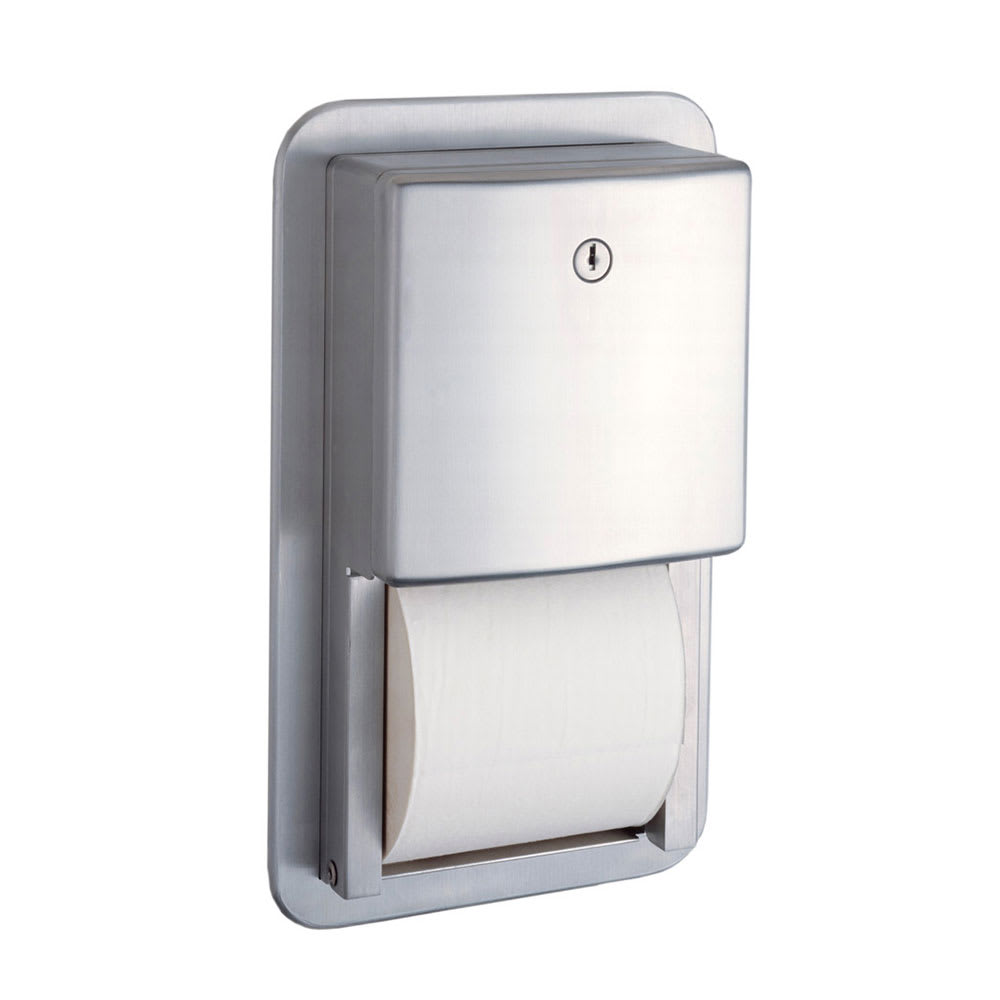

Bobrick B4388 Contura Series Recessed Mult-Roll Toilet Tissue Dispenser

With its recessed design, the Bobrick B-4388 ConturaSeries® toilet tissue dispenser can be installed into a 6¹⁄₄-inch-wide by 11¹⁄₄-inch-high wall opening. This satin-finished stainless steel unit holds two standard-core toilet paper rolls measuring 5¹⁄₄ inches in diameter. When loaded, these rolls are locked into the dispensing mechanism. After the bottom roll is depleted, operators can unlock the door to remove it, and the extra roll drops in place automatically. To prevent tampering, the flat door face is equipped with a flush tumbler lock.

Product Details

• Surface-mounted, recessed unit
• Can be installed in a rough wall opening measuring 6¹⁄₄ in. W x 3¹⁄₈ in. D (minimum) x 11¹⁄₄ in. H
• Accommodates 2 standard-core toilet paper rolls at 5¹⁄₄ in. diameter
• Dispensing mechanism
• Cabinet is 18-8 stainless steel with satin finish
• 2 molded ABS plastic spindles secured in dispensing mechanism
• 1-piece, seamless flange
• 18-8 stainless steel dispensing mechanism, inner housing, and cam
• Flat door with flush tumbler lock
• Recommended mounting height between 28 and 36 in. above floor
• Recommended mounting height for accessibility: 28 in. above ground
• Overall dimensions: 7⁹⁄₁₆ in. W x 2¹⁵⁄₁₆ in. D x 12¹⁄₂ in. H

Product Features

From The Manufacturer

Contura Series Recessed Mult-Roll Toilet Tissue Dispenser, satin finish stainless steel unit and dispensing mechanism, flush tumbler lock, holds two rolls up to 5-1/4" diameter, extra roll drops in place when bottom roll is depleted, theft resistant, heavy duty spindles, extends 2-3/4" from wall, rough wall opening 6-1/4" W, 11-1/4" H, 3-1/4" minimum depth, average mounting height 28-3/4" - 36-3/4" to top of unit; barrier-free, 28-3/4".

*Image may not depict product color, inclusions or accessories.

3-year Limited
