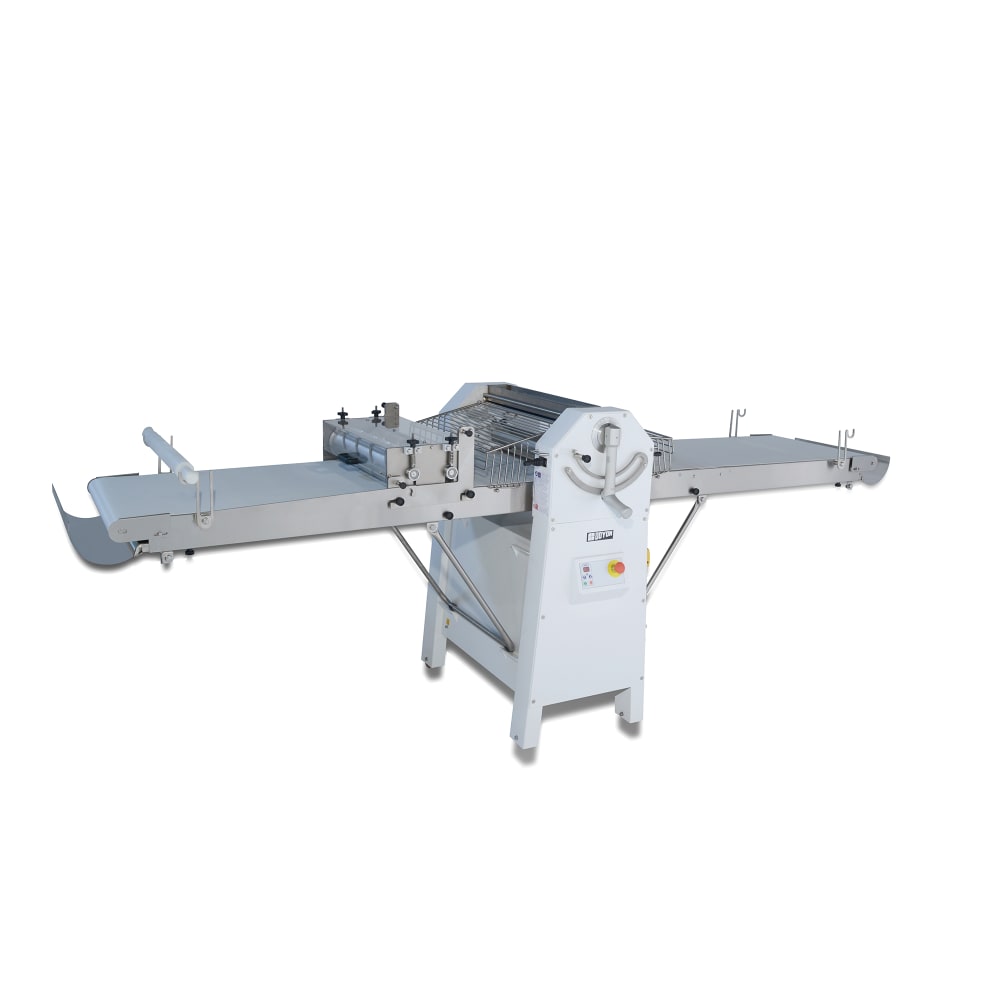

Doyon LMA630 Floor Model Reversible Dough Sheeter w/ 30 lb Dough Capacity

The Doyon LMA630 reversible dough sheeter is used to thin and shape pizza dough, as the adjustable rollers change in thickness from 1¹⁄₃₂ to 1¹⁄₂ inches thick. Able to hold 30 pounds of dough, this unit has 20 speeds for an ideal consistency, and sticking is prevented by the stainless steel roller construction. Catch pans on the end of the conveyor on each side hold dough, keeping it from falling in the floor, while a flour reservoir is built over the rollers. To prevent tears and obstruction, the exit conveyor is faster than the entry, and the Doyon LMA630 reversible dough sheeter has a fold-up conveyor that eases storage.

Product Details

• Reversible sheeting action
• 20 digitally controlled speeds
• 1¹⁄₃₂-1¹⁄₂ in. adjustable thickness on the roller gap
• 30-lb. capacity
• Forward reverse action is controlled by a foot switch and hand controls
• Polyurethane belt withstands high-volume use
• Rolls up for compact storage
• Stick-resistant stainless steel rollers
• Stainless steel guards on each side of the rollers provides protection
• Exit conveyor is faster than entry to prevent obstruction and tearing
• Conveyor folds up for compact storage
• 2 catch pans, 1 on each end
• Enamel coating holds up to frequent use
• Flour reservoir sits above the rollers

Dimensions & Utilities

• Conveyor: 118¹⁄₈ in. L x 23 in. W
• Overall: 130³⁄₄ in. W x 39¹⁄₂ in. D x 45³⁄₄ in. H
• 4 A, 1 HP
• 120 V/60 Hz/1 ph, NEMA 5-15P plug

*Free shipping on Doyon LMA630 within the 48 contiguous states.

From The Manufacturer

Reversible Dough Sheeter, floor model, 130-3/4" long, 30 lbs. dough capacity, 20 speeds, 23" stainless steel rollers, adjustable roller gap, enamel coating, 1 HP, 120v/1ph, 4A, CE & ETL listed

*Image may not depict product color, inclusions or accessories.

2-year Limited Parts; 1-year Labor

Doyon LMA630 Specifications

Documents

Spec Sheet

Warranty
