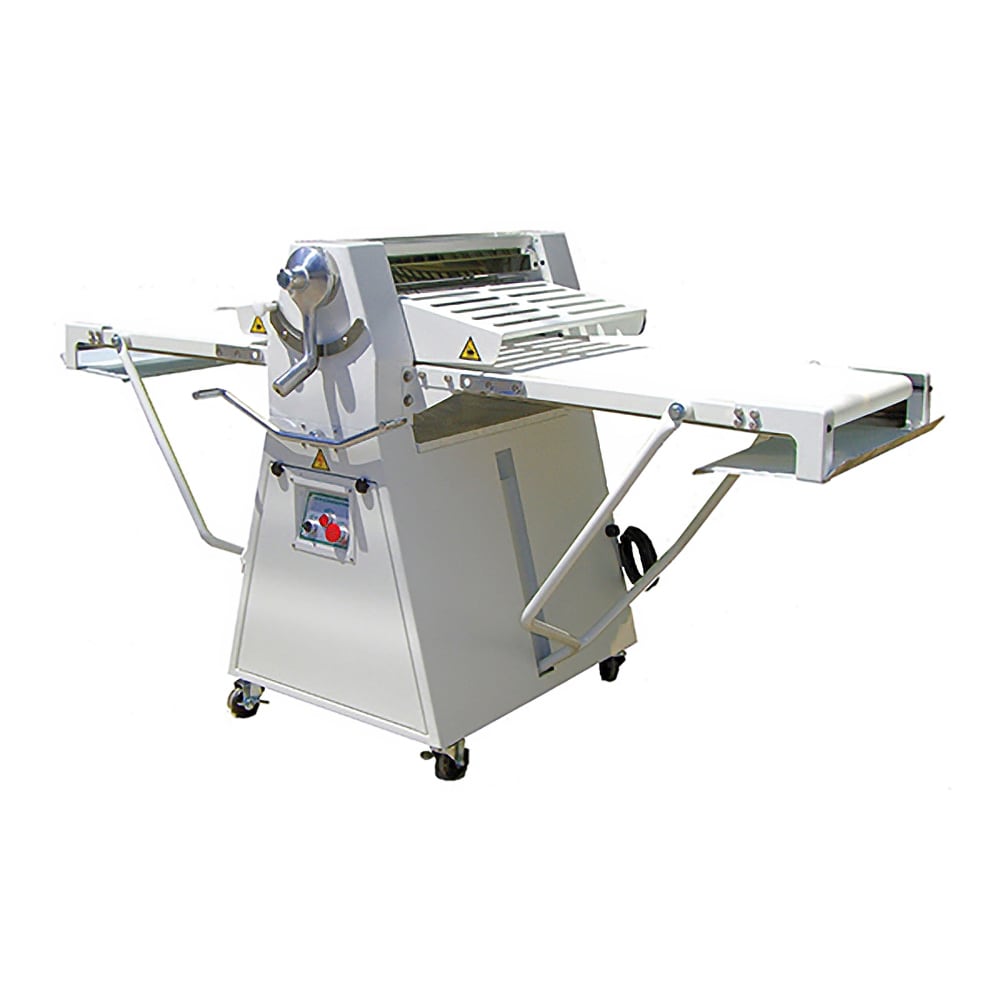

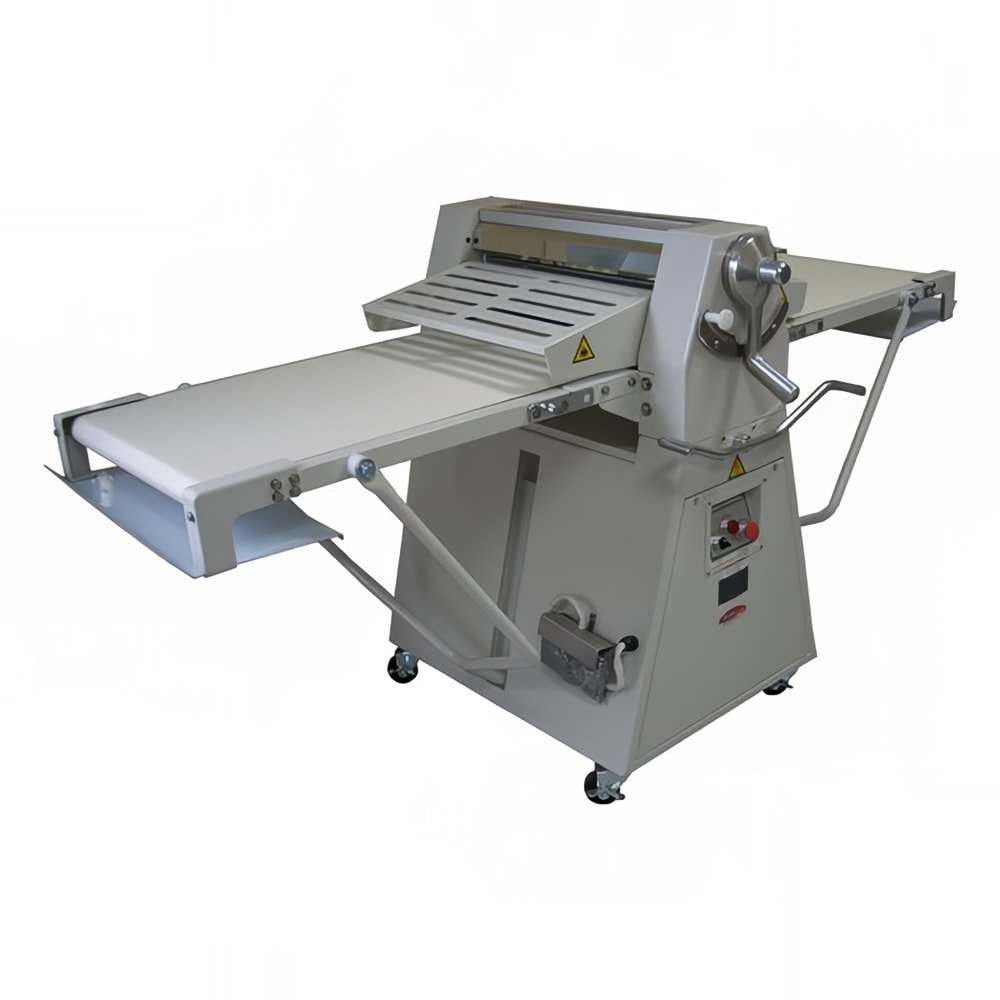

Bakemax BMFRS03 Floor Model Dough Sheeter, Reversible, 25" X 95" Work Length, 220v/1ph

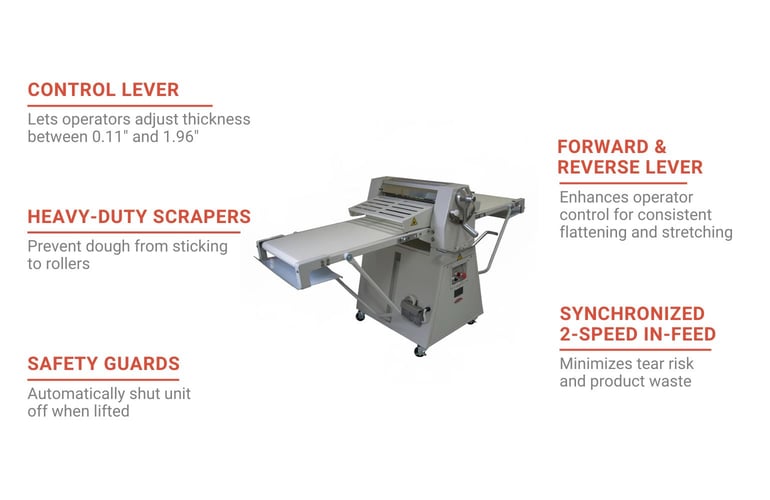

Using the BakeMax BMFRS03 floor model dough sheeter's control lever, operators can adjust dough thickness between ³/₂₅ and 1²⁴/₂₅ inches to flatten or stretch dough to create pizza, pie crust, donuts, cookies, or fondant. Dough can be fed through the 95-inch-long by 25-inch-wide conveyor belt, and users can change direction forward or backward with a tiltable lever to ensure the dough is evenly sheeted. To reduce tearing risk, this unit's in-feed features two synchronized speeds, and heavy-duty scrapers prevent dough from sticking to the rollers. An automatic overload mechanism protects the motor from damage during high-volume use, and when the rollers' safety guards are lifted, the unit automatically shuts down for user safety.

This BakeMax BMFRS03 reversible dough sheeter is a floor model, measuring 40 inches wide by 99 inches deep by 44 inches high and is made of heavy-duty stainless steel with an aluminum alloy head housing for long-lasting corrosion resistance. To save space when not in use, its sides can be folded up. The stainless steel rollers inside the unit measure 25³/₅ inches long by 3¹/₂ inches wide to produce consistent results, and a catch tray is built on either side of the unit to ease dough insertion and retrieval.

Product Details

• Floor configuration
• Heavy-duty steel construction
• Corrosion-resistant aluminum alloy head housing
• 2 catch trays (1 on each end of unit)
• Stainless steel rollers
• Thickness adjustable between ³/₂₅ in. and 1²⁴/₂₅ in. (3 mm. and 50 mm.) with control lever
• Synchronized 2-speed in-feed
• Forward/reverse lever
• Emergency-stop push button
• Power on/off rotary switch
• Automatic overload motor protection
• Heavy-duty nonstick scrapers
• Roller safety guards automatically turn off unit when lifted
• Folding sides to save space

Dimensions & Utilities

• Rollers: 25³/₅ in. L x 3¹/₂ in. W
• Belt: 95 in. L x 25 in. W
• Overall: 40 in. W x 99 in. D x 44 in. H
• 7.8 A, 1 HP
• 220 V/60 Hz/1 ph, NEMA 6-15P plug

Product Features

*Free shipping on Bakemax BMFRS03 within the 48 contiguous states.

From The Manufacturer

Dough Sheeter, floor model, reversible, 25"x95" conveyor size, push button control, safety guard on both sides of rollers, aluminum alloy head housing, use for sheeting and stretching dough, 1 HP, 220v/60/1-ph, 7.8 amps, NEMA L6-15P, QPS

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
