Bakemax BMFRS01 Floor Model Dough Sheeter, Reversible, 17" X 79" Work Length, 220v/1ph

For sheeting and stretching large volumes of dough for puff pastries, donuts, pie crusts, or pizza, the BakeMax BMFRS01 dough sheeter is equipped with a 79-inch-long by 17-inch-wide conveyor belt and two catch trays. Operators can adjust dough thickness between ³/₂₅ and 1²⁴/₂₅ inches and tilt a corresponding lever to guide dough forward or backward as needed. Its two-speed in-feed reduces the risk of tears and minimizes product waste, while its heavy-duty scrapers prevent dough from sticking to the rollers. For streamlined operation, an automatic overload mechanism protects the motor from damage during high-volume use. If the rollers' safety guards are lifted during use, the unit automatically powers off.

The BakeMax BMFRS01 reversible dough sheeter is a floor model measuring 32 inches wide by 84 inches deep by 44 inches high. For longevity in fast-paced restaurants, bakeries, and hotels, it's made of heavy-duty steel—a rust-, corrosion-, and wear-resistant metal that's simple to wipe clean between uses. Its rollers are also made of stainless steel for durability, and each measures 17.7 inches long by 3¹/₂ inches wide to evenly press dough. When not in use, the unit's sides can be folded up to save space.

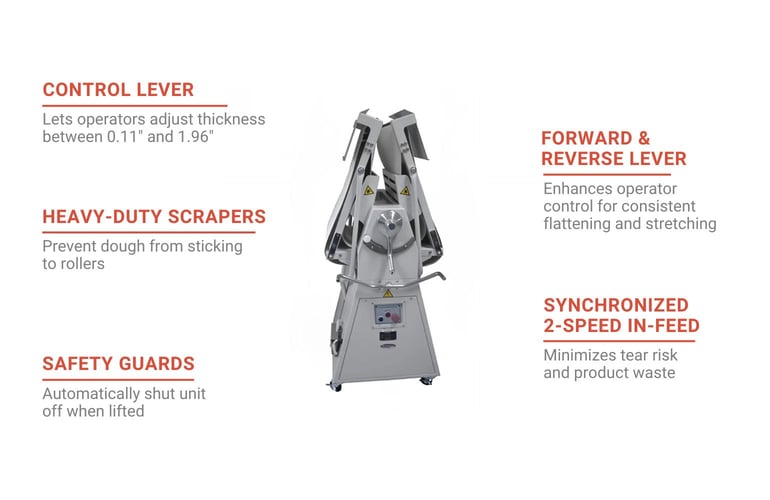

Product Details

• Floor standing
• Heavy-duty steel construction
• Aluminum alloy head housing
• Catch trays on both ends of unit
• Stainless steel rollers with safety guards on both sides
• Adjustable thickness between ³/₂₅ and 1²⁴/₂₅ in. (3 mm. and 50 mm.)
• Synchronized 2-speed in-feed minimizes tearing risk
• Tiltable lever for forward and reverse functions
• Emergency-stop push button
• Automatic overload protection for motor
• Heavy-duty nonstick scrapers
• Unit powers off when safety guards are lifted
• Power on/off rotary switch
• Space-saving fold-up sides

Dimensions & Utilities

• Rollers: 17⁷/₁₀ in. L x 3¹/₂ in. W
• Belt: 79 in. L x 17 in. W
• Overall: 32 in. W x 83 in. D x 44 in. H
• 7.8 A, 1 HP
• 220 V/60 Hz/1 ph, NEMA 6-15P plug

Product Features

*Free shipping on Bakemax BMFRS01 within the 48 contiguous states.

From The Manufacturer

Dough Sheeter, floor model, reversible, 17"x79" conveyor size, push button control, safety guard on both sides of rollers, aluminum alloy head housing, use for sheeting and stretching dough, 1 HP, 220v/60/1-ph, 7.8 amps, NEMA L6-15P, QPS

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Bakemax BMFRS01 Specifications
