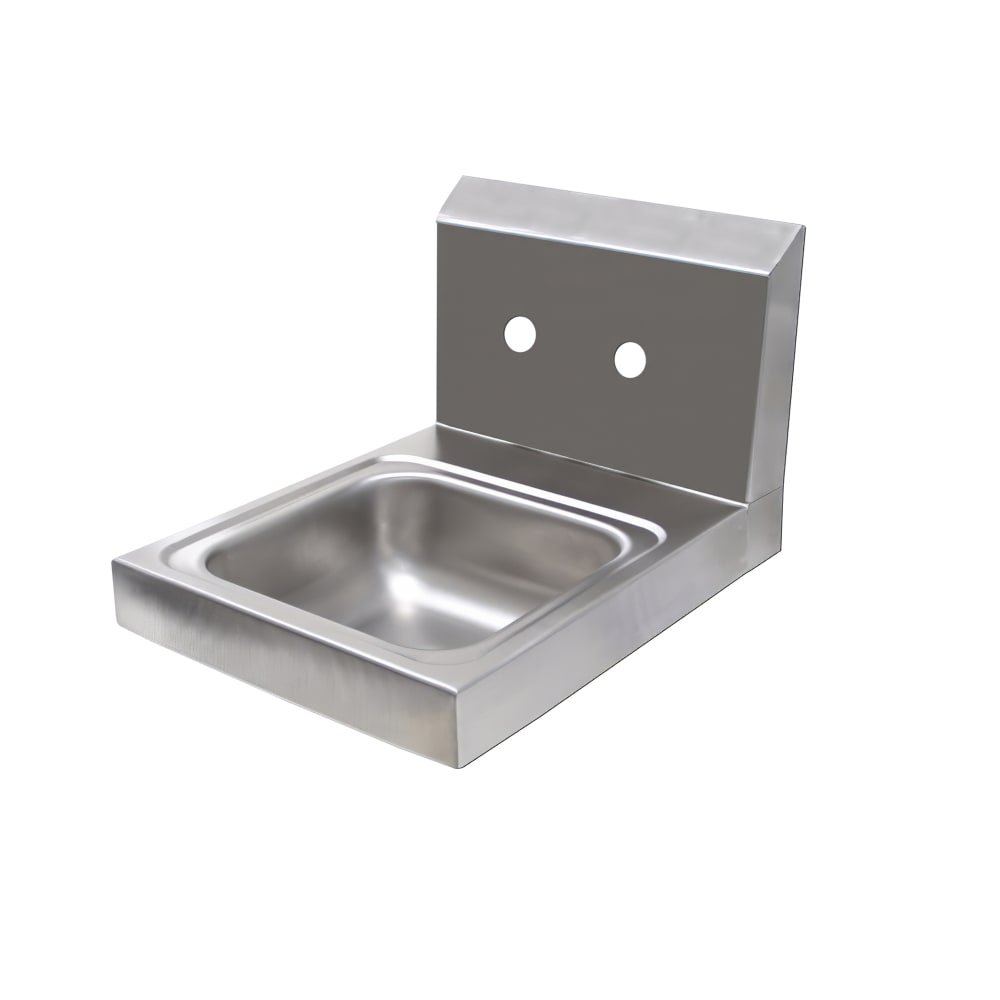

Advance Tabco 7-PS-23-EC-NF-X Wall Mount Commercial Hand Sink w/ 9"L x 9"W x 5"D Bowl
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $298.00
$153.49 /Each
Advance Tabco 7-PS-23-EC-NF-X Description
The Advance Tabco 7-PS-23-EC-NF-X wall-mount hand sink is ideal for compact commercial spaces requiring reliable handwashing access. Its backsplash is pre-punched with 4-inch on-center holes to accommodate a splash-mount faucet—though no faucet is included with this model. A stainless steel 1 1⁄2-inch crumb cup strainer supports efficient drainage through a 1 1⁄2-inch IPS connection. The unit connects to hot and cold water supplies via 1⁄2-inch IPS male-threaded inlets and supports faucets rated at 1.0 GPM/3.8 LPM at 60 PSI.
The Advance Tabco 7-PS-23-EC-NF-X hand sink features a Deep Drawn bowl measuring 9 inches long, 9 inches wide, and 5 inches deep, with 2-inch-radius corners that increase usable space and ease cleaning. Its heavy-gauge type 304 stainless steel body is TIG welded from a single seamless sheet, with satin-blended seams that match adjacent surfaces. A galvanized offset wall bracket is included for stable mounting, while a No-Drip countertop edge helps reduce runoff. Chrome-plated and brass fittings are standard unless otherwise specified. This model is suited for foodservice, medical, and prep areas requiring a durable and sanitary compact hand sink.
- Part of the Special Value series
- Single-bowl configuration
- Deep Drawn rectangular bowl with liberal 2-in. corner radii
- Made of heavy-gauge type 304 stainless steel
- Splash-mount faucet holes pre-punched (4-in. O.C.)
- Faucet not included
- Includes 1 1⁄2-in. stainless steel crumb cup strainer
- One-piece seamless construction
- Break-resistant stainless steel frame
- Die-formed countertop edge with No-Drip offset
- All TIG-welded with satin-blended seams
- Galvanized offset wall-mount bracket included
- Brass/chrome-plated fittings
- Silver
- Manual operation design
- Sink bowl: 9 in. L x 9 in. W x 5 in. D
- Overall: 12 in. W x 16 in. D x 13 in. H
- Faucet centers: 4-in. on center
- 1.0 GPM/3.8 LPM flow rate at 60 PSI
- 1⁄2-in. IPS male thread hot and cold supply
- 1 1⁄2-in. drain size
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Special Value Hand Sink, wall mounted, 9" wide x 9" front-to-back x 5" deep bowl, 20 gauge 304 stainless steel, 4” OC splash mount faucet holes (no faucet), 1-1/2" crumb cup strainer, NSF
Advance Tabco 7-PS-23-EC-NF-X Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Advance Tabco |
| Bowl Depth (in) | 5 |
| Bowl Length (in) | 9 |
| Bowl Width (in) | 9 |
| Color | Silver |
| Construction | Stainless Steel |
| Depth (in) | 16 |
| Drain Size | 1.5 |
| Faucet Centers (in) | 4 |
| Faucet Mount | Splash |
| Height (in) | 12.75 |
| Material | Stainless Steel |
| Number of Bowls | 1 |
| Product | Hand Sinks |
| Product Type | Commercial Sinks |
| Type | Wall Mount |
| Warranty | 90-day Parts |
| Width (in) | 12 |
| Weight | 12.00 |
