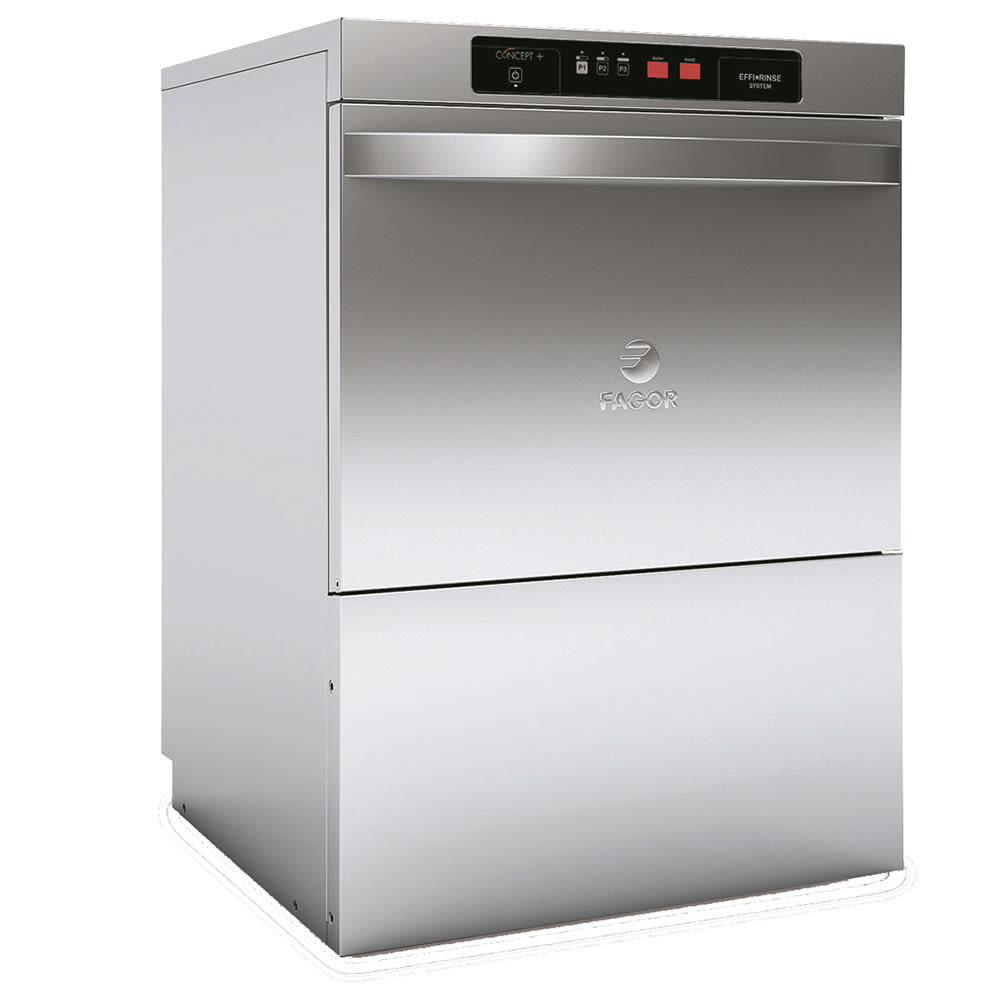

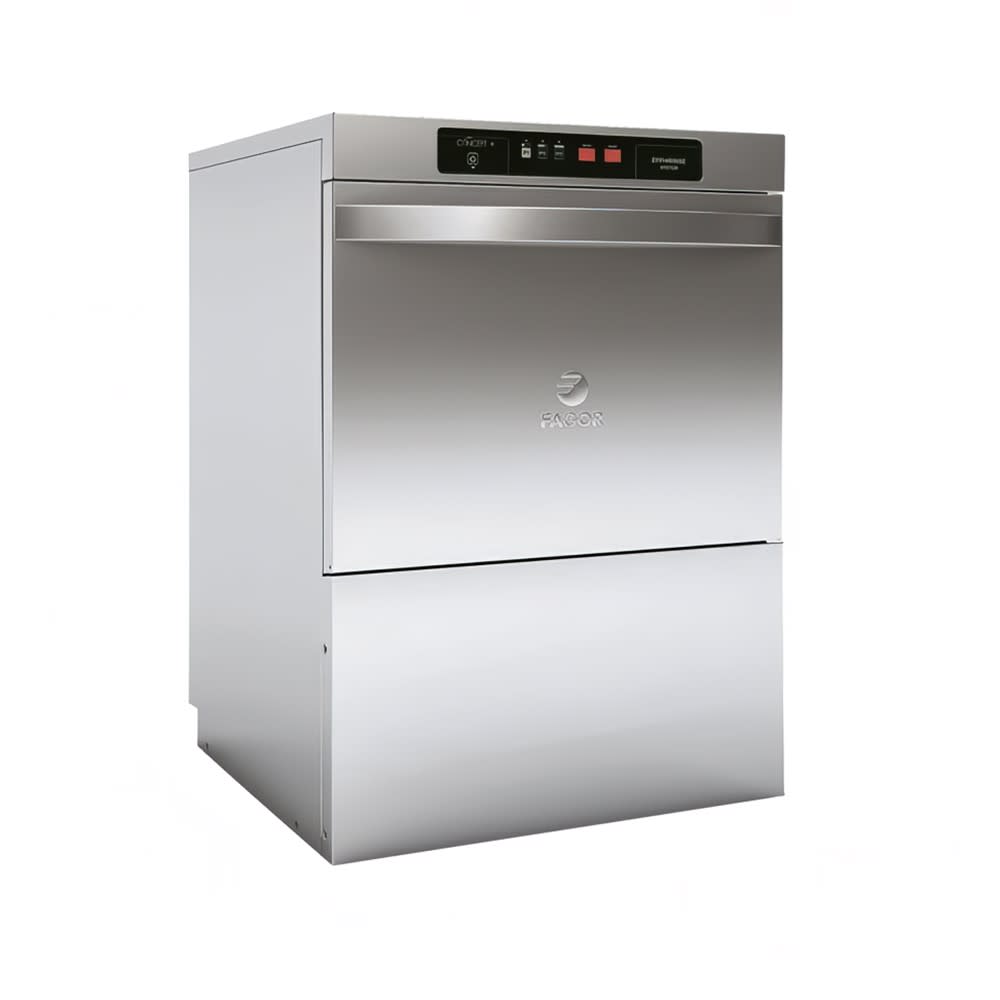

5O7O High Temp Rack Undercounter Dishwasher w/ 37 Racks/hr Capacity, Built-in Booster, 208-230v/1-3ph (MD-UC-HTB37P)
Typically ships in 4 - 8 Business Days
Retail Price: $5,269.00
$3,683.56 /Each
5O7O MD-UC-HTB37P Description
To ensure dishes are washed at 180 degrees Fahrenheit, the 5O7O MD-UC-HTB37P dishwasher includes a booster that increases water temperature by 70 degrees Fahrenheit. Designed to wash as many as 37 racks per hour, it only uses 0.63 gallons of water per cycle. Its 90-second, 120-second, and 180-second wash cycle options provide load versatility, and users can adjust cycles and temperatures via IPX4 electronic controls. When the unit cycles on, it uses a soft-start mechanism to prevent dishes from breaking while keeping noise levels low.
This 5O7O MD-UC-HTB37P undercounter dishwasher includes a 20-inch by 20-inch flat rack, a 20-inch by 20-inch peg rack, and a cutlery container to accommodate a high-volume load. Its stainless steel construction resists corroding and rusting, while its counterbalanced door grants users full access to the interior cabinet for loading and retrieval. For streamlined operation, this unit also includes a detergent and rinse aid dispenser, a built-in drain pump and pressure gauge, and an ECO autofill system.
- Undercounter, high-temperature unit
- Built-in booster with 70-degrees-F temperature increase
- 3 wash cycles (90 seconds, 120 seconds, and 180 seconds)
- Uses 5⁄8 gal. of water per cycle
- Washes 37 racks per hour
- Type 304 stainless steel construction
- Includes (1) 20-in. x 20-in. flat rack, (1) 20-in. x 20-in. peg rack, and 1 cutlery container
- Double-skin sides

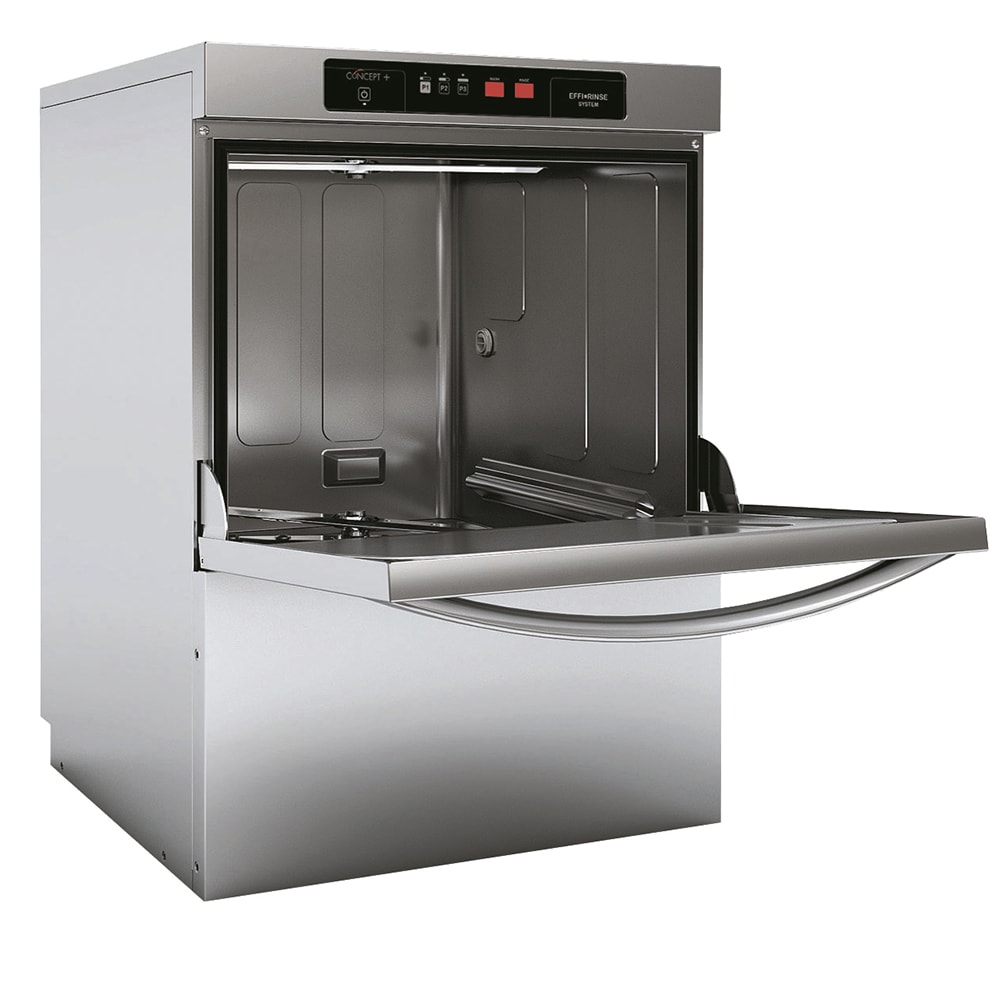

- Insulated, counterbalanced door
- Adjustable legs for uneven surfaces
- IPX4 controls for cycling and temperature
- Electric tank heat
- Stamped 1-piece tank
- Soft-start mechanism minimizes breakage and noise
- Autofill technology
- Built-in drain pump and pressure gauge
- Detergent and rinse aid dispenser
- Multi-connection box
- 23 5⁄8 in. W x 23 5⁄8 in. D x 14 3⁄16 in. H
- 6.5 kW, 3⁄4 HP
- 208-230 V/60 Hz/1 ph (convertible to 3 ph)
*Image may not depict product color, inclusions or accessories.
*Free shipping on 5O7O MD-UC-HTB37P within the 48 contiguous states.
From The Manufacturer
High Production Dishwasher, undercounter, IPX4 electronic controls, high temperature with built-in 70 deg. rise booster, 3 wash cycles (90-120-180), gallons per cycle: 0.63 gals, EFFI rinse linear system, (37) racks/hour capacity, type 304 stainless steel construction, stamped one piece tank, double skin sides & counterbalanced insulated door, 15-1/4" clearance for ware, ECO autofill system, multi connection box, electric tank heat, soft start, built-in drain pump & pressure gauge, detergent & rinse aid dispenser, adjustable legs, includes (1) 20"x20" flat rack, (1) 20"x20" peg rack & (1) cutlery container, 3/4 HP motor, 3.7 (half power)-4.6 (2/3 power)-6.5 (full power) kW total, ETL, cETLus, CE, ENERGY STAR®
Watch a video about this product
5O7O MD-UC-HTB37P Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | 5O7O |
| Cycle Period | 1 min 30 sec |
| Depth (in) | 23.63 |
| Design | Rack |
| Drain Type | Pump |
| Glasses per hour | 1080 |
| Height (in) | 32.68 |
| Hertz | 60 |
| Includes | Rack |
| Phase | 1 |
| Phase | 3 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 37 |
| Rating | Light Duty |
| Type | High Temp |
| Voltage | 208/230 |
| Warranty | 1-year Parts & Labor |
| Water Inlet (in) | 0.75 |
| Width (in) | 23.63 |
| Weight | 178.00 |
