Curtis PCNG5 Primo Cappuccino™ Cappuccino Machine w/ (3) 5 lb & (2) 10 lb Hoppers & (5) Dispensers, 120v
Retail Price: $5,020.00
$3,243.63 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Curtis PCNG5 Description

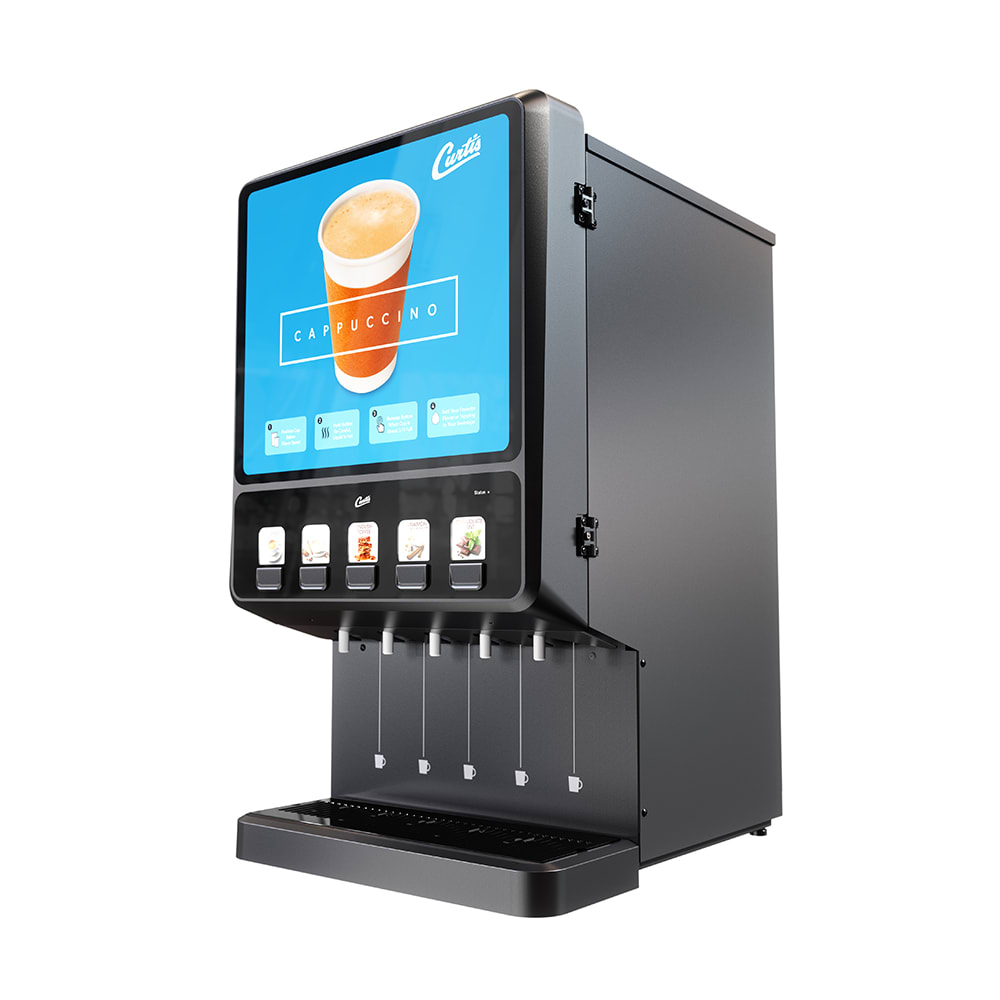

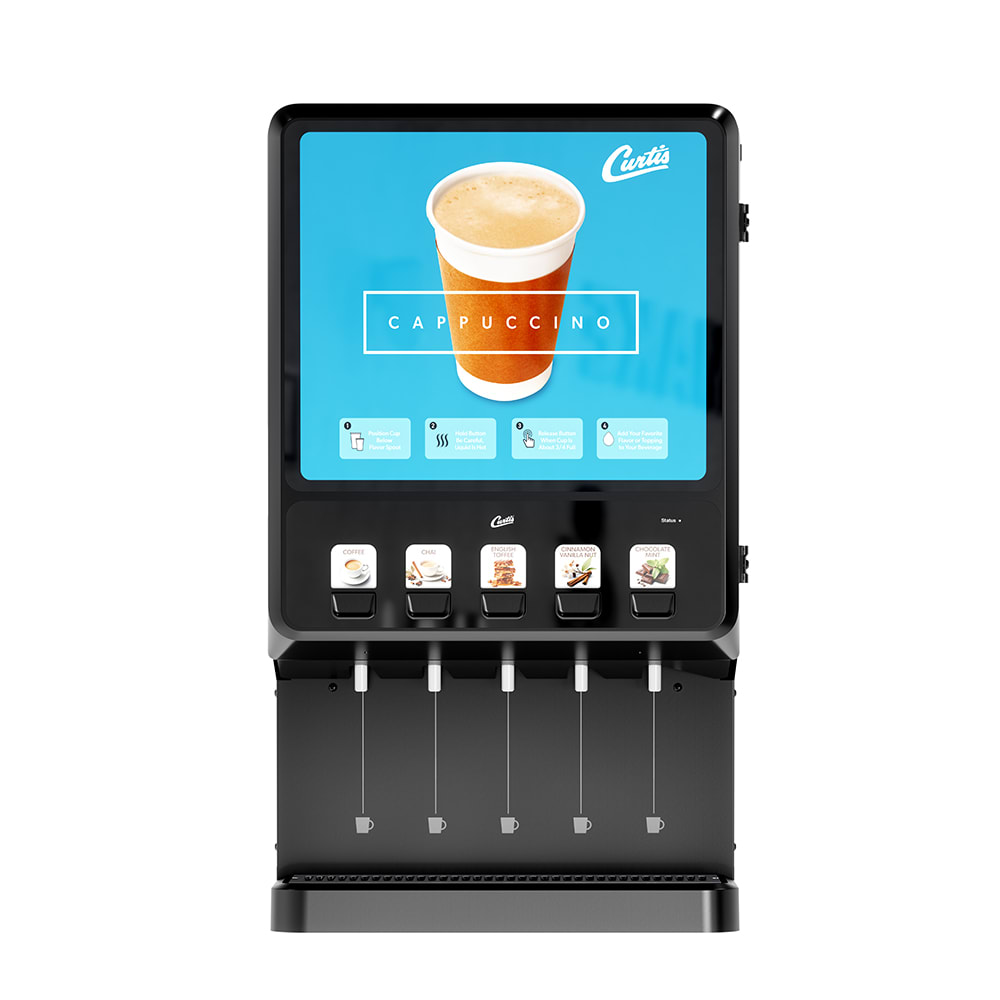

With its polished black exterior and front-hinged door, the Curtis PCNG5 Primo Cappuccino™ cappuccino machine feels right at home in modern, fast-paced service areas. The bright graphic display invites attention without being overwhelming, while the drip tray and guided cup placement quietly support smooth interaction for both new users and daily staff alike.
The Curtis PCNG5 cappuccino machine supports a steady rhythm during long shifts with its 5 3⁄10-gallon tank that cuts down on frequent refills. Backed by a fixed-flow water system, it ensures beverages stay consistent even when pressure fluctuates. Programming through the digital LCD and the help of direct-drive augers make operation dependable and stress-free.
- From the Primo Cappuccino series
- 5 3⁄10-gal. tank capacity
- 5 2⁄5-gal. per hour output
- 5-station dispenser with swing-open front door
- (3) 5-lb. and (2) 10-lb. powder product hoppers
- Touchpad interface with digital LCD scroll-through programming
- Fixed-flow water system
- Direct drive mixing augers
- Dual dispensing spouts
- 8 1⁄4-in. cup clearance with cup positioning indicators
- Hopper handles and fast-refill design
- Removable drip tray with plumbing connection
- Black exterior
- Lit flavor display with vivid graphics
- Backwards-compatible with parts from G3 Primo Cappuccino PCGT models
- Food-grade lubricant and flavor labels included
- 21 1⁄4 in. W x 24 3⁄8 in. D x 36 1⁄4 in. H
- 15 A, 1.8 kW
- 120 V/50-60 Hz/1 ph, cord with NEMA 5-15P plug
- 1 1⁄4-in. flare fitting
- 20-90 psi water pressure
- 1 GPM minimum flow rate
*Image may not depict product color, inclusions or accessories.
*Curtis PCNG5 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
Primo Cappuccino™ Cappuccino Machine, 5 station dispenser, (3) 5 lb & (2) 10 lb hoppers, 5.4 gallons per hour, 5.3 gallon tank volume, 8.28" cup clearance, digital LCD scroll-though programming, touch controls, front door with hinge, includes: drip tray, cup guide, direct drive mixing augers, black decor, NEMA 5-15P, 120v/50/60/1-ph, 1800 watts, 15 amps, 1 GPM, 2W + G, 20-90 psi, 1/4" flare fitting, NSF, UL
Curtis PCNG5 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Curtis |
| Capacity (gallons) | 5.3 |
| Color | Black |
| Depth (in) | 24.36 |
| Display Graphic | Cappuccino |
| For Use With | Powdered Drink Mix |
| Height (in) | 36.22 |
| Hertz | 50/60 |
| Hoppers | (3) 5lb (2) 10lb |
| Hourly Output | 5.4 Gallons |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Hot Drink Machines |
| Product Type | Beverage Equipment |
| Series | Primo Cappuccino™ |
| Special Features | Lit Display |
| Type | Hot Drink Machine |
| Voltage | 120 |
| Warranty | 3-year Parts & Labor Digital Control Board; 2-year Parts & 1-year Labor Electrical Component |
| Width (in) | 21.24 |
| Weight | 160.00 |
