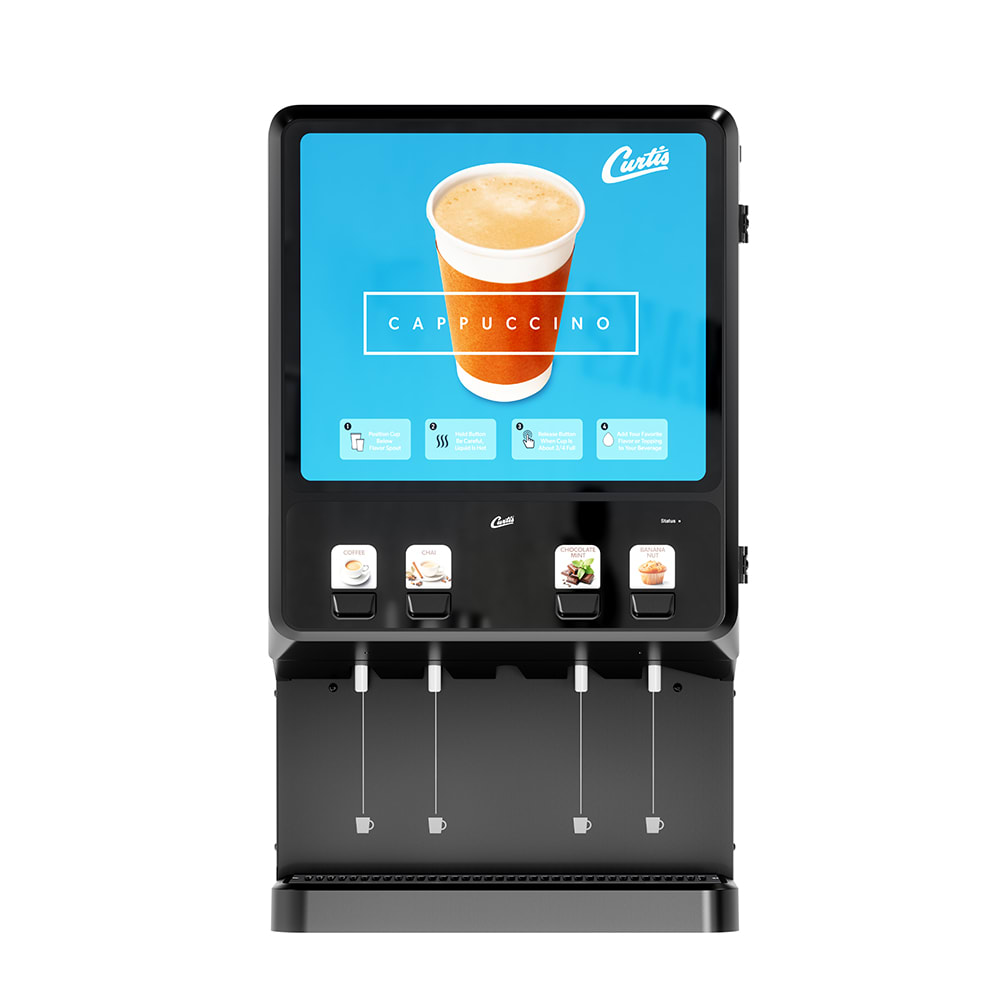

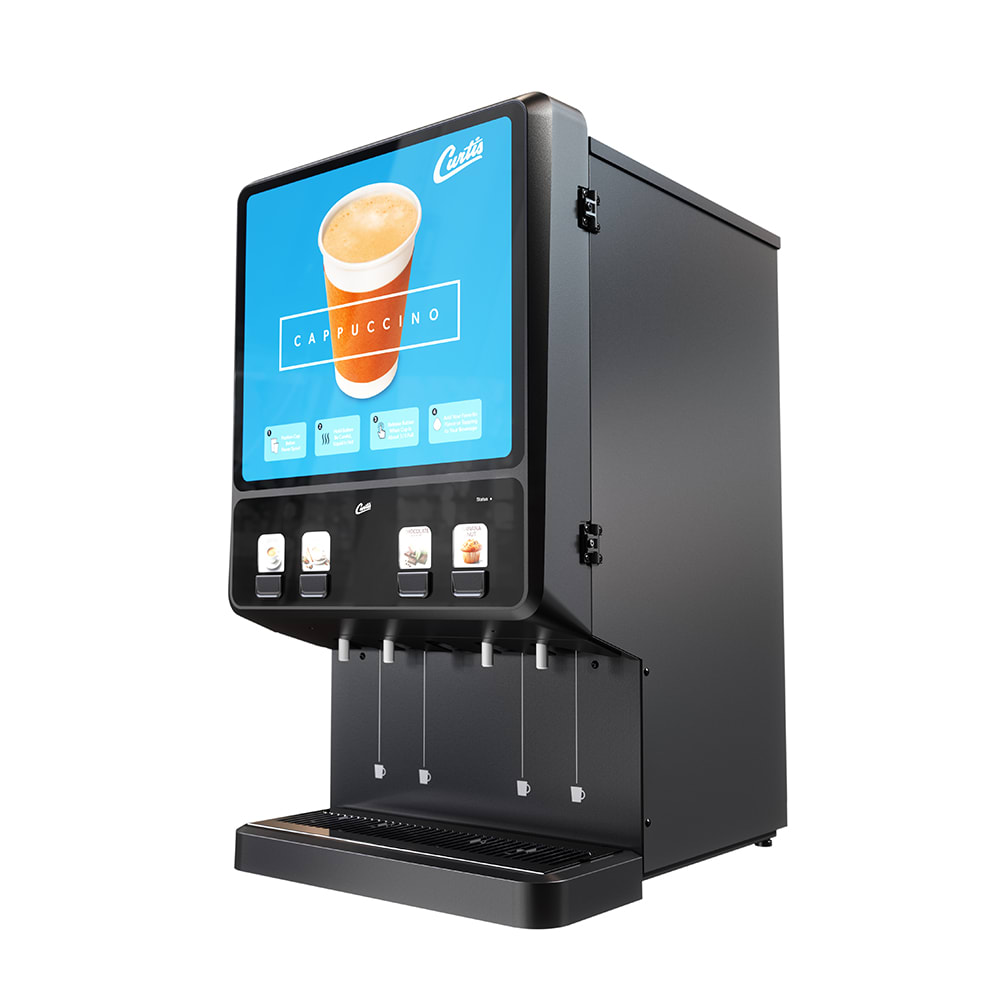

Curtis PCNG4 Primo Cappuccino™ Cappuccino Machine w/ (2) 5 lb & (2) 10 lb Hoppers & (4) Dispensers, 120v
Retail Price: $4,740.00
$3,056.99 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Curtis PCNG4 Description
The Curtis PCNG4 Primo Cappuccino™ cappuccino machine’s touchpad interface helps teams stay focused during busy shifts by simplifying every interaction. Clear flavor graphics reduce second-guessing, and the 8 9⁄32-inch cup clearance fits standard cups without awkward tilts or spills. Its low-profile frame blends into fast-moving counters without disrupting the rhythm of service.
To reduce interruptions during high-volume hours, the Curtis PCNG4 cappuccino machine is equipped with a set of 5- and 10-pound hoppers, so operators can prep a wider menu without constant refills. Supported by direct-drive mixing augers and a 5 3⁄10-gallon tank, the system delivers steady, predictable results for beverage stations that need to perform all day long.
- From the Primo Cappuccino series
- 5 3⁄10-gal. tank capacity
- 5 2⁄5-gal. per hour output
- 4 station hot drink dispenser with swing-open front door
- (2) 5-lb. and (2) 10-lb. powder product hoppers
- Touchpad interface with digital LCD scroll-through programming
- Fixed-flow water system
- Direct drive mixing augers
- Dual dispensing spouts
- 8 1⁄4-in. cup clearance with cup positioning indicators
- Hopper handles and fast-refill design
- Removable drip tray with plumbing connection
- Black exterior
- Lit flavor display with vivid graphics
- Food-grade lubricant and flavor labels included
- Backwards-compatible with PCGT model parts
- 20 7⁄8 in. W x 24 3⁄8 in. D x 36 3⁄16 in. H
- 15 A, 1800 W
- 120 V/50-60 Hz/1 ph, cord with a NEMA 5-15P plug
- 1⁄4-in. flare fitting
- 20–90 psi water pressure
- 1 GPM minimum flow rate
*Image may not depict product color, inclusions or accessories.
*Curtis PCNG4 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
Primo Cappuccino™ Cappuccino Machine, 4 station dispenser, (2) 5 lb & (2) 10 lb hoppers, 5.4 gallons per hour, 5.3 gallon tank volume, 8.28" cup clearance, digital LCD scroll-though programming, touch controls, front door with hinge, includes: drip tray, cup guide, direct drive mixing augers, black decor, NEMA 5-15P, 120v/50/60/1-ph, 1800 watts, 15 amps, 1 GPM, 2W + G, 20-90 psi, 1/4" flare fitting, NSF, UL
Curtis PCNG4 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Curtis |
| Capacity (gallons) | 5.3 |
| Color | Black |
| Depth (in) | 24.36 |
| Display Graphic | Cappuccino |
| For Use With | Powdered Drink Mix |
| Height (in) | 36.22 |
| Hertz | 50/60 |
| Hoppers | (2) 5lb (2) 10lb |
| Hourly Output | 5.4 Gallons |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Hot Drink Machines |
| Product Type | Beverage Equipment |
| Series | Primo Cappuccino™ |
| Special Features | Lit Display |
| Type | Hot Drink Machine |
| Voltage | 120 |
| Warranty | 3-year Parts & Labor Digital Control Board; 2-year Parts & 1-year Labor Electrical Component |
| Width (in) | 21.24 |
| Weight | 160.00 |
