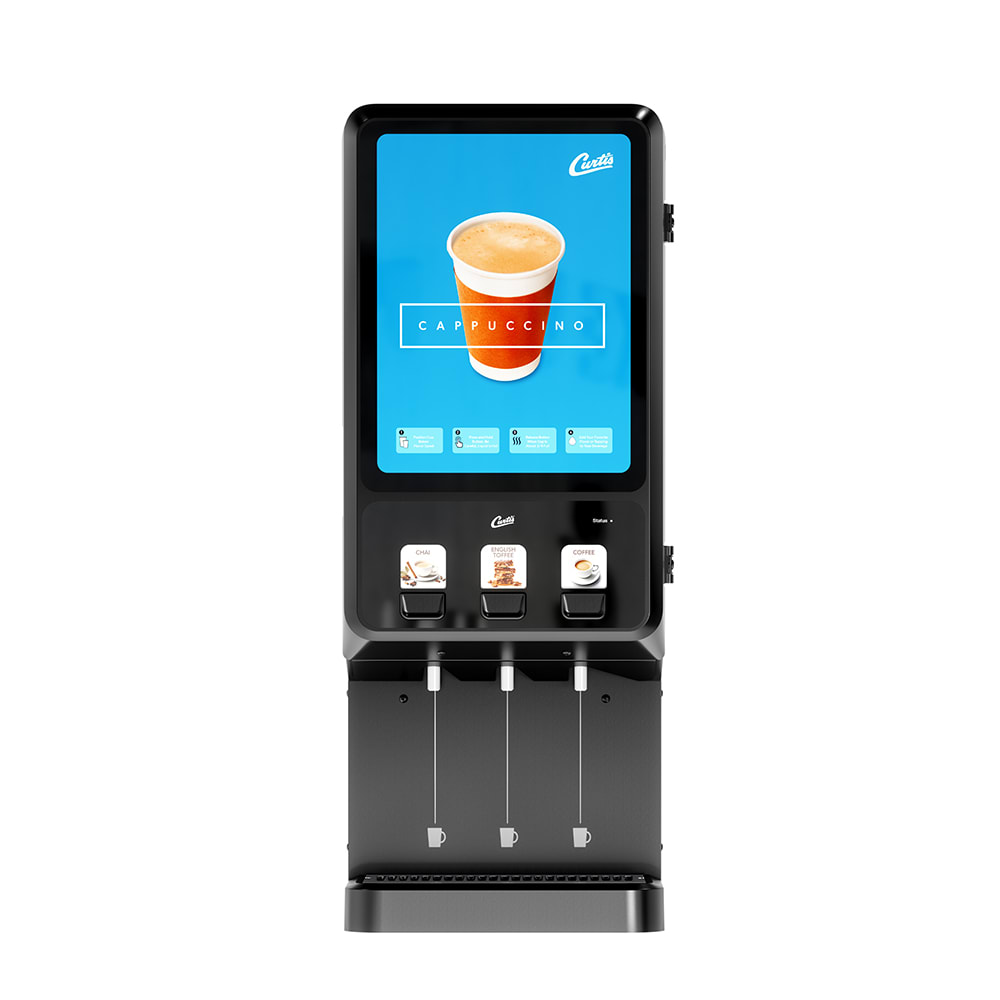

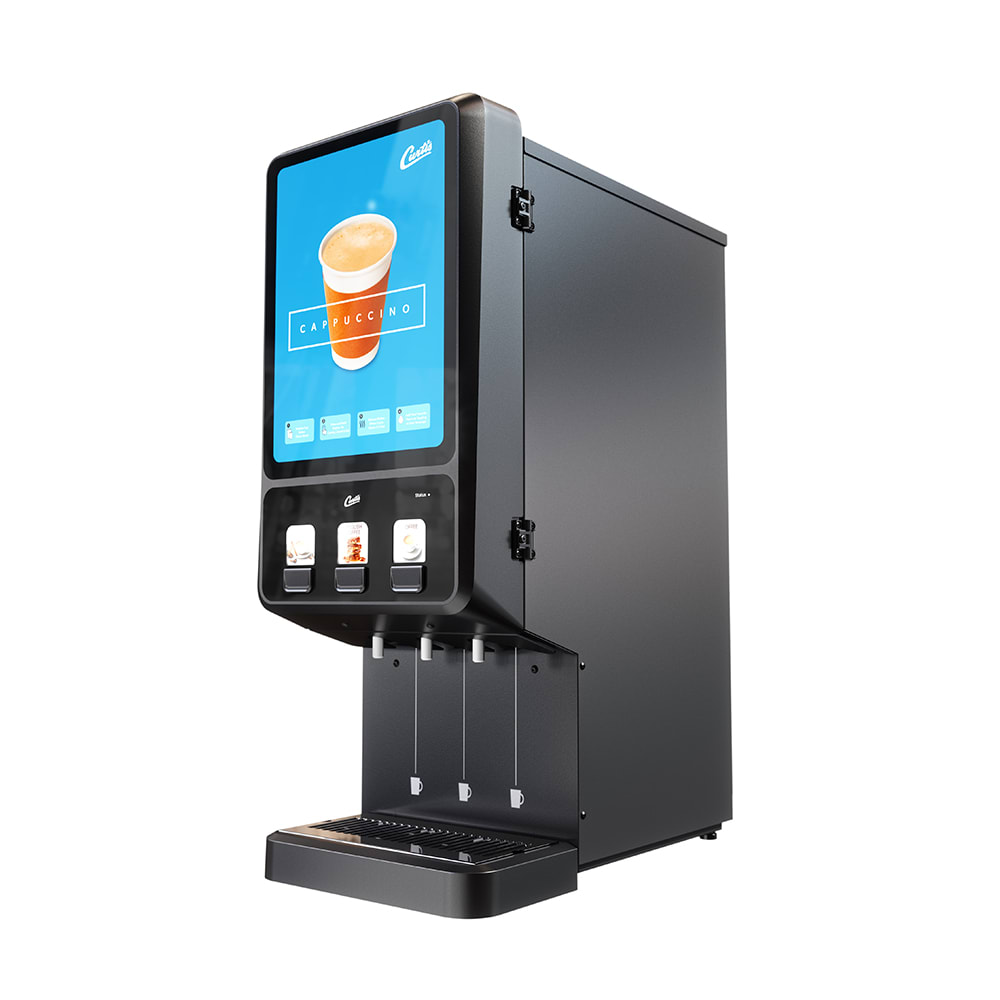

Curtis PCNG3800 Primo Cappuccino™ Cappuccino Machine w/ (1) 5 lb & (2) 10 lb Hoppers & (3) Dispensers, 120v
Retail Price: $3,930.00
$2,535.28 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Curtis PCNG3800 Description
Even when water pressure shifts, the Curtis PCNG3800 Primo Cappuccino™ cappuccino machine’s fixed-flow system keeps beverages tasting consistent. With a 1 GPM flow rate, 20–90 psi pressure range, and 1⁄4-inch flare fitting, it brings peace of mind to operators who need steady output through unpredictable and high-traffic hours.
The Curtis PCNG3800 cappuccino machine combines touch controls and LCD programming with a three-station dispenser and drip tray, balancing simplicity and structure so operators can stay focused and productive. Designed to blend into crowded counters, the compact black frame avoids visual clutter while still standing out with clean lines.
- Part of the Primo Cappuccino series
- 5 3⁄10-gal. tank capacity
- 5 2⁄5-gal. per hour output
- 3 station hot drink dispenser with swing-open front door
- (1) 5-lb. and (2) 10-lb. powder product hoppers
- Touchpad interface with digital LCD scroll-through programming
- Fixed-flow water system
- Direct drive mixing augers
- Hot water faucet
- Dual dispensing spouts
- 8 5⁄16-in. cup clearance with cup positioning indicators
- Hopper handles and fast-refill design
- Removable drip tray with plumbing connection
- Black exterior
- Lit flavor display with vivid graphics
- Backwards-compatible with parts from G3 Primo Cappuccino PCGT models
- Food-grade lubricant and flavor labels included
- 14 13⁄20 in. W x 24 3⁄8 in. D x 35 1⁄4 in. H
- 15 A, 1.8 kW
- 120 V/50-60 Hz/1 ph, cord with NEMA 5-15P plug
- 1 1⁄4-in. flare fitting
- 20-90 psi water pressure
- 1 GPM minimum flow rate
*Image may not depict product color, inclusions or accessories.
*Curtis PCNG3800 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
Primo Cappuccino™ Cappuccino Machine, 3 station dispenser, (1) 5 lb & (2) 10 lb hoppers, 5.4 gallons per hour, 5.3 gallon tank volume, 8.31" cup clearance, digital LCD scroll-though programming, touch controls, front door with hinge, includes: drip tray, cup guide, direct drive mixing augers, hot water faucet, black decor, NEMA 5-15P, 120v/50/60/1-ph, 1800 watts, 15 amps, 1 GPM, 2W + G, 20-90 psi, 1/4" flare fitting, NSF, UL
Curtis PCNG3800 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Curtis |
| Capacity (gallons) | 5.3 |
| Color | Black |
| Depth (in) | 24.36 |
| Display Graphic | Cappuccino |
| For Use With | Powdered Drink Mix |
| Height (in) | 36.22 |
| Hertz | 50/60 |
| Hoppers | (1) 5lb (2) 10lb |
| Hourly Output | 5.4 Gallons |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Hot Drink Machines |
| Product Type | Beverage Equipment |
| Series | Primo Cappuccino™ |
| Special Features | Hot Water Faucet |
| Special Features | Lit Display |
| Type | Hot Drink Machine |
| Voltage | 120 |
| Warranty | 3-year Parts & Labor Digital Control Board; 2-year Parts & 1-year Labor Electrical Component |
| Width (in) | 14.65 |
| Weight | 125.00 |
