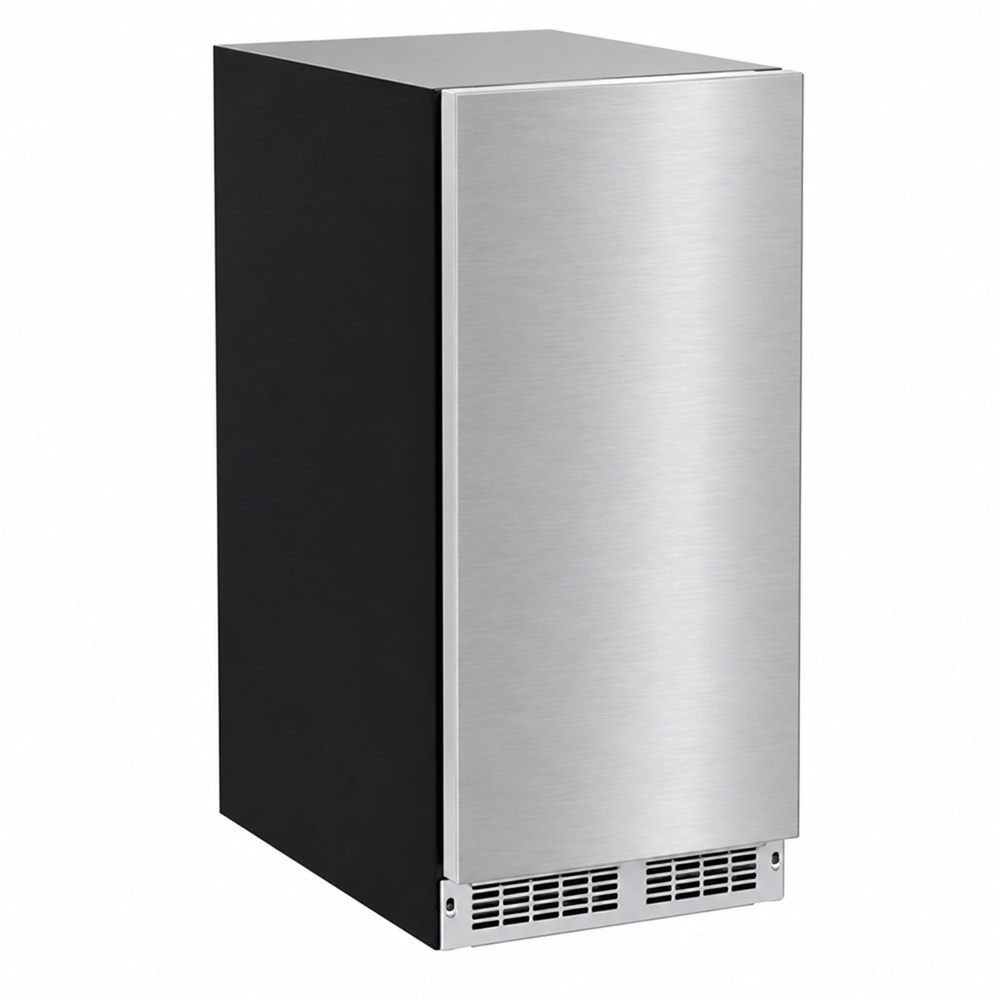

Marvel MANP415-IS01A 14 7/8"W Low Profile Nugget Undercounter Ice Machine - 65 lbs/day, Air Cooled, ADA
$4,919.00 /Each
Marvel MANP415-IS01A Description

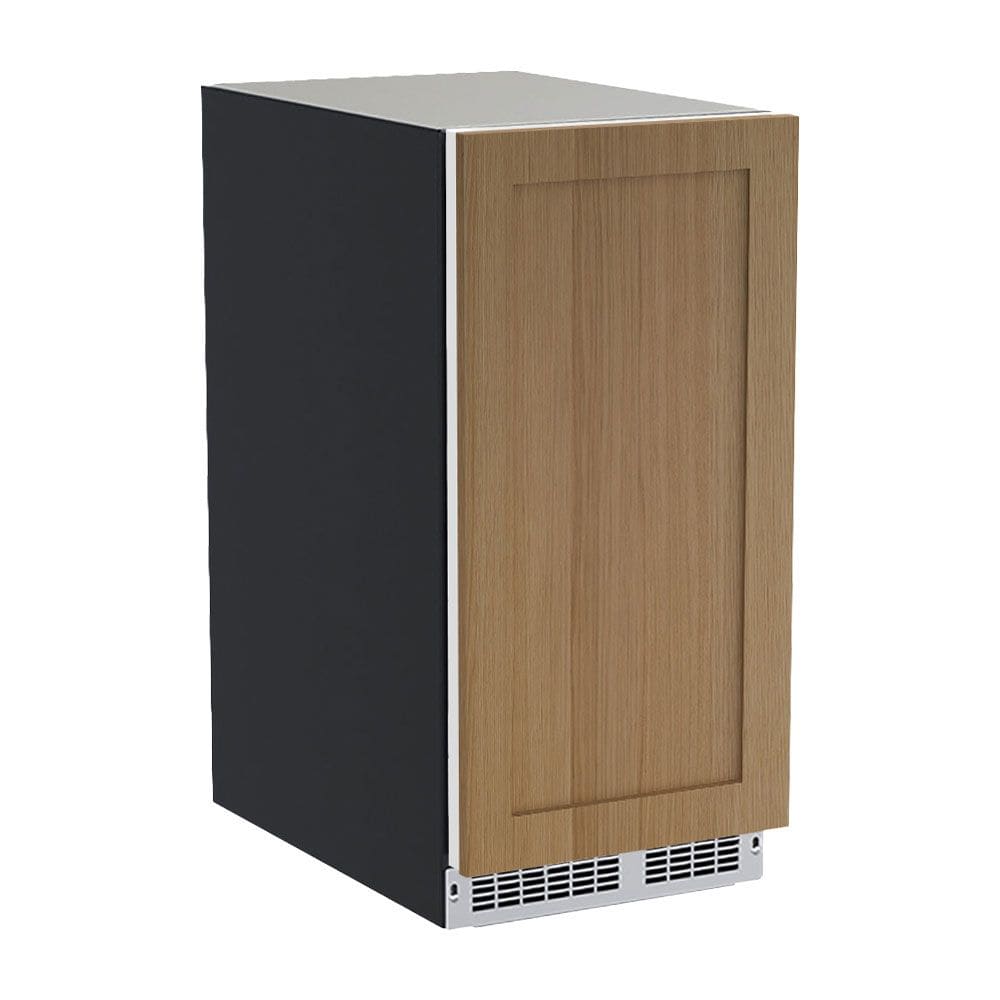

The Marvel MANP415-IS01A low profile nugget undercounter ice machine is engineered for compact ADA-compliant installations in residential or office settings. Its panel-ready exterior accommodates 3⁄4-inch or 5⁄8-inch custom panels with a 2 3⁄4-in. solid overlay and a separate handle (not included). The reversible door features a concealed soft-close articulating hinge and arctic white LED-lit interior. It includes digital controls with status alerts and a sabbath mode option for added operating flexibility.
Designed to produce up to 65 pounds of nugget-style ice per day, the Marvel MANP415-IS01A undercounter ice machine stores up to 27 pounds in its internal bin. It includes a dedicated scoop and holder, uses R600a refrigerant, and features an air-cooled system with an integrated factory-installed drain pump. With a 20-minute automatic clean cycle and indicator lights for cleaning, drainage, and water conditions, this unit supports simplified operation and maintenance in undercounter locations.
- Produces up to 65 lbs. of ice per day
- 27-lb. ice storage capacity
- Makes nugget cube ice
- Ice dimensions: 1⁄2 in. L x 3⁄8 in. H x 5⁄8 in. W
- ADA-compliant height
- White interior
- Reversible cabinet door for left- or right-swing configurations
- Concealed soft-close articulating door hinge
- Panel-ready front accommodates 3⁄4-in. or 5⁄8-in. custom panels
- Requires separate handle (not included)
- 2 3⁄4-in. solid overlay panel type
- Arctic white LED lighting
- Digital control interface
- Indicator lights for clean cycle, drain status, and water alerts
- Sabbath mode function
- Dedicated ice scoop and holder included
- Factory-installed drain pump
- Adjustable leveling feet
- Air-cooled compressor system
- R600a hydrocarbon refrigerant
- Overall: 14 7⁄8 in. W x 25 in. D (with handle) x 31 3⁄4 in. H
- Panel dimensions: 14 3⁄4 in. W x 30 1⁄4 in. H x 5⁄8 in. D
- 5 A
- 1⁄4-in. water inlet
- 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Marvel MANP415-IS01A within the 48 contiguous states.
From The Manufacturer
14-7/8" Low Profile Nugget Ice Machine, panel ready door, 27lb capacity, 65lb/day production, R600a hydrocarbon refrigerant, digital controls, 20 minute clean cycle, requires 3/4 or 5/8 custom panel and handle (not supplied by Marvel), artic white interior, 115V, 60 Hz, 15 A, includes ice scoop, dedicated holder, and factory-installed drain-pump, ADA Compliant, UL
Marvel MANP415-IS01A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Marvel |
| 24 Hr. Production (lb) | 65 |
| Bin Capacity (lb) | 27 |
| Compressor Type | Air Cooled |
| Depth (in) | 22.13 |
| Design | ADA Height |
| Drain Type | Pump |
| Front Style | Cabinet Door |
| Height (in) | 31.75 |
| Hertz | 60 |
| Ice Type | Nugget |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R600a (Hydrocarbon) |
| Series | Low Profile |
| Special Features | Adjustable Leveling Feet |
| Special Features | Custom Panel Front |
| Special Features | Digital Controls |
| Special Features | Low Profile |
| Special Features | Reversible Door |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | 2-year Limited Parts & Labor; 5-year Sealed System Parts |
| Water Inlet (in) | 0.25 |
| Width (in) | 14.88 |
| Weight | 104.00 |
