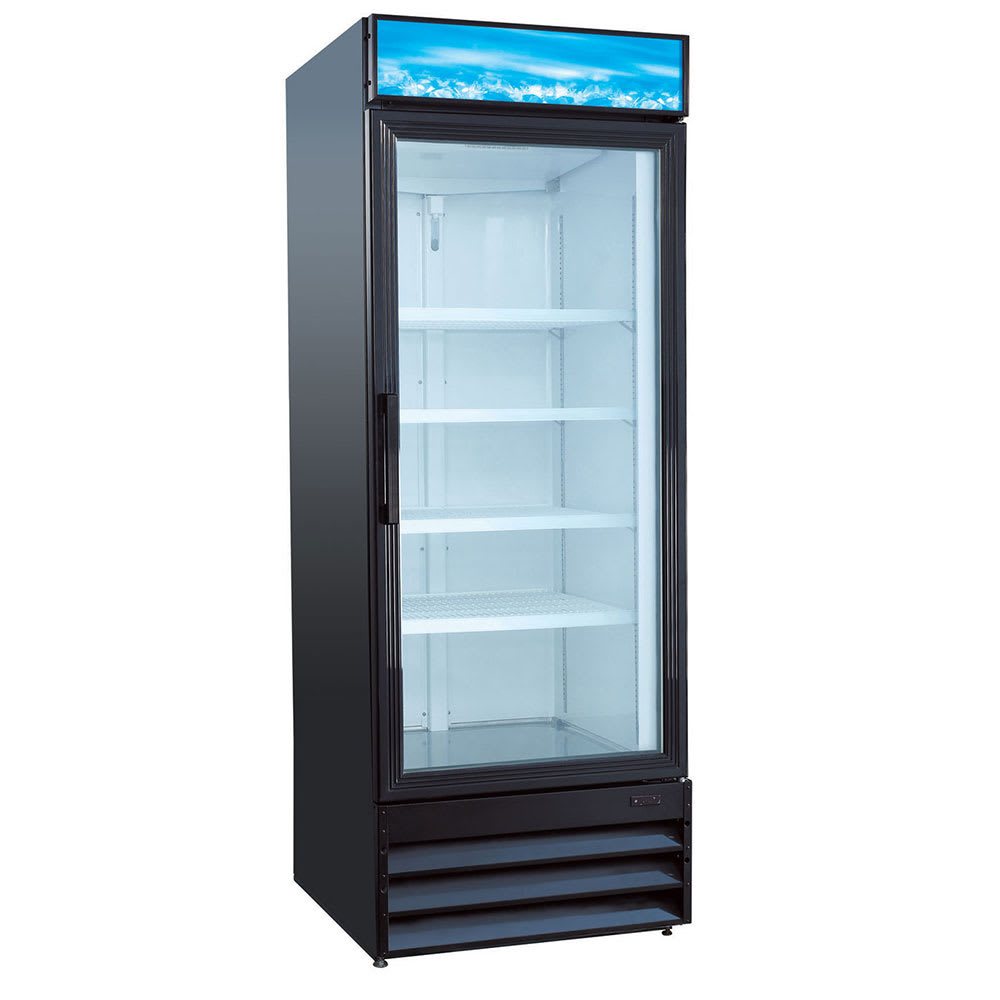

eQuipped VRGD23 28" VRGD Series One Section Glass Door Merchandiser - (1) Right Hinge Door, Black, 115v

The eQuipped VRGD23 glass door merchandiser is fully insulated with foamed-in-place polyurethane, so cold air is retained in the cabinet. To keep air from escaping, a removable gasket seals the cracks around the door. Because this positive-seal, self-closing door is made of glass and the cabinet is illuminated with interior lights, guests can see stored products clearly. The four plastic-coated steel shelves can be adjusted on a stainless steel racking system and accommodate many kinds of products, with a capacity of 90 pounds each.

To ensure all the products stay cool, an axial evaporator fan produces low-velocity, high-volume airflow. This eQuipped VRGD23 glass door merchandiser has a microswitch that shuts off the evaporator fan when the door is opened to save energy and conserve cold air. Because it is adjustable, operators can set the temperature at a specific level between 32 and 41 degrees Fahrenheit.

Product Details

• 23-cu.-ft. interior space
• 4 plastic-coated steel shelves are adjustable and can hold 90 lbs. each
• Stainless steel racking system makes adjusting the heights of shelves simple
• Products are clearly visible with interior lights and a glass door
• Axial evaporator fan creates low-velocity, high-volume airflow
• LED temperature display aids in monitoring the cabinet temperature
• Temperature controller starts the defrost system to ensure the cabinet runs smoothly
• Temperature holding range: 32-41 degrees F
• Uses R290 refrigerant to maintain cool temperatures

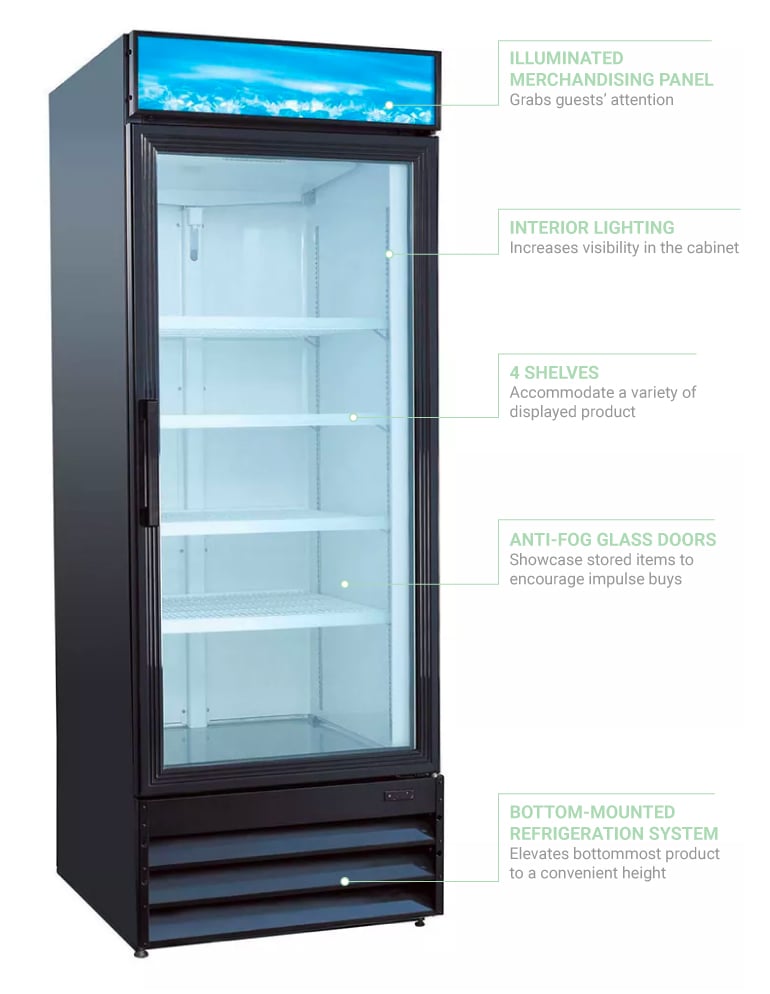

Product Features

Cabinet Construction

• Black-coated steel exterior is durable
• Painted interior liner facilitates cleaning
• Fully insulated cabinet retains cold air with foamed-in-place polyurethane
• Condensing unit is mounted on the bottom for maintenance access
• Backlit graphics on the front draw customers

Self-closing Door

• Glass window provides cabinet visibility
• Anti-fogging glass coating
• Self-closing design retains cold air
• Microswitch shuts the evaporator fans off when the door is open to prevent warm air from being drawn in
• Removable gasket helps prevent cold-air leaks

Dimensions & Utilities

• 28 in. W x 32 in. D x 80 in. H
• 8.6 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15 plug

*Free shipping on eQuipped VRGD23 within the 48 contiguous states.

From The Manufacturer

Refrigerator Merchandiser, 28"W x 32"D x 80"H, 32°F to 41°F temperature range, 1-section, 24 cu.ft., bottom mounted self-contained refrigeration, anti-fogging hinged self-closing door, illuminated interior, front-mounted LED temperature display, (4) adjustable plastic coated steel shelves, (1) removable door gasket, automatic defrosting, painted aluminum interior with stainless steel floor, black coated steel exterior, 115v/60/1-ph, R290, 3 amps, 1/5 HP, 7' cord, NEMA 5-15P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 5-year Compressor

eQuipped VRGD23 Specifications

eQuipped offers reliable equipment at an operator-friendly price point. Offering light-duty refrigeration, merchandisers, and warming equipment, this KaTom house brand brings economically priced options to give operators access to budget-friendly options.

Documents

Spec Sheet
