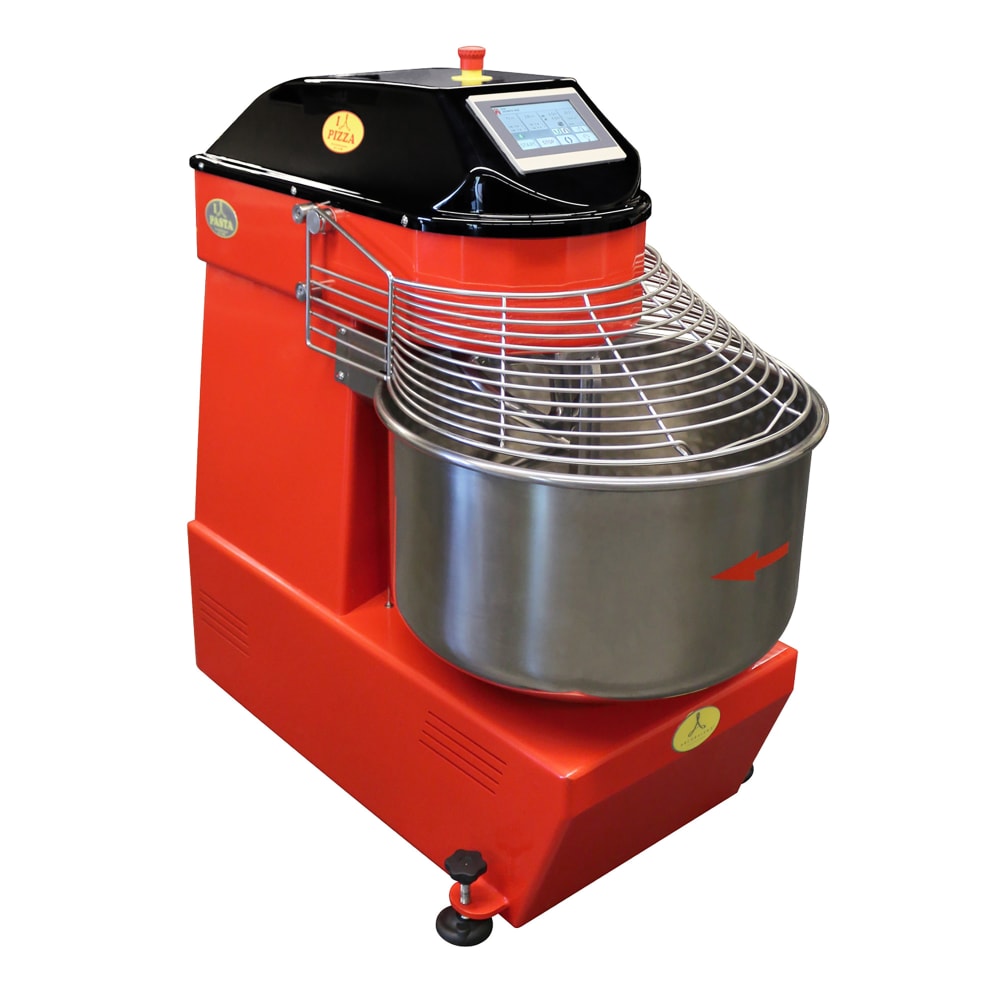

Arcobaleno ASM100 105 qt Noemi Spiral Mixer - Floor Model, 4 hp, 220v/3ph
Retail Price: $19,586.57
$16,766.27 /Each
Arcobaleno ASM100 Description
Mounted on preinstalled casters with stabilizing feet, the Arcobaleno ASM100 Noemi red spiral mixer features two variable speed motors that separate spiral and bowl movement for balanced dough elasticity. A temperature probe tracks heat changes to prevent texture breakdown, while touchscreen controls save programmable recipes to manage complex mixing cycles. Operating on a belt-driven system, its 26 1⁄2-inch-wide by 43 3⁄4-inch-deep by 47-inch-high structure houses a 105-quart stainless steel bowl that accommodates batches up to 155 pounds. An emergency stop immediately suspends mixing to limit component strain, and its integrated safety guard defends against injury or splashing.
- Noemi series
- Produces up to 155 lbs. per batch
- 105-qt. stainless steel rotating bowl with spiral shaft
- Belt-driven system
- 2 motors (spiral and bowl)
- Touchscreen controls with programmable recipe storage
- Variable speed (spiral: 75 to 230 rpm; bowl: 5.5 to 16 rpm)
- Temperature probe
- Safety guard
- Emergency stop
- Preinstalled casters with stabilizing feet
- Red
- 26 1⁄2 in. W x 43 3⁄4 in. D x 47 in. H
- 12 A, 4 HP
- 220 V/60 Hz/3 ph, cord with NEMA L15-20P plug
*Image may not depict product color, inclusions or accessories.
*Arcobaleno ASM100 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
Spiral Mixer, variable speed, 105 qt. (100 L) stainless steel rotating bowl, produces up to 155 lbs/batch, 2 motors (spiral and bowl), spiral speed: 75 rpm up to 230 rpm, bowl speed: 5.5 rpm up to 16 rpm, safety guard, stainless steel bowl with spiral shaft, temperature probe, touch screen controls with programmable recipe storage, belt driven, 4 HP dough hook, 1 HP bowl, 220v/60/3-ph, 12 amps, NEMA L15-20P, red, CE
Arcobaleno ASM100 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Arcobaleno |
| Bowl Capacity (qts) | 105 |
| Capacity Rating | Medium Volume (101-200 quarts) |
| Color | Red |
| Controls | Digital |
| Depth (in) | 43.75 |
| Design | Floor Model |
| Dough Capacity (lb) | 155 |
| Flour Capacity (lb) | 100 |
| Height (in) | 47 |
| Hertz | 60 |
| HP | 4 |
| Includes | Bowl, Dough Hook, Safety Guard, Temperature Probe |
| NEMA | L15-20P |
| No. of Speeds | Variable |
| Phase | 3 |
| Product | Mixers |
| Product Type | Food Prep Equipment |
| Rating | Better |
| Series | Noemi |
| Special Features | Casters Included - Installed |
| Special Features | Programmable |
| Special Features | Rotating Bowl |
| Special Features | Safety Guard |
| Special Features | Touch Screen |
| Transmission | Belt Driven |
| Type | Spiral Mixer (Dough & Pizza) |
| Voltage | 220 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 26.5 |
| Weight | 850.00 |
