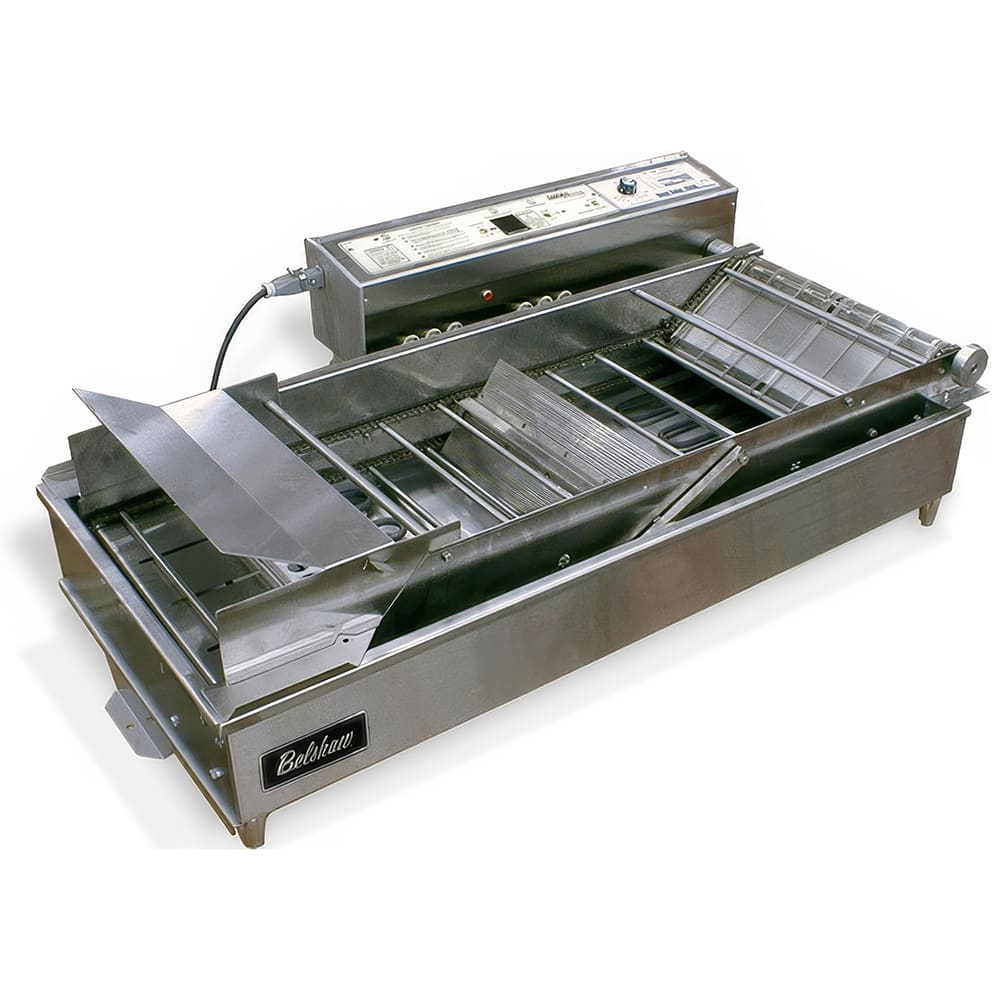

Belshaw MARK VI Donut Robot® Electric Donut Fryer - (1) 124 lb Vat, 208-220v/3ph
Retail Price: $30,316.00
$30,314.48 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Belshaw MARK VI Description
The Belshaw MARK VI Donut Robot® electric donut fryer gives bakeries the consistency they need. Its 17-gallon kettle, stainless steel conveyor, and aluminum body stand up to repeated use without losing performance. With capacity for up to 1,000 donuts per hour, it helps maintain efficiency in busy spaces.
Production efficiency is enhanced by the electronic temperature controller, and the Belshaw MARK VI Donut Robot electric donut fryer also includes a flat-bottom kettle for even frying. An automatic turning system dispenses donuts smoothly, while each flight bar pocket holds four pieces. Added safeguards such as durable heating elements and a high-limit switch help protect operations day after day.
- Donut Robot series
- Also known as 22680-3
- 17-gal. (124-lb.) oil capacity
- 1,056 donuts per hour with 3 3⁄4-in. conveyor spacing production capacity
- Stainless steel and aluminum body
- Stainless steel kettle and conveyor with flight bar system
- Automatic turning and dispensing mechanism
- Holds 4 donuts per flight bar pocket
- Single flat bottom frypot
- Adjustable frying time from 65 to 360 seconds
- Electronic temperature controller
- High-durability, low watt-density heating elements
- High temperature safety limit switch
- Produces cake donuts, crullers, sticks, krinkles, yeast-raised donuts, Berliners, bars, twists, and fritters with accessories
- Cake donut depositors sold separately
- Overall dimensions: 54 in. W x 33 7⁄8 in. D x 25 1⁄3 in. H
- 32.5-37.2 A, 11.5-15.3 kW
- 208-220 V/50-60 Hz/3 ph, 6-ft. cord with a NEMA 15-50P plug
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
(22680-3) Donut Robot® Mark VI Automatic Donut Machine, electric, 124 lb oil capacity, (72) dozen standard size donuts per hour, 4-1/2" conveyor spacing, adjustable frying time, electronic temperature controller, includes automatic fryer, stainless steel kettle, stainless steel & aluminum body, 208-220v/50/60/3ph, cETLus, NSF (does not include cake donut depositor)
Watch a video about this product
Belshaw MARK VI Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Belshaw |
| Also Known As | 22680-3 |
| Amps | 32.5-37.2 |
| Baskets | 0 |
| Depth (in) | 33.86 |
| Food Type | Battered |
| Frypot Style | Flat Bottom |
| Height (in) | 25.3 |
| Hertz | 50/60 |
| kW | 11.5-15.3 |
| NEMA | 15-50P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 124 |
| Oil Capacity/Fryer (lb) | 124 |
| Phase | 3 |
| Product | Automatic Donut Machine |
| Product Type | Cooking Equipment |
| Series | Donut Robot® |
| Voltage | 208/220 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 54 |
| Weight | 150.00 |
