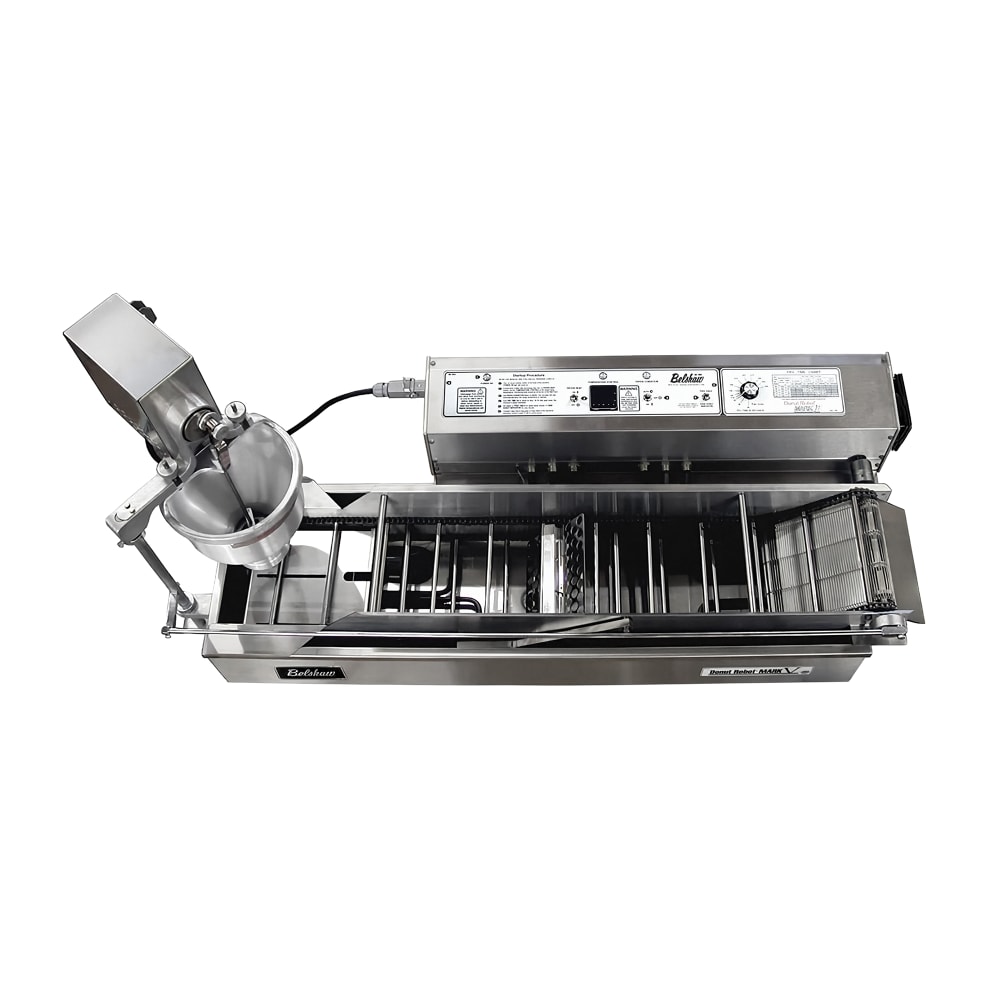

Belshaw MARK V Donut Robot® Electric Donut Fryer - (1) 72 3/5 lb Vat, 208-240v/1ph
Retail Price: $17,869.00
$17,868.11 /Each
Belshaw MARK V Description
The flat-bottom frypot on the Belshaw MARK V Donut Robot® electric donut fryer is designed to give each batch of donuts an even, reliable fry. Its 10-gallon kettle holds 72.6 pounds of oil, reducing the need for refills. Built with stainless steel and aluminum, the fryer also cleans up easily and stands up to daily use.
Capable of making 528 donuts every hour, the Belshaw MARK V Donut Robot electric donut fryer offers steady production for busy kitchens. It comes with a depositor and star plunger. Frying times can be adjusted, and the batter weight dial makes it simple to change donut sizes when needed.
- Donut Robot series
- Compatible with Belshaw’s Insider ventless cabinet
- Also known as 22652
- 10-gal. (72.6-lb.) oil capacity
- 528 standard-size donuts per hour capacity
- Stainless steel kettle with flat bottom frypot
- 10-lb. batter capacity
- Stainless steel and aluminum body with aluminum hopper
- Donut Robot depositor and star plunger included
- Conveyor flight bars spaced 3 3⁄4 in. from center to center
- Electronic temperature controller
- Adjustable frying time dial
- High-durability, low watt-density heating element
- High temperature safety limit switch
- Batter weight adjustment dial provides donut size variation (about 20%)
- Mini donut hopper/plunger kit and accessories sold separately
- Overall dimensions: 52 in. W x 21 in. D x 25 in. H
- 33-38 A, 6.9-9.1 kW
- 208-240 V/50-60 Hz/1 ph, cord with NEMA 14-50P
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
(22652) Donut Robot® Mark V Automatic Donut Machine, electric, 72.6 lb oil capacity, (44) dozen standard size donuts per hour, adjustable frying time, electronic temperature controller, includes automatic fryer, Donut Robot® depositor, star plunger, stainless steel kettle, stainless steel & aluminum body, aluminum hopper, 208-240v/50/60/1ph, cETLus, NSF
Watch a video about this product
Belshaw MARK V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Belshaw |
| Also Known As | 22652 |
| Amps | 33-38 |
| Baskets | 0 |
| Depth (in) | 21 |
| Food Type | Battered |
| Frypot Style | Flat Bottom |
| Height (in) | 25 |
| Hertz | 50/60 |
| kW | 6.9-9.1 |
| NEMA | 14-50P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 72.6 |
| Oil Capacity/Fryer (lb) | 72.6 |
| Phase | 1 |
| Product | Automatic Donut Machine |
| Product Type | Cooking Equipment |
| Series | Donut Robot® |
| Voltage | 208/240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 52 |
| Weight | 150.00 |
