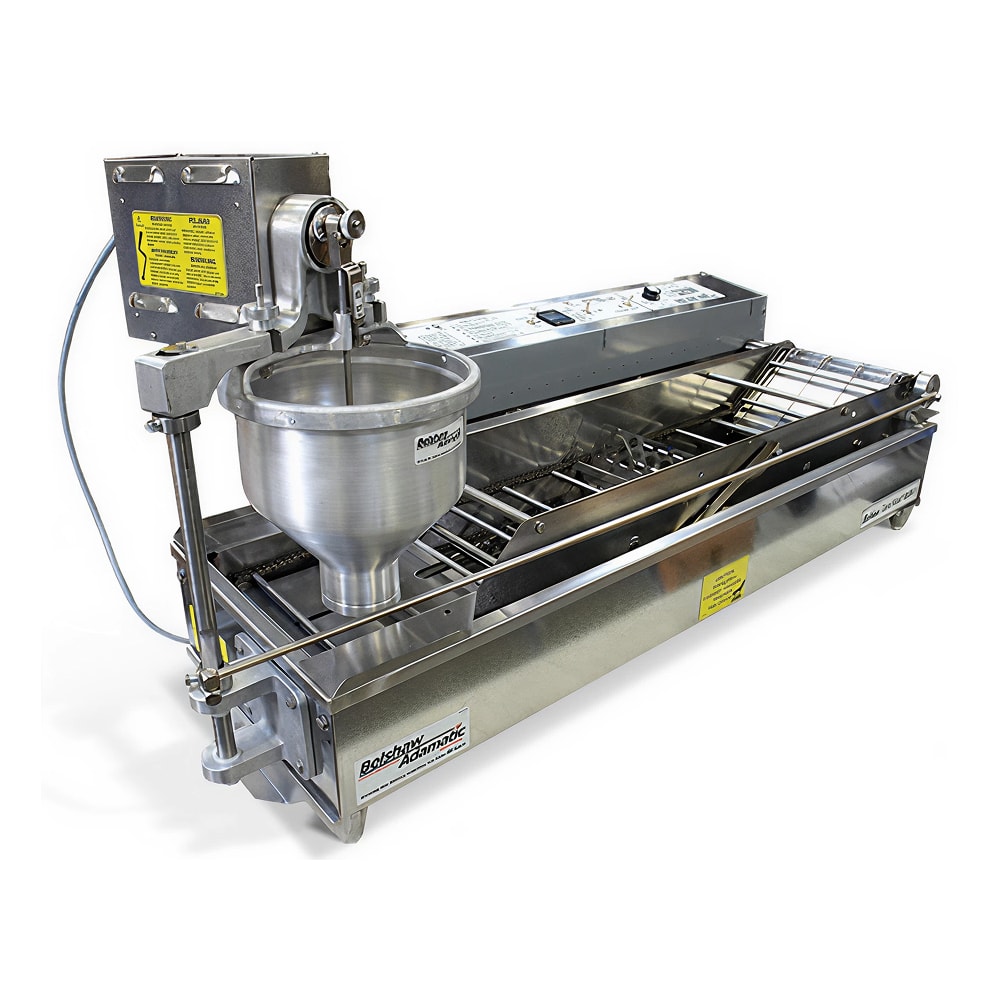

Belshaw MARK V Donut Robot® Electric Donut Fryer - (1) 72 3/5 lb Vat, 208-240v/1ph
Typically ships in 2 - 3 weeks
Retail Price: $17,869.00
$17,868.11 /Each
Belshaw MARK V Description
The Belshaw MARK V Donut Robot® electric donut fryer has a plain plunger, giving operators the ability to form uniform standard ring donuts with ease. Conveyor flight bars spaced at 3 3⁄4 inches carry each piece evenly through hot oil for consistent frying. With a 10-pound hopper capacity, operators can keep batches moving without frequent refills.
The high-durability heating element in the Belshaw MARK V Donut Robot electric donut fryer provides reliable performance during long runs while keeping oil steady. A built-in safety limit switch offers added protection, while the fryer’s compact footprint makes it easier to fit in tight spaces. Fully compatible with Belshaw’s Insider ventless cabinet, it works smoothly in locations without built-in ventilation.
Product Details
- Donut Robot series
- Compatible with Belshaw’s Insider ventless cabinet
- Also known as 22650
- 10-gal. (72.6-lb.) oil capacity
- 528 standard-size donuts per hour capacity
- Stainless steel kettle with flat bottom frypot
- Stainless steel and aluminum body with aluminum hopper
- 10-lb. batter capacity
- Donut Robot depositor and plain plunger included
- Conveyor flight bars spaced 3 3⁄4 in. from center to center
- Electronic temperature controller
- Adjustable frying time dial
- High-durability, low watt-density heating element
- High temperature safety limit switch
- Batter weight adjustment dial provides donut size variation (about 20%)
- Mini donut hopper/plunger kit and accessories sold separately
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
(22650) Donut Robot® Mark V Automatic Donut Machine, electric, 72.6 lb oil capacity, (44) dozen standard size donuts per hour, adjustable frying time, electronic temperature controller, includes automatic fryer, Donut Robot® depositor, plain plunger, stainless steel kettle, stainless steel & aluminum body, aluminum hopper, 208-240v/50/60/1ph, cETLus, NSF
Watch a video about this product
Belshaw MARK V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Belshaw |
| Also Known As | 22650 |
| Amps | 33-38 |
| Baskets | 0 |
| Depth (in) | 21 |
| Food Type | Battered |
| Frypot Style | Flat Bottom |
| Height (in) | 25 |
| Hertz | 50/60 |
| kW | 6.9-9.1 |
| NEMA | 14-50P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 72.6 |
| Oil Capacity/Fryer (lb) | 72.6 |
| Phase | 1 |
| Product | Automatic Donut Machine |
| Product Type | Cooking Equipment |
| Series | Donut Robot® |
| Voltage | 208/240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 52 |
| Weight | 150.00 |
