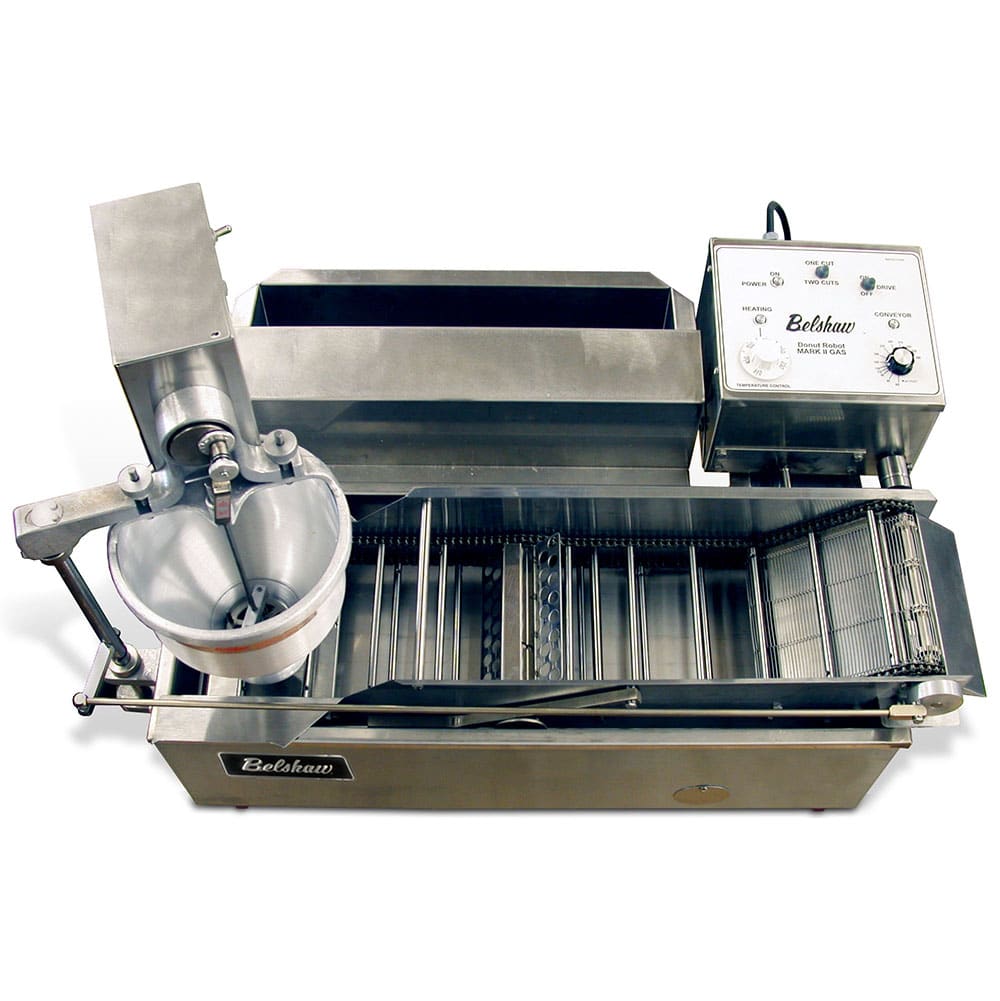

Belshaw MARK II GP GAS Donut Robot® Gas Mini Donut Fryer - (1) 49 2/5 lb Vat, Liquid Propane
Retail Price: $20,512.00
$20,510.97 /Each
Belshaw MARK II GP GAS Description
The Belshaw MARK II GP GAS Donut Robot® fryer is powered by a high-durability heating system that runs on LP gas, giving it the strength to maintain steady oil temperatures throughout long shifts. That consistency means donuts fry evenly without constant monitoring. Its flat-bottom frypot, sturdy stainless steel and aluminum body, and 10-pound hopper all add to its reliability in everyday use.
Made for mini donuts, the Belshaw MARK II GP GAS Donut Robot fryer can turn out as many as 1,224 pieces per hour. A double plunger drops four donuts at a time, while the conveyor moves them smoothly through the oil for dependable results. With adjustable frying times and a batter weight dial, operators can easily adjust donut size and finish.
- Donut Robot series
- Also known as 22503
- 6.6-gal. (49.4-lb.) oil capacity
- 1,224 mini donuts per hour capacity
- Stainless steel and aluminum body with aluminum hopper
- 10-lb. batter hopper capacity
- Stainless steel kettle with flat bottom frypot
- Automatic cake donut depositor with synchronized conveyor
- Double plunger included, deposits 4 mini donuts per row
- Conveyor flight bars spaced 3 in. from center to center
- Adjustable frying time and thermostat temperature control
- Automatic turning and dispensing of donuts
- Batter weight adjustment dial provides size variation (about 20%)
- High temperature safety limit switch
- High-durability heating system powered by LP gas with electric conveyor
- Filter-Flo Siphon (Item #DR42-1048), Roto-Cooler (Item #22104), Shortening Reserve Tank (Item #MKV-1012), and FT42 Feed Table with trays/cloths for yeast-raised donuts sold separately
- Overall dimensions: 41 in. W x 23 in. D x 30 in. H
- 3 A, 0.36 kW
- 120 V/50-60 Hz/1 ph, NEMA 5-15P plug with cord
- Heated by LP gas
- 35,000 BTU
- 1/2-in. NPT female gas connection
- 11–14 in. W.C. pressure requirement
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
(22503) Donut Robot® Mark II GP Automatic Donut Machine, LP gas, 49.4 lb oil capacity, (102) dozen mini donuts per hour, gas heated with electric conveyor, adjustable frying time & temperature, includes automatic donut machine, Donut Robot® depositor, double plunger, stainless steel kettle, stainless steel & aluminum body, aluminum hopper, 35,000 BTU, cLCus, NSF
Watch a video about this product
Belshaw MARK II GP GAS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Belshaw |
| Also Known As | 22503 |
| Amps | 3 |
| Baskets | 0 |
| BTU per Fryer | 35000 |
| Depth (in) | 23 |
| Food Type | Battered |
| Frypot Style | Flat Bottom |
| Gas Type | LP |
| Height (in) | 30 |
| Hertz | 50/60 |
| kW | 0.36 |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 49.4 |
| Oil Capacity/Fryer (lb) | 49.4 |
| Phase | 1 |
| Product | Automatic Donut Machine |
| Product Type | Cooking Equipment |
| Series | Donut Robot® |
| Voltage | 120 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 41 |
| Weight | 150.00 |
