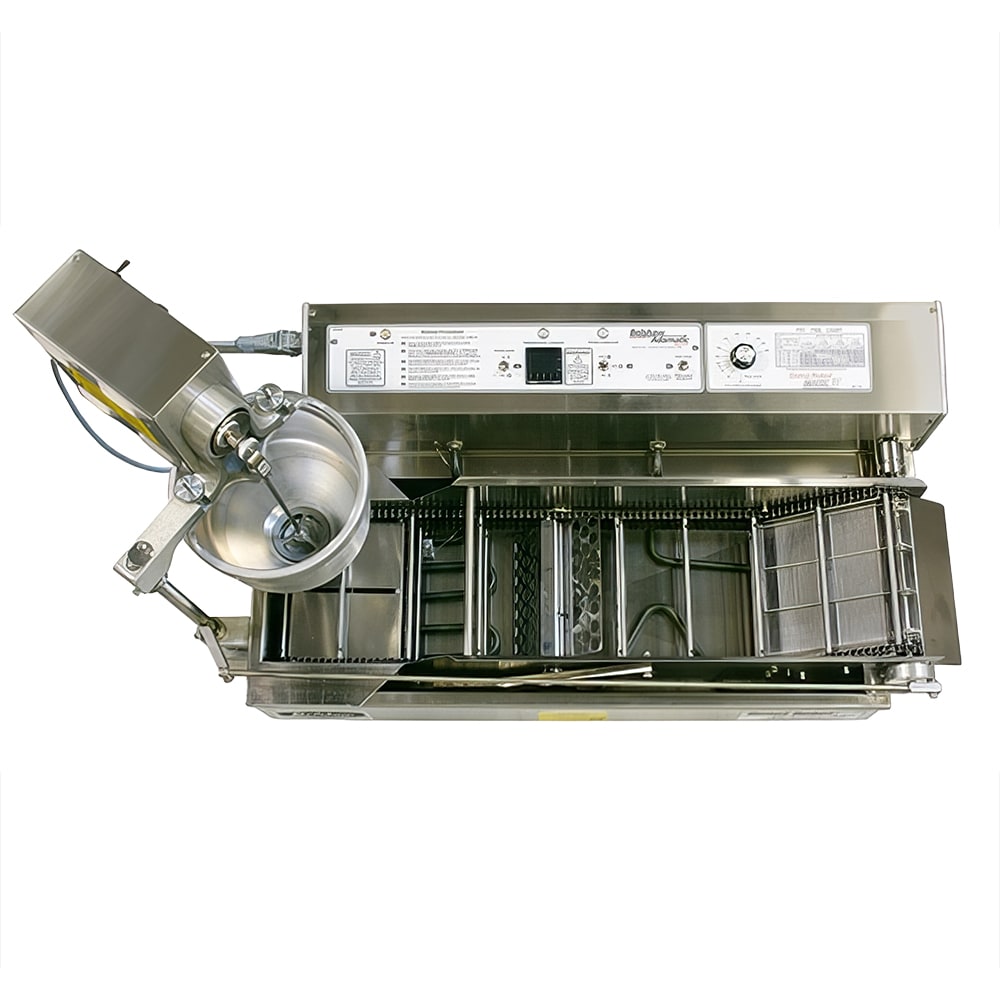

Belshaw MARK II Donut Robot® Electric Donut Fryer - (1) 50 lb Vat, 208-240v/1ph
Retail Price: $14,218.00
$14,217.29 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Belshaw MARK II Description
Outfitted with a 10-pound hopper and star plunger, the Belshaw MARK II 22601 Donut Robot® automatic donut machine feeds batter into its fryer, where a flight bar conveyor system guides each piece through the oil. With an output of 30 dozen standard donuts per hour, this model supports consistent mid-volume production. Its stainless steel and aluminum body resists high-heat stress, and the compact 41-inch-wide by 21-inch-deep by 25-inch-high design conserves space in tight kitchens.
The Belshaw MARK II 22601 donut machine includes a built-in depositor and kettle to automate donut production from start to finish. Its electronic temperature controller ensures accurate heat regulation, while the frying time dial and batter weight adjustment dial provide control over texture and consistency. The 50-pound oil capacity accommodates extended frying periods between refills. A half-speed switch adapts output as needed, and the high-temperature safety limit switch protects internal components during operation.
- Donut Robot series
- Produces 30 dozen standard donuts per hour
- Stainless steel and aluminum construction
- 50-lb. oil capacity
- 10-lb. hopper with star plunger
- Fryer
- Depositor
- Conveyor with flight bar system
- Electronic temperature controller
- Batter weight adjustment dial
- Frying time dial
- Half-speed switch
- High-temperature safety limit switch
- 41 in. W x 21 in. D x 25 in. H
- 21–24 A, 4400–5800 W
- 208–240 V/50/60 Hz/1 ph, cord with NEMA 14-30P
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
(22601) Donut Robot® Mark II Automatic Donut Machine, electric, 50 lb oil capacity, (30) dozen standard size donuts per hour, adjustable frying time, electronic temperature controller, includes automatic fryer, Donut Robot® depositor, star plunger, stainless steel kettle, stainless steel & aluminum body, aluminum hopper, 208-240v/50/60/1ph, cETLus, NSF
Watch a video about this product
Belshaw MARK II Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Belshaw |
| Also Known As | 22601 |
| Amps | 21-24 |
| Baskets | 0 |
| Depth (in) | 21 |
| Food Type | Battered |
| Frypot Style | Flat Bottom |
| Height (in) | 25 |
| Hertz | 50/60 |
| kW | 4.4-5.8 |
| NEMA | 14-30P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 50 |
| Oil Capacity/Fryer (lb) | 50 |
| Phase | 1 |
| Product | Automatic Donut Machine |
| Product Type | Cooking Equipment |
| Series | Donut Robot® |
| Voltage | 208/240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 41 |
| Weight | 150.00 |
