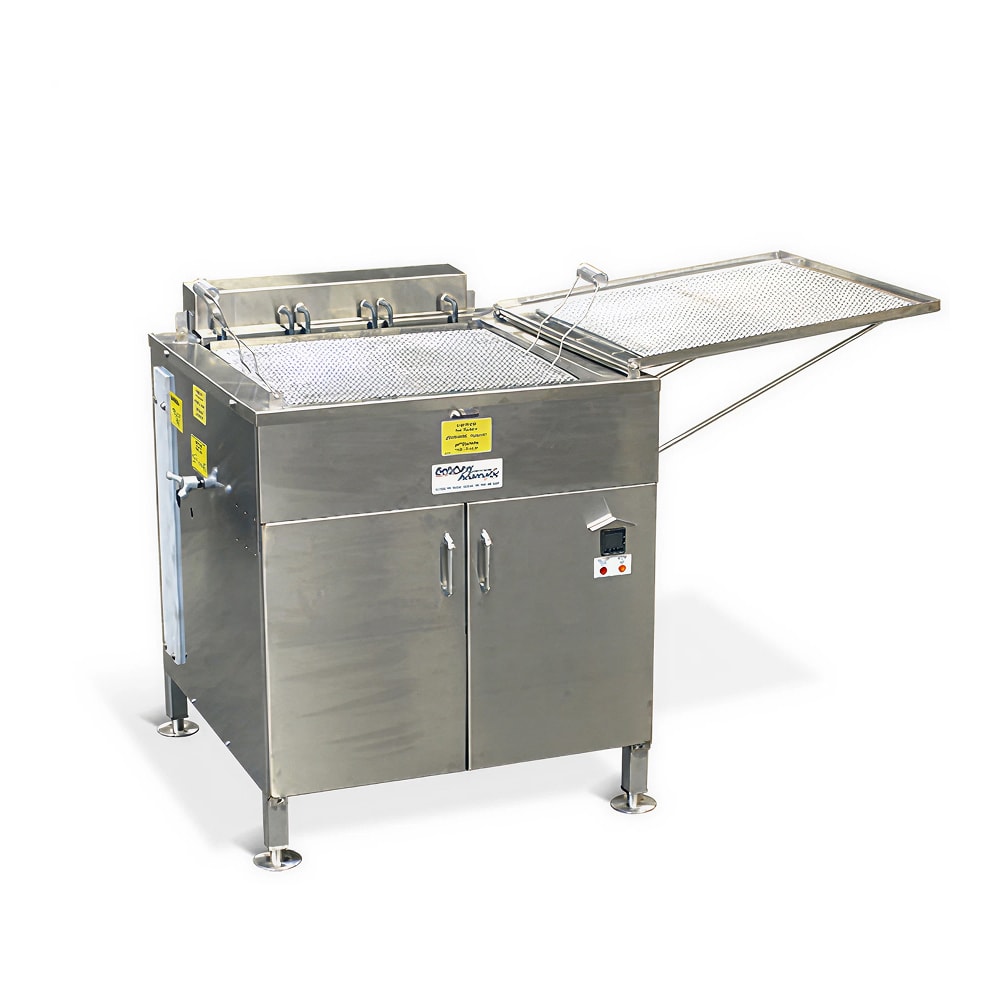

Belshaw 624 Electric Donut Fryer - (1) 96 lb Vat, Floor Model, 208-240v/3ph
Retail Price: $10,764.00
$10,763.46 /Each
Selected Voltage: 208-240V, 3 Phase
| 208-240V, 3 Phase |
| 208-240V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Belshaw 624 Description
The Belshaw 624 600-series stainless steel donut fryer's two frying screens support smooth lifting and transfer during each frying cycle. Designed with a 24-inch by 24-inch fry area, it holds 96 pounds of shortening, while its electronic temperature controller provides accurate heat regulation. The drain tray keeps surfaces clean, and an exterior drain valve and tilt-up elements improve access for maintenance and emptying used oil. Measuring 56 inches wide by 36 inches deep by 40 inches high, this floor unit stands on adjustable bolt-down legs for level setup.
- 600-series
- Floor model
- 96-lb. shortening capacity
- Stainless steel construction
- Electronic temperature controller
- Tilt-up elements
- Exterior drain valve control
- Drain tray
- 2 frying screens with bolt-on handles
- Adjustable, bolt-down legs
- Fry area: 24 in. W x 24 in. D
- Overall: 56 in. W x 36 in. D x 40 in. H
- 39-45 A, 14,100-18,700 W
- 208-240 V/50-60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
(21259-10) Open Kettle Donut Fryer, electric, floor model, 96 lb shortening capacity, 24" x 24" fry area, electronic temperature controller, tilt-up elements, exterior drain valve control, (2) frying screens with bolt-on handles, stainless steel tank, cabinet & drain tray, adjustable, bolt-down legs, 208-240v/50/60/3ph, 14.1-18.7kW, 39-45 amps, UL, NSF
Watch a video about this product
Belshaw 624 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Belshaw |
| Also Known As | 21259-10 |
| Amps | 39-45 |
| Baskets | 0 |
| Depth (in) | 36 |
| Food Type | Battered |
| Frypot Style | Flat Bottom |
| Heat | Electric |
| Height (in) | 40 |
| Hertz | 50/60 |
| kW | 14.1-18.7 |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 96 |
| Oil Capacity/Fryer (lb) | 96 |
| Phase | 3 |
| Product | Electric Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | 600-series |
| Voltage | 208/240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 56 |
| Weight | 248.00 |
