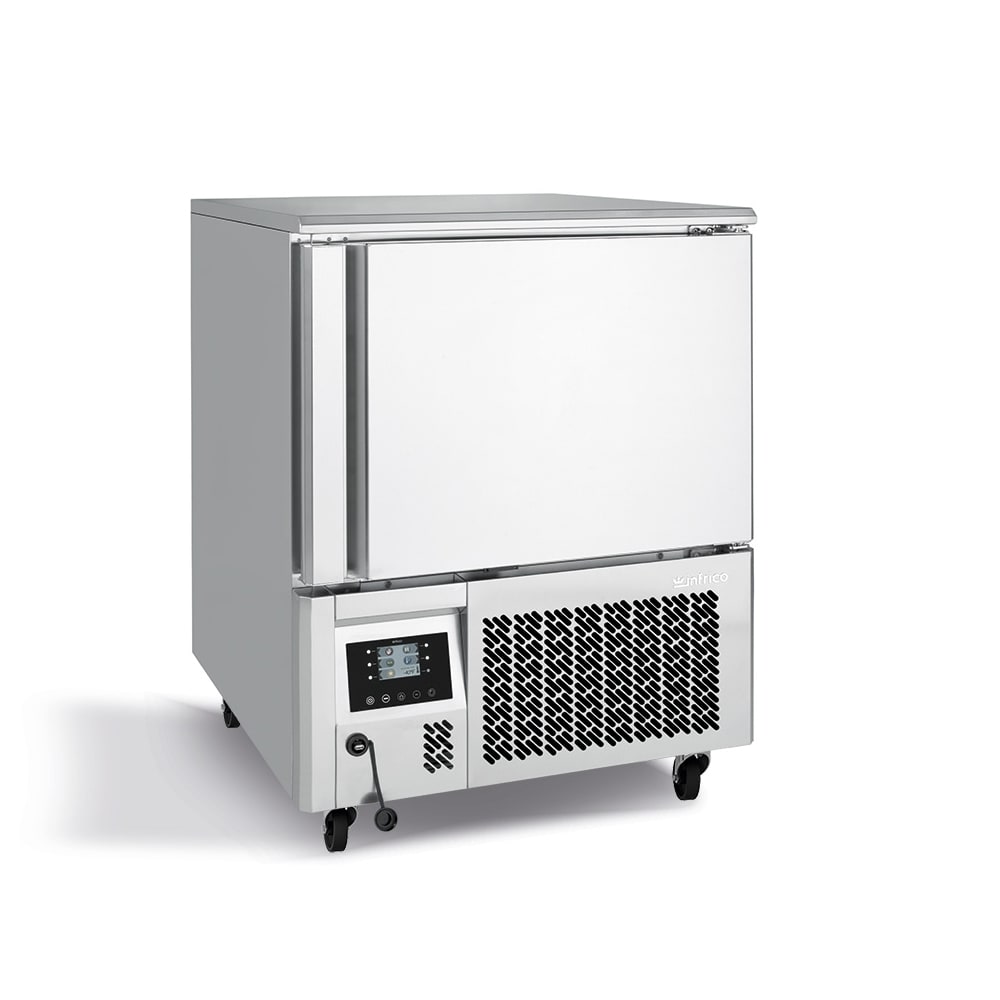

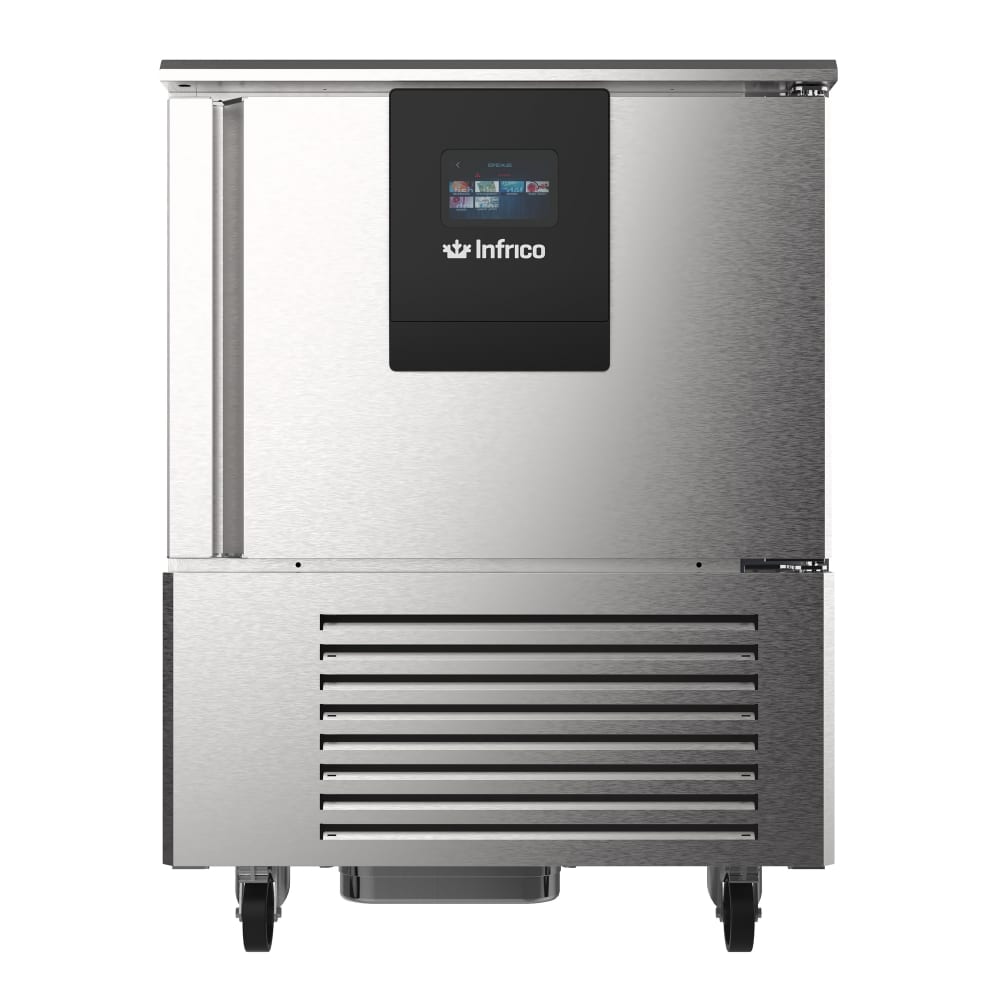

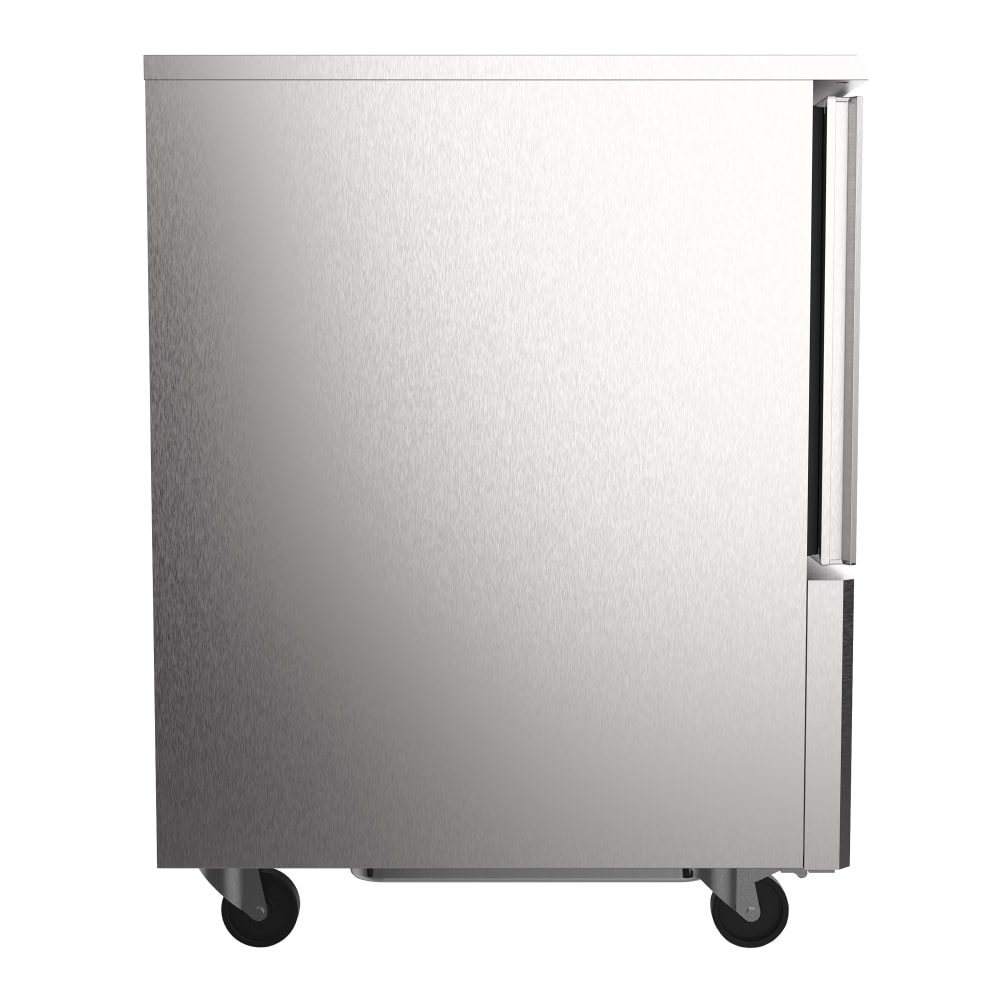

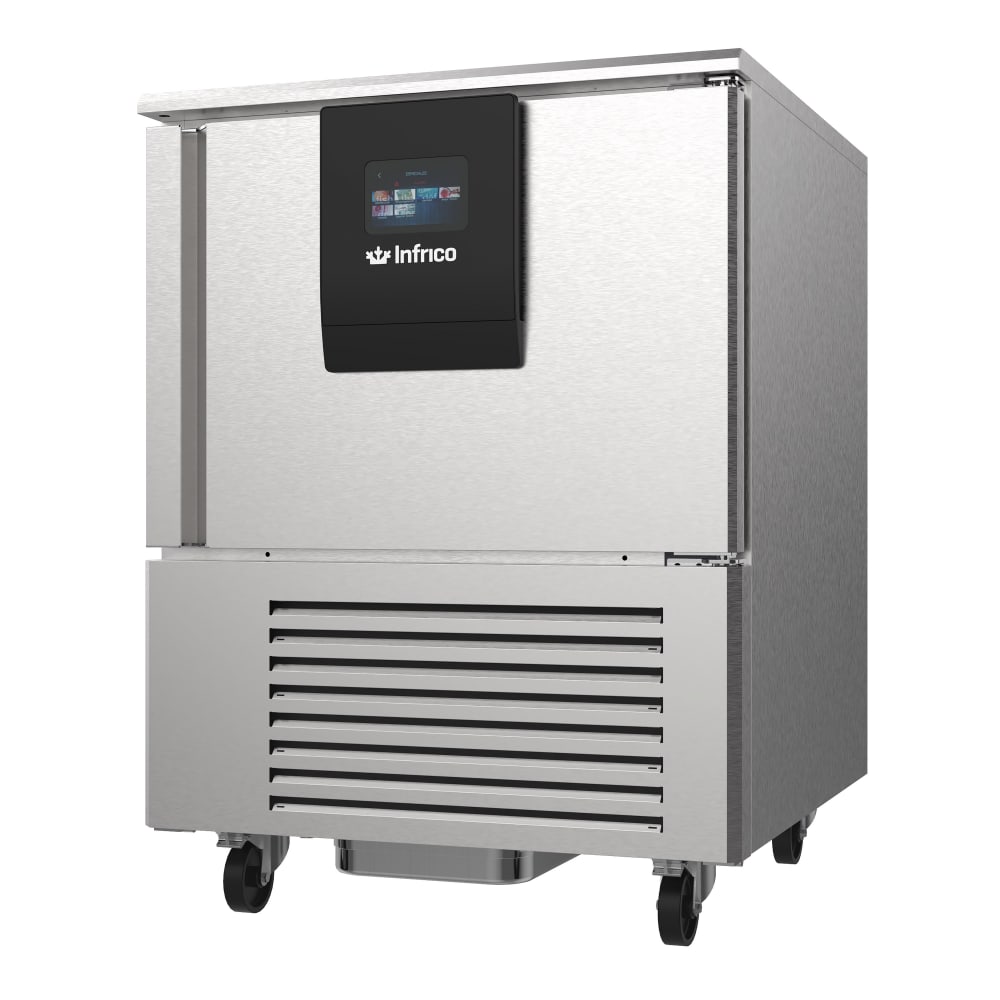

Infrico IBC-ABT71L 33" Undercounter Blast Chiller/Shock Freezer - (7) Pan Capacity, 115v/1ph

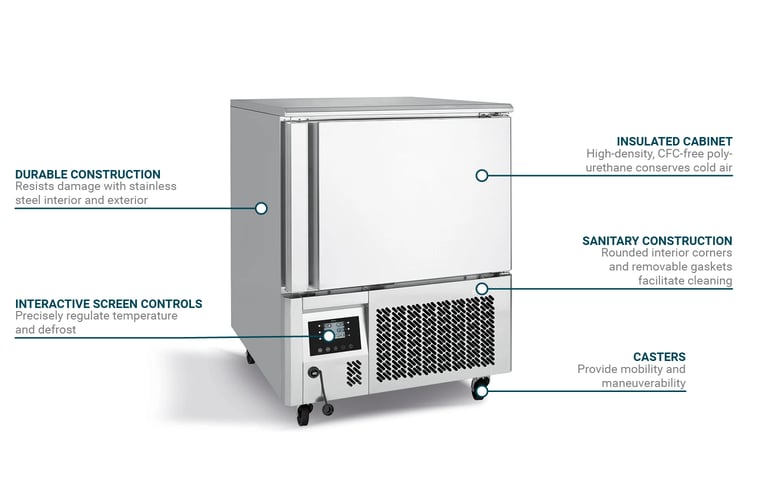

The Infrico IBC-ABT71L undercounter blast chiller and shock freezer is made of stainless steel for the durability needed for a long service life. This undercounter unit sits on four casters for mobility and easy placement. The blast chiller’s door is mounted on stainless steel heavy-duty hinges, and it's equipped with a heated frame to prevent ice build-up. The door self-closes to maintain internal temperatures and has a stay-open feature for easy product removal. It comes with seven food trays and features an interactive control panel and menu for simple operation.

The inside of the Infrico IBC-ABT71L undercounter blast chiller and shock freezer is stainless steel and features sealed internal floors with coved corners for efficient cleaning and sanitizing. The cabinet and steel door are insulated with high density foamed-in-place polyurethane insulation. This unit can quickly chill food products from 194 to 37 degrees Fahrenheit in less than 90 minutes and quickly freeze food products from 194 to 0 degrees Fahrenheit in less than four hours.

Product Details

• Blast chiller
• 304 stainless steel construction
• Sealed internal floors and coved corners
• Internal drain
• Heated conical probe
• Foamed in place high-density polyurethane insulation
• Polyurethane insulated door
• Solid door with self-closing and stay-open features
• Stainless steel heavy-duty hinges
• Triple chamber, snap in door gaskets
• Field-reversible doors
• Heated door frame
• 7 stainless steel trays
• Interactive screen control and menu

Refrigeration System

• Forced-air refrigeration
• Evaporator coil coated in anti-corrosive material
• Manual defrost during cycles and automatic defrost
• Control panel
• Blast chilling: 194 to 37 degrees F in 90 minutes
• Blast freezing: 194 to 0 degrees F in 4 hours

Dimensions & Utilities

• Overall: 33 in. W x 34¹/₈ in. D x 45¹/₄ in. H
• Trays: 23⁵/₈ in. W x 15 ³/₄ in. D
• 115 V/60 Hz/1 ph withNEMA 5-20P plug

Product Features

From The Manufacturer

Blast Chiller & Shock Freezer, 66 / 40 lbs. capacity, compatible with (7) 12"x20"/18"x26" pans (not included), Interactive control panel with USB connection, bottom mounted self-contained refrigeration, 300 series stainless steel exterior & interior, chilling temperature range +194° F to +37° F in less than 90 minutes, freezing temperature range +194° F to - 0° F in less than 4 hours, stainless steel adjustable legs, (Compressor: 1-1/4 HP), (Controllers: 115v/60/1), 12.3 amps, cord, NEMA 5-20P, ETL, NSF 7

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

3-year Parts & Labor; 6-year Compressor Parts

Infrico IBC-ABT71L Specifications

Documents

Spec Sheet

Warranty

Certifications
