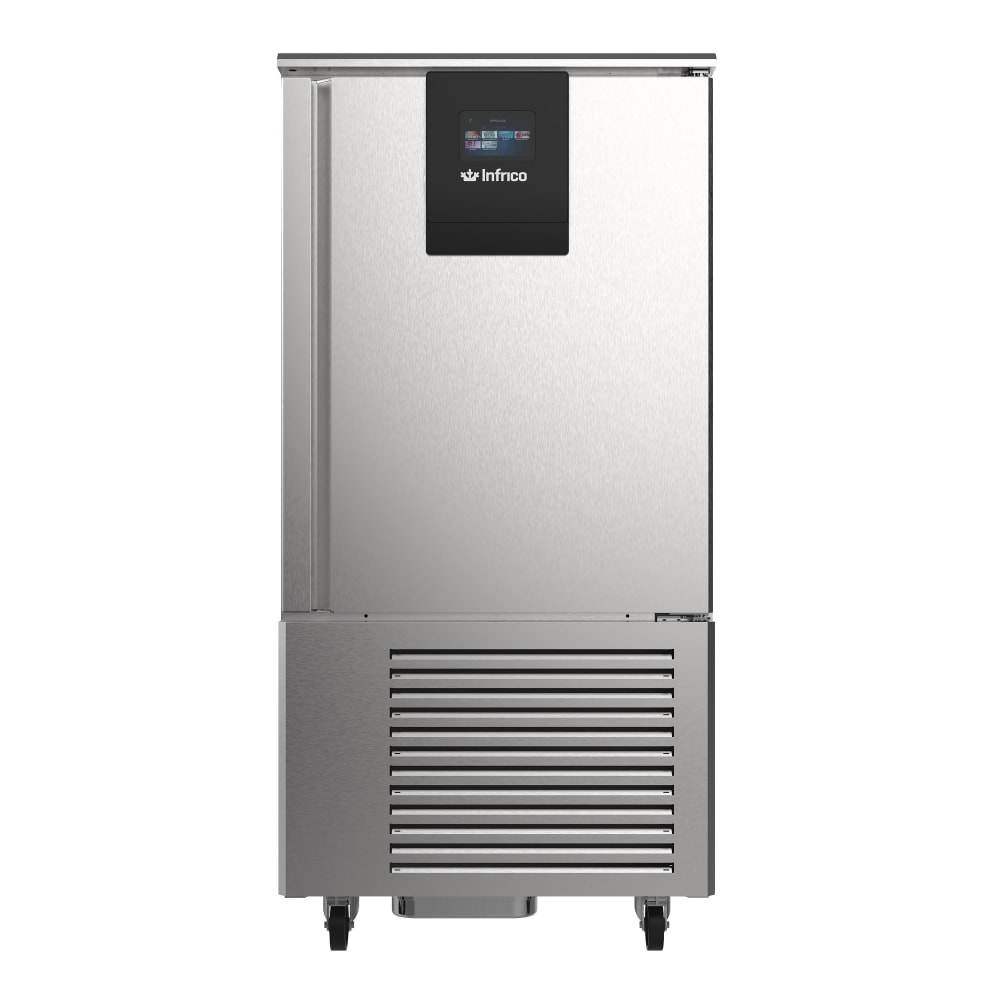

Infrico IBC-ABT141L 33" Floor Model Blast Chiller/Shock Freezer - (14) Pan Capacity, 115/230v/1ph

The Infrico IBC-ABT141L floor model blast chiller and shock freezer measures 33 inches wide by 34¹/₈ inches deep by 68¹/₂ inches high. It holds 132 pounds for chilling and 88 pounds for freezing, and the cycles are operated through the simple-to-read control panel. This unit has a holding range of -40 degrees Fahrenheit to preserve cooked and fresh consumables, and its forced-air system uses R404A refrigerant for environmentally friendly operation. The evaporator coil is finished in polyester to minimize corrosion, and automatic and manual defrost cycles ensure integral components don’t frost over to hinder the unit’s operation.

Inside the Infrico IBC-ABT141L blast chiller and shock freezer is a one-section space capable of holding 14 stainless steel trays; these shelves are secured inside with the assistance of a solid self-closing and stay-open door. The interior is foamed with high-density polyurethane and constructed with a polyurethane insulated door. A one-piece gasket attached to the door promises a reliable fit to the body, while the door frame heats periodically so the door doesn’t freeze to this blast chiller and shock freezer duo. It sits on 4-inch casters for maneuvering about most commercial kitchen floor plans.

Product Details

• From the ABT series
• 14 stainless steel trays
• 132-lb. chilling/88-lb. freezing capacity
• 1 solid self-closing door with stay-open feature
• Heavy-duty stainless steel hinges
• Triple-chamber, snap-in door gaskets
• Heated frame minimizes frost accumulation
• Interactive control panel with USB connection
• 300-series stainless steel exterior and interior
• Sealed interior floors and rounded cabinet corners
• Internal drain plugs eases cleaning processes
• CFC-free polyurethane insulation
• 4-in. casters

Refrigeration System

• Control panel with simple-to-read screen
• Manual and automatic defrost processes
• Evaporator coil finished in anti-corrosive material
• Drain-through plastic tray
• Temperature holding range: -40 degrees F
• Forced-air system uses R404A refrigerant

Dimensions & Utilities

• 33 in. W x 34¹/₈ in. D x 68¹/₂ in. H
• 5.6-18 A, 2¹/₂ HP
• 115-230 V/60 Hz/1 ph, NEMA L14-30P plug

Product Features

From The Manufacturer

Blast Chiller & Shock Freezer, 132 lb. chilling / 88 lb. freezing capacity, compatible with (14) 12"x20"/18"x26" pans (not included), Interactive control panel with USB connection, bottom mounted self-contained refrigeration, 300 series stainless steel exterior & interior, chilling temperature range +194° F to +37° F in less than 90 minutes, freezing temperature range +194° F to - 0° F in less than 4 hours, 4" casters (locks on front set), 2-1/2 HP, CE, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

3-year Parts & Labor; 6-year Compressor Parts

Infrico IBC-ABT141L Specifications

Documents

Spec Sheet

Warranty

Certifications
