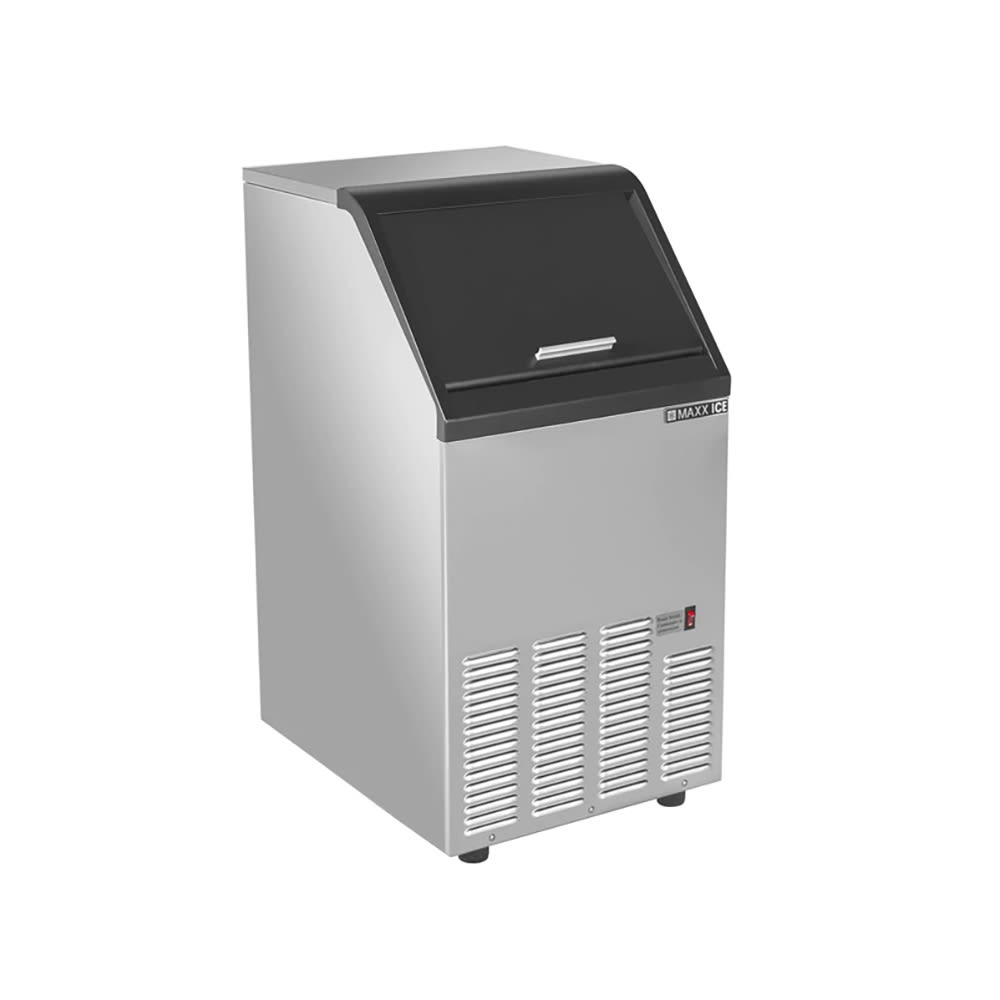

Maxx Ice MIM85H 16 7/10"W Half Cube Undercounter Ice Machine - 88 lbs/day, Air Cooled, Gravity Drain, 120v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$1,619.99 /Each
Maxx Ice MIM85H Description
Constructed of stainless steel, the Maxx Ice MIM85H full cube undercounter ice maker is simple to clean and matches existing commercial equipment, while its black lid sports a handle for quick opening. Its storage bin holds 25 pounds of ice at once, and the ice machine can make approximately 88 pounds of full-cube ice a day. Its air-cooled compressor keeps the machine cool and runs on R-134a refrigerant. To boost hygiene measures, the bin is lined with polyethylene and features a built-in self-cleaning mode, and this unit includes adjustable legs and an ice scoop.
For simple set up, the Maxx Ice MIM85H has a self-contained condenser that requires installation with a gravity drain. It has a programmable digital control system to conveniently monitor and regulate the machine's production status. Overall, this model measures 16 7⁄10 inches wide by 21 inches deep by 32 7⁄10 inches high; it performs best in ambient temperatures between 50 to 100 degrees Fahrenheit.
- Produces half-dice cubes
- Half-dice cube size: 7⁄8 in. W x 1⁄2 in. D x 7⁄8 in. H
- Daily ice production: 88 lbs.
- 25-lb. built-in storage capacity
- Polyethylene storage bin liner
- Air-cooled compressor
- Self-contained condenser
- Stainless steel construction with black plastic trim
- Adjustable legs
- R-134A refrigerant
- Programmable, solid state digital control system
- Built-in self-cleaning mode
- Scoop included
- Ambient temperature air range: 50-100 degrees F
- Water temperature range: 41-90 degrees F
- Uses 21 gal. of water per 100 lb. of ice
- 3⁄8-in. FPT water supply connection
- Water pressure range: 15-75 PSI and 1-5.5 bar
- Requires 2-in. clearance from wall for optimal cooling air circulation
- Requires gravity drain line
- Water filter recommended
- 16 7⁄10 in. W x 21 in. D x 32 7⁄10 in. H
- 11.96 kWh per 100 lbs of ice, 3.8-4.7 A
- 115 V/60 Hz/1ph with NEMA L14-20 plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Maxx Ice MIM85H within the 48 contiguous states.
From The Manufacturer
Ice Maker With Bin, cube-style (half dice), air-cooled, self-contained condense, approximately 88 lb. production/24 hours, 25 lb. built-in storage capacity, slab cube ice type, polyethylene storage bin liner, stainless steel construction, adjustable legs, R134a refrigerant, cETLus, ETL-Sanitation
Maxx Ice MIM85H Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Maxx Ice |
| 24 Hr. Production (lb) | 88 |
| Bin Capacity (lb) | 25 |
| Compressor Type | Air Cooled |
| Depth (in) | 21 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 32.7 |
| Hertz | 60 |
| Ice Type | Half Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Good |
| Refrigerant | R134a |
| Series | MIM Series |
| Special Features | Digital Controls |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor; 5-year Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 16.7 |
| Weight | 104.00 |
